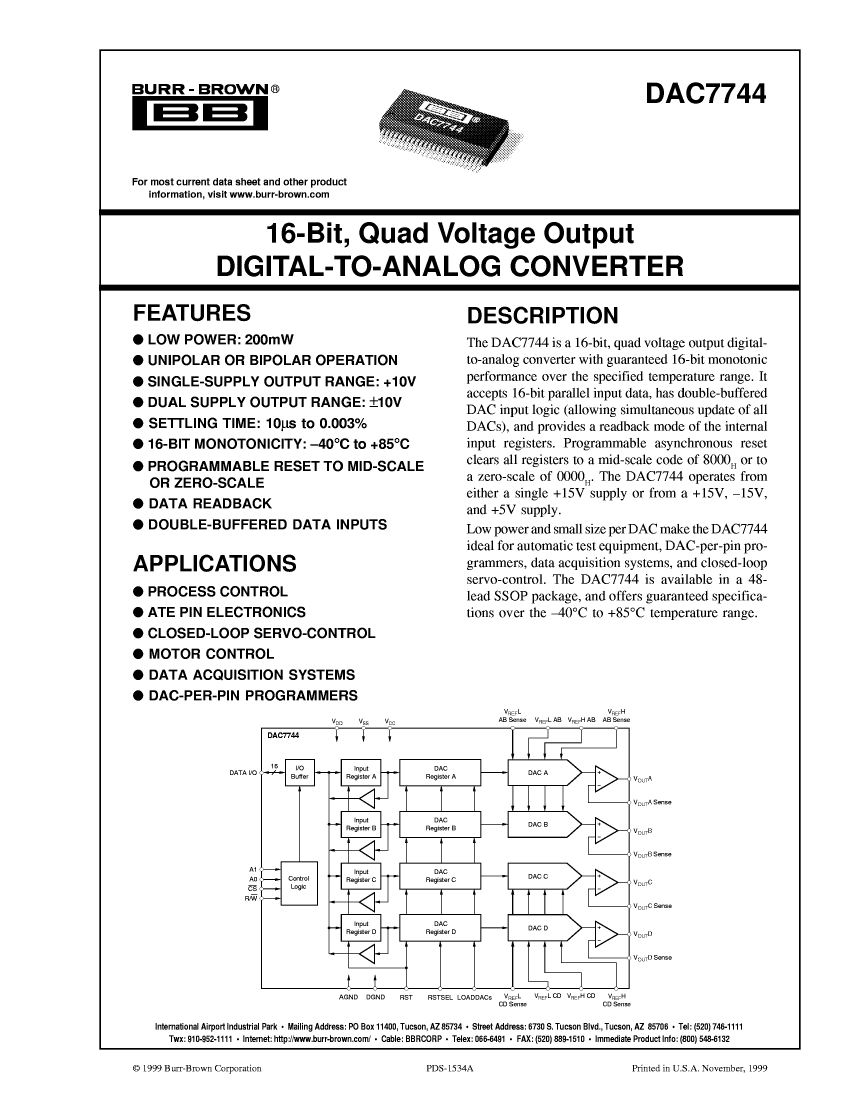

D/A Converter, 1 Func, Parallel, Word Input Loading, 9us Settling Time, PDSO48, SSOP-48

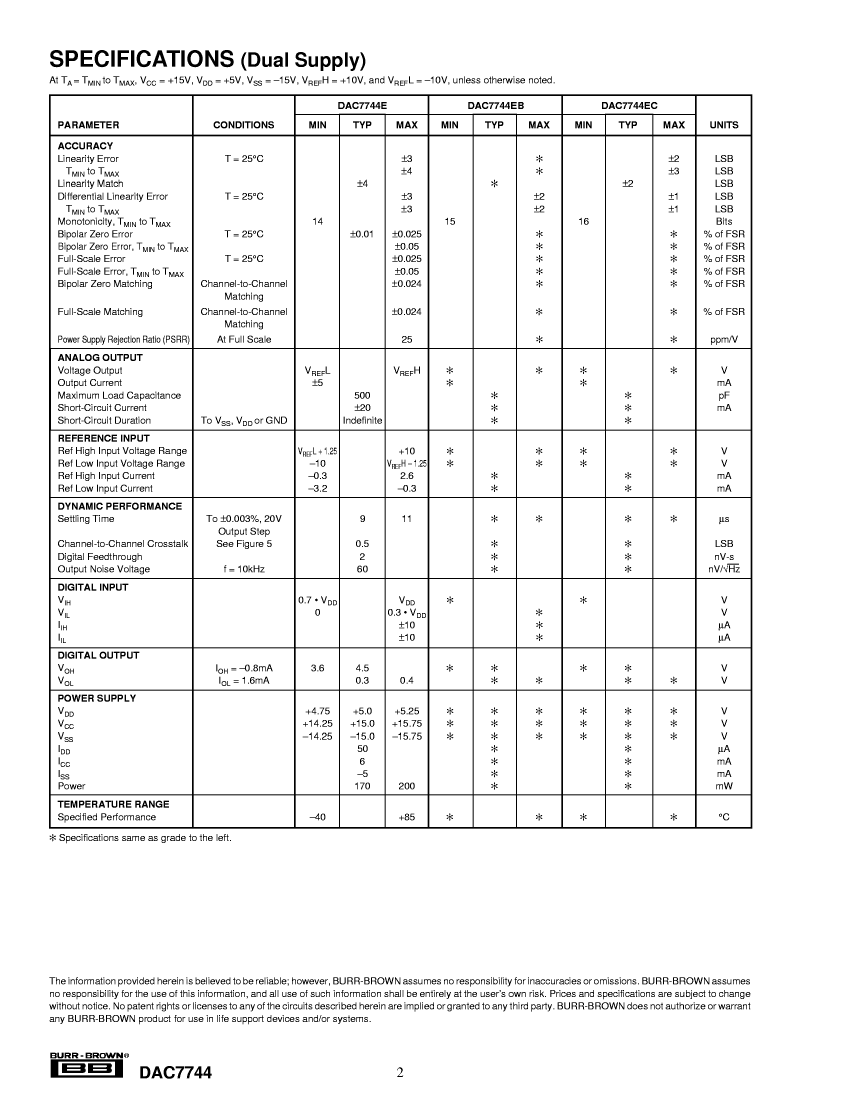

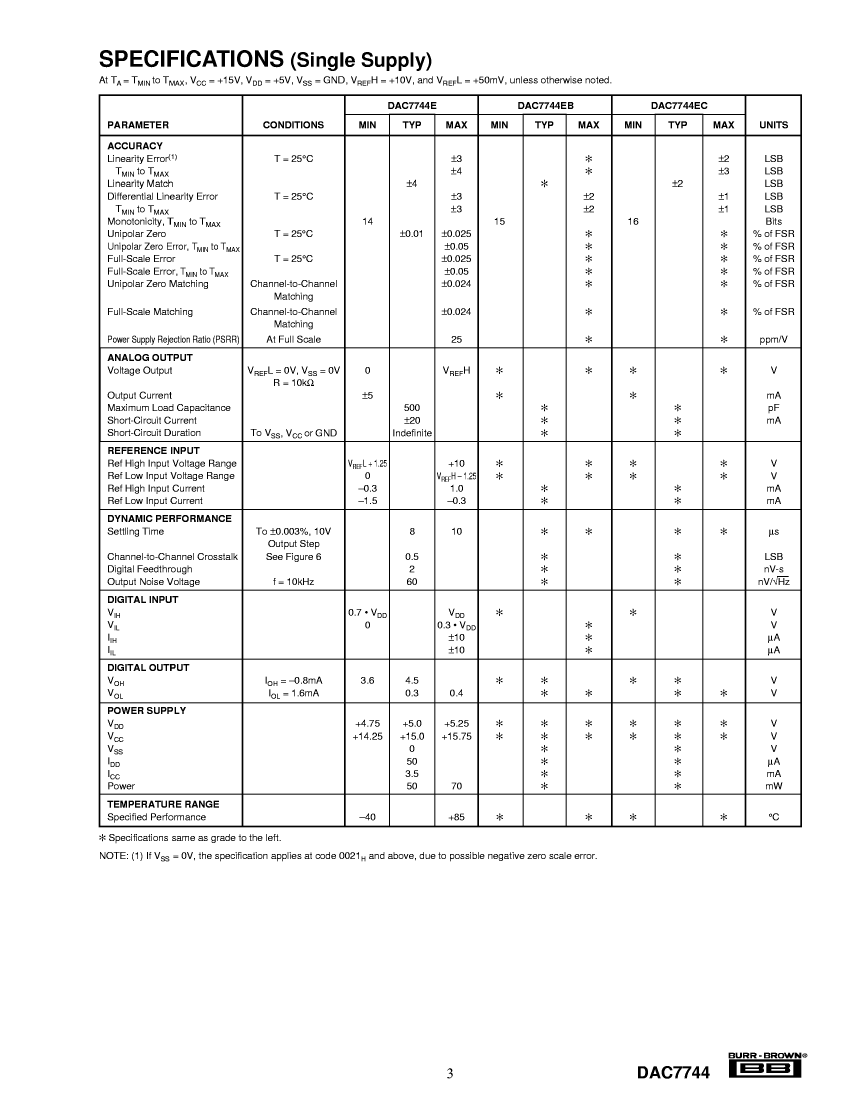

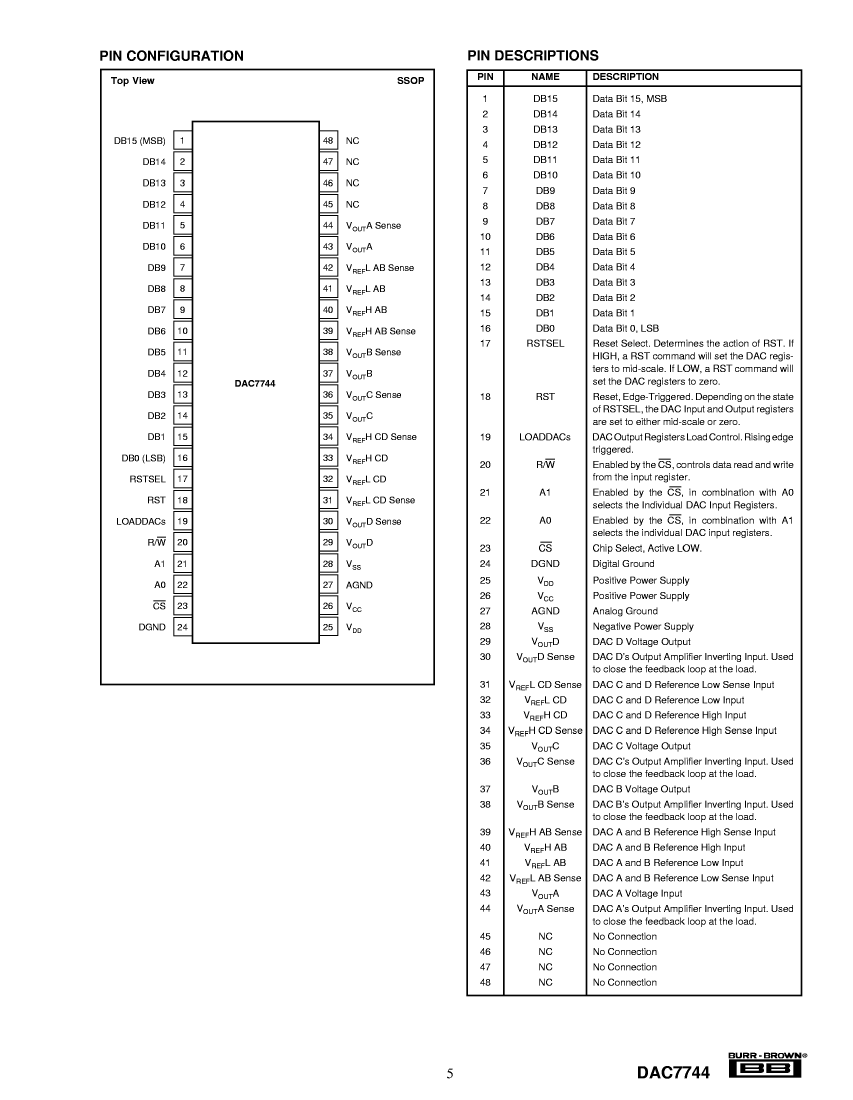

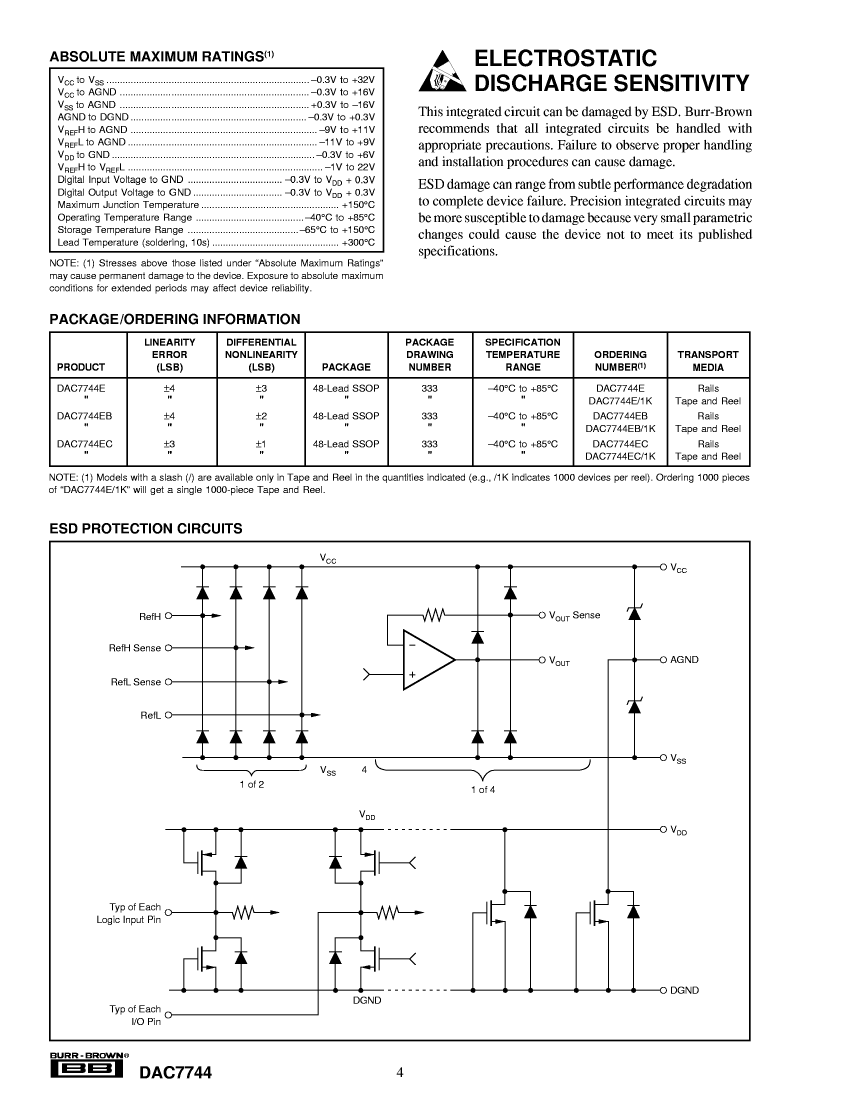

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Burr-Brown |
| package instruction | SSOP-48 |
| Reach Compliance Code | unknown |
| Maximum analog output voltage | 10 V |
| Minimum analog output voltage | -10 V |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY |
| Input format | PARALLEL, WORD |
| JESD-30 code | R-PDSO-G48 |
| JESD-609 code | e0 |
| Maximum linear error (EL) | 0.0046% |
| Nominal negative supply voltage | -15 V |
| Number of digits | 16 |
| Number of functions | 1 |
| Number of terminals | 48 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Encapsulate equivalent code | SSOP48,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 5,15/+-15 V |
| Certification status | Not Qualified |
| Maximum stabilization time | 11 µs |
| Nominal settling time (tstl) | 9 µs |
| Nominal supply voltage | 15 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| DAC7744EC/1K | DAC7744E/1K | DAC7744EB/1K | |
|---|---|---|---|
| Description | D/A Converter, 1 Func, Parallel, Word Input Loading, 9us Settling Time, PDSO48, SSOP-48 | D/A Converter, 1 Func, Parallel, Word Input Loading, 9us Settling Time, PDSO48, SSOP-48 | D/A Converter, 1 Func, Parallel, Word Input Loading, 9us Settling Time, PDSO48, SSOP-48 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Burr-Brown | Burr-Brown | Burr-Brown |
| package instruction | SSOP-48 | SSOP-48 | SSOP-48 |
| Reach Compliance Code | unknown | unknown | unknown |
| Maximum analog output voltage | 10 V | 10 V | 10 V |
| Minimum analog output voltage | -10 V | -10 V | -10 V |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY | BINARY | BINARY |
| Input format | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD |
| JESD-30 code | R-PDSO-G48 | R-PDSO-G48 | R-PDSO-G48 |
| JESD-609 code | e0 | e0 | e0 |
| Maximum linear error (EL) | 0.0046% | 0.0061% | 0.0061% |
| Nominal negative supply voltage | -15 V | -15 V | -15 V |
| Number of digits | 16 | 16 | 16 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 48 | 48 | 48 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | SSOP | SSOP |
| Encapsulate equivalent code | SSOP48,.4 | SSOP48,.4 | SSOP48,.4 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| power supply | 5,15/+-15 V | 5,15/+-15 V | 5,15/+-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum stabilization time | 11 µs | 11 µs | 11 µs |
| Nominal settling time (tstl) | 9 µs | 9 µs | 9 µs |
| Nominal supply voltage | 15 V | 15 V | 15 V |
| surface mount | YES | YES | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.635 mm | 0.635 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 |
