1512565W3D: DescriptionSingle Color LED, White, Diffused, ROHS COMPLIANT PAVKAGE-1; CategoryLED optoelectronic/LED photoelectric; File Size107KB，1 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric Compare View All

1512565W3D Overview

Single Color LED, White, Diffused, ROHS COMPLIANT PAVKAGE-1

1512565W3D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Chicago Miniature
package instruction	ROHS COMPLIANT PAVKAGE-1
Reach Compliance Code	unknown
Is Samacsys	N
color	WHITE
Configuration	SINGLE
Maximum forward current	0.008 A
Lens type	DIFFUSED
Nominal luminous intensity	400.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	ROUND
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

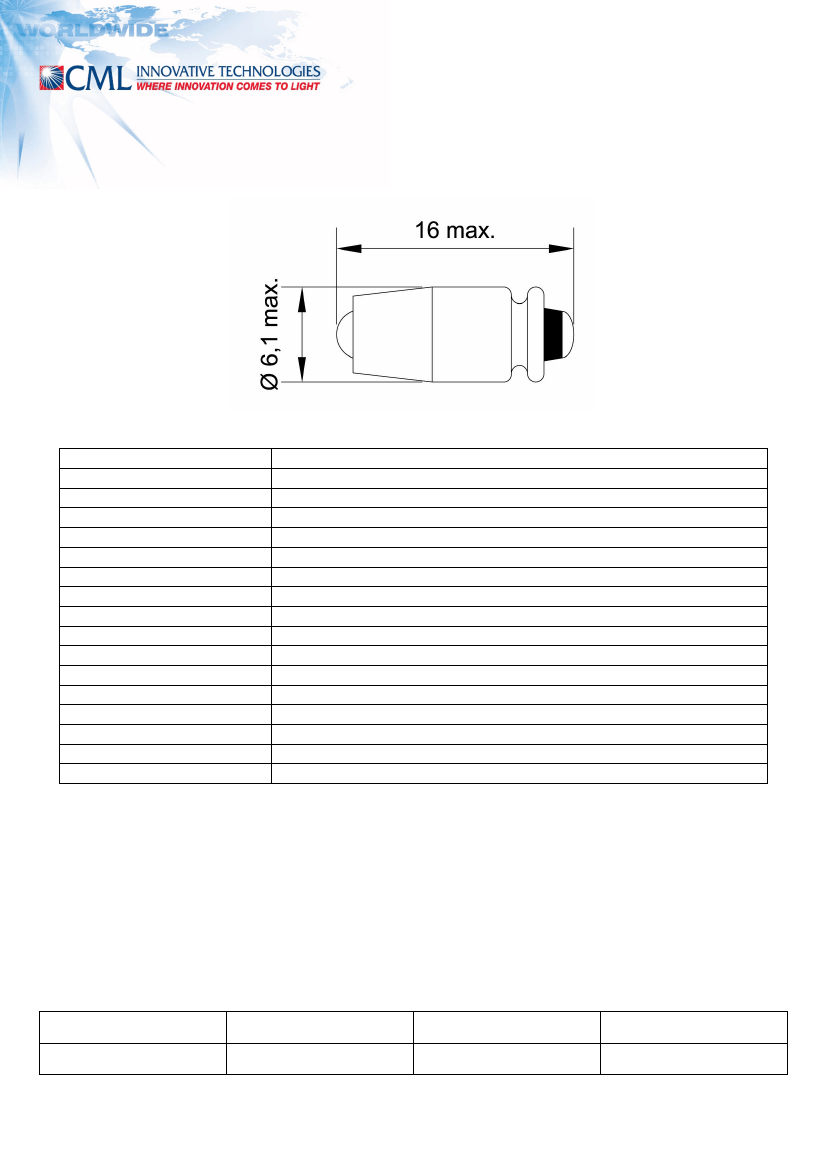

Part Number : 1512565W3D

Serial Number : 15125

Based LEDs

Based LED type

Size (inch)

Size (mm)

Housing size

Base

Chip number

Chip color

Wavelengh (mA)

Op. voltage (V)

Rectifier

AC current

DC current

Type lv DC current

Voltage tolerance (%)

Op. temperature (°C)

Storage temperature (°C)

ROHS Status

StarLED

T-1 3/4

T6

6.1x16mm

MG

1

white diffused

0.31 / 0.33

48

Half Wave

4

8

400

10%

-20°C...+60°C

-25°C...+80°C

Yes

Drawn : DIL

Revision :

Ch'd : DIL

Revision date : 2006-03-06

Datasheet : 15125

Name : DIL

Print date : 06/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
