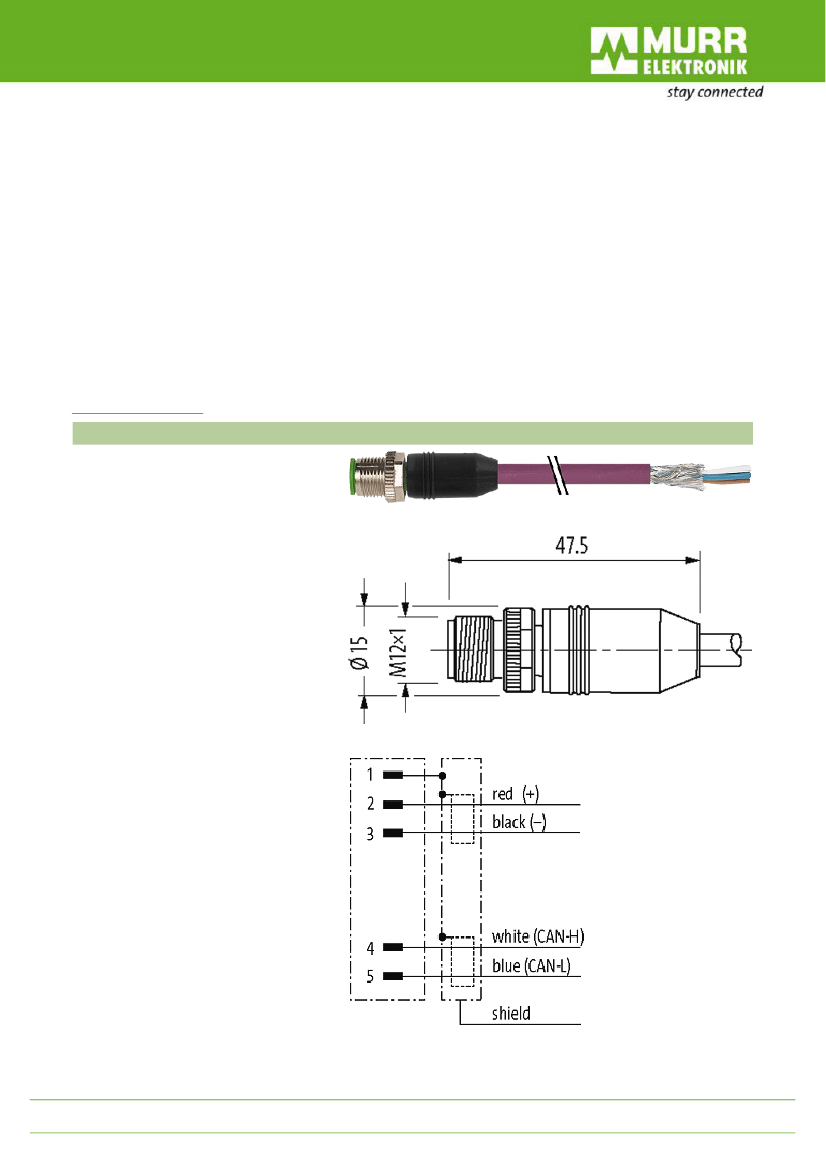

INT ERNET DAT A SHEET for Article Number 7000-13105-8032500
M12 male 0° wit h cable DeviceNet
PUR AWG24+AWG22 shielded vt UL/CSA+drag ch. 25m
DeviceNet, CANopen
Male straight
M12, 5-pole
Plastic housings with good resistance against chemicals and oils. The resistance to
aggressive media should be individually tested for your application. Further details on
request. Further cable lengths on request.
Link t o Product
Illustra tio n
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-13105-8032500
Pro d uc t may d iffe r fro m Imag e
Appro va ls
* only for products with UL/CSA approved cable
cCSAus
Mo re Inf o
Fo rm
Fo rm
Ca bles
No ./d iameter o f wires
Wire iso latio n
Material (jacket)
Outer Ø
Bend rad ius (mo ving )
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Cab le id entificatio n
Ap p ro val (cab le)
Cab le weig ht [g /m]
Material (wire)
Resisto r (co re)
Diameter (co re)
2×0.25 + 2×0.34 mm²
PE (rd , b k), (b l, wh)
PUR (UL/CSA)
6.9 mm ±5%
10 × o uter Ø
-40...+80 °C
-30...+70 °C
803
UL (AWM-Style 20233/10578), CSA; CE
63,12
Cu wire, tin p lated
max. 78
Ω/km
(d ata p air, max. 54
Ω/km
(p o wer p air); (20 °C)
2×0.25 + 2×0.34 mm²
13105
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-13105-8032500
AWG
Wire-Ø incl. iso latio n
Co lo r/numb ering o f wires
Shield
Material (jacket)
Outer-Ø (jacket)
Co lo r (jacket)
chemical resistance
thermal resistance
No minal vo ltag e
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Bend rad ius (fixed )
Bend rad ius (mo ving )
T raversing d istance (C-track)
T ravel sp eed (C-track)
Acceleratio n (C-track)
Jacket Co lo r
T ec hnic a l da ta
Op erating vo ltag e
Op erating vo ltag e (o nly UL listed )
Rated surg e vo ltag e
Op erating current p er co ntact
Material g ro up
Co d ing
Lo cking o f p o rts
Co mp ressio n g land
Pro tectio n
Lo cking material
Material
suitab le fo r co rrug ated tub e (internal Ø)
Genera l da ta
Stand ard s
Po llutio n Deg ree
Strip p ing leng th (jacket)
T emp erature rang e
Co m m erc ia l da ta
co untry o f o rig in
custo ms tariff numb er
similar to AWG 24 (0.25 mm² ); similar to AWG 22 (0.34 mm² )
2.1 mm ±5% (0.25 mm² ); 1.5 mm ±5% (0.34 mm² )
wh, b l (d ata p air); b k, rd (p o wer p air)
yes
min. 65%
PUR
6.9 mm ±5%
vio let
g o o d resistance to o il, g aso line and chemicals
flame retard ant
300 V
-40...+80 °C
-30...+70 °C
6 × o uter Ø
10 × o uter Ø
max. 5 m (ho rizo ntal)
max. 3 m/s
max. 5 m/s²
vio let
max. 60 V AC/DC
max. 30 V AC/DC
1.5 kV
max. 4 A
IEC 60664-1, categ o ry I
A-co d ed
Screw thread M12 × 1 mm (reco mmend ed to rq ue 0.6 Nm) self-
securing
M12 (SW13)
IP65, IP66K, IP67 inserted and tig htened (EN 60529)
Zinc d ie casting , matte nickel p lated
PUR
witho ut
DIN EN 61076-2-101 (M12)
3
20 mm
-25...+85 °C, d ep end ing o n cab le q uality
CZ
85444290
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-13105-8032500
EAN
eClass
Packag ing unit
4048879435628
27061801
1
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
