B031-1300-001-Z datasheet, PDF

Datasheet> All Categories > The connector> socket> B031-1300-001-Z

B031-1300-001-Z: DescriptionSocket and Chip Carrier; CategoryThe connector socket; File Size654KB，3 Pages; ManufacturerSMP Technology Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

B031-1300-001-Z Overview

Socket and Chip Carrier

B031-1300-001-Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
JESD-609 code	e3
Manufacturer's serial number	B031
Base Number Matches	1

Preview

Download Datasheet

View All

ELECTRICAL:

CURRENT: 0.5A

VOLTAGE RATING: 50V AC

OPERATING TEMPERATURE: -50° C TO +90° C

HOW TO ORDER:

PACKAGING:

0 - Tray

RoHS COMPLIANT:

NUMBER OF POSITIONS

124

HEIGHT:

COLOR:

3 - 5.60mm

0 - Beige

LATCH:

1 - Black

0 - Plastic Latch

SELECTIVE PLATING:

1 - 5u" Au

2 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: LCP +30% GLASS REINFORCED (UL94V-0)

CONTACT: PHOSPHOR BRONZE, C5210R-SH

METAL: STAINLESS STEEL, JIS SUS304-3/4H

PLATING: SELECTIVE GOLD ON CONTACT AREA;

MATTE TIN (100u” min.) ON SOLDRING AREA:, 50u” NICKEL UNDER PLATE

Rev

Issued

Revised for RoHS Compliance

Revised for Current &Voltage Rating

Added Matte Tin Plating to Solder Area

Revised Selective Plating Options

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

Drawn Checked Approved

Date

10/1/01

SMP TECHNOLOGY, INC.

S.E.

S.M.

11/21/05

G.T.

S.M.

B.S.

S.M.

1/15/07

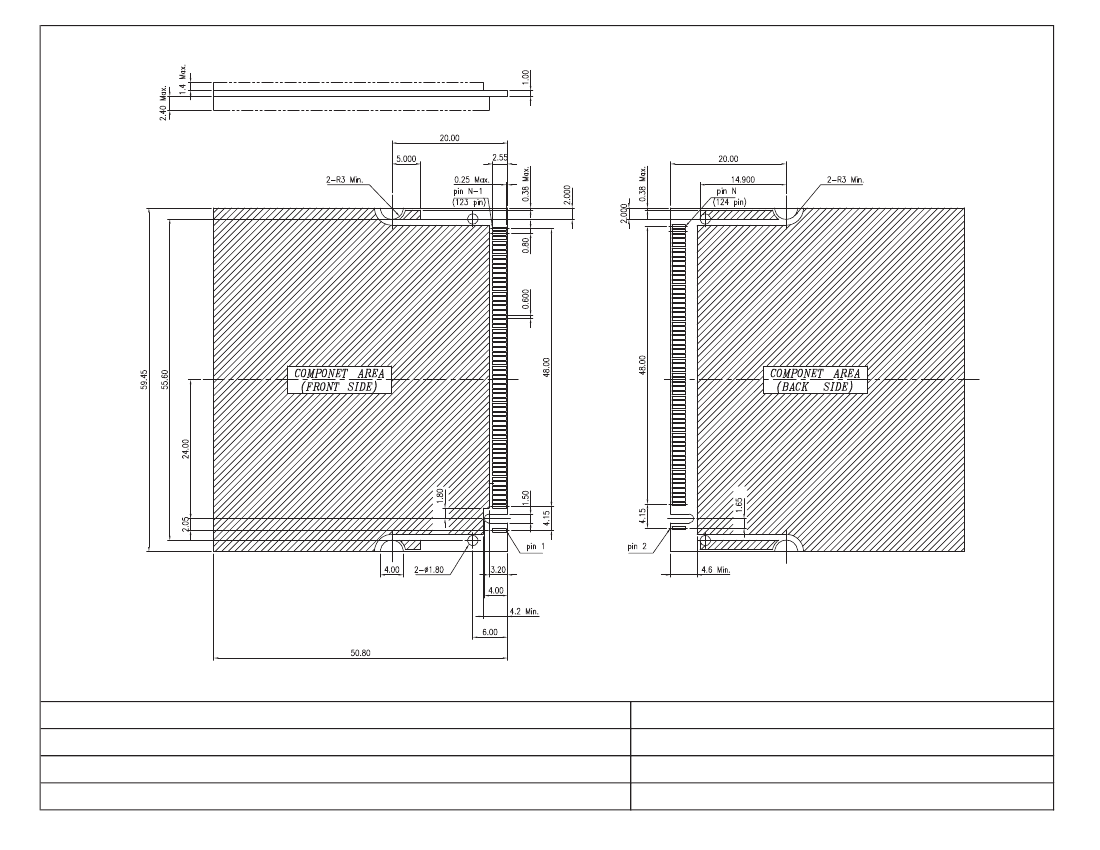

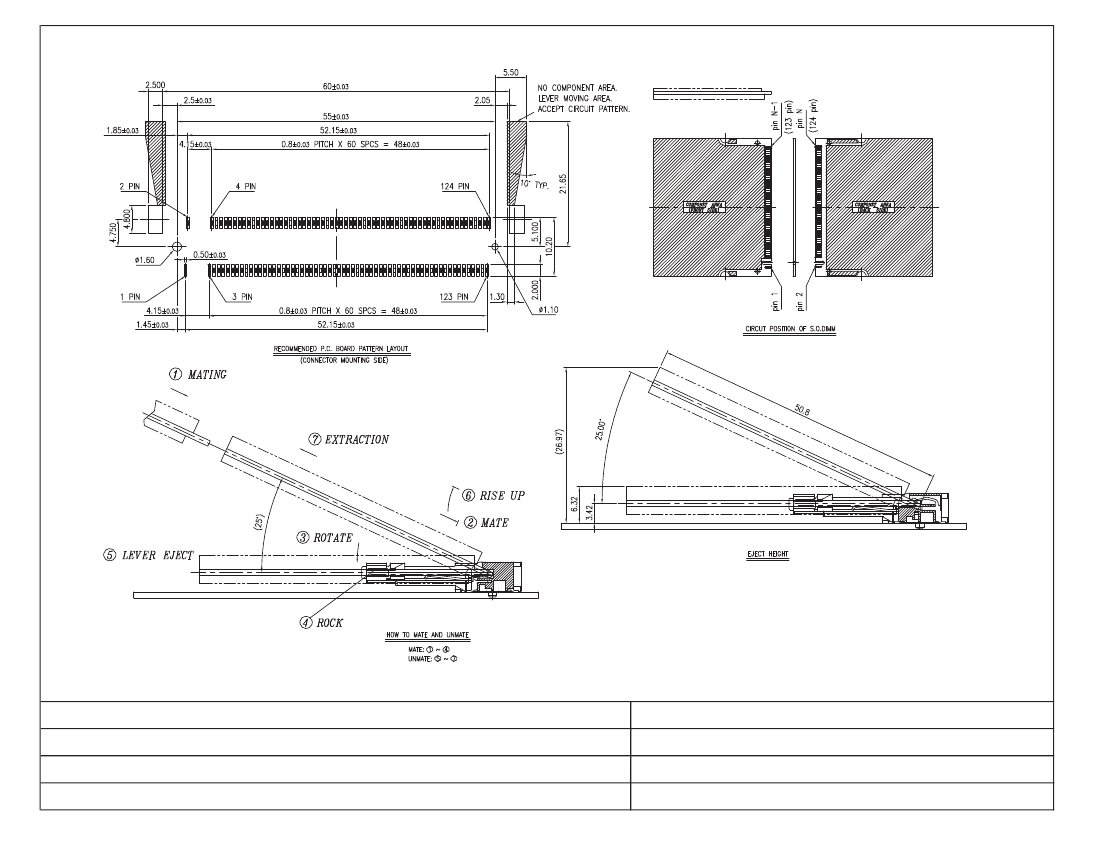

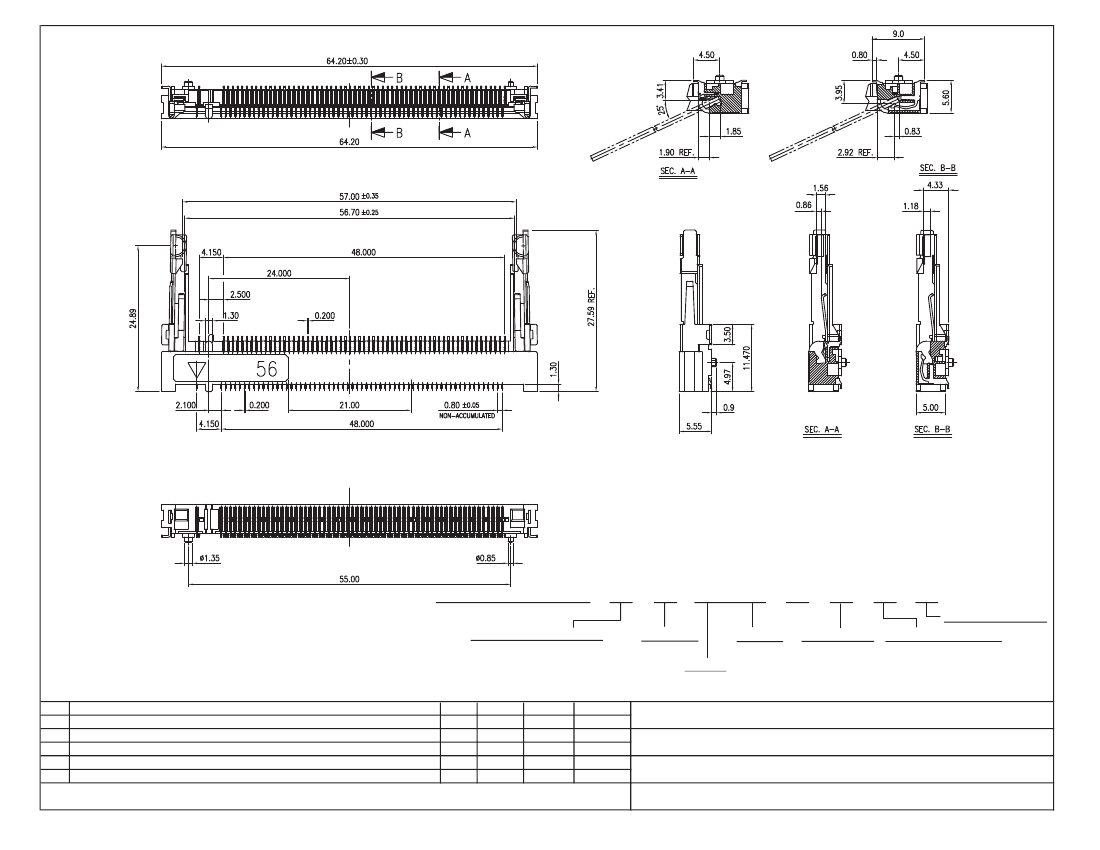

Mini PCI, Fax Modem Socket, 124 Position, Right Angle

B.S.

S.M.

1/08/08

B.S.

S.M.

04/07/09

Surface Mount, 5.60mm Height, Plastic Latch

ANGLE +/-

UNIT: mm

TOL. DEC.

P/N: B031-130X-00X-Z

Pg: 1/3

B031-1300-001-Z Related Products

	B031-1300-001-Z	B031-1300-002-Z
Description	Socket and Chip Carrier	Card Edge Connector, 124 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, Beige Insulator, Receptacle
Maker	SMP Technology Inc.	SMP Technology Inc.
Reach Compliance Code	unknown	unknow
Contact to complete cooperation	NOT SPECIFIED	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	TIN OVER NICKEL
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE
Manufacturer's serial number	B031	B031
