57-10500-79 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 57-10500-79

57-10500-79: DescriptionD Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Lug Terminal, Receptacle; CategoryThe connector The connector; File Size226KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

57-10500-79 Overview

D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Lug Terminal, Receptacle

57-10500-79 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Other features	SCSI TYPE
body width	0.6 inch
body length	3.02 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON CU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	DUAL PRONG
maximum insertion force	2.8356 N
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	77
Plug contact pitch	0.085 inch
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	20u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	50
Evacuation force-minimum value	.7506 N
Base Number Matches	1

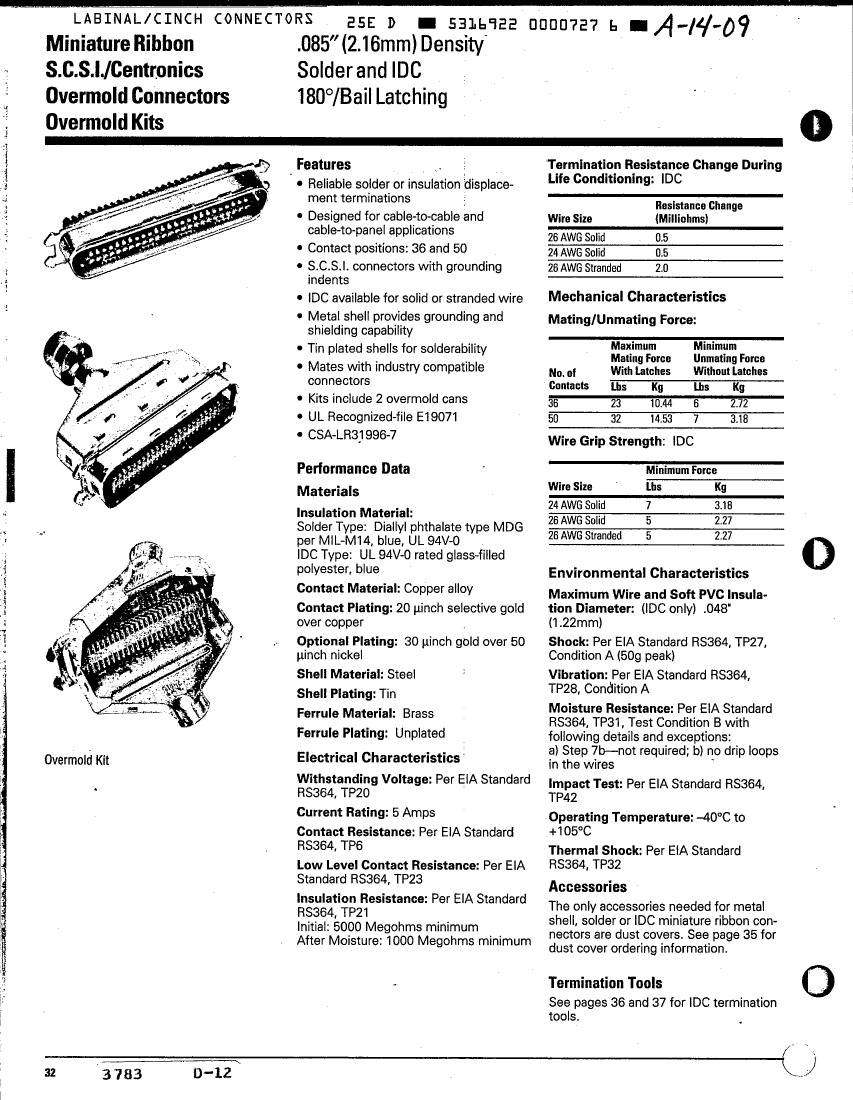

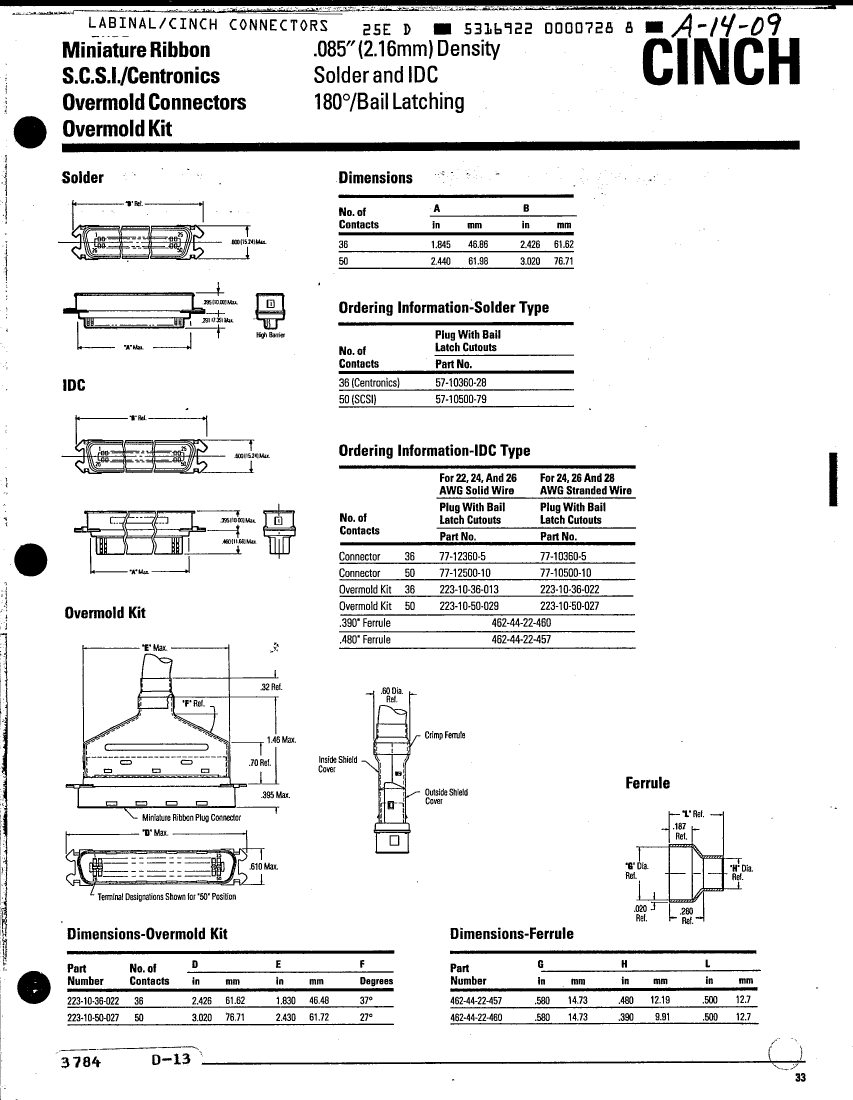

Preview

Download Datasheet

View All

57-10500-79 Related Products

	57-10500-79	57-10360-28	77-10360-5	77-12360-5	77-12500-10
Description	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Lug Terminal, Receptacle	D Type Connector, 36 Contact(s), Male, 0.085 inch Pitch, Solder Lug Terminal, Receptacle	D Type Connector, 36 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle	D Type Connector, 36 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle
Maker	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
body width	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch
body length	3.02 inch	2.426 inch	2.426 inch	2.426 inch	3.02 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON CU	AU ON CU	AU ON CU	AU ON CU	AU ON CU
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
maximum insertion force	2.8356 N	2.8356 N	2.8356 N	2.8356 N	2.8356 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLUE	BLUE
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	77	77	77	77	77
Plug contact pitch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Installation type	PANEL	PANEL	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	20u inch	20u inch	20u inch	20u inch	20u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER LUG	SOLDER LUG	IDC	IDC	IDC
Total number of contacts	50	36	36	36	50
Evacuation force-minimum value	.7506 N	.7506 N	.7506 N	.7506 N	.7506 N
Base Number Matches	1	1	1	1	1
Maximum wire diameter	-	-	24 AWG	22 AWG	22 AWG
Minimum wire diameter	-	-	28 AWG	26 AWG	26 AWG
