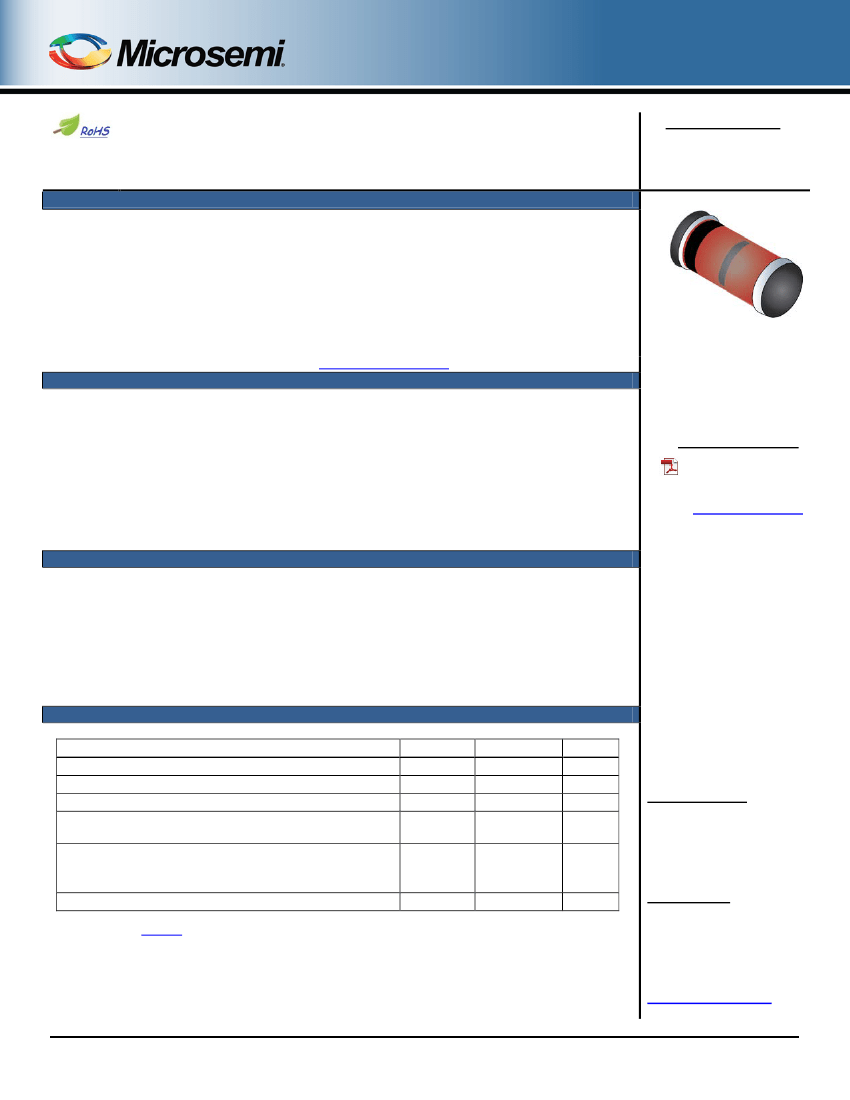

1N6675UR-1 – 1N6677UR-1 plus
CDLL0.5A20 – CDLL0.5A40
Qualified Levels*:
JAN, JANTX,
JANTXV and JANS
Available on
commercial
versions
200 and 500 mA Schottky Barrier Rectifier
Qualified per MIL-PRF-19500/610
DESCRIPTION
The 1N6675UR-1 through 1N6677UR-1 series of Schottky barrier rectifiers provides a
selection of 200 or 500 mA ratiings in surface mount, hard glass DO-213AA MELF package.
The 1N6677UR-1 is also available in JAN, JANTX, JANTXV, and JANS military qualifications.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
•
JEDEC registered 1N6675 through 1N6677 number series.
Hermetically sealed.
Metallurgically bonded.
Double plug construction.
*JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/610 on
1N6677UR-1 only.
RoHS compliant versions are available on all commercial types.
DO-213AA MELF
Package
Also available in:
DO-35 (DO-204AH)
package
(axial-leaded)
1N6675-1 – 1N6677-1
APPLICATIONS / BENEFITS
•
•
•
Leadless package for surface mounting.
Ideal for high-density situations.
Non-sensitive to ESD per MIL-STD-750 method 1020.
MAXIMUM RATINGS
@
T
A
= 25
ºC
unless otherwise stated
Parameters/Test Conditions
Junction Temperature
Storage Temperature
Thermal Resistance, Junction-to-End Cap
Surge Peak Forward Current at 8.3 ms half-sine wave for
1N6677UR-1
Average Rectified Output Current:
(1)
1N6675UR-1 – 1N6677UR-1
CDLL0.5A20 – CDLL0.5A40
Solder Temperature @ 10 s
NOTES:
1. See
Figure 1
for derating.
Symbol
T
J
T
STG
R
ӨJEC
I
FSM
Value
-65 to +125
-65 to +150
100
5
Unit
ºC
ºC
ºC/W
A (pk)
I
O
200
500
260
mA
o
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
1-800-446-1158
Tel: (978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
C
T4-LDS-0302-1, Rev. 1 (6/13/13)
©2013 Microsemi Corporation
Page 1 of 6
1N6675UR-1 – 1N6677UR-1 plus
CDLL0.5A20 – CDLL0.5A40
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
•
CASE: Hermetically sealed glass case package.
TERMINALS: Tin/lead plated or RoHS compliant matte-tin (commercial grade only) over copper clad steel. Solderable per MIL-
STD-750, method 2026.
POLARITY: Cathode end is banded.
MOUNTING: The axial coefficient of expansion (COE) of this device is approximately +6PPM/°C. The COE of the mounting
surface system should be selected to provide a suitable match with this device.
MARKING: Part number.
TAPE & REEL option: Standard per EIA-296. Consult factory for quantities.
WEIGHT: Approximately 0.04 grams.
See
Package Dimensions
on last page.
PART NOMENCLATURE
1N6675UR-1 – 1N6677UR-1:
1N6675
JEDEC type number
(see
Electrical Characteristics
table)
MELF Surface Mount
UR
-1
(e3)
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
Metallurgically Bonded
1N6677UR-1 only:
JAN 1N6677 UR -1 (e3)
Reliability Level*
JAN = JAN level
JANTX = JANTX level
JANTXV = JANTXV level
JANS = JANS level
JEDEC type number
(see
Electrical Characteristics
table)
RoHS Compliance
e3 = RoHS compliant (on
commercial grade only)
Blank = non-RoHS compliant
Metallurgically Bonded
MELF Surface Mount
CDLL0.5A20 – CDLL0.5A40:
CDLL
Microsemi Designation
Amp Rating
Working Peak Reverse
Voltage Rating (V
RWM
)
0.2A
20
(e3)
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
T4-LDS-0302-1, Rev. 1 (6/13/13)
©2013 Microsemi Corporation
Page 2 of 6
1N6675UR-1 – 1N6677UR-1 plus
CDLL0.5A20 – CDLL0.5A40
SYMBOLS & DEFINITIONS
Definition
Capacitance: The capacitance in pF at a frequency of 1 MHz and specified voltage.
frequency
Reverse Current: The dc current flowing from the external circuit into the cathode terminal at the specified voltage V
R
.
Surge Peak Forward Current: The forward current including all nonrepetitive transient currents but excluding all
repetitive transients (ref JESD282-B)
Average Rectified Output Current: The Output Current averaged over a full cycle with a 50 Hz or 60 Hz sine-wave
input and a 180 degree conduction angle.
Breakdown Voltage: A voltage in the breakdown region.
Forward Voltage: A positive dc anode-cathode voltage the device will exhibit at a specified forward current.
Reverse Voltage: A positive dc cathode-anode voltage below the breakdown region.
Working Peak Reverse Voltage: The peak voltage excluding all transient voltages (ref JESD282-B). Also sometimes
known historically as PIV.
Symbol
C
f
I
R
I
FSM
I
O
V
(BR)
V
F
V
R
V
RWM
ELECTRICAL CHARACTERISTICS
@ 25 C unless otherwise specified
200 mA options:
WORKING
PEAK
REVERSE
VOLTAGE
V
RWM
V (pk)
20
30
40
MAXIMUM
FORWARD
VOLTAGE
MAXIMUM
FORWARD
VOLTAGE
MAXIMUM
FORWARD
VOLTAGE
MAXIMUM REVERSE
LEAKAGE CURRENT
I
RM
@ V
RM
MAXIMUM
CAPACITANCE
@ V
R
= 0
VOLTS
f = 1.0 MHz
C
T
pF
50
50
50
o
TYPE
NUMBER
(Note 1)
V
F
@ 20 mA
Volts
0.37
0.37
0.37
1N6675UR-1
1N6676UR-1
1N6677UR-1
V
F
@ 200
mA
Volts
0.50
0.50
0.50
V
F
@ 630
mA
Volts
0.70
0.70
0.70
T
J
= +25
ºC
µA
5.0
5.0
5.0
T
J
= 100
ºC
mA
0.60
0.60
0.60
NOTE:
1. These numbers can also be ordered as CDLL6675 or CDLL0.2A20, CDLL6676 or CDLL0.2A30, and CDLL6677 or
CDLL0.2A40.
500 mA options:
WORKING
PEAK
REVERSE
VOLTAGE
MAXIMUM
FORWARD
VOLTAGE
MAXIMUM
FORWARD
VOLTAGE
MAXIMUM
REVERSE
LEAKAGE
CURRENT
I
RM
@ V
RM
T
J
=
T
J
= 100
+25 ºC
ºC
mA
µA
10.0
1.0
10.0
1.0
10.0
1.0
MAXIMUM
CAPACITANCE
@ V
R
= 0
VOLTS
f = 1.0 MHz
C
T
pF
50
50
50
TYPE
NUMBER
V
RWM
V (pk)
20
30
40
V
F
@ 100 mA
Volts
0.50
0.50
0.50
CDLL0.5A20
CDLL0.5A30
CDLL0.5A40
V
F
@ 500
mA
Volts
0.65
0.65
0.65
T4-LDS-0302-1, Rev. 1 (6/13/13)
©2013 Microsemi Corporation
Page 3 of 6
1N6675UR-1 – 1N6677UR-1 plus
CDLL0.5A20 – CDLL0.5A40
GRAPHS
Sinewave Operation Maximum Io Rating (mA)
T
EC
(°C) (Solder Points)

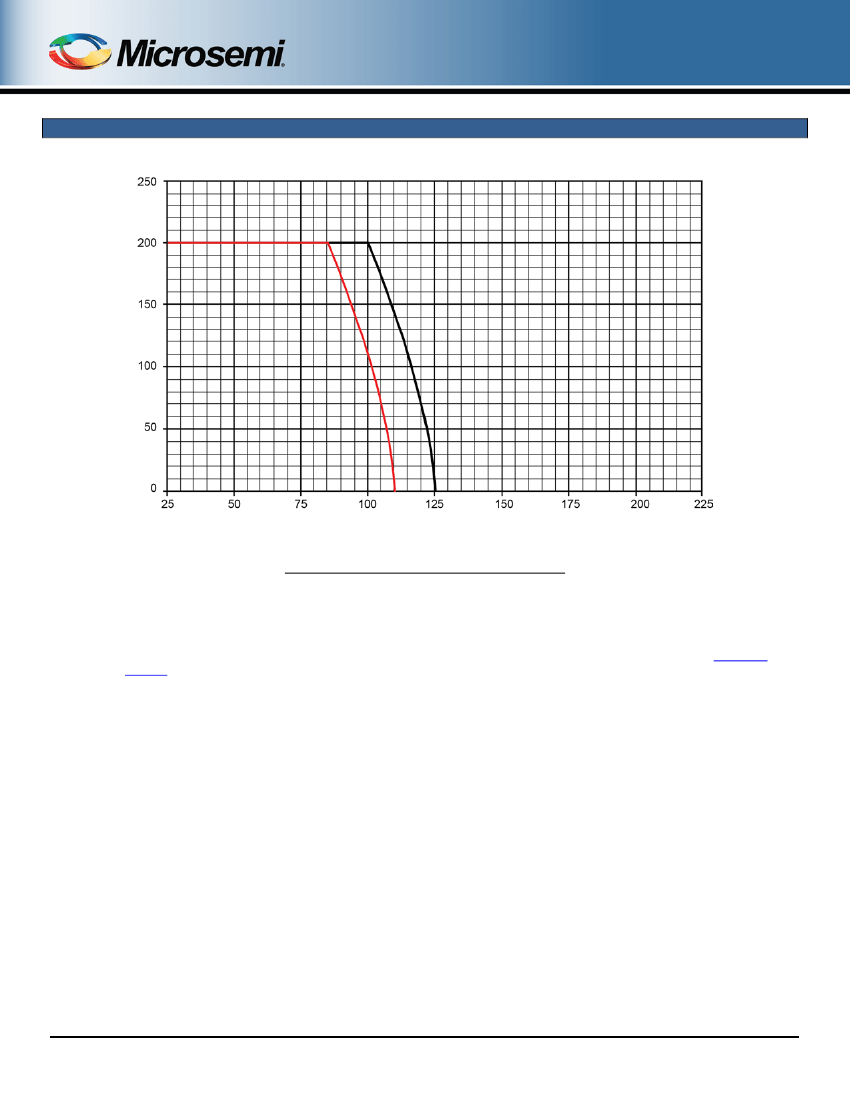

FIGURE 1
Temperature power derating for 1N6677UR-1
NOTES:
1. Maximum theoretical derate design curve. This is the true inverse of the worst case thermal resistance value. All
devices are capable of operating at ≤ T
J
specified on this curve. Any parallel line to this curve will intersect the
appropriate power for the desired maximum T
J
allowed.
2. Derate design curve constrained by the maximum junction temperatures and power rating specified. (See
Maximum
Ratings.)
3. Derate design curve chosen at T
J
≤ 110 °C to show power rating where most users want to limit T
J
in their application.
T4-LDS-0302-1, Rev. 1 (6/13/13)
©2013 Microsemi Corporation
Page 4 of 6
1N6675UR-1 – 1N6677UR-1 plus
CDLL0.5A20 – CDLL0.5A40
GRAPHS
Theta (°C/W)
Time (s)

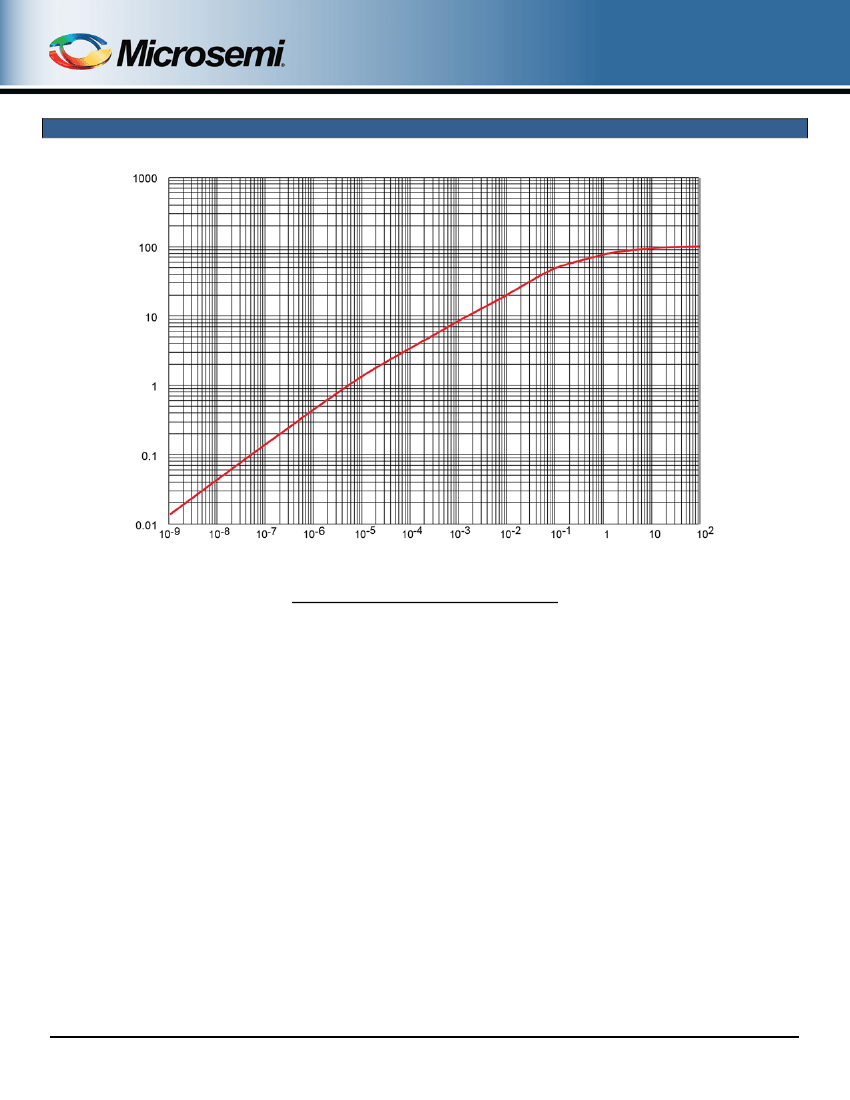

FIGURE 2
Thermal impedance curve for 1N6677UR-1
T4-LDS-0302-1, Rev. 1 (6/13/13)
©2013 Microsemi Corporation
Page 5 of 6
