54F164/BCX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F164/BCX

54F164/BCX: DescriptionSerial In Parallel Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size186KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F164/BCX Overview

Serial In Parallel Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, CERAMIC, DIP-14

54F164/BCX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
Counting direction	RIGHT
series	F/FAST
JESD-30 code	R-CDIP-T14
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	90 MHz
Base Number Matches	1

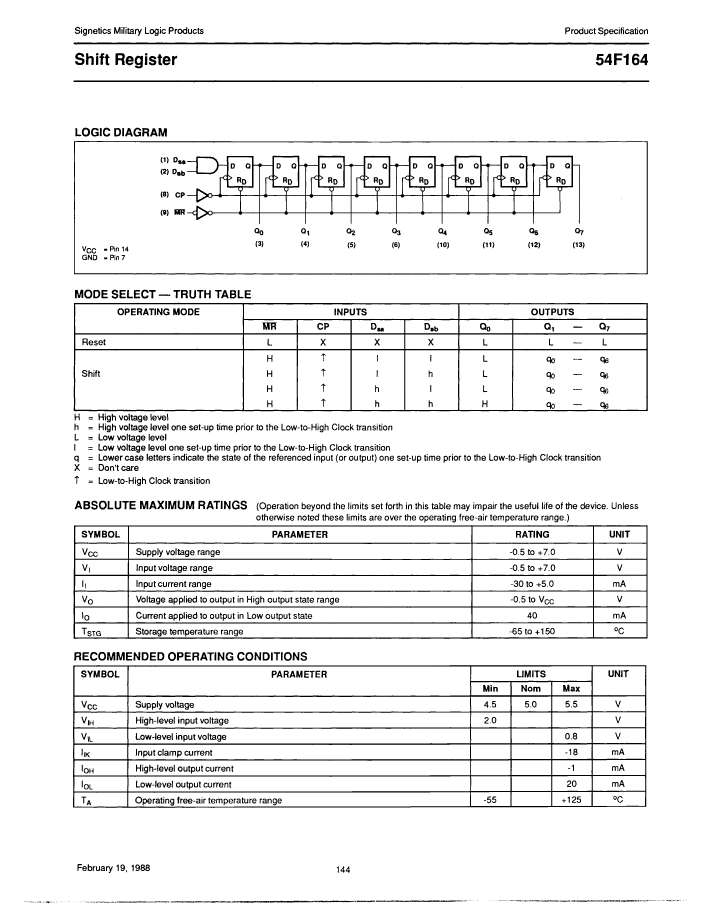

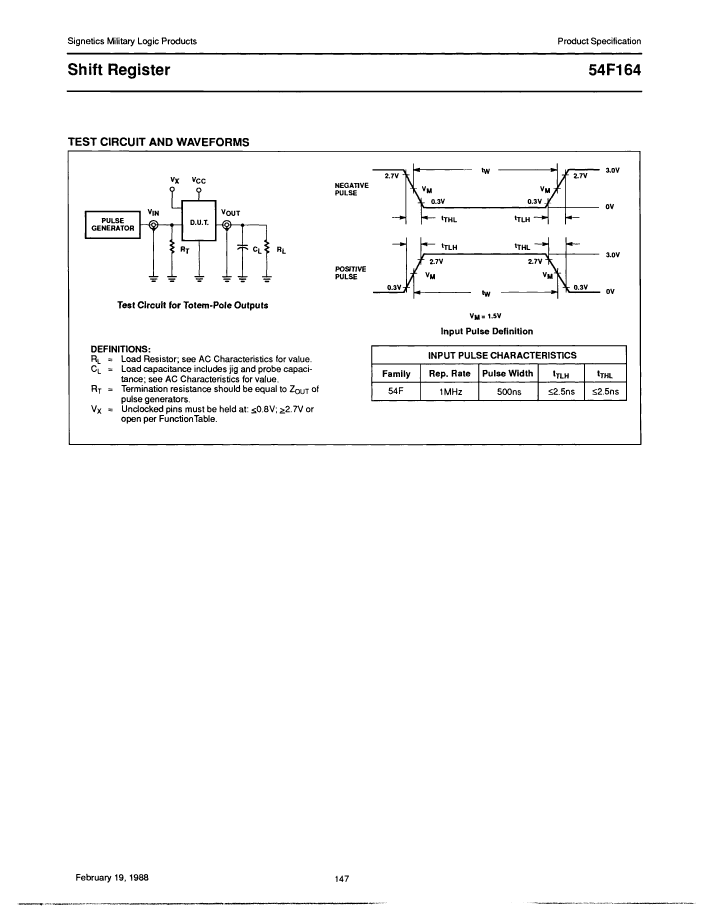

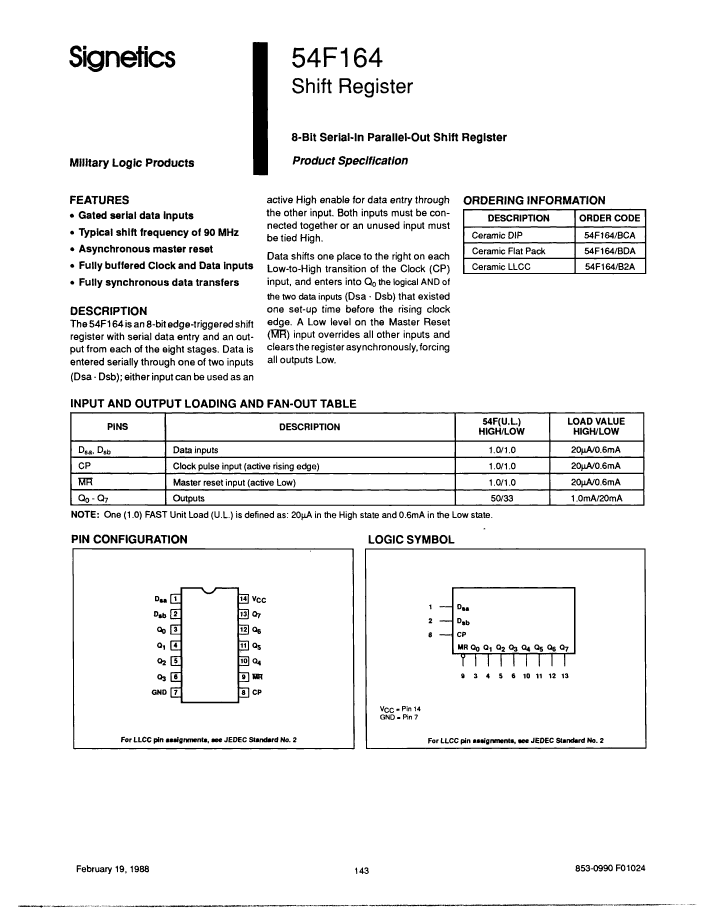

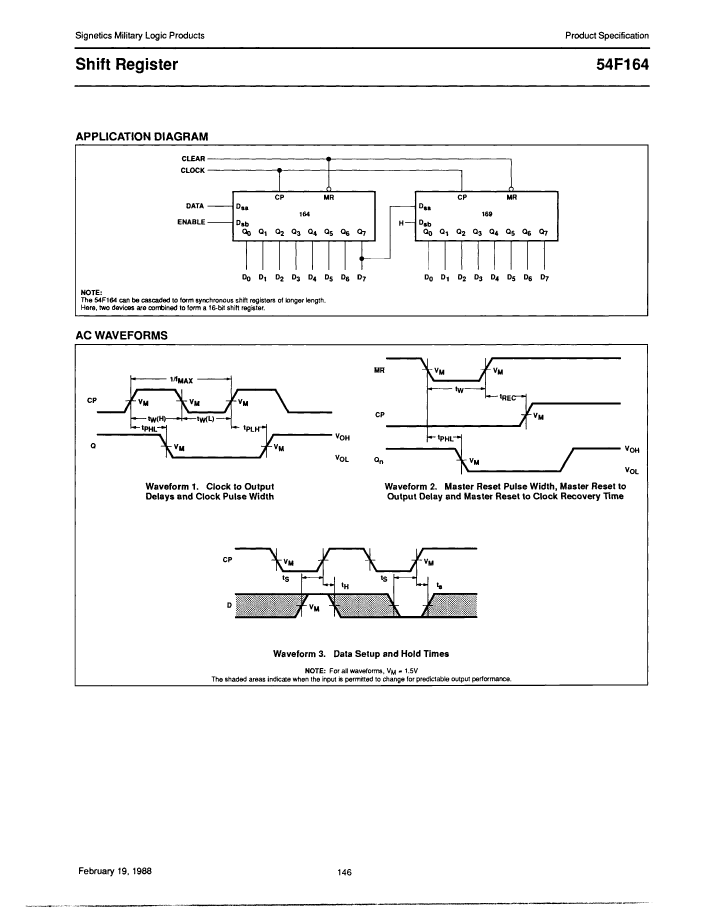

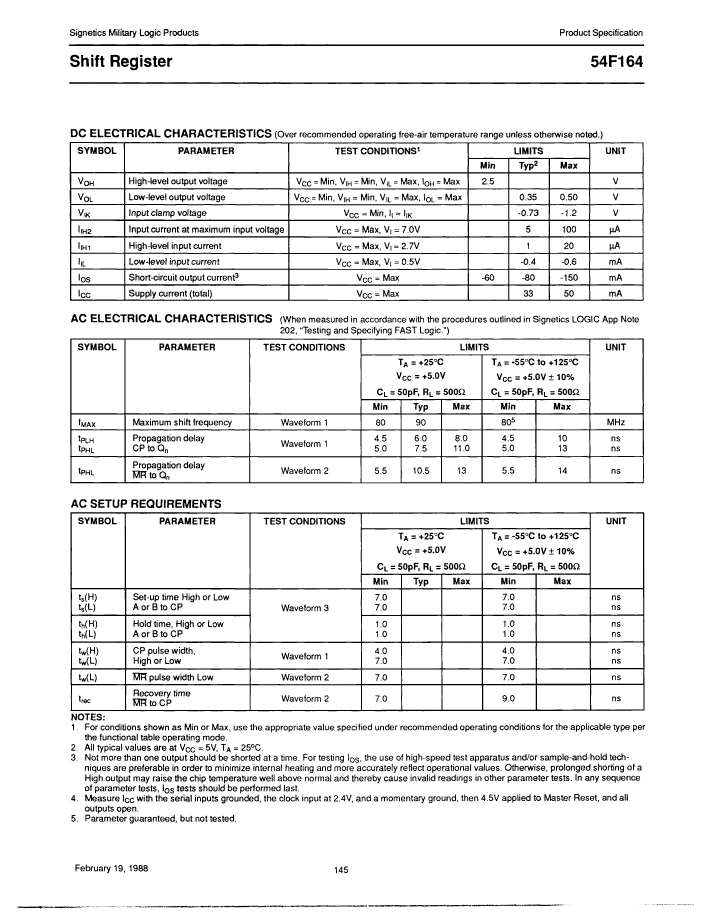

Preview

Download Datasheet

View All

54F164/BCX Related Products

	54F164/BCX	54F164/B2A	54F164/BCA	54F164/BDA
Description	Serial In Parallel Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, CERAMIC, DIP-14	Serial In Parallel Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, CQCC20	Serial In Parallel Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, CDIP14	Serial In Parallel Out, F/FAST Series, 8-Bit, Right Direction, True Output, TTL, CDFP14
Reach Compliance Code	unknown	unknown	unknown	unknown
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT
series	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T14	S-CQCC-N20	R-CDIP-T14	R-CDFP-F14
Logic integrated circuit type	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	14	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK
propagation delay (tpd)	13 ns	13 ns	13 ns	13 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	DUAL	QUAD	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	90 MHz	90 MHz	90 MHz	90 MHz
Base Number Matches	1	1	1	1
Load capacitance (CL)	-	50 pF	50 pF	50 pF
Maximum supply current (ICC)	-	50 mA	50 mA	50 mA
