B39900-B3685-H310

Description
SAW Filter, 1 Function(s), 90MHz, CERAMIC, SMD, QCC12C, 10 PIN
CategoryAnalog mixed-signal IC    filter
File Size71KB,6 Pages
ManufacturerTDK Corporation
Websitehttp://www.tdk.com
Environmental Compliance
Download Datasheet Parametric View All

B39900-B3685-H310 Overview

SAW Filter, 1 Function(s), 90MHz, CERAMIC, SMD, QCC12C, 10 PIN

B39900-B3685-H310 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTDK Corporation
package instructionCERAMIC, SMD, QCC12C, 10 PIN
Reach Compliance Codecompliant
Other featuresINSERTION LOSS INCLUDING LOSS IN MATCHING NETWORK
Maximum attenuation frequency (+/- delta f)1800 kHz
Attenuation at maximum frequency18 dB
Center frequency or cutoff frequency (fo/fc)90 MHz
filter typeSAW FILTER
high1.48 mm
input resistance335 OHM//23.8 pF
Maximum insertion loss6 dB
JESD-609 codee4
length7 mm
Manufacturer's serial numberB3685
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature70 °C
Minimum operating temperature
Output impedance335 OHM//23.8 pF Ω
physical sizeL7.0XB5.0XH1.48 (mm)/L0.276XB0.197XH0.058 (inch)
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Base Number Matches1

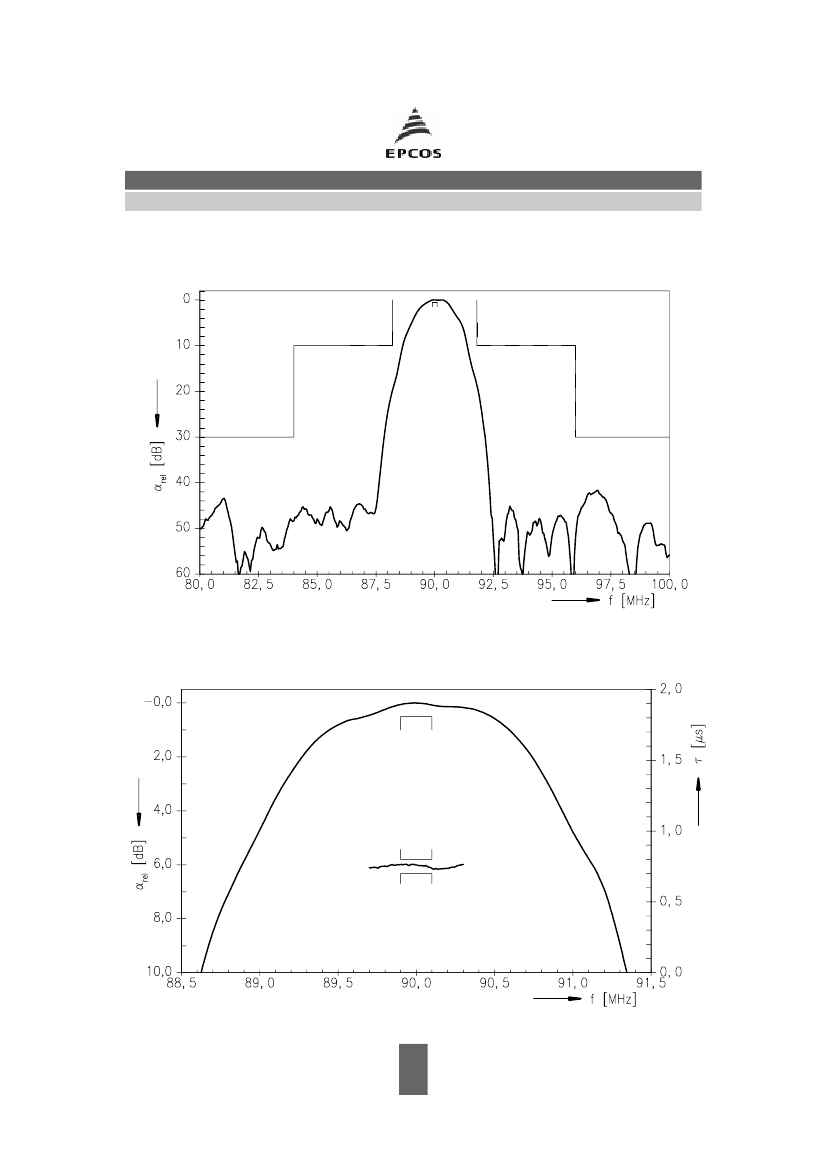

SAW Components
Data Sheet B3685
