IC179-28450-3111

Description
IC Socket, SOP28, 28 Contact(s)
CategoryThe connector    socket
File Size107KB，2 Pages
ManufacturerZilog, Inc.
Websitehttps://www.zilog.com/
Download Datasheet Parametric Compare View All

IC179-28450-3111 Overview

IC Socket, SOP28, 28 Contact(s)

IC179-28450-3111 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Device slot typeIC SOCKET
Type of equipment usedSOP28
Shell materialPLASTIC
Manufacturer's serial numberIC179
Number of contacts28
Base Number Matches1

Preview

Download Datasheet
SOP
Narrow Footprint SMT
IC179 Series
Ordering Information
IC179- ** ***- 31 * *
Socket Series
No. of Contacts
Row Spacing (Mil)
Characteristics
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temperature:
Mating Cycles:
Insulator:
Contact:
Plating:
Accessories:
1A
500M½ Minimum at 500 VDC
250 VAC for 1 minute
30m½ Max. at 10mA/20mV
-55ûC ~ +85ûC
10 Insertions
Design Number
0: Without Positioning Pin
1: With Positioning Pin
Unmarked: Tray
1: Tape & Reel
Materials and Finish
High Temp Thermoplastic-UL94V-0
Copper Alloy
Contacts: SnPb over Ni
Terminals: SnPb over Ni
Lids (see page 39)
Lid Placement Jigs (see page 39)
Features
1.
Zero Insertion / Extraction force.
2.
Low profile.
3.
Matches IC Footprint.
4.
Houses JEDEC standard packages.

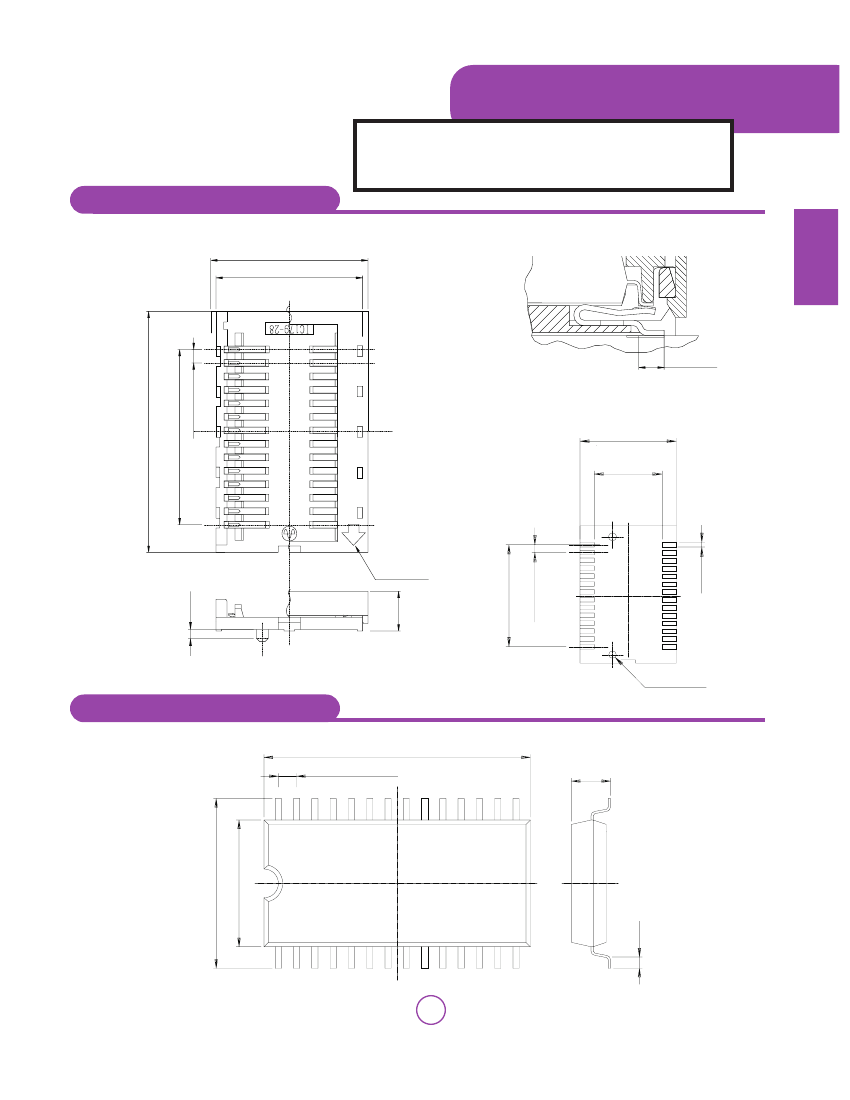

Socket Dimensions (Reference Only)
Part Number
IC179-28375-310*
IC179-28450-31**
IC179-32525-31**
Contacts
28
28
32
Pitch
1.27mm
1.27mm
1.27mm
A
13.20
14.80
17.10
B
12.20
13.80
16.10
C
22.70
22.70
25.50
D
16.51
16.51
19.05
E
11.10
12.70
15.00
F
7.60
9.20
11.50
G
3.9
3.9
3.9
IC Dimensions (Reference Only)
Contacts
Pitch
A
28
1.27mm 9.90 ~ 10.70
28
1.27mm 11.50 ~ 12.25
32
1.27mm 13.80~ 14.60
B
7.30 ~ 7.90
8.00 ~ 9.00
10.50 ~ 11.50
C
18.70
18.70
21.60
D
0.60 ~ 1.20
0.60 ~ 1.20
0.60 ~ 1.20
E
2.70
2.70
3.10
Part Number
IC179-28375-31**
IC179-28450-31**
IC179-32525-31**
14
