15-47-4235 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 15-47-4235

15-47-4235: DescriptionCard Edge Connector, 23 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Plug; CategoryThe connector The connector; File Size345KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

15-47-4235 Overview

Card Edge Connector, 23 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Plug

15-47-4235 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SL
body width	0.139 inch
subject depth	0.6 inch
body length	2.299 inch
Body/casing type	PLUG
Connector type	FFC/FPC CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	23
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 25 circuits

Front polarizing ribs prevent pin damage during

disconnect, housing cannot be twisted off pins

Piercing crimp provides 3 high-pressure interfaces with

the conductor

Terminals preloaded into housing

Reference Information

Product Speciﬁcation: PS-40556

Packaging: Tube

Tooling Information: See end of section

UL File No.: E29179

CSA File No.: LR19980

Mates With: 70544, 70546 straight and 70554, 70556 right

angle polarized headers

Designed In: Inches

Electrical

Voltage: 250V

Current: 2.0A (for Copper conductors)

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Contact Retention to Housing: 13.34N (3 lb) min.

Mating Force: 2.22N (.50 lb) max.

Unmating Force: 0.28N (.06 lb) min.

Wire Pull-Out Force: 26.69N (6 lb)

Durability: Tin/Lead—25 cycles max.

Gold—50 cycles max.

Physical

Housing: Polyester, UL 94V-0

Contact: Phosphor Bronze

Plating: See Table

Operating Temperature: -40 to +105˚C

2.54mm (.100") Pitch

™

FFC/FPC Connector

70430

Single Row, Female

Version C

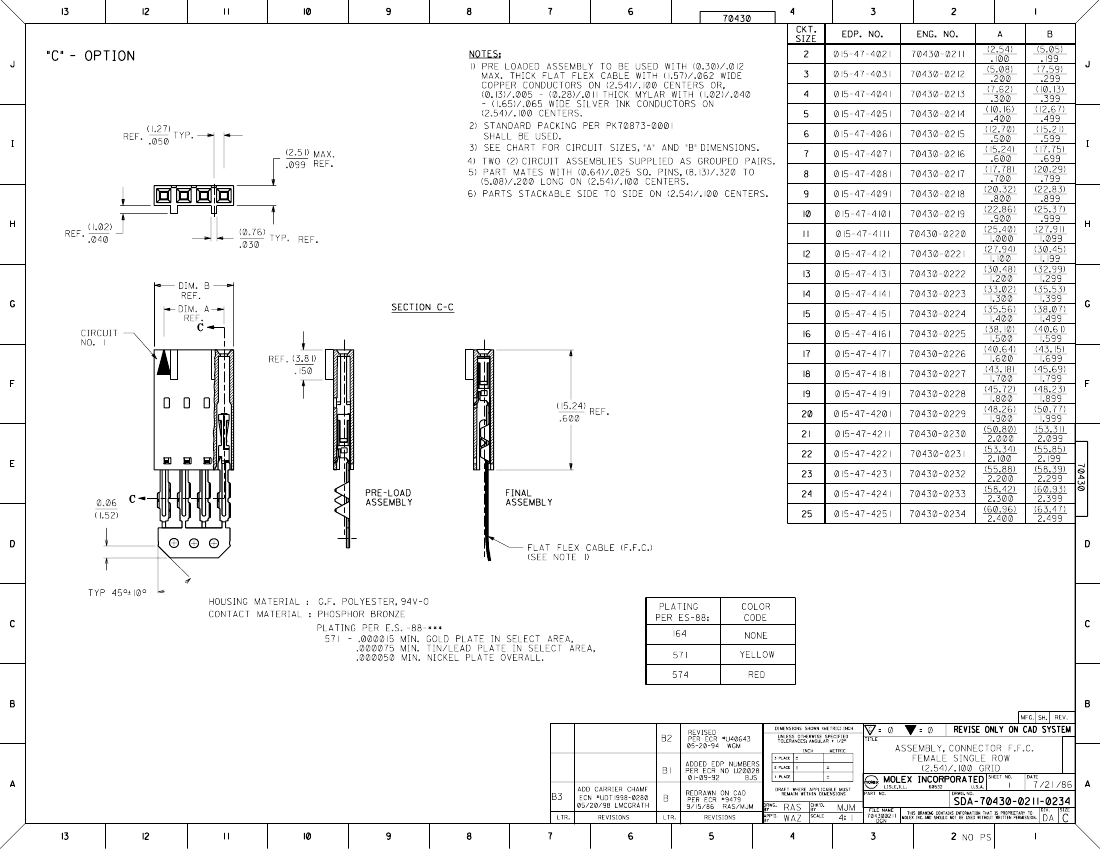

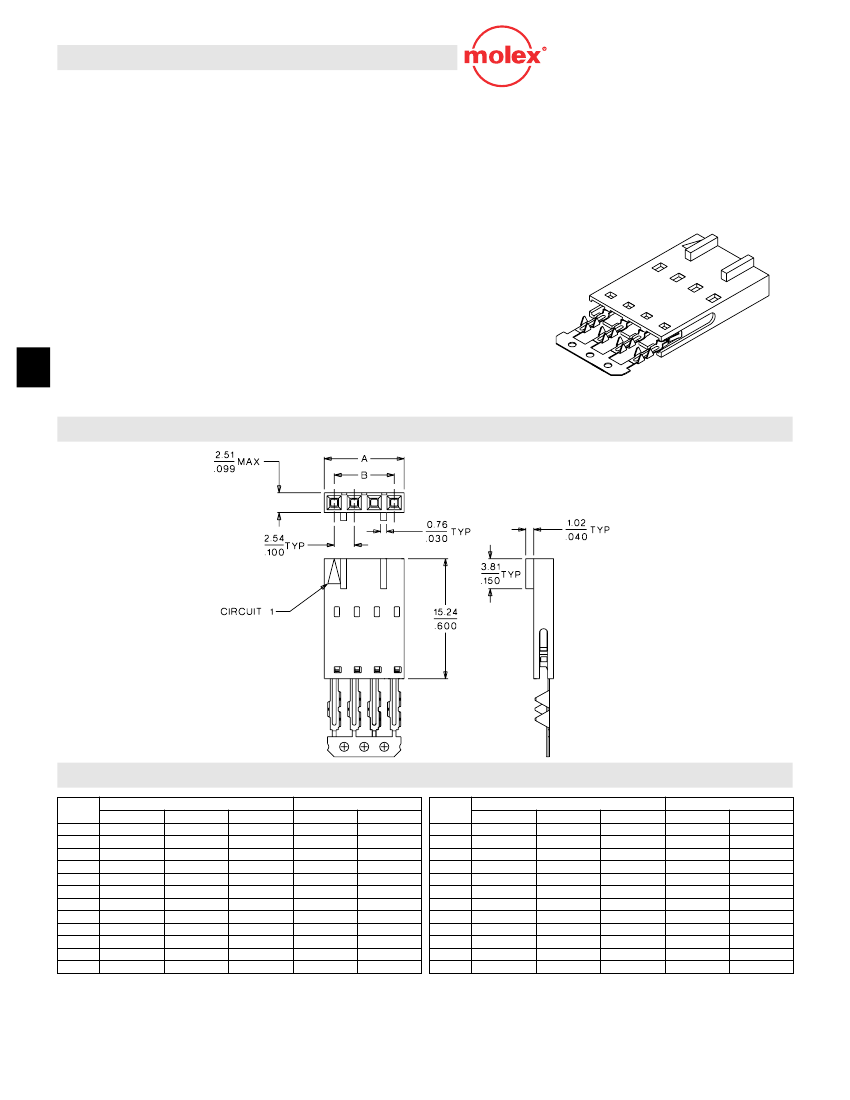

CATALOG DRAWING (FOR REFERENCE ONLY)

FFC/FPC Connectors

ORDERING INFORMATION AND DIMENSIONS

Circuits

" Gold

15-47-4021

15-47-4031

15-47-4041

15-47-4051

15-47-4061

15-47-4071

15-47-4081

15-47-4091

15-47-4101

15-47-4111

15-47-4121

15-47-4131

Order No.

" Gold

15-47-4025

15-47-4035

15-47-4045

15-47-4055

15-47-4065

15-47-4075

15-47-4085

15-47-4095

15-47-4105

15-47-4115

15-47-4125

15-47-4135

Dimension

150

" Tin/lead

15-38-8027

15-38-8037

15-38-8047

15-38-8057

15-38-8067

15-38-8077

15-38-8087

15-38-8097

15-38-8107

15-38-8117

15-38-8127

15-38-8137

5.05

7.59

10.13

12.67

15.21

17.75

20.29

22.83

25.37

27.91

30.45

32.99

(.199)

(.299)

(.399)

(.499)

(.599)

(.699)

(.799)

(.899)

(.999)

(1.099)

(1.199)

(1.299)

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

(.100)

(.200)

(.300)

(.400)

(.500)

(.600)

(.700)

(.800)

(.900)

(1.000)

(1.100)

(1.200)

Circuits

" Gold

15-47-4141

15-47-4151

15-47-4161

15-47-4171

15-47-4181

15-47-4191

15-47-4201

15-47-4211

15-47-4221

15-47-4231

15-47-4241

15-47-4251

Order No.

" Gold

15-47-4145

15-47-4155

15-47-4165

15-47-4175

15-47-4185

15-47-4195

15-47-4205

15-47-4215

15-47-4225

15-47-4235

15-47-4245

15-47-4255

Dimension

150

" Tin/lead

15-38-8147

15-38-8157

15-38-8167

15-38-8177

15-38-8187

15-38-8197

15-38-8207

15-38-8217

15-38-8227

15-38-8237

15-38-8247

15-38-8257

35.53

38.07

40.61

43.15

45.69

48.23

50.77

53.31

55.85

58.39

60.93

63.47

(1.399)

(1.499)

(1.599)

(1.699)

(1.799)

(1.899)

(1.999)

(2.099)

(2.199)

(2.299)

(2.399)

(2.499)

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

(1.300)

(1.400)

(1.500)

(1.600)

(1.700)

(1.800)

(1.900)

(2.000)

(2.100)

(2.200)

(2.300)

(2.400)

G-48

MX01
