1P643 Overview

Rectifier Diode, 1 Element, 1A, 50V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	15 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

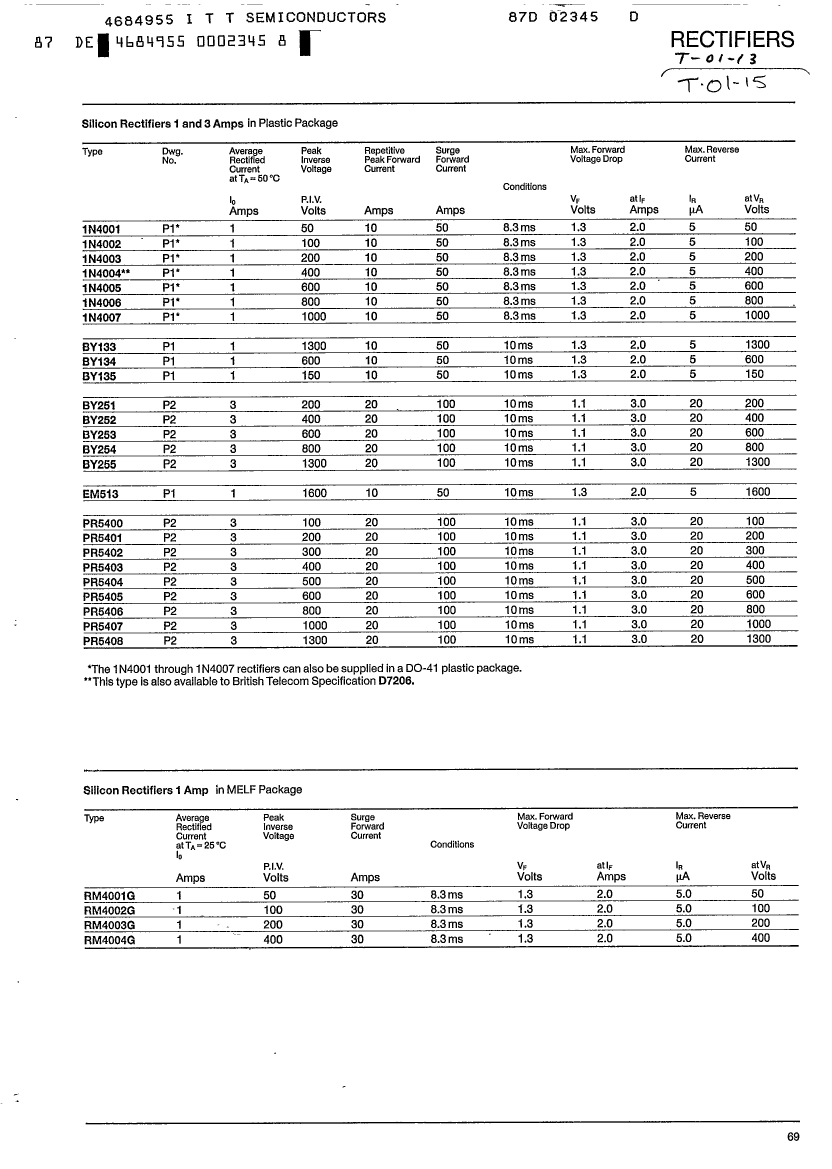

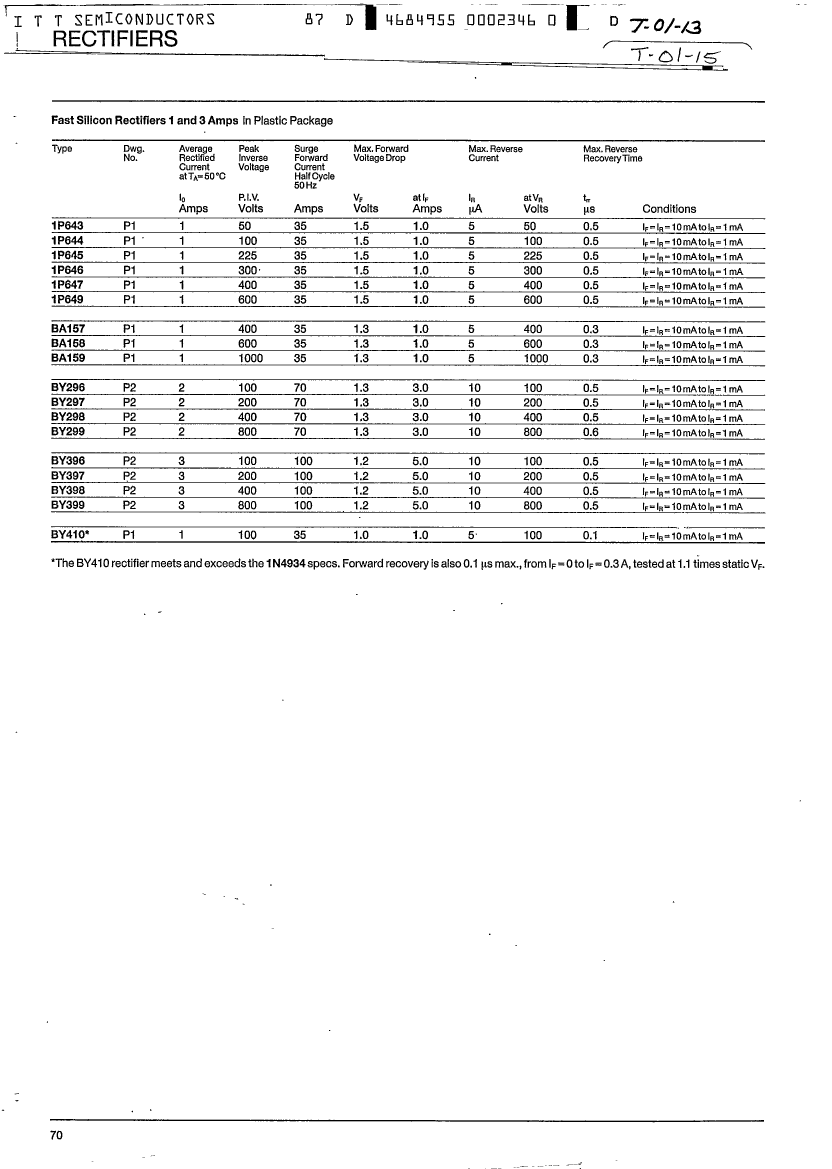

	1P643	1P646	1P644	1P647	1P645
Description	Rectifier Diode, 1 Element, 1A, 50V V(RRM),	Rectifier Diode, 1 Element, 1A, 300V V(RRM)	Rectifier Diode, 1 Element, 1A, 100V V(RRM)	Rectifier Diode, 1 Element, 1A, 400V V(RRM)	Rectifier Diode, 1 Element, 1A, 225V V(RRM)
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	15 A	15 A	15 A	15 A	15 A
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	50 V	300 V	100 V	400 V	225 V
Maximum reverse recovery time	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1
