MWKQ2L8-7P-4K7-18

Description
Circular Connector
CategoryThe connector    The connector
File Size396KB,4 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

MWKQ2L8-7P-4K7-18 Overview

Circular Connector

MWKQ2L8-7P-4K7-18 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeCIRCULAR CONNECTOR
Manufacturer's serial numberMWKQ2L8
Base Number Matches1
Micro-D Edge Board
MicroStrips
MWKQ2L6
Quick Disconnect Micro Circular Connectors
Plug Connectors
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
© 2013 Glenair, Inc.

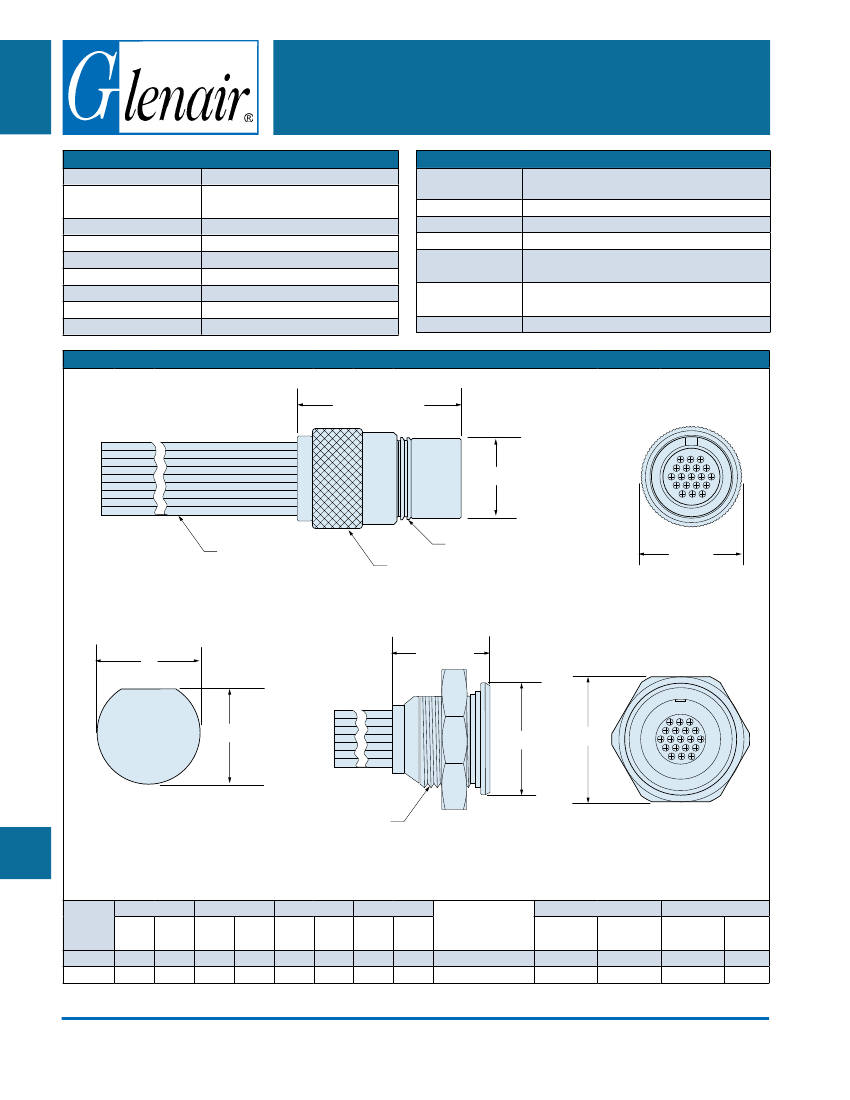

High Performance Micro-D Connectors and Cables
3
4

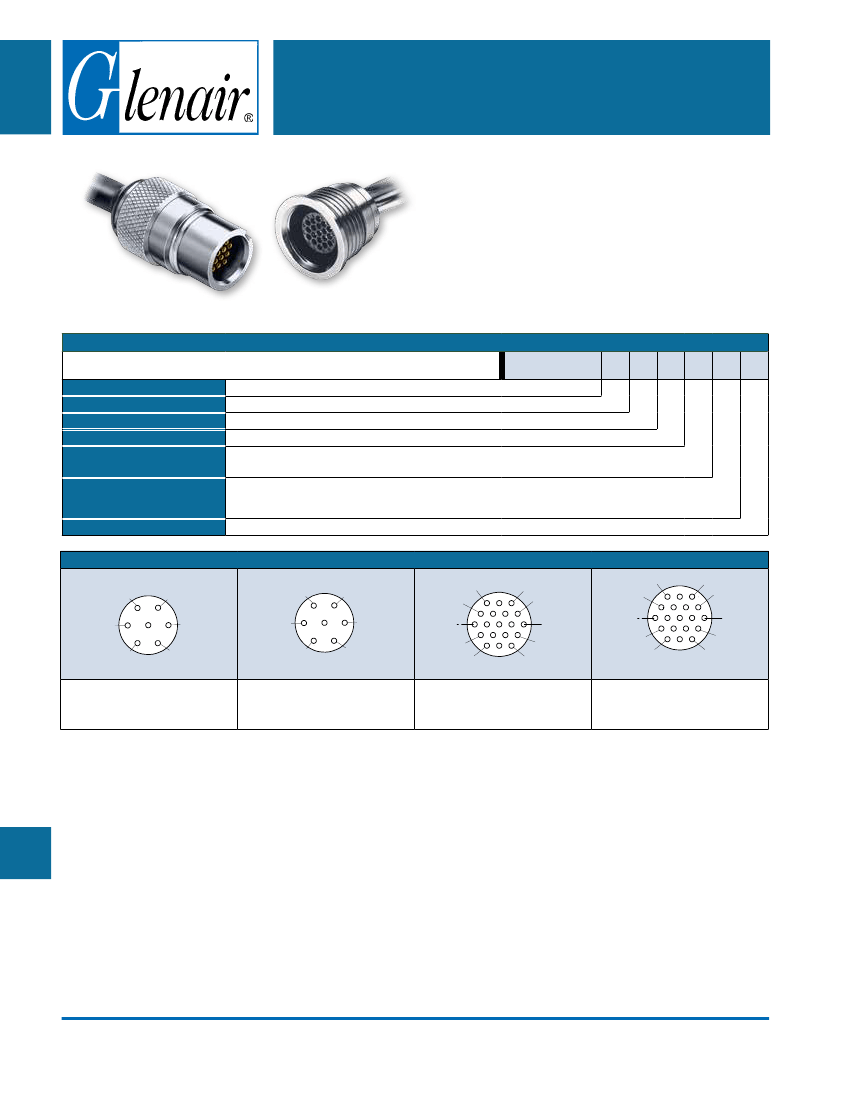

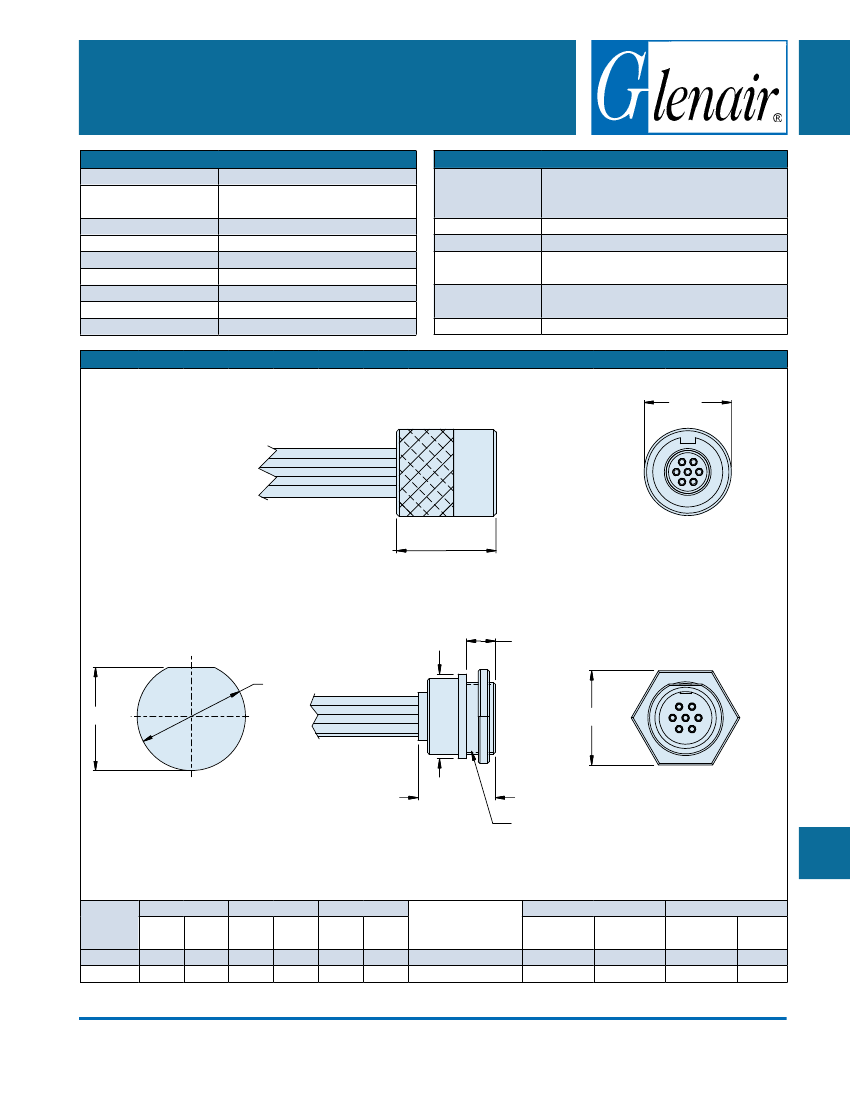

MWKQ Micro Circular Connectors
feature quick
coupling and quick release. The plug has a knurled
release sleeve. To unmate, just pull back on the sleeve,
compressing the locking ring and free it from the
receptacle.
Choose (7) or (19) Contacts
– Connectors are
supplied with hookup wires installed and potted.
Plug With Socket
Contacts
Receptacle With
Pin Contacts
How To Order Plug (Socket) Connectors
Sample Part Number
Series
No. of Contacts
Contact Type
Wire Gage (AWG)
Wire Type
Wire Color
Wire Length Inches
MWKQ2L6
7, 19
(See Table I and II)
S
- Socket
4
- #24
6
- #26
8
- #28
0
- #30
K
- M22759/11 600 Vrms Teflon® (TFE)
J
- M22759/33 600 Vrms Modified Cross-Linked Tefzel
®
(ETFE)
1
- White
2
- Yellow
5
- Color Coded Striped Wire Per MIL-STD-681
7
- Ten Color Repeating
18 -
Total Length In Inches. “18” Specifies 18 Inches.
MWKQ2L6
-19
S
-6
K
7
-24
Table I: Contact Arrangements
2
1
5
7
6
6
5
7
1
4
2
3
1
4
8
13
17
3
7
12
16
19
7
12
16
19
17
3
1
4
8
13
7 Contacts
Face View Pin Connector
(Receptacle)
7 Contacts
Face View Socket Connector
(Plug)
19 Contacts
Face View Pin Connector
(Receptacle)
19 Contacts
Face View Socket Connector
(Plug)
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
P-10
E-Mail: sales@glenair.com
