BS-AF04RD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BS-AF04RD

BS-AF04RD: DescriptionSmart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 76mm, SD-60, 10 PIN; CategoryLED optoelectronic/LED photoelectric; File Size103KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BS-AF04RD Overview

Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 76mm, SD-60, 10 PIN

BS-AF04RD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SD-60, 10 PIN
Reach Compliance Code	unknown
color	HIGH EFFICIENCY RED/ORANGE
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT AND COMMA
Display height	76 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

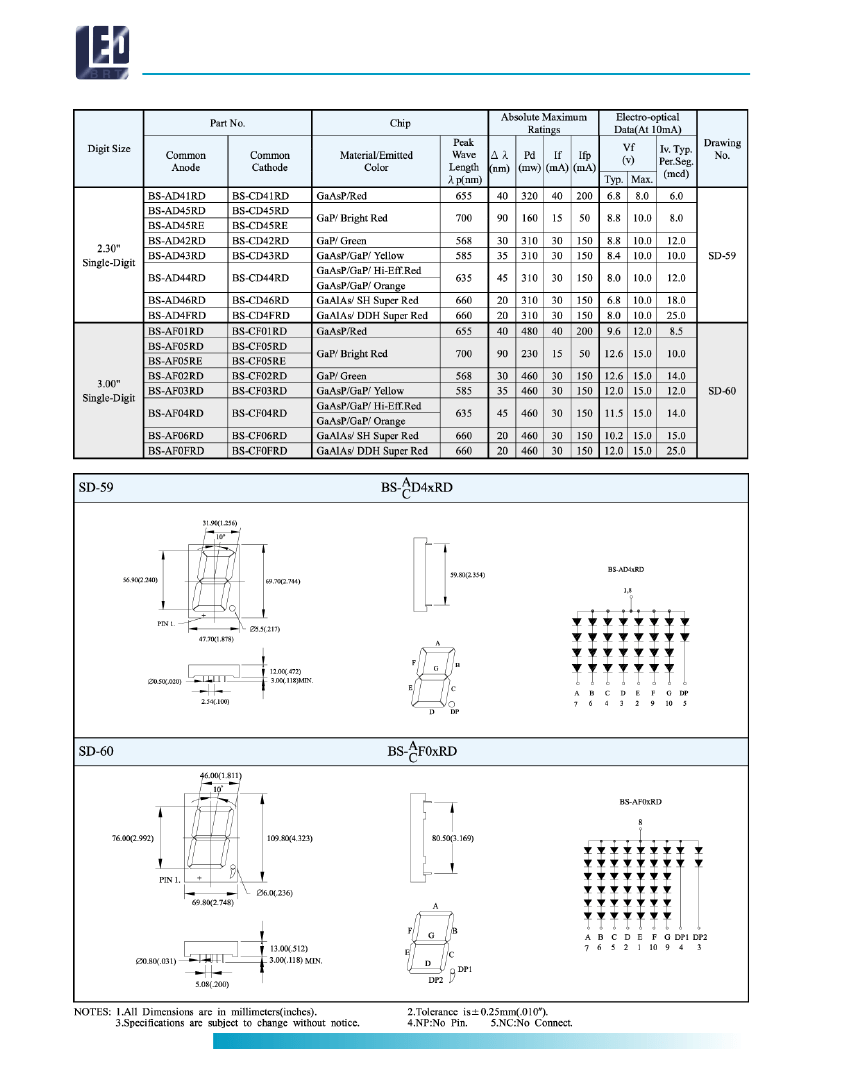

Single Digit LED Displays

BS-A/C Series

2.3", 3", 7-segment

AMERICAN BRIGHT

130

(714) 257-0800

w w w. a m e r i c a n b r i g h t l e d . c o m

BS-AF04RD Related Products

	BS-AF04RD	BS-CF06RD	BS-AD46RD	BS-AF06RD	BS-CF04RD	BS-CD45RE	BS-AD45RE
Description	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 76mm, SD-60, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 76mm, SD-60, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 56.9mm, SD-59, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 76mm, SD-60, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 76mm, SD-60, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 56.9mm, SD-59, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 56.9mm, SD-59, 10 PIN
package instruction	SD-60, 10 PIN	SD-60, 10 PIN	SD-59, 10 PIN	SD-60, 10 PIN	SD-60, 10 PIN	SD-59, 10 PIN	SD-59, 10 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	HIGH EFFICIENCY RED/ORANGE	SUPER RED	SUPER RED	SUPER RED	HIGH EFFICIENCY RED/ORANGE	BRIGHT RED	BRIGHT RED
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT AND COMMA	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT AND COMMA	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT AND COMMA	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT AND COMMA	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	76 mm	76 mm	56.9 mm	76 mm	76 mm	56.9 mm	56.9 mm
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.015 A	0.015 A
Number of functions	1	1	1	1	1	1	1
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	BRIGHT	-	BRIGHT	BRIGHT	-	-	BRIGHT
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	-	-
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-	-
Base Number Matches	1	1	1	1	1	1	-
