3600 Series Card Edge Connector
.150” X .188” Contact Spacing
Features
Extra large chamfered entry
Conforms to Bell-core spec TR-TSY-00078
Extended card scoops available
Replaceable contacts
Molded in polarization available between
contact, or on contact position.
• De-population of contacts per
customer specification.
• Available in selective gold plate at contact point
• Many other custom options available, including,
but not limited to:
• Single or Both Ends Open
• Shorting Contacts
•
•
•
•
•
Specifications
Insulator Material: Glass filled polyester, type PBT,
94 V-O, UL Rated.
Contact Material: Phosphor Bronze Alloy
Contact Plating: Gold and/or Tin over .000050” Nickel,
(See Contact Plating Options).
Current Rating:
5 amp at 30°C
Contact Resistance:
Contact to Daughter Card:
10 m
W
max.
Insulation Resistance:
5000 M
W
min.
Dielectric Withstand Voltage:
1800 V AC
Daughter Board Insertion Force:
16 oz max. per contact pair
when tested with a .071” thick
gage.
Daughter Board Withdrawal Force:
1 oz min. per contact pair
when tested with a .054” thick
gage.
Operating Temperature:
-54
B
C to +125
B
C
R
C
R
Recognized under the recognized component
Program of Underwriters Laboratories, Inc.
File Numbers: E146967 and E176234
For drawings, technical data or samples,
contact E.C.S. at (714) 895-6351
POS. / CONTACTS
10/20
15/30
18/36
22/44
25/50
28/56
30/60
31/62
36/72
43/86
50/100
A
1.404 [35.66]
2.184 [55.47]
2.652 [67.36]
3.276 [83.21]
3.744 [95.09]
4.212 [106.98]
4.524 [114.91]
4.680 [118.87]
5.460 [138.68]
6.552 [166.42]
7.644 [194.16]
B
1.724 [43.79]
2.506 [63.65]
2.974 [75.54]
3.596 [91.34]
4.064 [103.23]
4.532 [115.11]
4.844 [123.04]
5.000 [127.00]
5.780 [146.81]
6.872 [174.55]
7.964 [202.28]
C
1.848 [46.94]
2.625 [66.67]
3.093 [78.56]
3.720 [94.49]
4.188 [106.38]
4.656 [118.26]
4.968 [126.19]
5.124 [130.15]
5.904 [149.96]
6.996 [177.69]
8.088 [205.43]
D
2.158 [ 54.81]
2.938 [74.63]
3.406 [86.51]
4.030 [102.36]
4.498 [114.25]
4.966 [126.14]
5.278 [134.06]
5.434 [138.02]
6.214 [157.84]
7.306 [185.57]
8.398 [213.31]
E
2.408 [61.16]
3.188 [60.98]
3.656 [92.86]
4.280 [108.71]
4.748 [120.60]
5.216 [132.49]
5.528 [140.41]
5.684 [144.37]
6.464 [164.19]
7.556 [191.92]
8.648 [219.66]
F
1.604 [40.74]
2.434 [61.82]
2.902 [73.71]
3.476 [88.29]
3.944 [100.18]
4.412 [112.06]
4.724 [119.99]
4.880 [123.95]
5.660 [143.76]
6.752 [171.50]
7.844 [199.24]
Dimensions are in inch [mm]
For reference only, can go 1 through 50 positions.
MOUNTING STYLE
.720
[18.29]
1=
Clearance Hole
2=
#4-40/ Threaded Insert
5=
No Mounting Ear
ELECTRONIC CONNECTOR SERVICE INC.
11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858
WWW.ECSCONN.COM

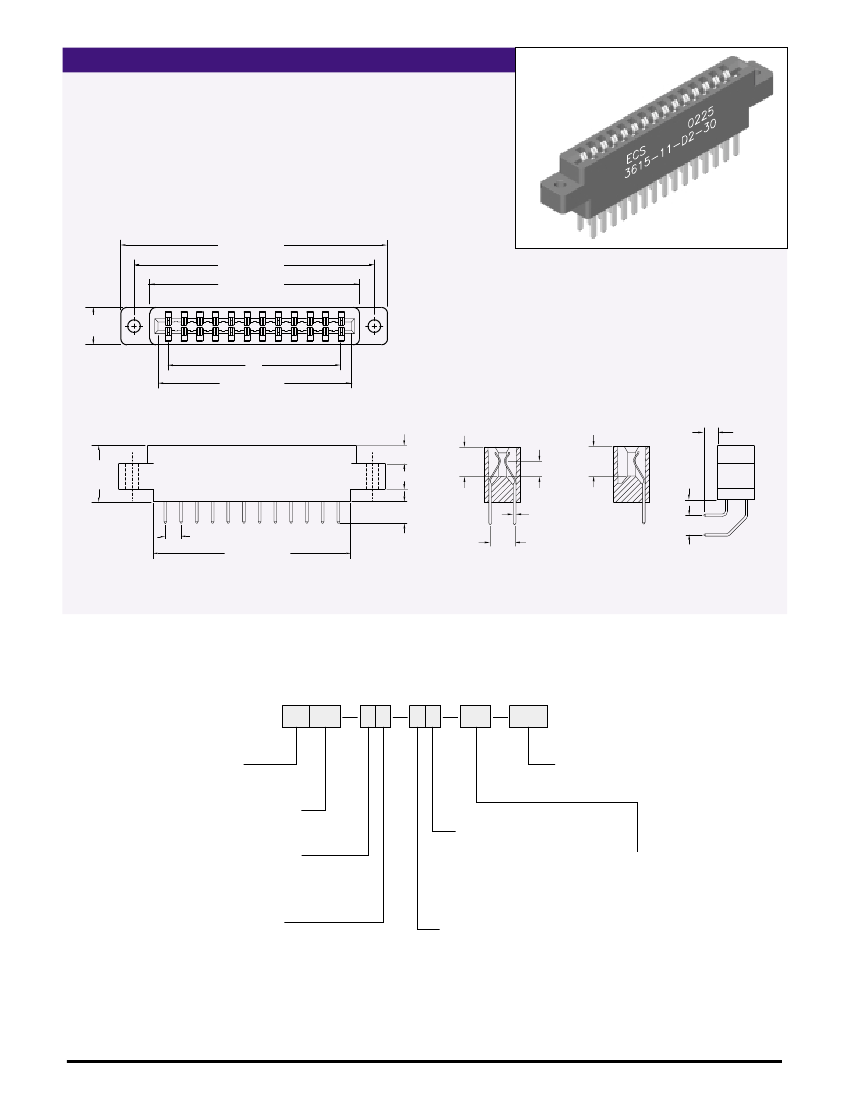

.150” x .188” Contact Spacing
A
± .015[.38]
D
±.005[.13]
C
±.010[.25]
.350
[8.89]
A
B
±.005[.13]
.220
[5.59]
.216
[25.62]
.720
[18.29]
.250
[6.35]
.350
[8.89]
.230
[5.84]
.350
[8.89]
.120
[3.05]
TAIL LENGTH
±.010[.25]
.156
[3.96]
REF.
.031
[0.79]
X .062
[1.58]
.150
[3.81]
RIGHT ANGLE
DIP SOLDER
F
±.010[.25]
.188
[4.78]
D
= DUAL
H
= HALF LOADED
Dimensions are in inch [mm]
36 XX
SERIES CODE
PART NUMBERING
XX
XX
XX
XXX
CUSTOM VARIATION
CONSULT FACTORY
.156 X .200 Dip Solder / Wire Wrap
NO. CONTACT PAIRS
01
-
43
TAIL LENGTH
1
= .190
2
= .560
3
= .100
4
= .180
5
= .250
Dip Solder
Wire Wrap
Right Angle
Right Angle
Right Angle
50µ” Nickel Underplate
10
= 10µ” Au
20
= 15µ” Au
30
= 30µ” Au
40
= 10µ” Au
50
= 15µ” Au
60
= 30µ” Au
TERMINATION TYPE
1
= Straight
2
= Right Angle
PLATING
CONTACT
MOUNTING STYLE
1
= Clearance Hole
2
= #4-40 Threaded Insert
5
= No Mounting Ear
READ OUT
D
= Dual
H
= Half Loaded
100µ” Sn
100µ” Sn
100µ” Sn
5µ” Au
5µ” Au
5µ” Au
TAIL
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
ELECTRONIC CONNECTOR SERVICE INC.
11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858
WWW.ECSCONN.COM
