Fixed Inductors for Surface Mounting
Meeting Your Needs
TYPE
5CA
13
TYPE 5CA
Frequency Range:
10-500kHz
Inductance Range:
0.1-7mH
0.6
*
* Available in heights of 3mm and 5mm.
Unit: mm
Features
• Package design is ideal for automatic assembly
• Available with up to 7 terminals to provide secondary winding
or taps, and function as DC-DC step up transformer
• Suitable for reflow soldering
• Available on tape and reel for automatic insertion

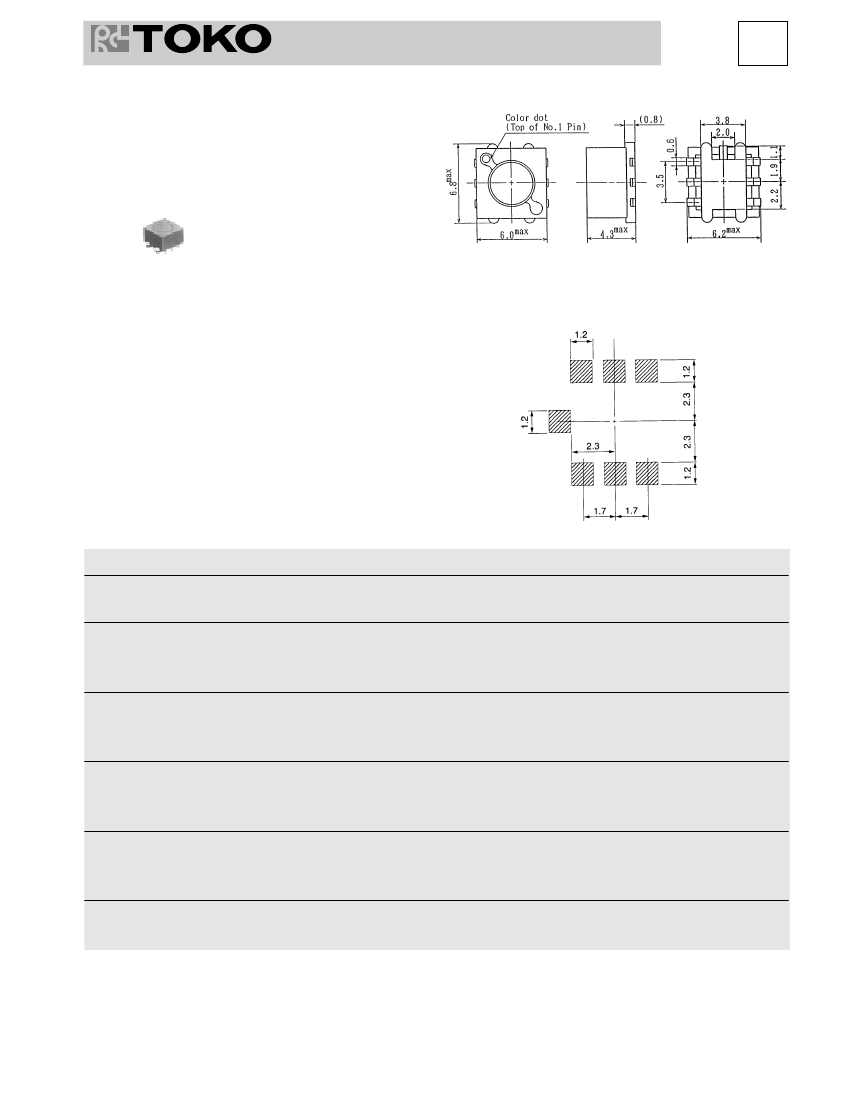

Recommended patterns:
Unit: mm
STANDARD PARTS SELECTION GUIDE
TYPE 5CA
TOKO
Part
Number
395GN-0078IB=P3
395GN-0079IB=P3
395GN-0080IB=P3
395GN-0081IB=P3
395GN-0082IB=P3
395GN-0083IB=P3
395GN-0084IB=P3
395GN-0085IB=P3
395GN-0086IB=P3
395GN-0087IB=P3
395GN-0088IB=P3
395GN-0089IB=P3
395GN-0090IB=P3
395GN-0091IB=P3
395GN-0092IB=P3
395GN-0093IB=P3
395GN-0094IB=P3
395GN-0095IB=P3
395GN-0096IB=P3
395GN-0097IB=P3
395GN-0098IB=P3
395GN-0099IB=P3
395GN-0100IB=P3
Inductance
100µH±20%
120µH±20%
150µH±20%
180µH±20%
220µH±20%
270µH±20%
330µH±20%
390µH±20%
470µH±20%
560µH±20%
680µH±20%
820µH±20%
1.0mH±20%
1.2mH±20%
1.5mH±20%
1.8mH±20%
2.2mH±20%
2.7mH±20%
3.3mH±20%
3.9mH±20%
4.7mH±20%
5.6mH±20%
6.8mH±20%
Q
(min.)
40
40
40
40
40
40
40
40
40
40
40
40
70
70
70
70
70
70
70
70
70
70
70
DC
Resistance
(
Ω
)
1.1
1.2
1.4
1.5
1.7
1.9
2.2
2.5
3.3
3.6
max.
max.
max.
max.
max.
max.
max.
max.
max.
max.
Test
Frequency
(kHz)
796
796
796
796
796
796
796
796
796
796
796
796
252
252
252
252
252
252
252
252
252
252
252
Rated DC
Current
(mA)
188 max.
167 max.
155 max.
148 max.
140 max.
117 max.
112 max.
100 max.
85 max.
78 max.
76
71
57
54
45
42
38
35
32
28
max.
max.
max.
max.
max.
max.
max.
max.
max.
max.
4.0 max.
5.5 max.
7.3 max.
8.7 max.
12.3 max.
14.2 max.
15.6 max.
24.0 max.
26.6 max.
30.2 max.
33.6 max.
36.0 max.
49.0 max.
24 max.
21 max.
17 max.
Note:
=P3
is added to each part number to indicate tape and reel packaging.
