GC-1607-3000-GC

Description
0.01MHz - 3000MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER
CategoryWireless rf/communication    Radio frequency and microwave
File Size199KB，8 Pages
ManufacturerMITEQ Inc
Download Datasheet Parametric View All

GC-1607-3000-GC Overview

0.01MHz - 3000MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER

GC-1607-3000-GC Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresSMA-F
Characteristic impedance50 Ω
structureCOAXIAL
Gain40 dB
Maximum operating frequency3000 MHz
Minimum operating frequency0.01 MHz
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2
Base Number Matches1

Preview

Download Datasheet
MITEQ
AM-1607-3000
SERIES AMPLIFIER
FREQUENCY
(MHz)
0.01–1000
0.01–2000
0.01–2500
0.01–3000
MODEL
NUMBER
AM-1607-1000
AM-1607-2000
AM-1607-2500
AM-1607-3000
GAIN
(dB)
(Min.)
40
40
40
40
VAR.
(±dB)
(Max.)
0.5
0.75
1.5
2.0
VSWR
(Max.)
2.0:1
2.0:1
2.0:1
2.0:1
IMPED.
IN/OUT
(Ohms)
50/50
50/50
50/50
50/50
NOISE
FIGURE
(dB, Typ.)
3.3
3.5
3.7
3.5
P1 dB
(dBm)
(Typ.)
14
13
13
12
NOM. DC
POWER OUTLINE
VOLTS
(mA)
NO.
15
15
15
15
80
80
80
80
2
2
2
2

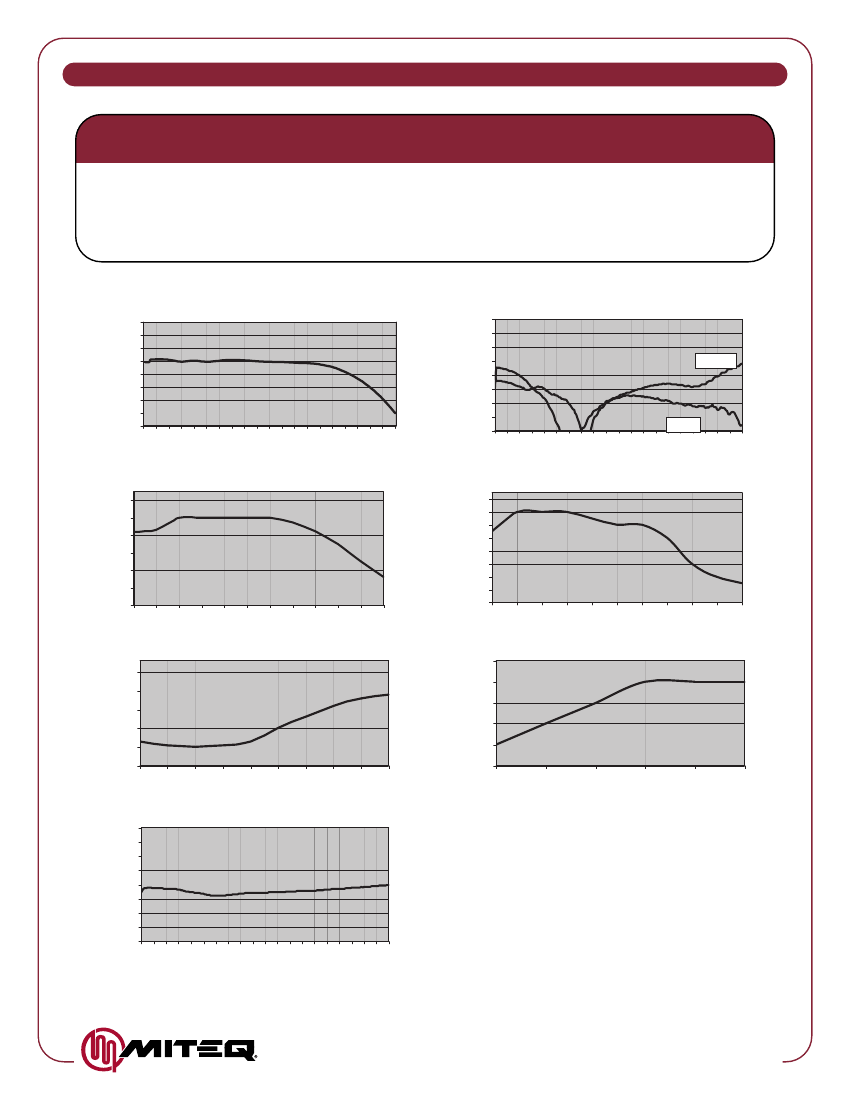

Gain (dB)
45
44
43
42
41
40
39
38
37
0.3
300 600 900 1200 1500 1800 2100 2400 2700 3000
Frequency (MHz)
dB Return Loss
0
-5
-10
-15
-20
-25
-30
-35
-40
0.3
Input & Output Return Loss (dBRL)
Gain (dB)
Output
Input
300
600
900 1200 1500 1800 2100 2400 2700 3000
Frequency (MHz)
Output -1dB Gain Compression (+dBm)
15
P1dB
13
11
9
7
5
0.1
0.3
1
10
50 100 500 1000 1500 2000 2500 3000
Frequency (MHz)
Output Third Order Intercept Point (+dBm)
28
26
24
22
20
18
16
14
12
0.1
0.3
10
50
100 500 1000 1500 2000 2500 3000
Frequency (MHz)
Third Order Intercept
17
Noise Figure (dB)
4.5
Noise Figure
Gain Rolloff
4.0
3.5
3.0
2.5
2.0
10
50
100
250
500 1000 1500 2000 2500 3000
Frequency (MHz)
1.0
0.0
-1.0
-2.0
-3.0
-4.0
4
Low Frequency Gain Rolloff (dB)
6
20
50
Frequency (KHz)
100
200
-40
-45
-50
Isolation
-55
-60
-65
-70
-75
0.3
300
-80
Reverse Isolation (dB)
600
900 1200 1500 1800 2100 2400 2700 3000
Frequency (MHz)
ISO 9001:2000 Certified
• General Infomation
• Warranty
100 Davids Drive, Hauppauge, NY 11788
TEL.: (631) 439-9220 • FAX: (631) 436-7430
e-mail: components@miteq.com •
www.miteq.com
AM-1607-3000
051507
