CD54FCT29521BTEN datasheet, PDF

CD54FCT29521BTEN: DescriptionPipeline Register, 8-Bit, BICMOS, PDIP24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size179KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

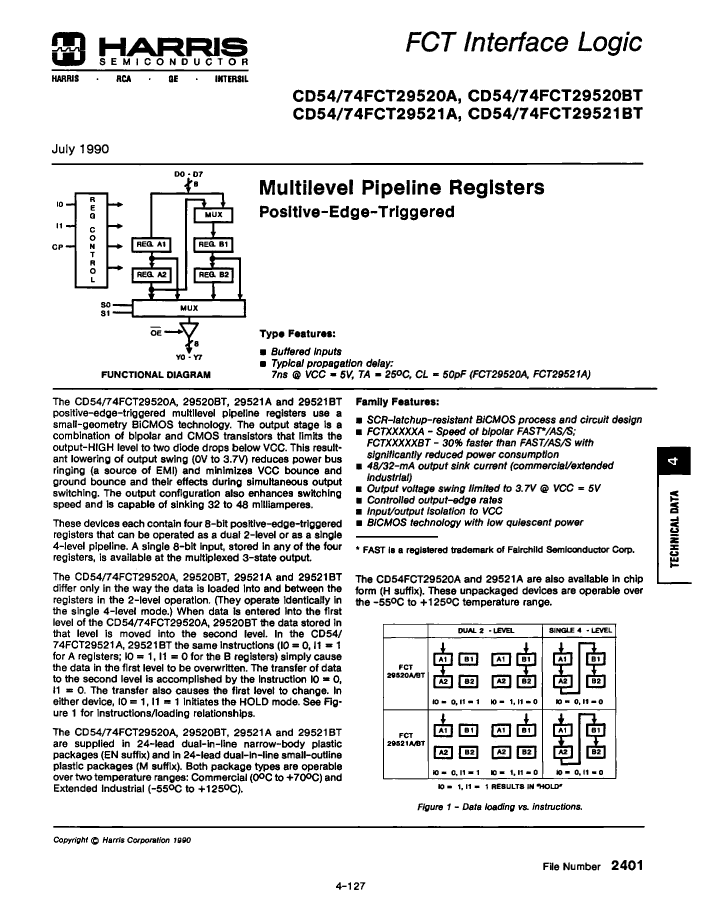

CD54FCT29521BTEN Overview

Pipeline Register, 8-Bit, BICMOS, PDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	MULTIPLEXED OUTPUT
boundary scan	NO
External data bus width	8
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
low power mode	NO

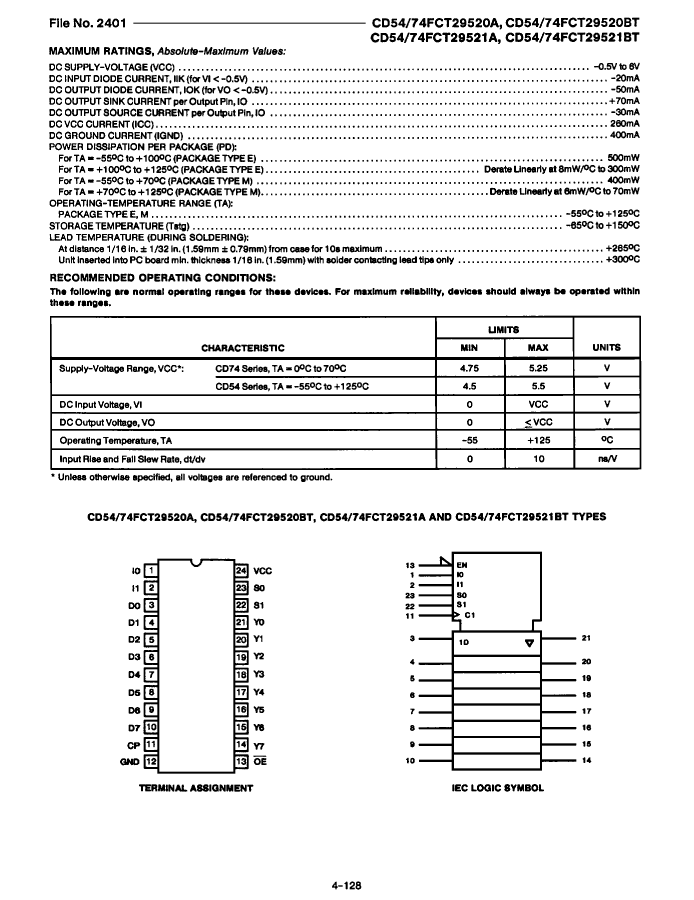

Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

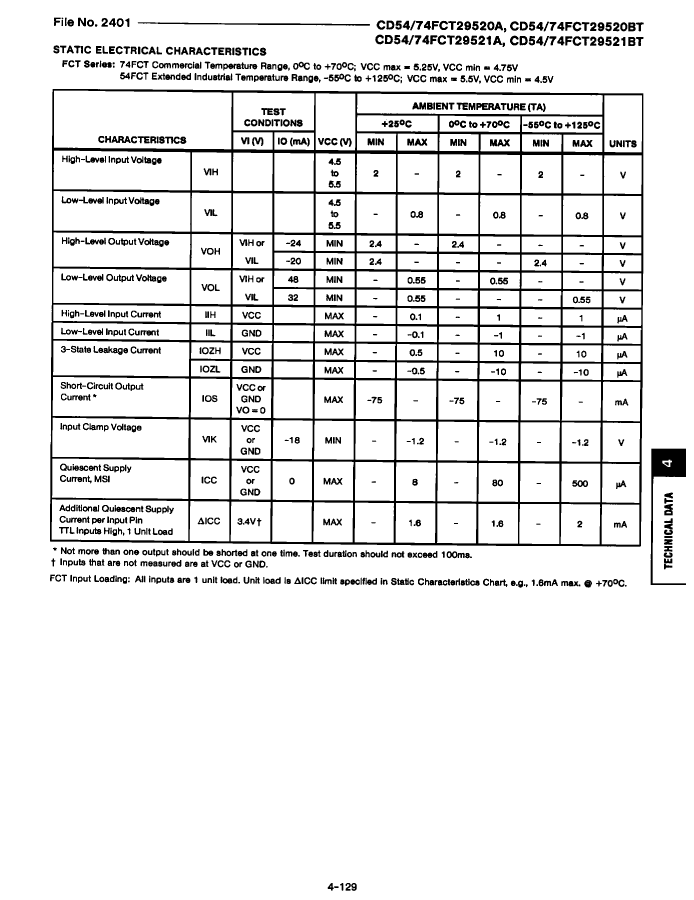

power supply	5 V
Certification status	Not Qualified

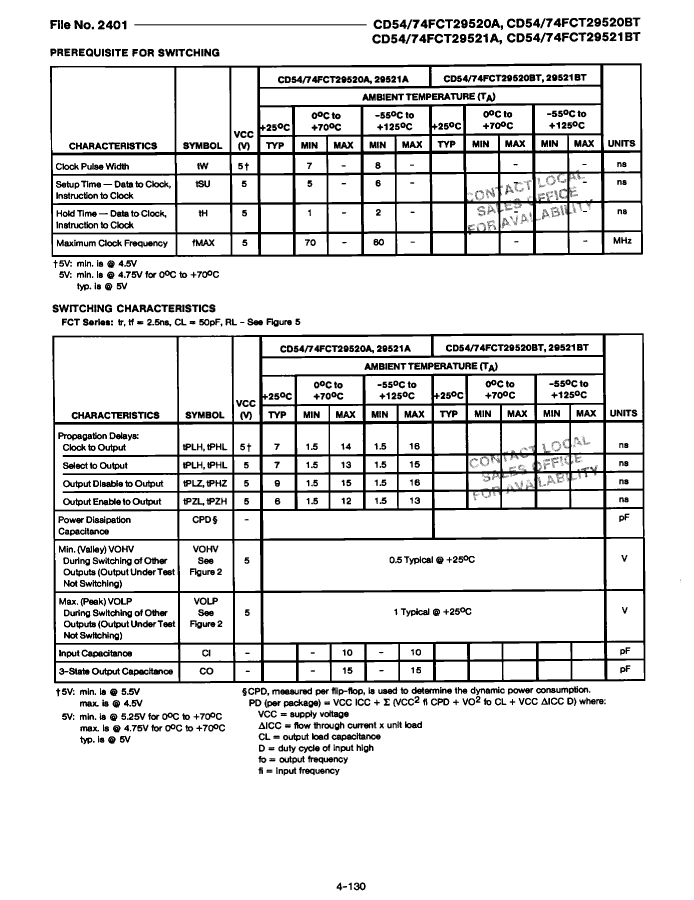

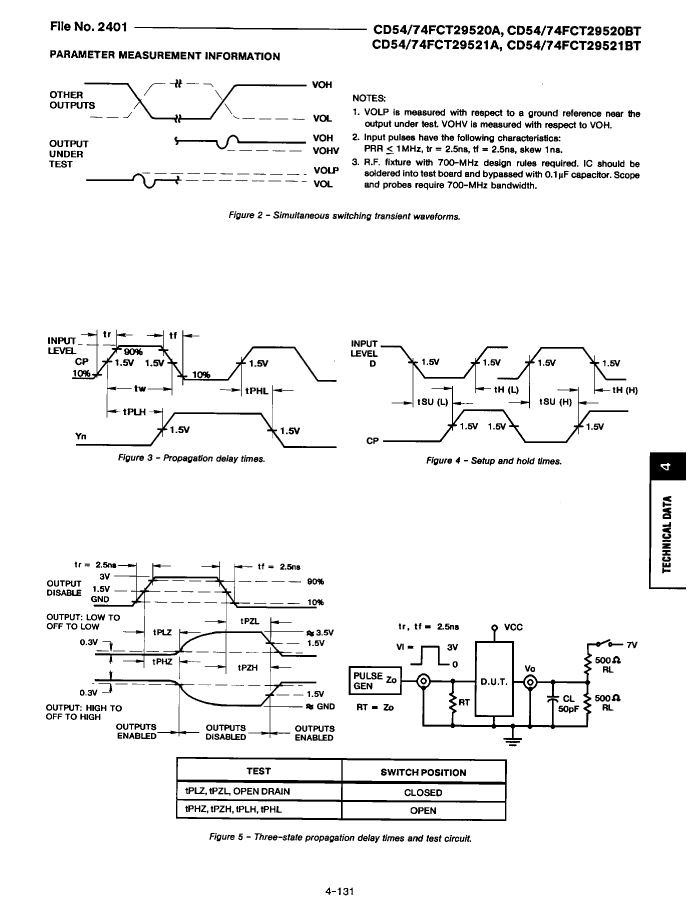

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER
