AS3033 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> AS3033

AS3033: DescriptionWide Band Low Power Amplifier, 1000MHz Min, 3000MHz Max, SMTO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size171KB，2 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric View All

AS3033 Overview

Wide Band Low Power Amplifier, 1000MHz Min, 3000MHz Max, SMTO-8, 4 PIN

AS3033 Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	SMTO-8, 4 PIN
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	18.5 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	3000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.9
Base Number Matches	1

Preview

Download Datasheet

View All

Rev. 5/10

AC3033

Typical Values

1000 TO 3000 MHz

TO-8 CASCADABLE AMPLIFIER

AC3033

0.1 Watt

3.0 Volts

2.4 dB

21.0 dB

38.0 dB

Ultra Low DC Power Consumption

. . . . . . . . . . . . . . . . . . .

Low DC Voltage

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Low Noise Figure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Gain

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Reverse Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Performance Thin Film

Standard Size TO-8 Package

AC3033

TO-8 Package for Amplifiers

SPECIFICATIONS

Parameter

Frequency (Min.)

Small Signal Gain (Min.)

Gain Flatness (Max.)

Noise Figure (Max.)

SWR (Max.)

Input/Output

Typical

1000-3000 MHz

21.0 dB

±0.5 dB

2.4 dB

1.2:1

Guaranteed

0 to 50 °C

-55 to +85 °C

1000-3000 MHz

20.0 dB

±0.8 dB

2.7 dB

1.7:1

1000-3000 MHz

18.5 dB

±0.9 dB

3.5 dB

1.9:1

Power Output (Min.)

@ 1dB comp.

Reverse Isolation

DC Current (Max.)

+4.5 dBm

38.0 dB

35 mA

+4.0 dBm

—

38 mA

+3.5 dBm

—

40 mA

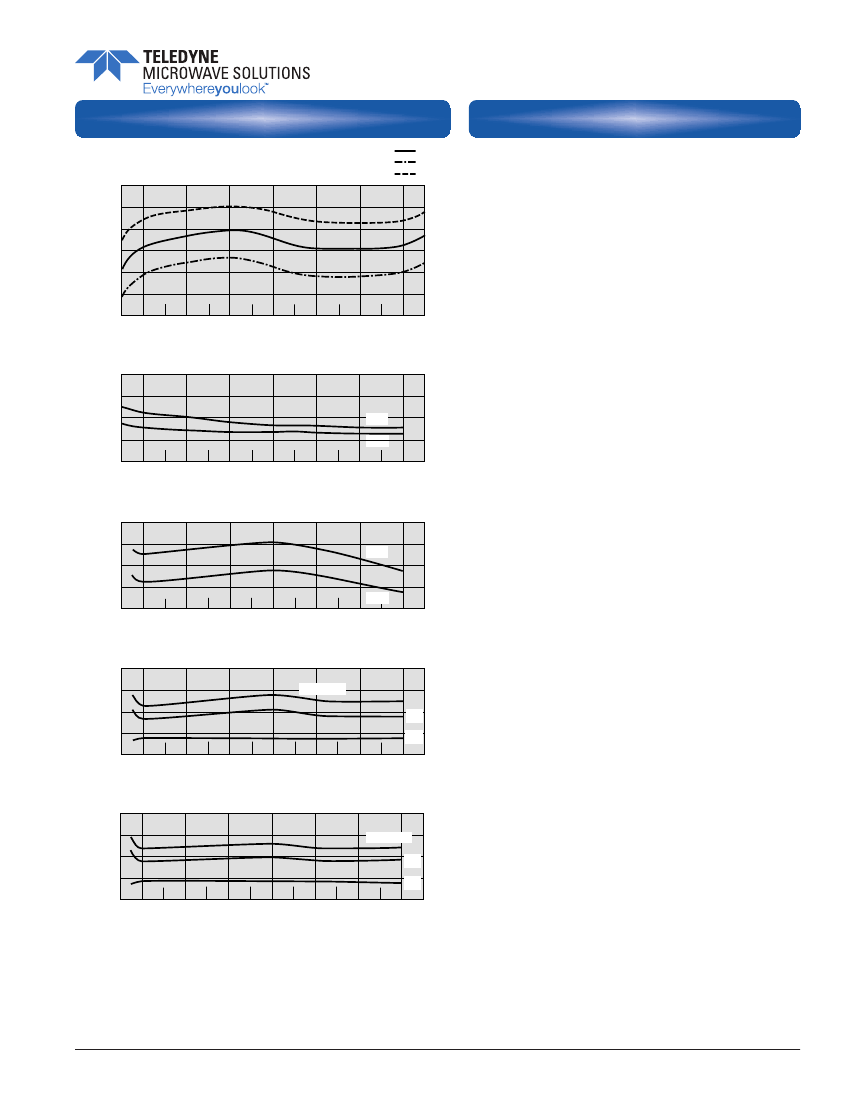

AS3033

* Measured in a 50-ohm system at +3 Vdc unless otherwise specified.

SMTO-8 Package for Amplifiers

INTERMODULATION PERFORMANCE

Typical @ 25 °C; 1000 MHz

AC3033

+34 dBm

+28 dBm

+17 dBm

Second Order Harmonic Intercept Point.

. . . . . . . . . . . . . .

Second Order Two Tone Intercept Point

. . . . . . . . . . . . . . .

Third Order Two Tone Intercept Point

. . . . . . . . . . . . . . . . .

ABSOLUTE MAXIMUM RATINGS

Storage Temperature

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maximum Case Temperature

. . . . . . . . . . . . . . . . . . . . . . . .

Maximum DC Voltage

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maximum Continuous RF Input Power

. . . . . . . . . . . . . . . .

Maximum Short Term Input Power

(1 Minute Max.) . . . . . . .

Maximum Peak Power

(3 µsec Max.) . . . . . . . . . . . . . . . . . .

Burn-in Temperature

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermal Resistance

(θjc) . . . . . . . . . . . . . . . . . . . . . . . . . .

Junction Temperature Rise Above Case

(Tjc) . . . . . . . . . . .

-62 to 125 °C

+125 °C

+7 Volts

+17 dBm

100 Milliwatts

0.5 Watt

+125°C

+18 °C/Watt

+2 °C

Thermal resistance is based on total power dissipation.

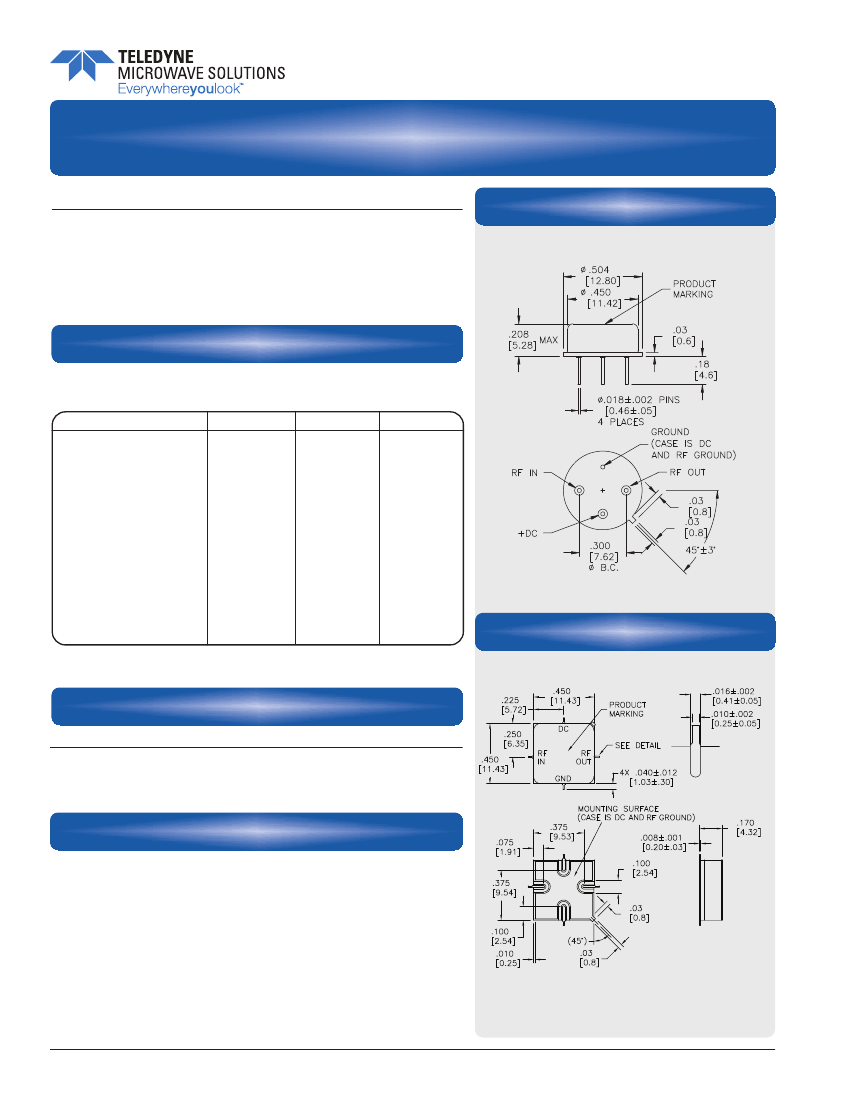

DIMENSIONS ARE IN INCHES [MILLIMETERS]

650-691-9800 • Fax: 650-962-6845 • Updates: www.teledynemicrowave.com • microwave@teledyne.com
