54F158A/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F158A/B2A

54F158A/B2A: DescriptionMultiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20; Categorylogic logic; File Size183KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F158A/B2A Overview

Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20

54F158A/B2A Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	15 mA
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

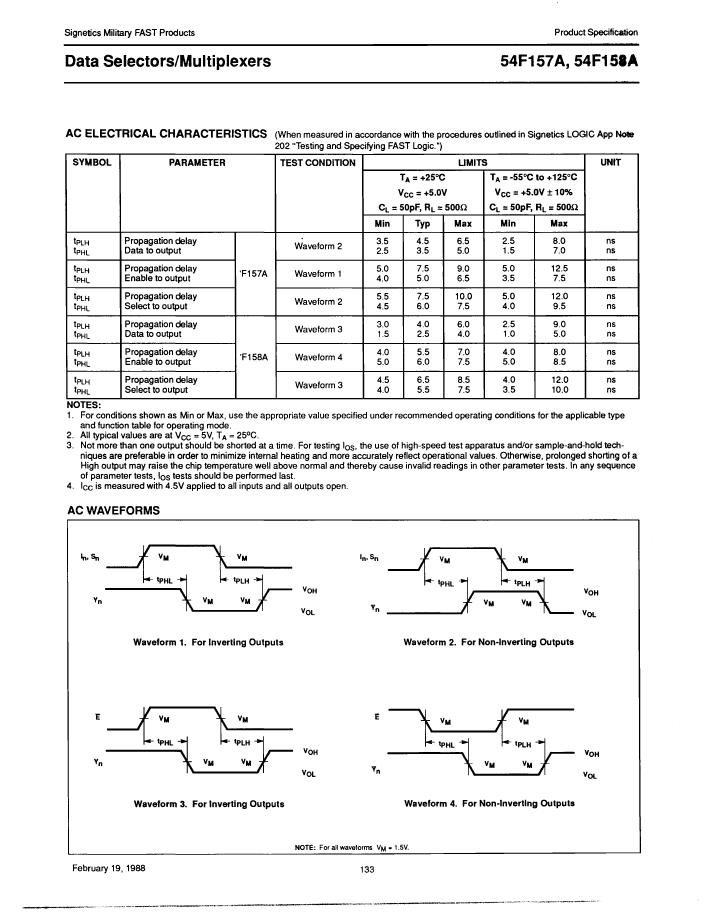

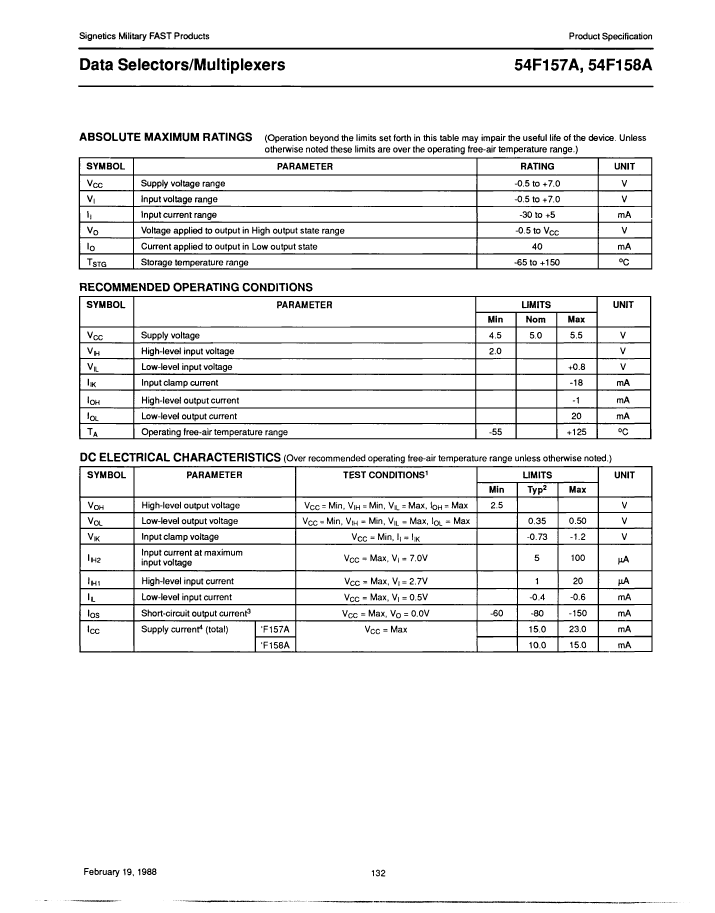

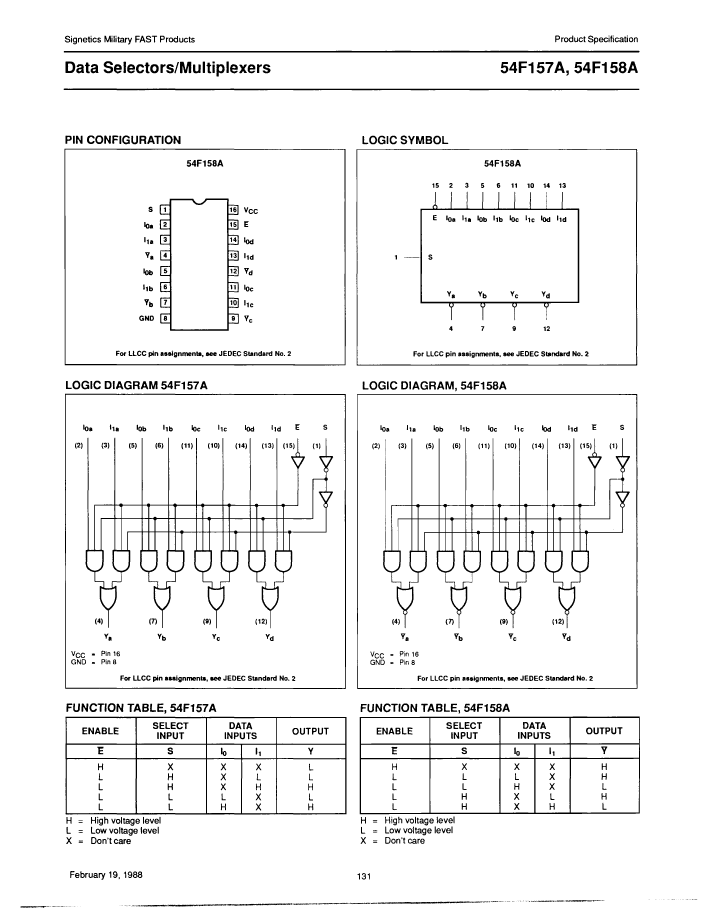

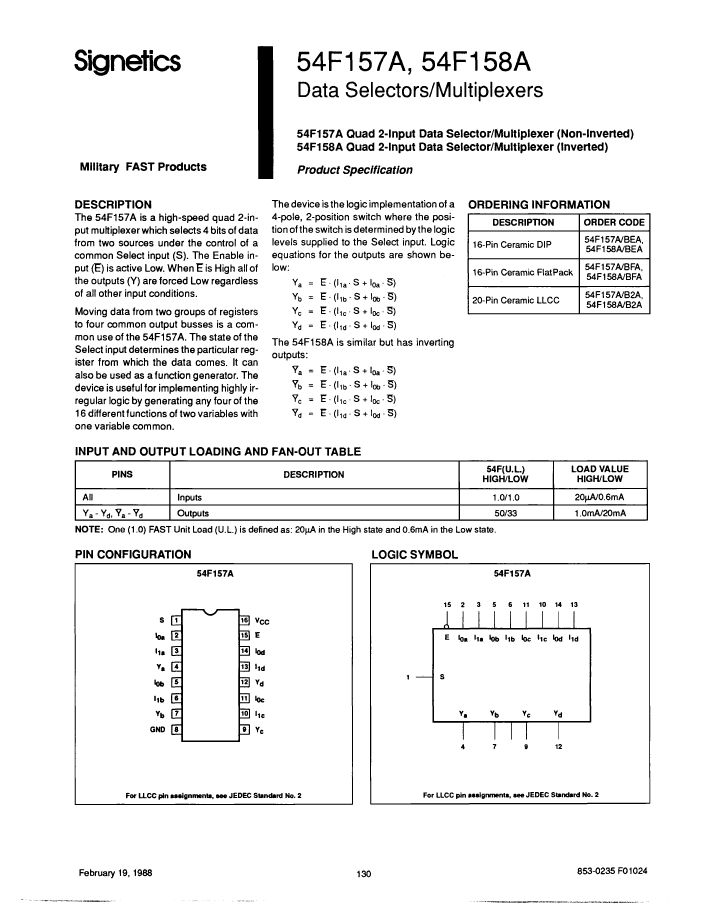

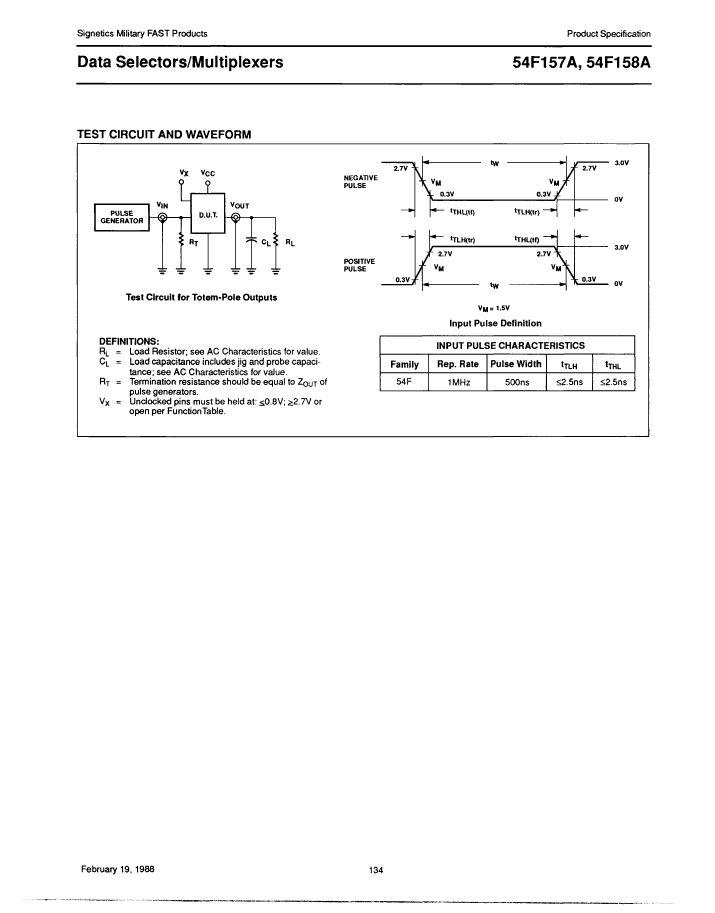

Preview

Download Datasheet

View All

54F158A/B2A Related Products

	54F158A/B2A	54F157A/BFA	54F157A/BEA	54F157A/B2A	54F158A/BFA	54F158A/BEA
Description	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16,	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQCC20	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDFP16	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDIP16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDFP-F16	R-CDIP-T16	S-CQCC-N20	R-CDFP-F16	R-CDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Output times	1	1	1	1	1	1
Number of terminals	20	16	16	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	TRUE	TRUE	TRUE	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE
Maximum supply current (ICC)	15 mA	23 mA	23 mA	23 mA	15 mA	15 mA
propagation delay (tpd)	10 ns	9.5 ns	9.5 ns	9.5 ns	10 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
