DG509ADY: DescriptionDifferential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16,; CategoryAnalog mixed-signal IC The signal circuit; File Size299KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG509ADY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG509ADY	-	-	View	Buy Now

DG509ADY Overview

Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16,

DG509ADY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	SOP-16
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
Maximum input voltage	2.4 V
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Maximum negative supply voltage (Vsup)	-17 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
On-state resistance matching specifications	27 Ω
Maximum on-state resistance (Ron)	450 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	COMMON OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum signal current	0.02 A
Maximum supply current (Isup)	2.4 mA
Maximum supply voltage (Vsup)	17 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	1000 ns
Maximum connection time	1500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.77 mm
Base Number Matches	1

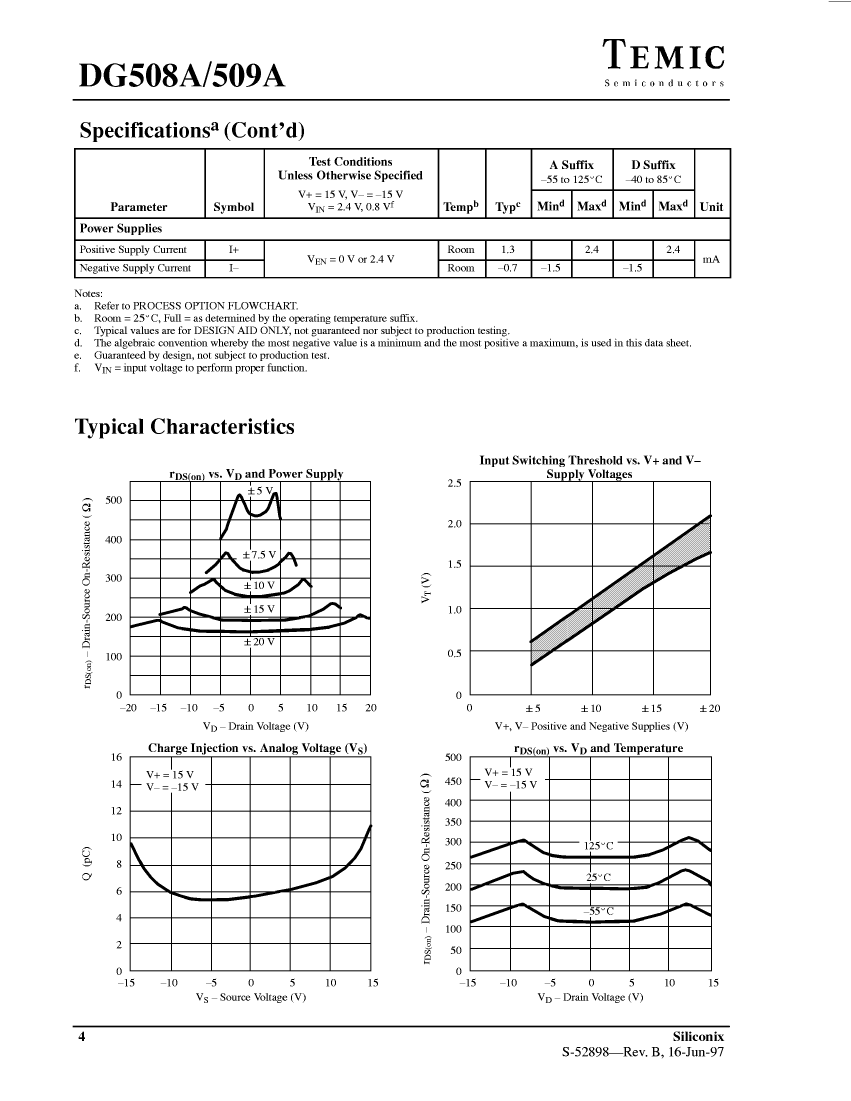

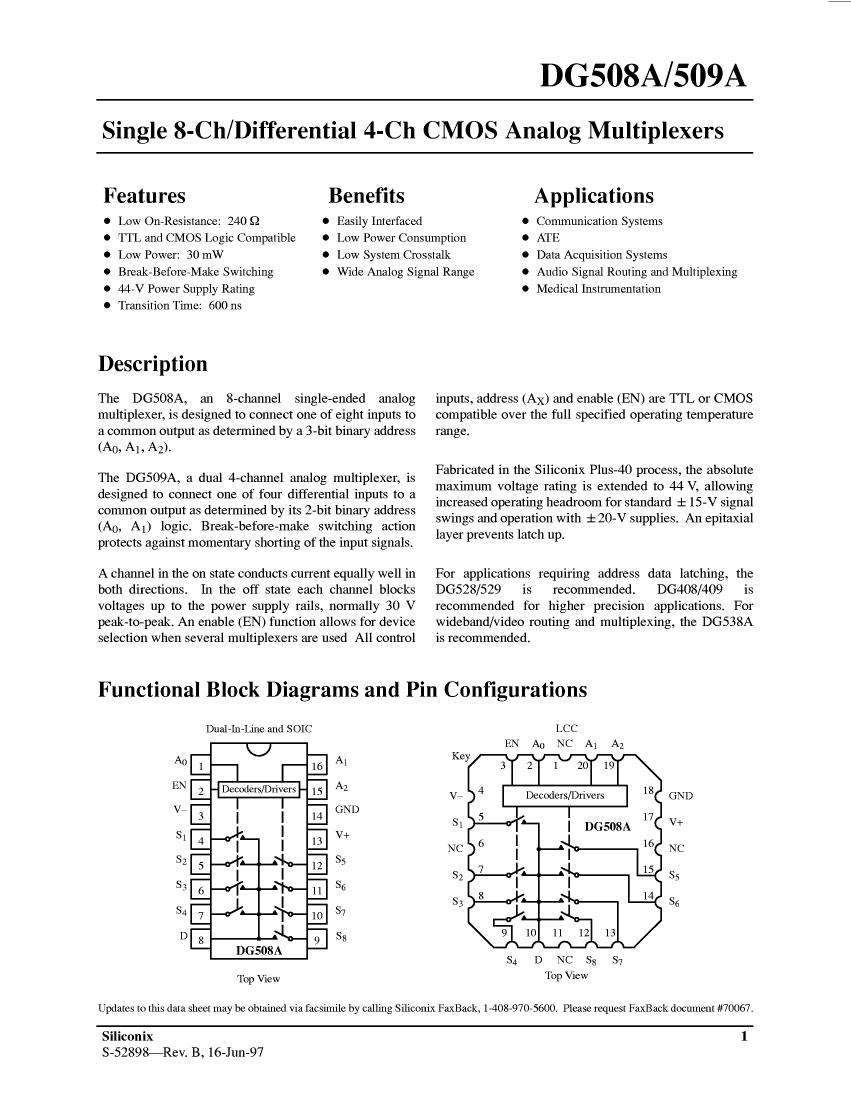

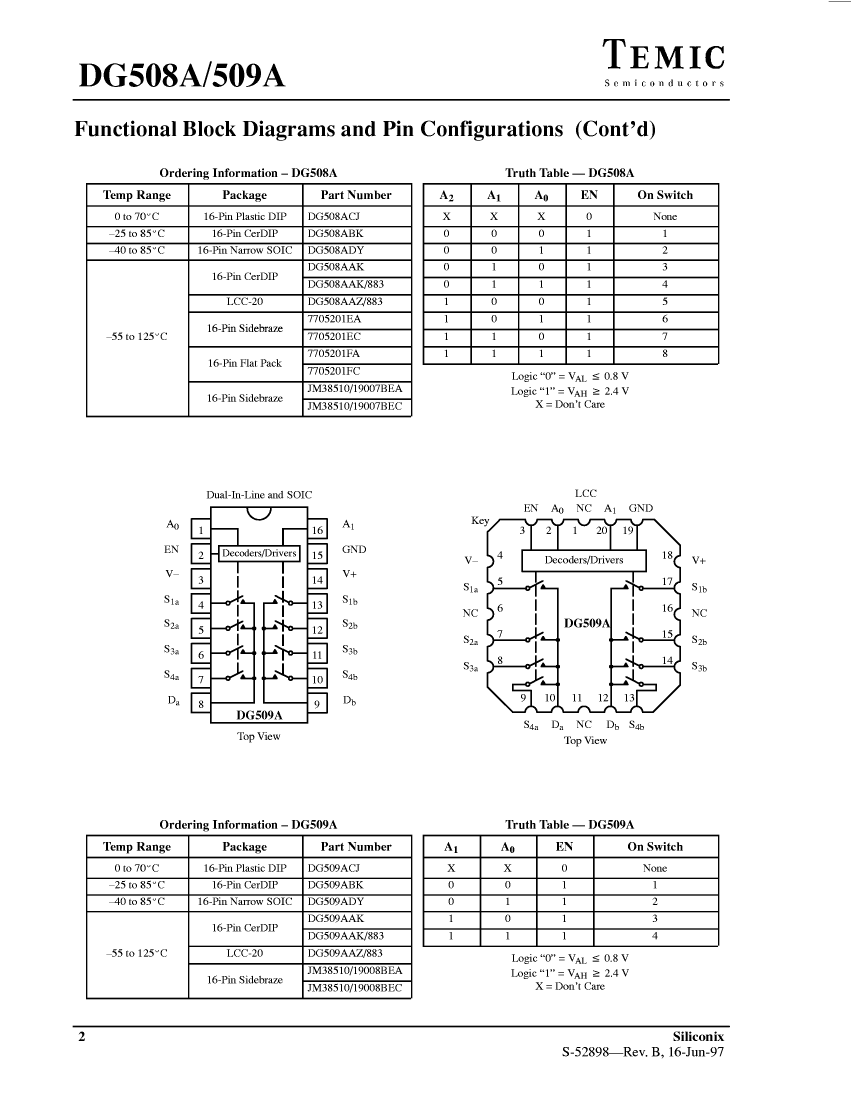

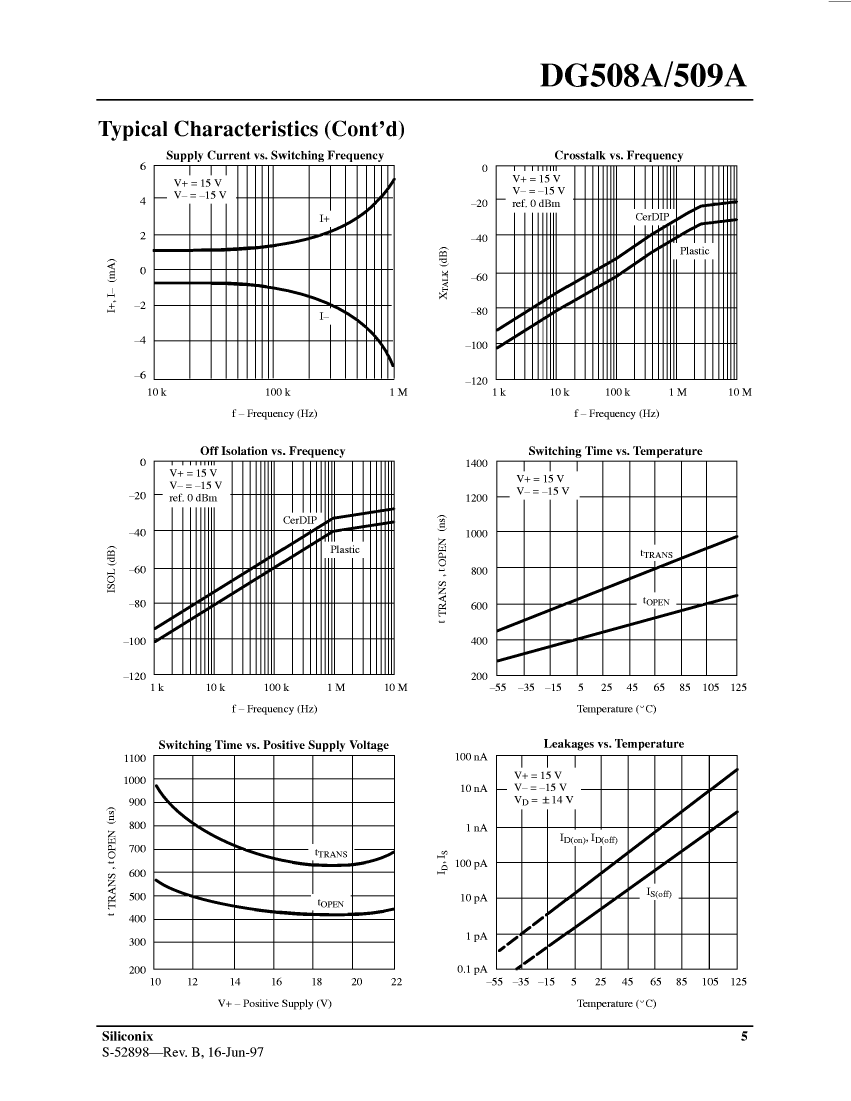

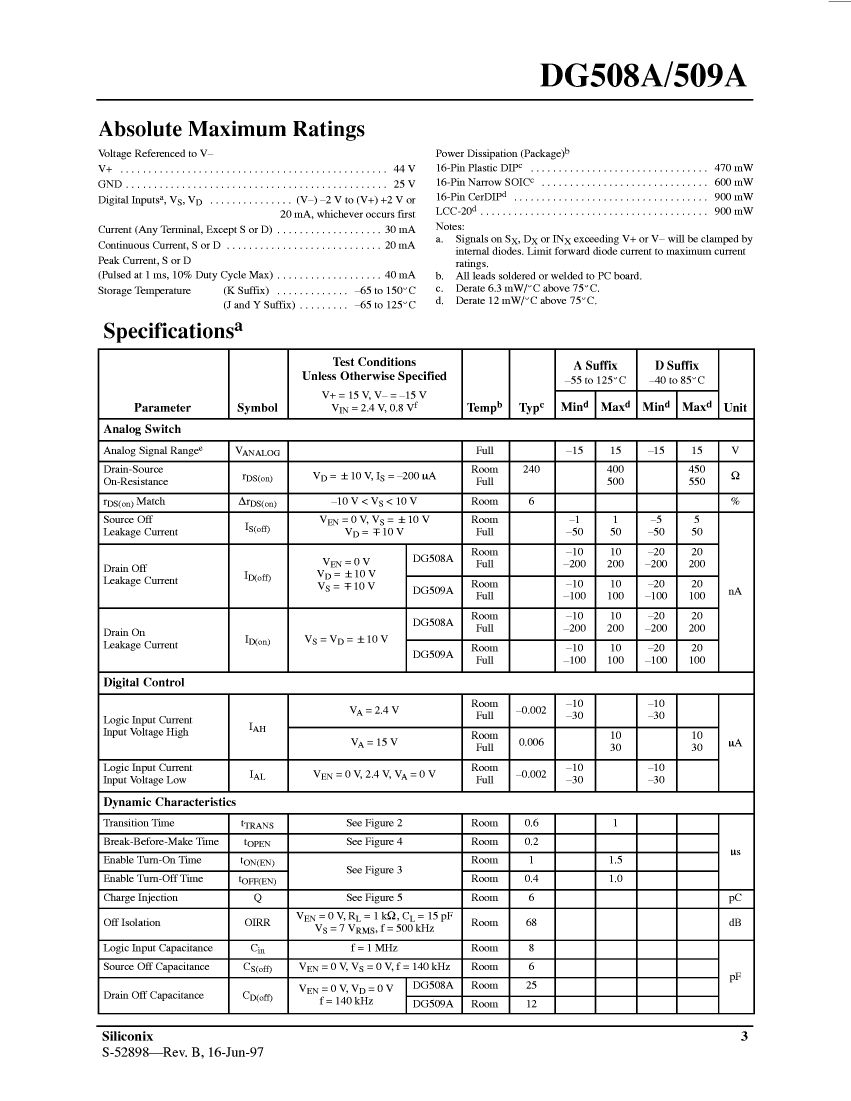

Preview

Download Datasheet

View All

DG509ADY Related Products

	DG509ADY	DG509ACJ	7705201FX	7705201EX	DG509ABK
Description	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16,	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16,	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDFP16, CERAMIC, FP-16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, CERAMIC, DIP-16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,
Maker	Vishay	Vishay	Vishay	Vishay	Vishay
package instruction	SOP-16	DIP-16	DFP, FL16,.3	DIP,	DIP, DIP16,.3
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-XDFP-F16	R-GDIP-T16	R-PDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	4	4	8	8	4
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum on-state resistance (Ron)	450 Ω	450 Ω	1000 Ω	450 Ω	450 Ω
Maximum operating temperature	85 °C	70 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-	-55 °C	-55 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DFP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	MILITARY	MILITARY	OTHER
Terminal form	GULL WING	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	-	-	incompatible
JESD-609 code	e0	e0	-	-	e0
length	9.9 mm	-	-	19.05 mm	19.3 mm
Nominal off-state isolation	68 dB	68 dB	-	68 dB	68 dB
On-state resistance matching specifications	27 Ω	6 Ω	-	14 Ω	27 Ω
Encapsulate equivalent code	SOP16,.25	DIP16,.3	FL16,.3	-	DIP16,.3
power supply	+-15 V	+-15 V	+-15 V	-	+-15 V
Maximum seat height	1.75 mm	-	-	5.08 mm	5.08 mm
Maximum signal current	0.02 A	0.02 A	0.001 A	-	0.02 A
Maximum supply current (Isup)	2.4 mA	3.9 mA	12 mA	-	2.4 mA
Maximum supply voltage (Vsup)	17 V	-	-	16.5 V	17 V
Maximum disconnect time	1000 ns	-	-	300 ns	1000 ns
Maximum connection time	1500 ns	-	1500 ns	300 ns	1500 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
width	3.77 mm	-	-	7.62 mm	7.11 mm
Base Number Matches	1	1	1	1	-
