LTC6800 Overview

Input and Output, Instrumentation Amplifier

LTC6800
Rail-to-Rail
Input and Output,
Instrumentation Amplifier
FEATURES
s
s
s
s
s
s
s
s
DESCRIPTIO
116dB CMRR Independent of Gain
Maximum Offset Voltage: 100µV
Maximum Offset Voltage Drift: 250nV/°C
– 40°C to 125°C Operation
Rail-to-Rail Input Range
Rail-to-Rail Output Swing
Supply Operation: 2.7V to 5.5V
Available in an MS8 and 3mm
×
3mm
×
0.8mm
DFN Packages
The LTC
®
6800 is a precision instrumentation amplifier.
The CMRR is typically 116dB with a single 5V supply and
is independent of gain. The input offset voltage is guaran-
teed below 100µV with a temperature drift of less than
250nV/°C. The LTC6800 is easy to use; the gain is adjust-
able with two external resistors, like a traditional op amp.
The LTC6800 uses charge balanced sampled data tech-
niques to convert a differential input voltage into a single
ended signal that is in turn amplified by a zero-drift
operational amplifier.
The differential inputs operate from rail-to-rail and the
single ended output swings from rail-to-rail. The LTC6800
is available in an MS8 surface mount package. For space
limited applications, the LTC6800 is available in a
3mm
×
3mm
×
0.8mm dual fine pitch leadless package
(DFN).
, LTC and LT are registered trademarks of Linear Technology Corporation.
APPLICATIO S
s
s
s
s
s
Thermocouple Amplifiers
Electronic Scales
Medical Instrumentation
Strain Gauge Amplifiers
High Resolution Data Acquisition
TYPICAL APPLICATIO
High Side Power Supply Current Sense
1.5mΩ
V
REGULATOR
Typical Input Referred Offset vs
Input Common Mode Voltage (V
S
= 3V)
15
10
V
S
= 3V
V
REF
= 0V
T
A
= 25°C
6
5
4
10k
0.1µF
V
OS
(µV)
+
3
2
8
7
LTC6800
OUT
100mV/A
OF LOAD
CURRENT
I
LOAD
5
0
–5
G = 10
–10
6800 TA01
LOAD
150Ω
–15
0
1
1.5
2
2.5
0.5
INPUT COMMON MODE VOLTAGE (V)
U
G = 1000
G = 100
G=1
3
6800 TA02
U
U
6800fa
1

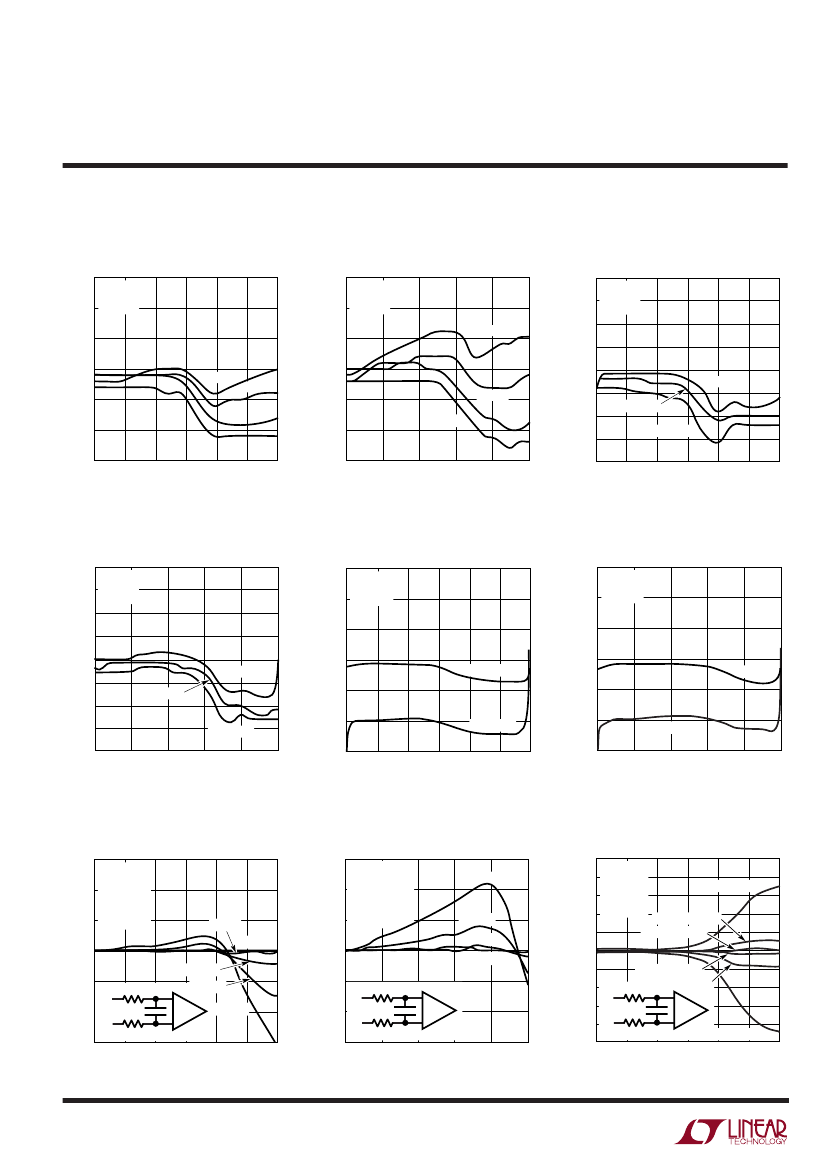

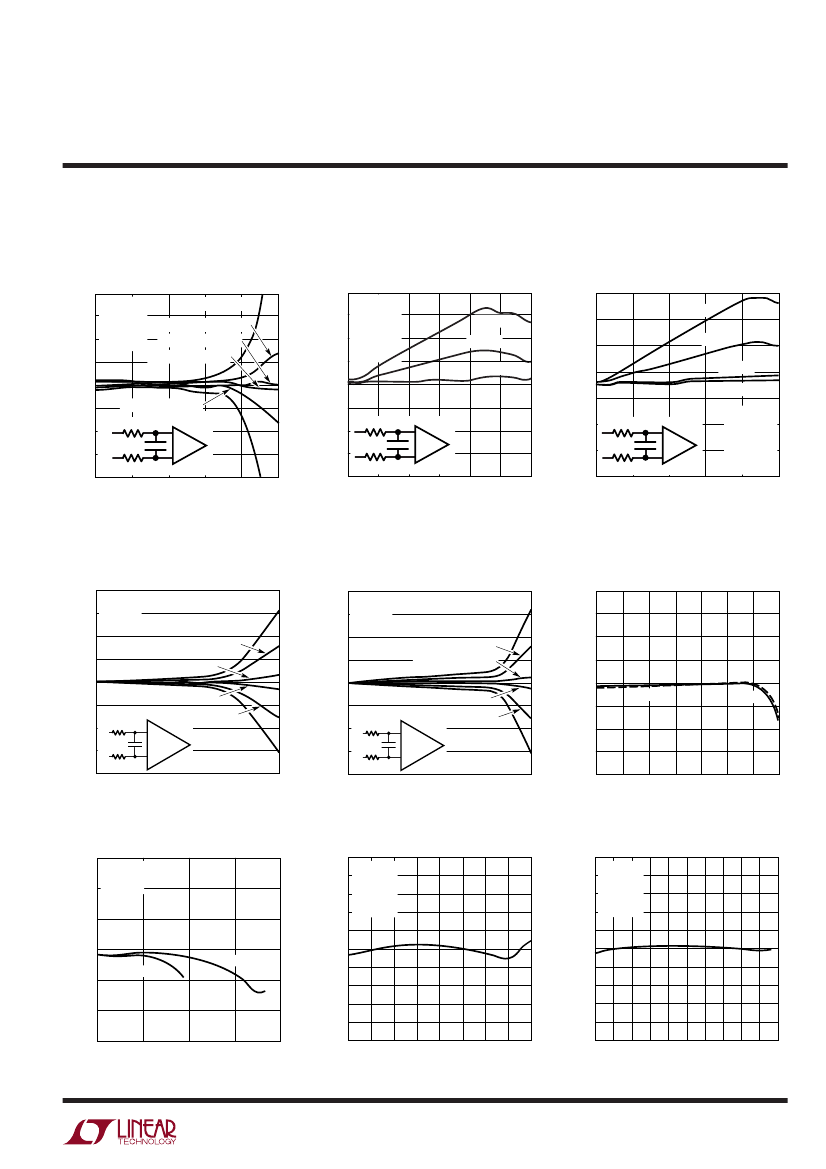

LTC6800 Related Products

LTC6800 LTC6800HMS8 LTC6800HDD
Description Input and Output, Instrumentation Amplifier Input and Output, Instrumentation Amplifier Input and Output, Instrumentation Amplifier
Brand Name - Linear Technology Linear Technology
Is it Rohs certified? - incompatible incompatible
Maker - Linear ( ADI ) Linear ( ADI )
Parts packaging code - MSOP DFN
package instruction - TSSOP, TSSOP8,.19 HVSON, SOLCC8,.11,20
Contacts - 8 8
Manufacturer packaging code - MS8 DD
Reach Compliance Code - _compli not_compliant
ECCN code - EAR99 EAR99
Amplifier type - INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB) - 0.01 µA 0.01 µA
Minimum Common Mode Rejection Ratio - 90 dB 90 dB
Maximum input offset current (IIO) - 0.003 µA 0.003 µA
Maximum input offset voltage - 100 µV 100 µV
JESD-30 code - S-PDSO-G8 S-PDSO-N8
JESD-609 code - e0 e0
length - 3 mm 3 mm
Humidity sensitivity level - 1 1
maximum nonlinearity - 0.01% 0.01%
Number of functions - 1 1
Number of terminals - 8 8
Maximum operating temperature - 125 °C 125 °C
Minimum operating temperature - -40 °C -40 °C
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code - TSSOP HVSON
Encapsulate equivalent code - TSSOP8,.19 SOLCC8,.11,20
Package shape - SQUARE SQUARE
Package form - SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius) - 235 235
power supply - 3/5 V 3 V
Certification status - Not Qualified Not Qualified
Maximum seat height - 1.1 mm 0.85 mm
Nominal slew rate - 0.2 V/us 0.2 V/us
Maximum slew rate - 1.2 mA 1.2 mA
Supply voltage upper limit - 5.5 V 5.5 V
Nominal supply voltage (Vsup) - 3 V 3 V
surface mount - YES YES
technology - CMOS CMOS
Temperature level - AUTOMOTIVE AUTOMOTIVE
Terminal surface - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form - GULL WING NO LEAD
Terminal pitch - 0.65 mm 0.5 mm
Terminal location - DUAL DUAL
Maximum time at peak reflow temperature - 20 20
width - 3 mm 3 mm
