8694380000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8694380000

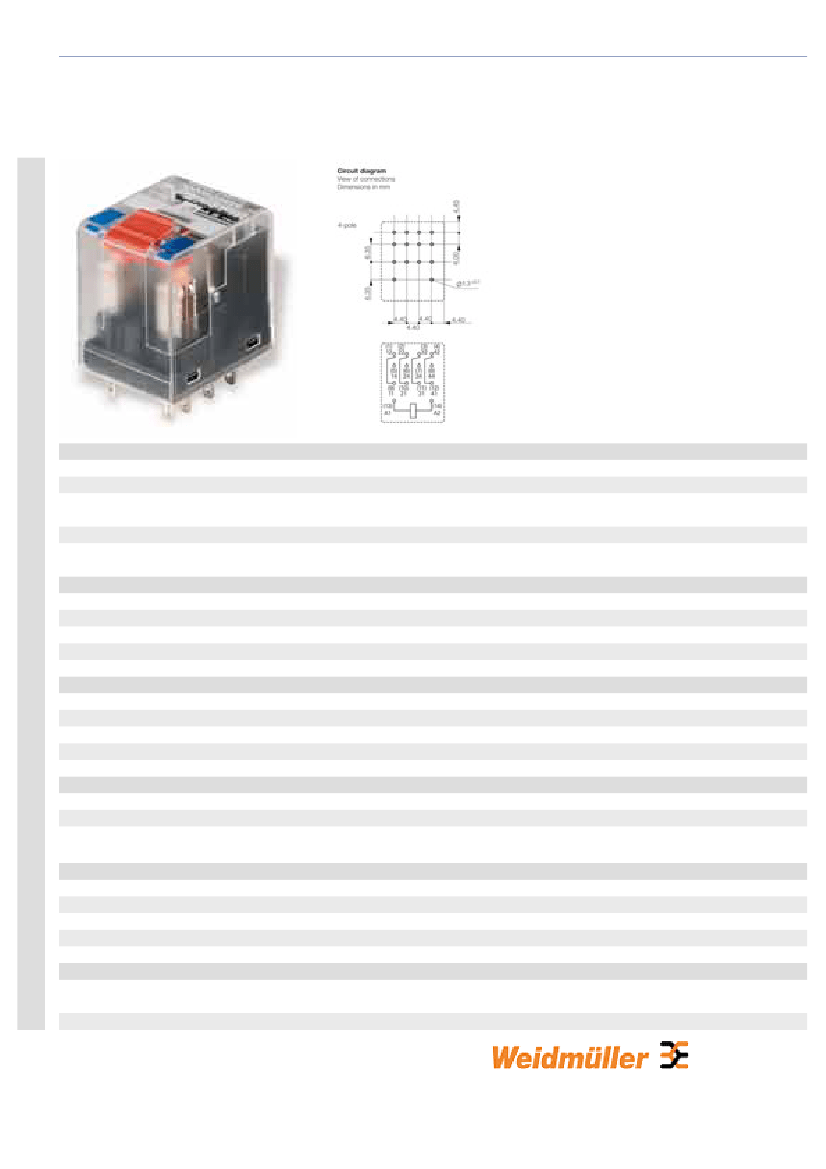

8694380000: DescriptionPower/Signal Relay, 4PDT, Momentary, 1000mW (Coil), AC Input, AC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size56KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8694380000 Overview

Power/Signal Relay, 4PDT, Momentary, 1000mW (Coil), AC Input, AC Output, Panel Mount

8694380000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 184 V; COIL RELEASE VOLTAGE(AC): 69 V
body width	22.5 mm
body height	30 mm
Body length or diameter	28 mm
Coil current (AC) maximum value	0.004 A
Coil power	1000 mW
Coil resistance	19465 Ω
Maximum coil voltage (AC)	230 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	6A@250VAC
Maximum contact current (AC)	6 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	8694380000
Installation features	PANEL MOUNT
operating hours	15 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	28mm x 22.5mm x 30mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	4PDT
Relay type	POWER/SIGNAL RELAY
release time	10 ms
seal	IP20
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Rated control voltage

Pull-in (sparkover) / drop-out voltage AC coil

Rated current AC

Power rating

Output

Continuous current

Max. switching power

Max. switching voltage AC

Sparkover time / Drop-out time

Contact data

Number of contacts

Contact base material

Mechanical service life

Rated data

Connection system

DIN Rail compatibility

UL 94 flammability class

Ambient temperature (operational)

8694380000

RCM571730

Relay, 4 CO contact, 230 V AC , 6 A, Plug-in

connection

4032248366064

10 pc(s).

230 V AC

184.0 V / 69.0 V

4.3 mA

1.0 VA

1500 VA

250 V

15ms / 10ms

AgNi 90/10

20*10 switching cycles

Plug-in connection

TS 35

V-0

-40 °C...+70 °C

Insulation coordination (EN 50 178)

Clearance and creepage distances for control side ≤ 3mm

- load side

Overvoltage category

III

-1-
