57GE-40500-651(D38)-FA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 57GE-40500-651(D38)-FA

57GE-40500-651(D38)-FA: DescriptionTelecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric View All

57GE-40500-651(D38)-FA Overview

Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

57GE-40500-651(D38)-FA Parametric

Parameter Name	Attribute value
Maker	DDK
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	EMI SHIELDED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN SILVER OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e2
MIL compliance	NO
Manufacturer's serial number	57GE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	BRASS/STEEL, NICKEL PLATED
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

57GE Series

Unit：mm

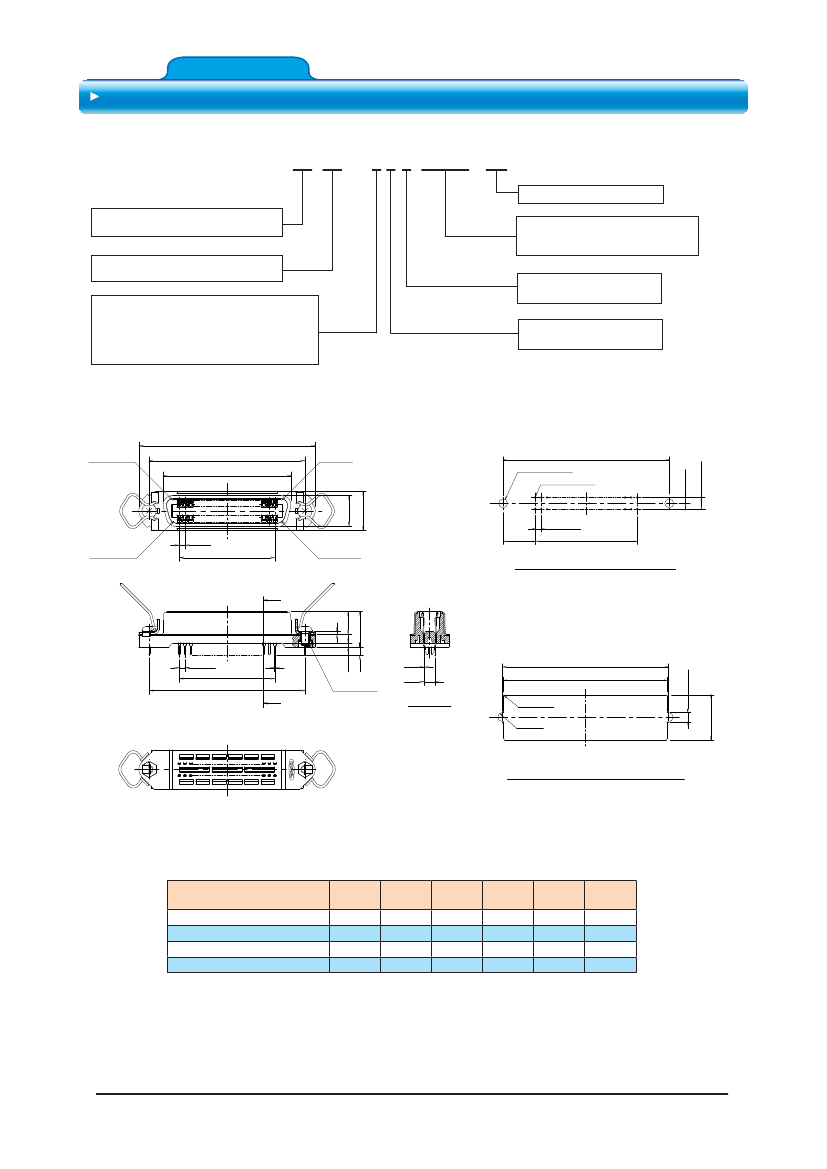

○ 40 Type Interface Receptacle with Board Lock

5 7 GE -40 360 -751(D15)-FA

FA: Lead Free

Mating Style

40: Receptacle with Spring Latch

Number of Contact

14, 24, 36, 50

Contact Plating

6: Contact Area: Au(0.76μm) over Ni Plating

Tail Area: Sn-Ag over Ni Plating

7: Contact Area: Au(0.3 8μm) over Ni Plating

Tail Area: Sn-Ag over Ni Plating

Deviation

(D15): with Board Lock

Pan-head Screw Assembled

Contact Tail Spacing

1: 4.2mm

Contact Tail Length

5: 3.2mm

No.n/2 Contact

0.2

No.1 Contact

2-φ3.2

0.1

12.0

15.1

2.159

No.n Contact

0.08

(11.52)

No.n/2+1 Contact

0.1

PCB Mounting Dimensions

Applicable PCB Thickness=1.6

0.19

Ｘ

(1.2)

8.7

13.5

1.5

2.159

Ｄ

(0.5)

3.2

(0.3)

4.2

0.1

+0.2

Ｍ３ 0.5 Thread

Ｘ

2-R

Panel Mounting Dimensions(Rear Mounting)

Applicable Panel Thickness=1.6½½ max.

Part Number

57GE-40140- □ 51（D15）-FA

57GE-40240- □ 51（D15）-FA

57GE-40360- □ 51（D15）-FA

57GE-40500- □ 51（D15）-FA

Number of

Contact

44.00

54.78

67.74

82.85

36.00

46.78

59.74

74.85

25.4

36.2

49.0

64.2

12.954

23.749

36.703

51.816

35.30

46.08

59.04

74.15

◎ Speciﬁcations and/or dimenssions in this catalogue are subject to change without notice.

Your catalogue checking the latest speiﬁcations with our drawings would be highly appreciated.

http://www.ddknet.co.jp

16.2

+0.2

Section Ｘ−Ｘ

4-R 0.4 max.

3.3

4.2

n-φ0.8

n/2

0.1

Through Hole

(2.1)

0.1

hole

n/2
