ICS9160-03MLF datasheet, PDF - EEWORLD Datasheet

ICS9160-03MLF: DescriptionProcessor Specific Clock Generator, 80MHz, CMOS, PDSO32, SOIC-32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size117KB，4 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

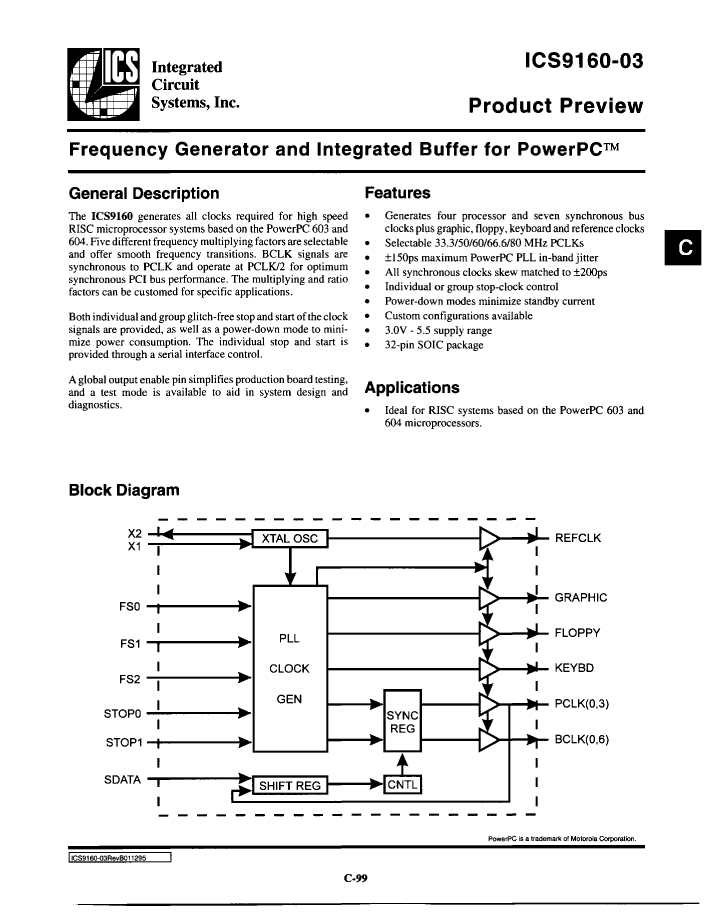

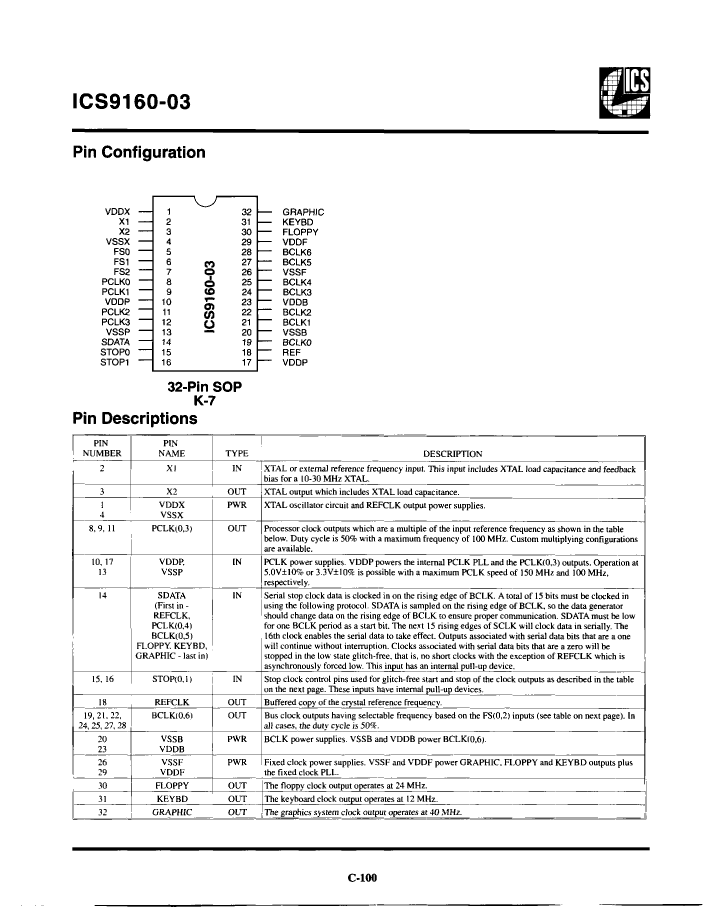

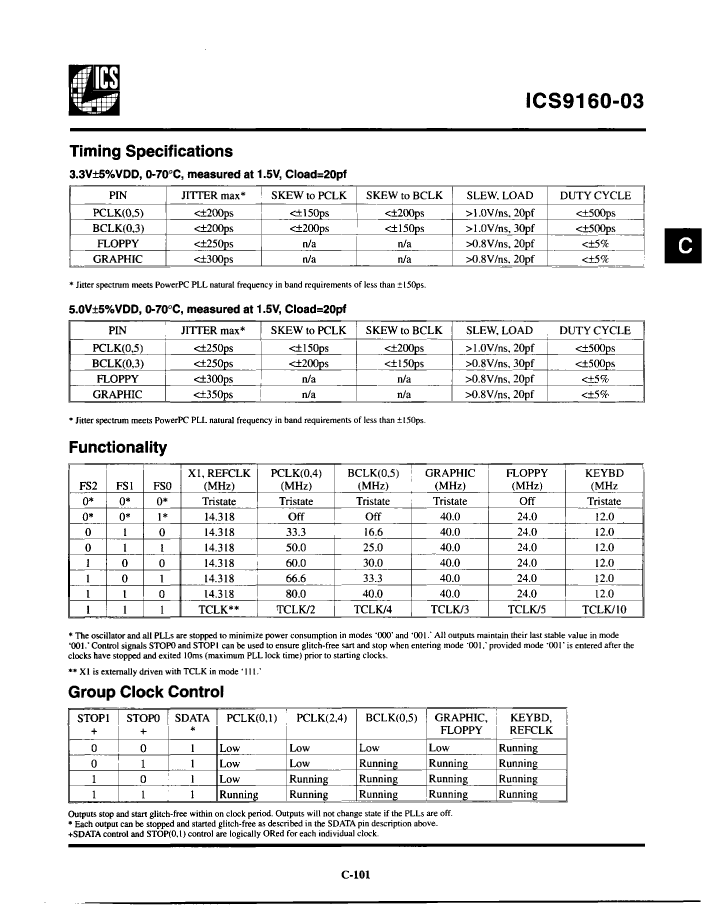

ICS9160-03MLF Overview

Processor Specific Clock Generator, 80MHz, CMOS, PDSO32, SOIC-32

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	SOP,
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G32
JESD-609 code	e3
length	20.4216 mm
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	80 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Master clock/crystal nominal frequency	14.318 MHz
Certification status	Not Qualified
Maximum seat height	2.8194 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	2.97 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.3406 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1

	ICS9160-03MLF	ICS9160-03M
Description	Processor Specific Clock Generator, 80MHz, CMOS, PDSO32, SOIC-32	Processor Specific Clock Generator, 80MHz, CMOS, PDSO32, SOIC-32
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	32	32
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
JESD-30 code	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e3	e0
length	20.4216 mm	20.4216 mm
Number of terminals	32	32
Maximum operating temperature	70 °C	70 °C
Maximum output clock frequency	80 MHz	80 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED
Master clock/crystal nominal frequency	14.318 MHz	14.318 MHz
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.8194 mm	2.8194 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	2.97 V	2.97 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	NOT SPECIFIED
width	7.3406 mm	7.3406 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1	1
