Part Number

Search

316077-6

Description
80 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE
CategoryThe connector    The connector
File Size373KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

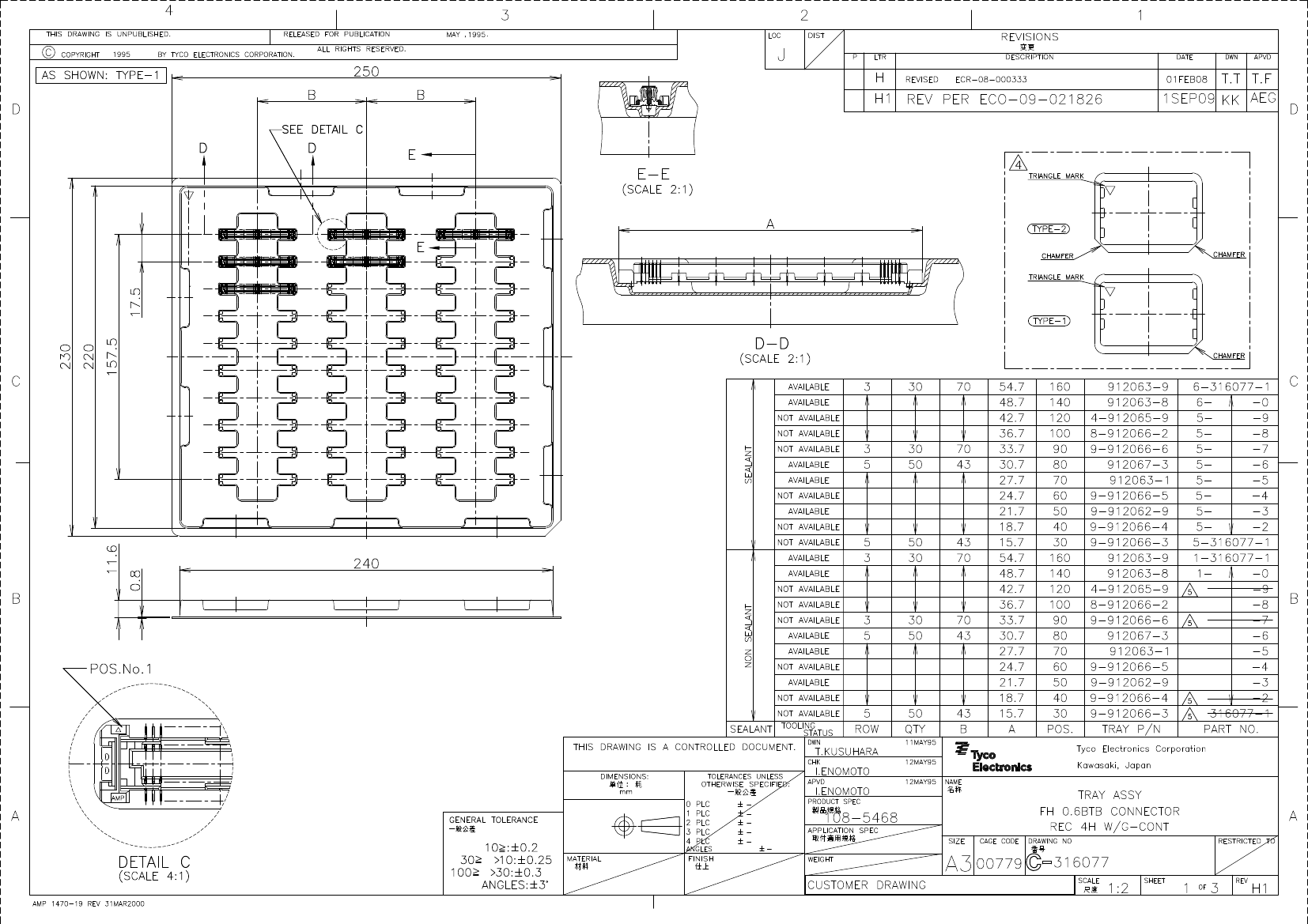

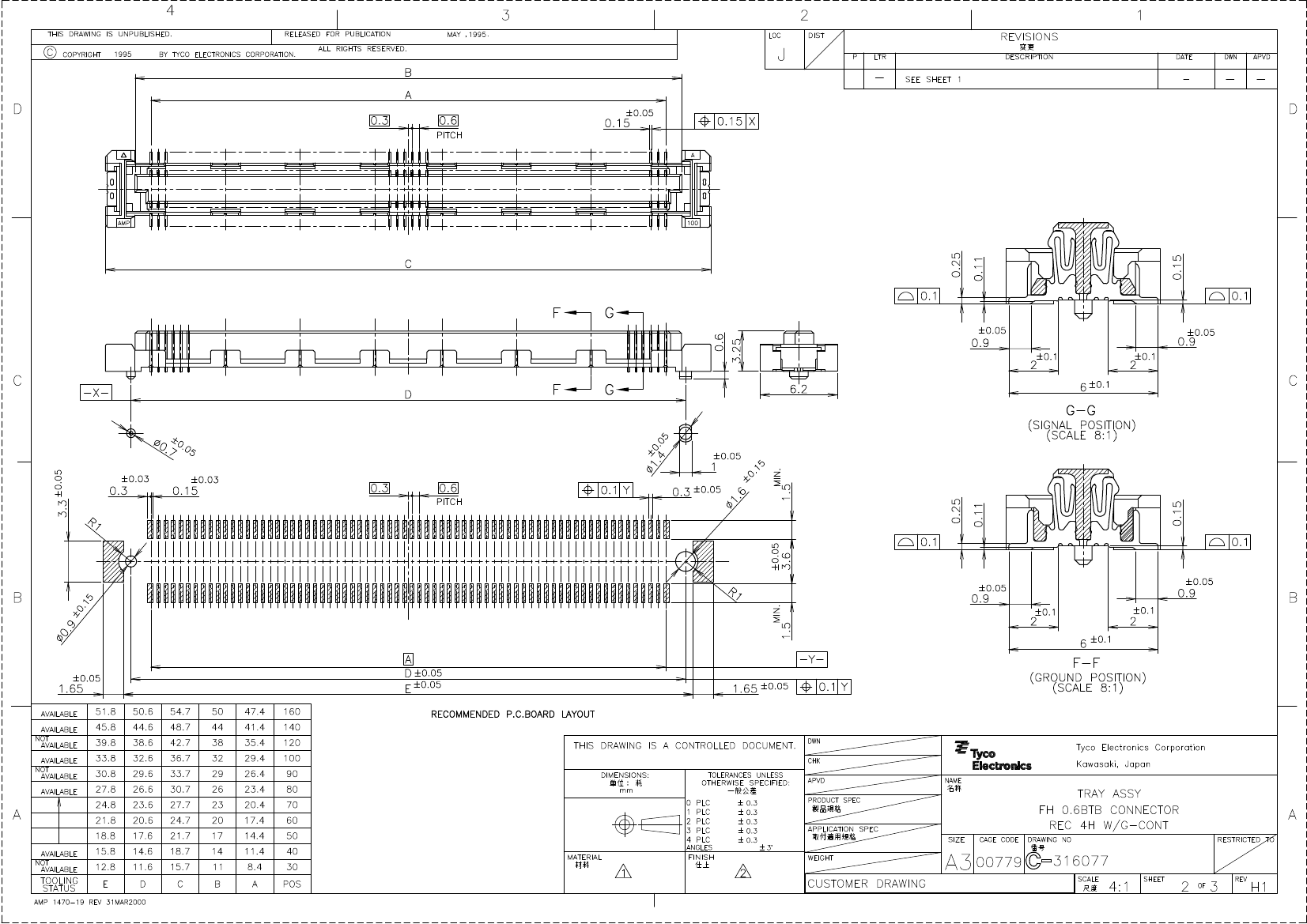

316077-6 Overview

80 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE

316077-6 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1431070572
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresWITH TRAY PACKAGING
Board mount optionsPEG
body width0.244 inch
subject depth0.128 inch
body length2.087 inch
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD (8)
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage200VAC V
Filter functionNO
IEC complianceNO
insulator materialTHERMOPLASTIC
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number316077
Plug contact pitch0.024 inch
Plug information353186-6
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.1054 mm
Plating thickness8u inch
polarization keyENDS
Rated current (signal)0.5 A
reliabilityCOMMERCIAL
Terminal pitch0.6 mm
Termination typeSURFACE MOUNT
Total number of contacts80
UL Flammability Code94V-0

316077-6 Related Products

316077-6 6-316077-1
Description 80 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE 160 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE
Is it Rohs certified? incompatible incompatible
Reach Compliance Code unknown unknown
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR
Contact to complete cooperation GOLD (8) NOT SPECIFIED
Contact completed and terminated Gold (Au) - with Nickel (Ni) barrier GOLD OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
JESD-609 code e4 e4
MIL compliance NO NO
Manufacturer's serial number 316077 316077
Mixed contacts NO NO
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of rows loaded 2 2
Options GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 0.6 mm 0.6 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 80 160
UL Flammability Code 94V-0 94V-0
