5151-0000-09 datasheet, PDF - EEWORLD Datasheet

5151-0000-09: DescriptionRF SMB Connector, Female, Panel Mount, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size459KB，11 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

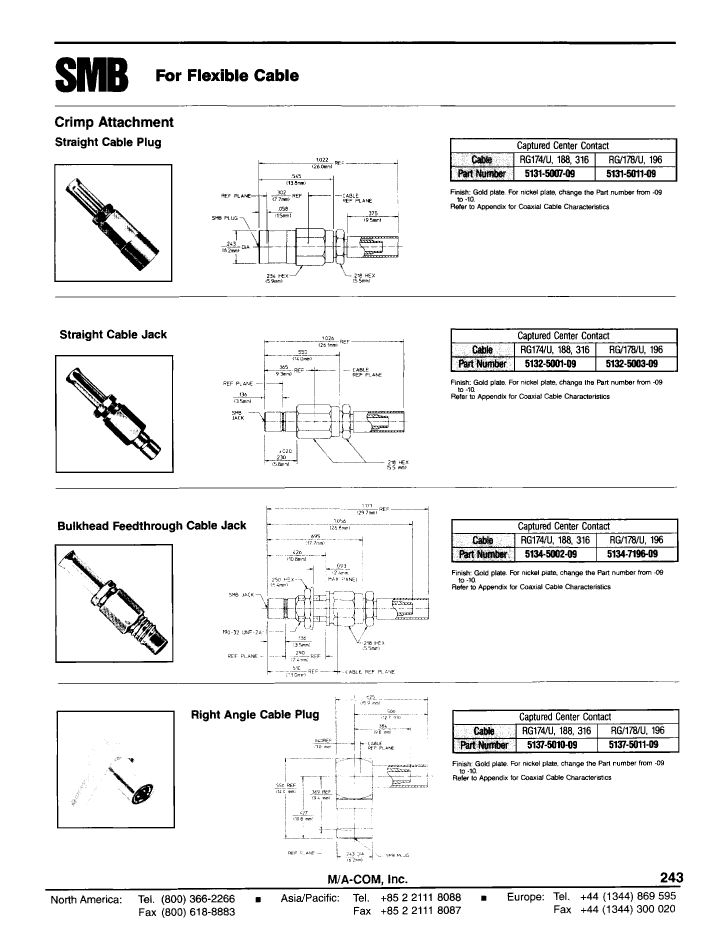

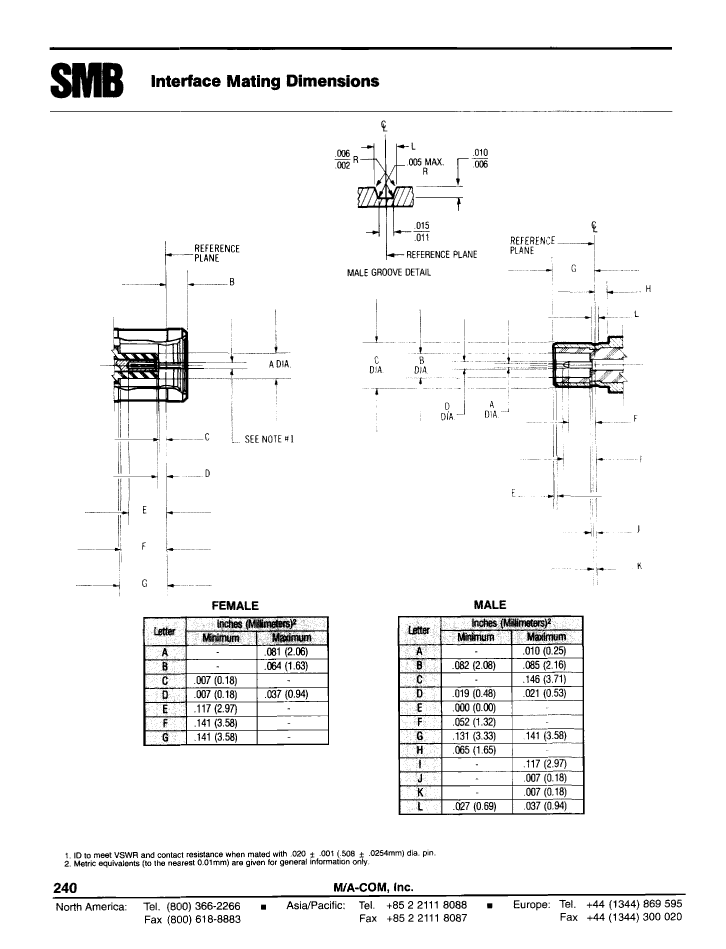

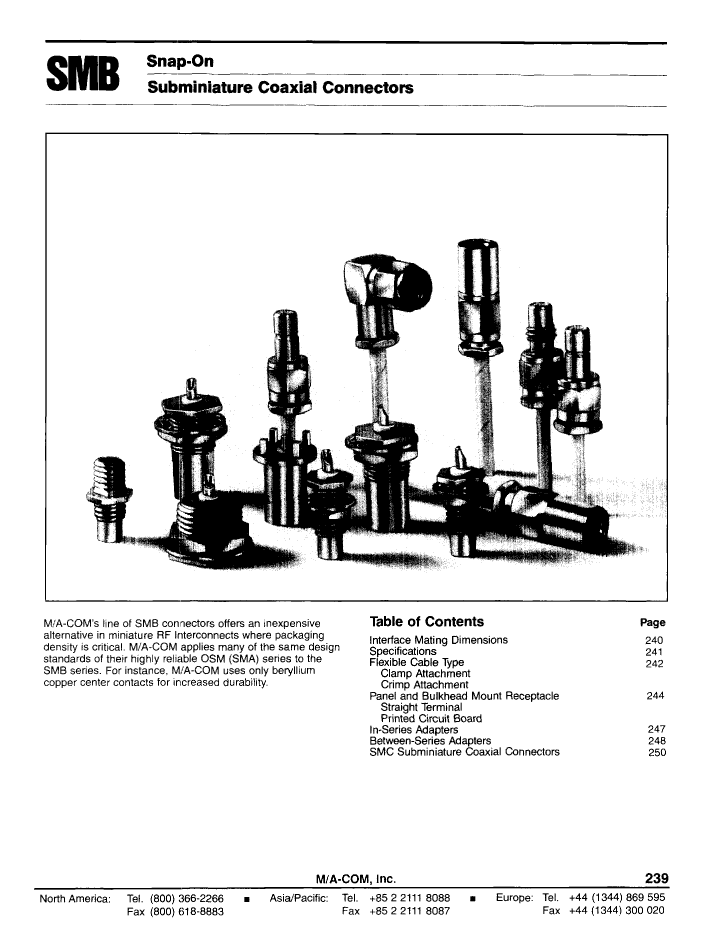

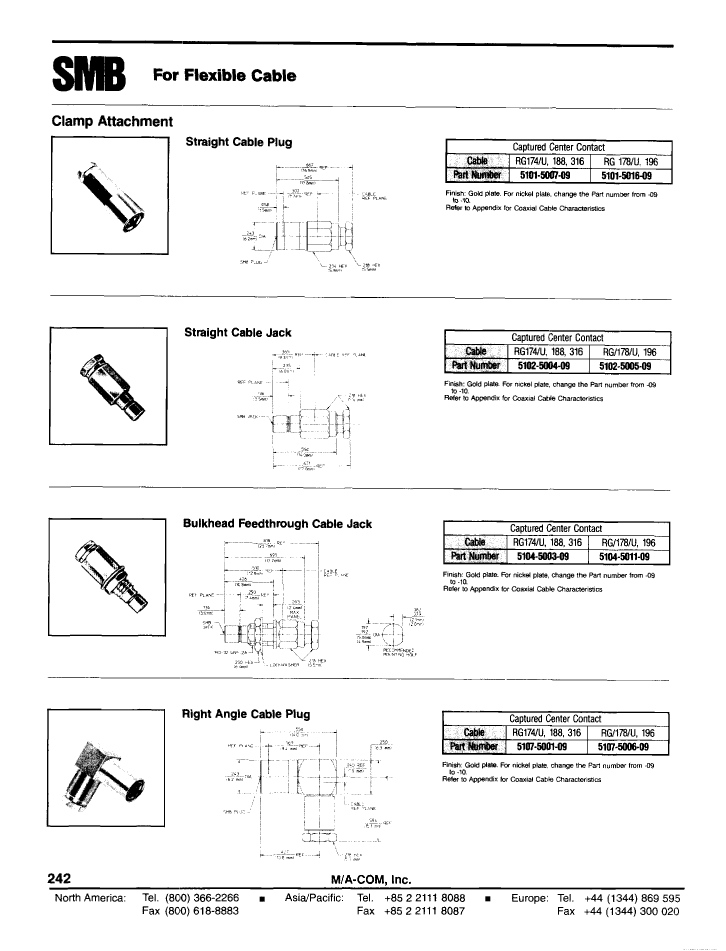

5151-0000-09 Overview

RF SMB Connector, Female, Panel Mount, Solder Terminal, Receptacle,

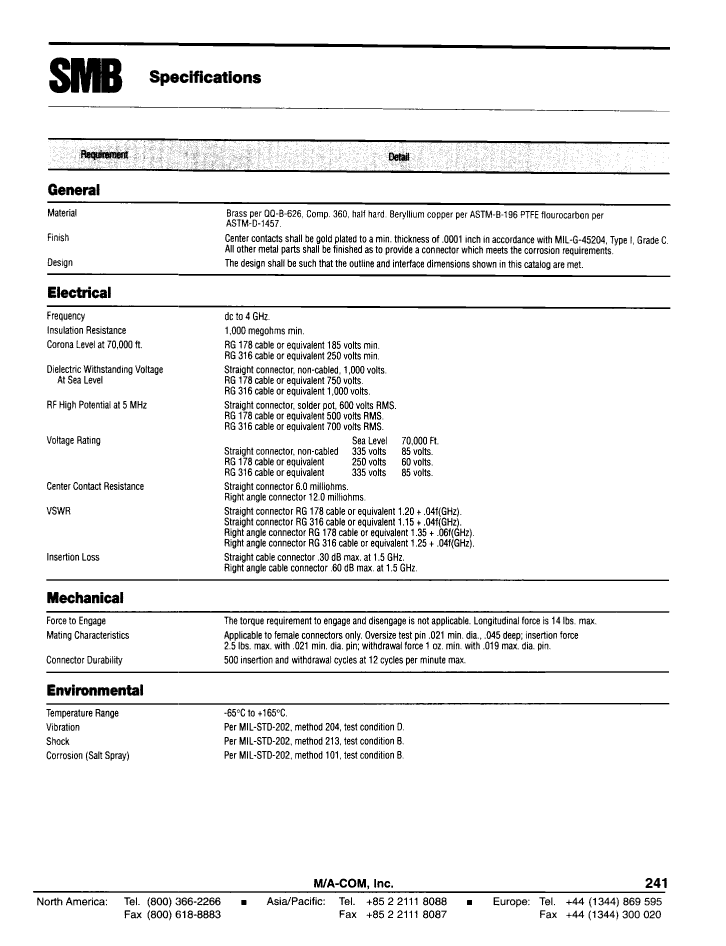

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	INSERTION LOSS MAX AT 1.5GHZ, CENTER CONTACT CAPTIVATED
Body/casing type	RECEPTACLE
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	GOLD (100)
Contact completed and terminated	GOLD (100)
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	PTFE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	5151
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

	5151-0000-09	5151-0000-10	5152-0000-09	5152-0000-10
Description	RF SMB Connector, Female, Panel Mount, Solder Terminal, Receptacle,	RF SMB Connector, Female, Panel Mount, Solder Terminal, Receptacle,	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	INSERTION LOSS MAX AT 1.5GHZ, CENTER CONTACT CAPTIVATED	INSERTION LOSS MAX AT 1.5GHZ, CENTER CONTACT CAPTIVATED	INSERTION LOSS MAX AT 1.5GHZ, CENTER CONTACT CAPTIVATED	INSERTION LOSS MAX AT 1.5GHZ, CENTER CONTACT CAPTIVATED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	GOLD (100)	NICKEL	GOLD (100)	NICKEL
Contact completed and terminated	GOLD (100)	NICKEL	GOLD (100)	NICKEL
Contact point gender	FEMALE	FEMALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB
insulator material	PTFE	PTFE	PTFE	PTFE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	5151	5151	5152	5152
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1
