5962-9096201MQX datasheet, PDF

5962-9096201MQX: DescriptionIC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, CERAMIC, DIP-40, Position Converter; CategoryAnalog mixed-signal IC converter; File Size744KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

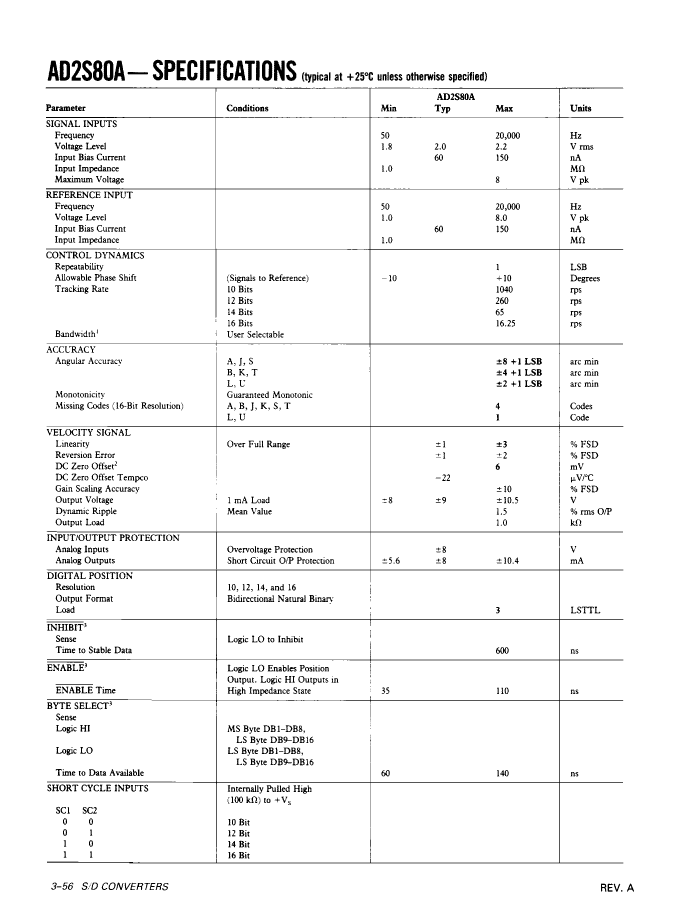

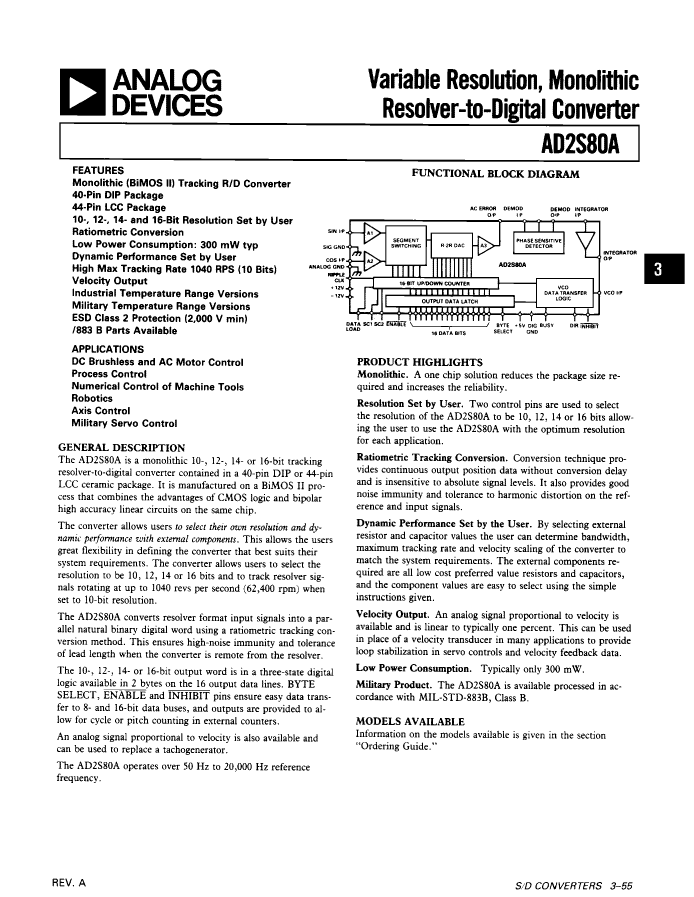

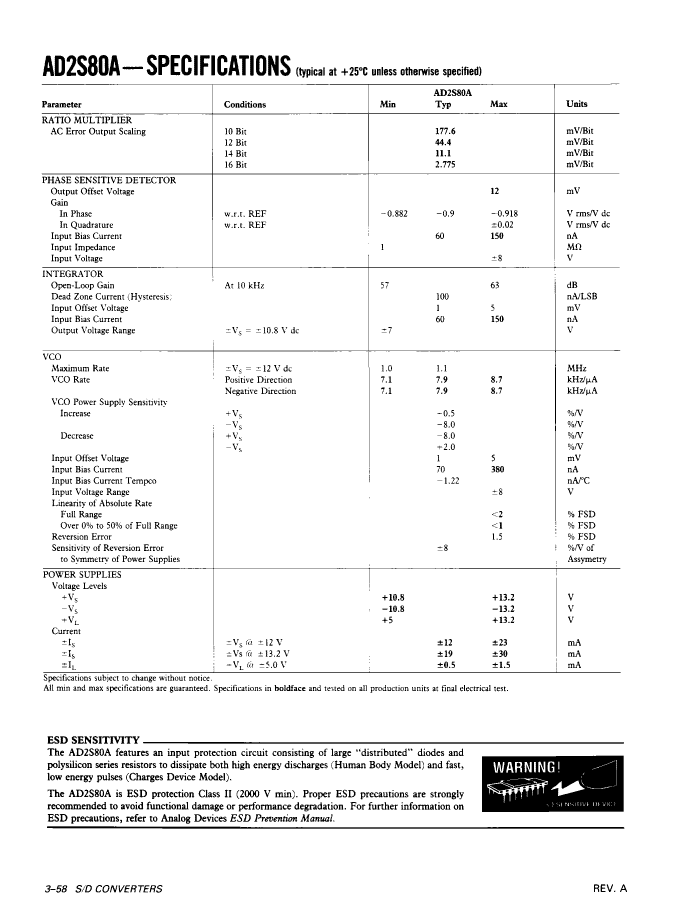

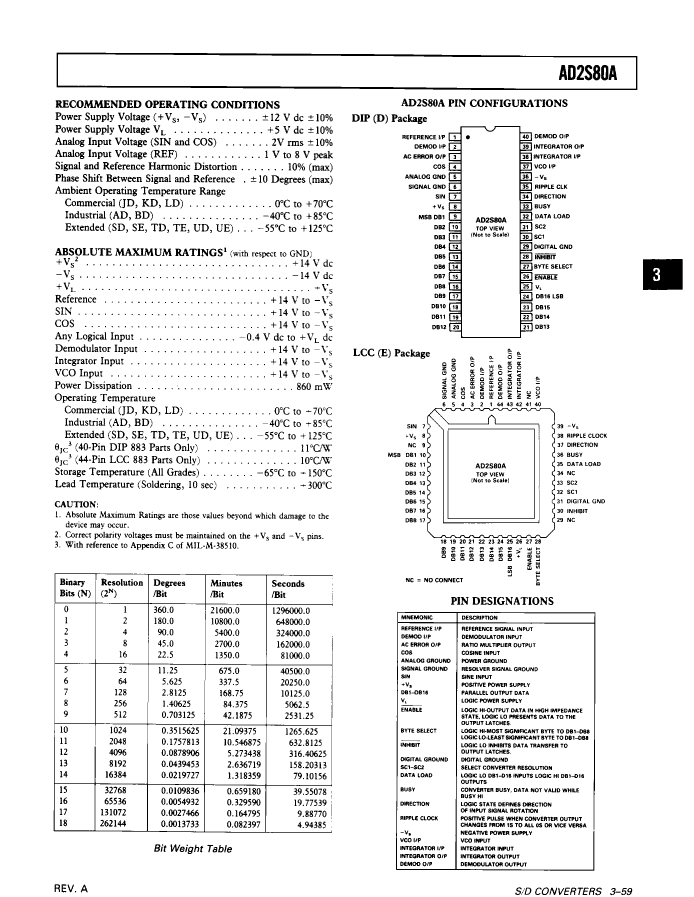

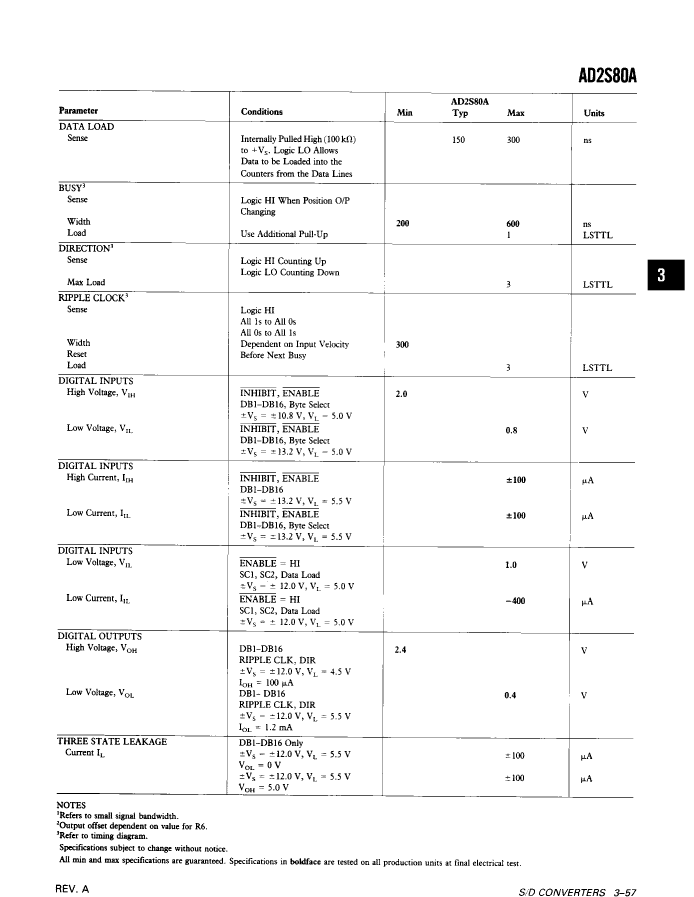

5962-9096201MQX Overview

IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, CERAMIC, DIP-40, Position Converter

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO REQUIRES A 5V LOGIC SUPPLY
Maximum analog input voltage	2.2 V
Maximum angular accuracy	4 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CDIP-T40
Maximum negative supply voltage	-13.2 V
Minimum negative supply voltage	-10.8 V
Nominal negative supply voltage	-12 V
Number of digits	16
Number of functions	1
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Qualified
Maximum supply voltage	13.2 V
Minimum supply voltage	10.8 V
Nominal supply voltage	12 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	5962-9096201MQX	5962-9096201MXX
Description	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, CERAMIC, DIP-40, Position Converter	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CQCC44, CERAMIC, LCC-44, Position Converter
Parts packaging code	DIP	LCC
package instruction	DIP,	QCCN,
Contacts	40	44
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	ALSO REQUIRES A 5V LOGIC SUPPLY	ALSO REQUIRES A 5V LOGIC SUPPLY
Maximum analog input voltage	2.2 V	2.2 V
Maximum angular accuracy	4 arc min	4 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CDIP-T40	S-CQCC-N44
Maximum negative supply voltage	-13.2 V	-13.2 V
Minimum negative supply voltage	-10.8 V	-10.8 V
Nominal negative supply voltage	-12 V	-12 V
Number of digits	16	16
Number of functions	1	1
Number of terminals	40	44
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Certification status	Qualified	Qualified
Maximum supply voltage	13.2 V	13.2 V
Minimum supply voltage	10.8 V	10.8 V
Nominal supply voltage	12 V	12 V
surface mount	NO	YES
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD
