52602-S26-4R datasheet, PDF - EEWORLD Datasheet

52602-S26-4R: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Receptacle,; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

52602-S26-4R Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	1177534127
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	WITH RETENTION, TUBE PACKAGING
body width	0.376 inch
subject depth	0.537 inch
body length	1.584 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
Filter function	NO
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLUE
insulator material	POLYETHYLENE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
Evacuation force-minimum value	.2502 N

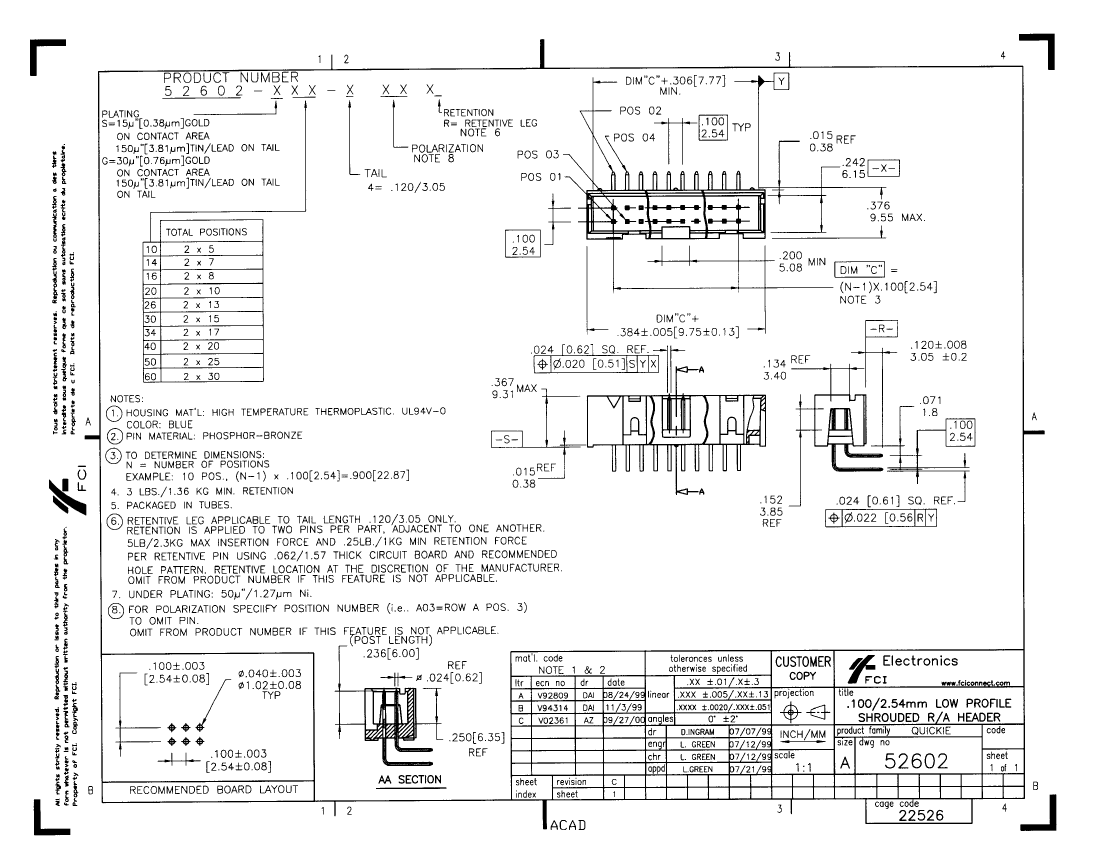

PDM: Rev:C

STATUS:

Released

Printed: Aug 02, 2002
