1.5KE SERIES
1500W TRANSIENT VOLTAGE SUPPRESSOR
WON-TOP ELECTRONICS
Pb
Features
Glass Passivated Die Construction
1500W Peak Pulse Power Dissipation
5.5V – 513V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Voltage
Typical Response Time < 1nS
Plastic Case Material has UL Flammability
Classification Rating 94V-0
A
B
A
C
D
Mechanical Data
Case: DO-201AE, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band Except Bi-Directional
Weight: 1.20 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 6
Dim
A
B
C
D
DO-201AE
Min
25.4
7.20
0.94
4.80
Max
—
9.50
1.07
5.30
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation on 10/1000µS Waveform (Note 1, 2, 5)
Peak Pulse Current on 10/1000µS Waveform (Note 1)
Peak Forward Surge Current (Note 2, 3)
Maximum Instantaneous Forward Voltage at 100A (Note 3, 4)
Power Dissipation at T
L
= 75°C (Note 2)
Typical Thermal Resistance, Junction to Ambient (Note 2)
Typical Thermal Resistance, Junction to Lead (Note 2)
Operating and Storage Temperature Range
@T
A
=25°C unless otherwise specified
Symbol
P
PPM
I
PPM
I
FSM
V
F
P
D
R
θJA
R
θJL
T
J
, T
STG
Value
1500
See Table 1
200
3.5 / 5.0
6.5
75
15
-55 to +150
Unit
W
A
A
V
W
°C/W
°C
Note: 1. Non-repetitive current pulse per Figure 5 and derated above T
A
= 25°C per Figure 1.
2. Mounted on 40 x 40 x 1.0mm thick copper pads to each terminal that maintained at a distance of 9.5mm from the case.
3. Measured on 8.3ms single half sine-wave, duty cycle = 4 pulses per minute maximum. For uni-directional devices only.
4. V
F
< 3.5V for V
BR
≤
200V and V
F
< 5.0V for V
BR
≥
201V.
5. Peak pulse power waveform is 10/1000µS.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
1.5KE SERIES
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
200
WON-TOP ELECTRONICS
Single Half-Sine-Wave
JEDEC Method
80
160
60
120
40
80
20
40
0
0
15
30 45 60 75 90 105 120 135 150
T
A
, AMBIENT TEMPERATURE (°C)

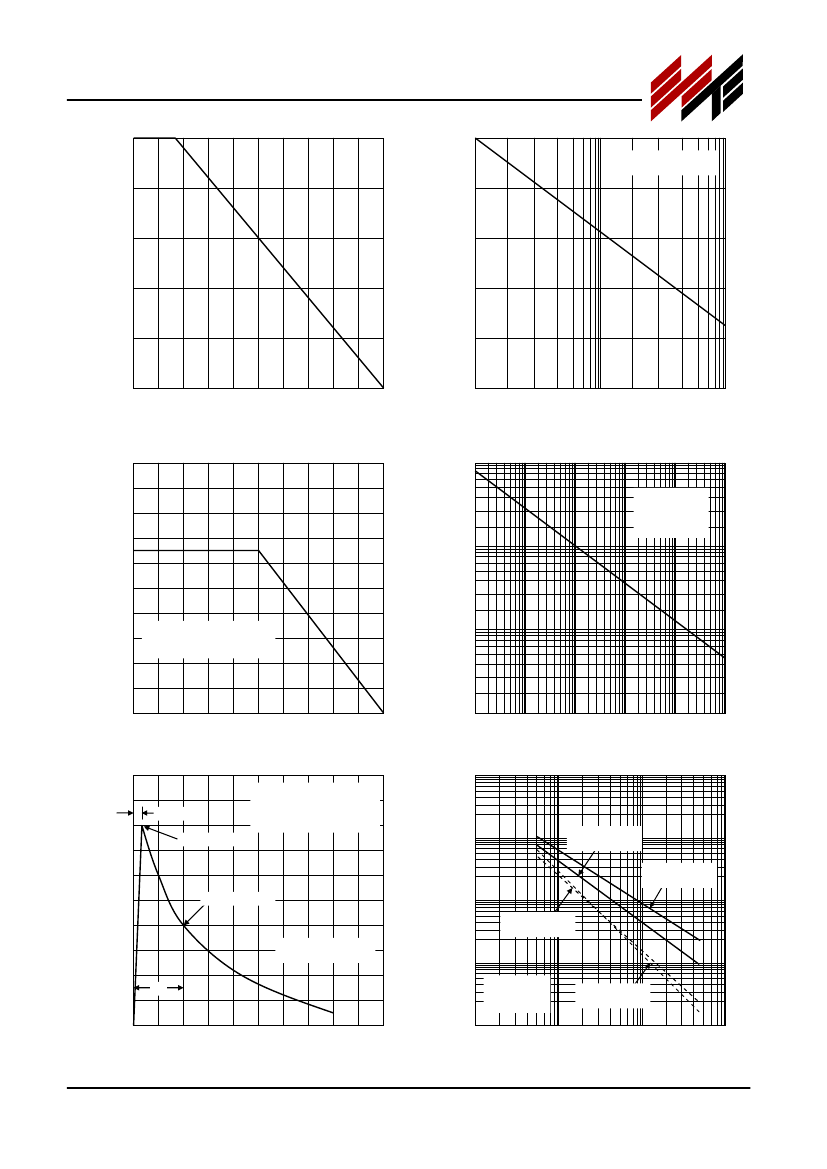

Fig. 1 Pulse Derating Curve
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 2 Forward Surge Current Derating Curve
P
D
, STEADY STATE POWER DISSIPATION (W)
10
100
T
A
= 25°C
Non Repetitive
Pulse Waveform
Shown in Fig. 5
8
P
PK
, PEAK POWER (kW)
10
6
4
Mounted on 40 x 40 x 1.0mm
copper pads to each terminal.
Lead length = 9.5mm.
1
2
0
0
15
30 45 60 75 90 105 120 135 150
T
L
, LEAD TEMPERATURE (°C)
Fig. 3 Steady State Power Derating Curve
T
A
= 25°C
Pulse Width (t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
0.1
0.1
1
10
100
1000
t
d
, PULSE WIDTH (µs)
Fig. 4 Pulse Rating Curve
10000
125
t
r
= 10µs
100000
C
J
, JUNCTION CAPACITANCE (pF)
I
PPM
, PEAK PULSE CURRENT (%)
100
Peak Value I
PPM
10000
Bi-Directional
@ Zero Bias
Uni-Directional
@ Zero Bias
75
Half Value I
PP
/2
1000
Uni-Directional
@ V
RWM
50
10/1000µs Waveform
as defined by R.E.A.
100
T
J
= 25°C
f = 1MHz
V
sig
= 50mV
p-p
Bi-Directional
@ V
RWM
25
t
d
0
0
1
2
3
t, TIME (ms)
Fig. 5 Pulse Waveform
4
5
10
1
10
100
V
BR
, BREAKDOWN VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
1000
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
1.5KE SERIES
WON-TOP ELECTRONICS
Electrical Characteristics (@T
A
=25°C unless otherwise specified) Table 1
Uni-Directional
Part No.
1.5KE6.8
1.5KE6.8A
1.5KE7.5
1.5KE7.5A
1.5KE8.2
1.5KE8.2A
1.5KE9.1
1.5KE9.1A
1.5KE10
1.5KE10A
1.5KE11
1.5KE11A
1.5KE12
1.5KE12A
1.5KE13
1.5KE13A
1.5KE15
1.5KE15A
1.5KE16
1.5KE16A
1.5KE18
1.5KE18A
1.5KE20
1.5KE20A
1.5KE22
1.5KE22A
1.5KE24
1.5KE24A
1.5KE27
1.5KE27A
1.5KE30
1.5KE30A
1.5KE33
1.5KE33A
1.5KE36
1.5KE36A
1.5KE39
1.5KE39A
1.5KE43
1.5KE43A
1.5KE47
1.5KE47A
1.5KE51
1.5KE51A
1.5KE56
1.5KE56A
1.5KE62
1.5KE62A
1.5KE68
1.5KE68A
1.5KE75
1.5KE75A
1.5KE82
1.5KE82A
1.5KE91
1.5KE91A
1.5KE100
1.5KE100A
1.5KE110
1.5KE110A
1.5KE120
1.5KE120A
1.5KE130
1.5KE130A
Bi-Directional
Part No.
1.5KE6.8C
1.5KE6.8CA
1.5KE7.5C
1.5KE7.5CA
1.5KE8.2C
1.5KE8.2CA
1.5KE9.1C
1.5KE9.1CA
1.5KE10C
1.5KE10CA
1.5KE11C
1.5KE11CA
1.5KE12C
1.5KE12CA
1.5KE13C
1.5KE13CA
1.5KE15C
1.5KE15CA
1.5KE16C
1.5KE16CA
1.5KE18C
1.5KE18CA
1.5KE20C
1.5KE20CA
1.5KE22C
1.5KE22CA
1.5KE24C
1.5KE24CA
1.5KE27C
1.5KE27CA
1.5KE30C
1.5KE30CA
1.5KE33C
1.5KE33CA
1.5KE36C
1.5KE36CA
1.5KE39C
1.5KE39CA
1.5KE43C
1.5KE43CA
1.5KE47C
1.5KE47CA
1.5KE51C
1.5KE51CA
1.5KE56C
1.5KE56CA
1.5KE62C
1.5KE62CA
1.5KE68C
1.5KE68CA
1.5KE75C
1.5KE75CA
1.5KE82C
1.5KE82CA
1.5KE91C
1.5KE91CA
1.5KE100C
1.5KE100CA
1.5KE110C
1.5KE110CA
1.5KE120C
1.5KE120CA
1.5KE130C
1.5KE130CA
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.5
5.8
6.1
6.4
6.6
7.0
7.4
7.8
8.1
8.6
8.9
9.4
9.7
10.2
10.5
11.1
12.1
12.8
12.9
13.6
14.5
15.3
16.2
17.1
17.8
18.8
19.4
20.5
21.8
23.1
24.3
25.6
26.8
28.2
29.1
30.8
31.6
33.3
34.8
36.8
38.1
40.2
41.3
43.6
45.4
47.8
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102.0
105.0
111.0
Breakdown Voltage
V
BR
(V) @I
T
Min.
6.12
6.46
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.45
10.80
11.40
11.70
12.35
13.50
14.25
14.40
15.20
16.20
17.10
18.00
19.00
19.80
20.90
21.60
22.80
24.30
25.65
27.00
28.50
29.70
31.35
32.40
34.20
35.10
37.05
38.70
40.85
42.30
44.65
45.90
48.45
50.40
53.20
55.80
58.90
61.20
64.60
67.50
71.25
73.80
77.90
81.90
86.45
90.00
95.00
99.00
104.50
108.00
114.00
117.00
123.50
Max.
7.48
7.14
8.25
7.88
9.02
8.61
10.01
9.56
11.00
10.50
12.10
11.55
13.20
12.60
14.30
13.65
16.50
15.75
17.60
16.80
19.80
18.90
22.00
21.00
24.20
23.10
26.40
25.20
29.70
28.35
33.00
31.50
36.30
34.65
39.60
37.80
42.90
40.95
47.30
45.15
51.70
49.35
56.10
53.55
61.60
58.80
68.20
65.10
74.80
71.40
82.50
78.75
90.20
86.10
100.10
95.55
110.00
105.00
121.00
115.50
132.00
126.00
143.00
136.50
Test
Current
I
T
(mA)
10
10
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage @I
PP
V
C
(V)
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
15.6
17.3
16.7
19.0
18.2
22.0
21.2
23.5
22.5
26.5
25.2
29.1
27.7
31.9
30.6
34.7
33.2
39.1
37.5
43.5
41.4
47.7
45.7
52.0
49.9
56.4
53.9
61.9
59.3
67.8
64.8
73.5
70.1
80.5
77.0
89.0
85.0
98.0
92.0
108.0
103.0
118.0
113.0
131.0
125.0
144.0
137.0
158.0
152.0
173.0
165.0
187.0
179.0
Peak Pulse
Current
I
PP
(A)
138.89
142.86
128.21
132.74
120.00
123.97
108.70
111.94
100.00
103.45
92.59
96.15
86.71
89.82
78.95
82.42
68.18
70.75
63.83
66.67
56.60
59.52
51.55
54.15
47.02
49.02
43.23
45.18
38.36
40.00
34.48
36.23
31.45
32.82
28.85
30.06
26.60
27.83
24.23
25.30
22.12
23.15
20.41
21.40
18.63
19.48
16.85
17.65
15.31
16.30
13.89
14.56
12.71
13.27
11.45
12.00
10.42
10.95
9.49
9.87
8.67
9.09
8.02
8.38
Reverse
Leakage*
@V
RWM
I
R
(µA)
1000
1000
500
500
200
200
50
50
10
10
5
5
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
*For bi-directional devices V
RWM
≤
10V, the I
R
limit is double.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
