44474-3090

Description
Rectangular Power Connector, 14 Contact(s), Male, Solder Terminal
CategoryThe connector    The connector
File Size374KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

44474-3090 Overview

Rectangular Power Connector, 14 Contact(s), Male, Solder Terminal

44474-3090 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresMINI-FIT HCS
Connector typeRECTANGULAR POWER CONNECTOR
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number44474
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialPOLYAMIDE66
Termination typeSOLDER
Total number of contacts14
UL Flammability Code94V-0
Base Number Matches1
FEATURES AND SPECIFICATIONS
Features and Benefits
s
.100" lead-in for self-aligning connection with receptacle
s
Carries 3 more amperes per circuit than 42440
series headers
s
Positive housing locks and pegs for increased harness and
board retention
Reference Information
Product Specification: PSX-44476-0002
Packaging: Tray or bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Mates With:
42474, 44475
and
5557
dual row receptacles
Use With:
44476
HCS terminals
Designed In: Millimeters
Electrical
Voltage: 600V
Current: (Used with 16 AWG)
Circuits
Amperes-Jr.
Amperes-HCS
2–3
9
12
4–6
8
11
7–10
7
10
12–24
6
9
4.20mm (.165") Pitch
Mini-Fit, HCS
Header
44474
Dual Row, Vertical
Power Connectors
Contact Resistance: 10m
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 1000 M
min.
Mechanical
Insertion Force to PCB: 5.0kg max.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles
Physical
Housing: 6/6 nylon, UL 94V-2 or UL 94V-0
Contact: High Copper Alloy
Plating: Tin
Operating Temperature: -40 to +105˚C
F

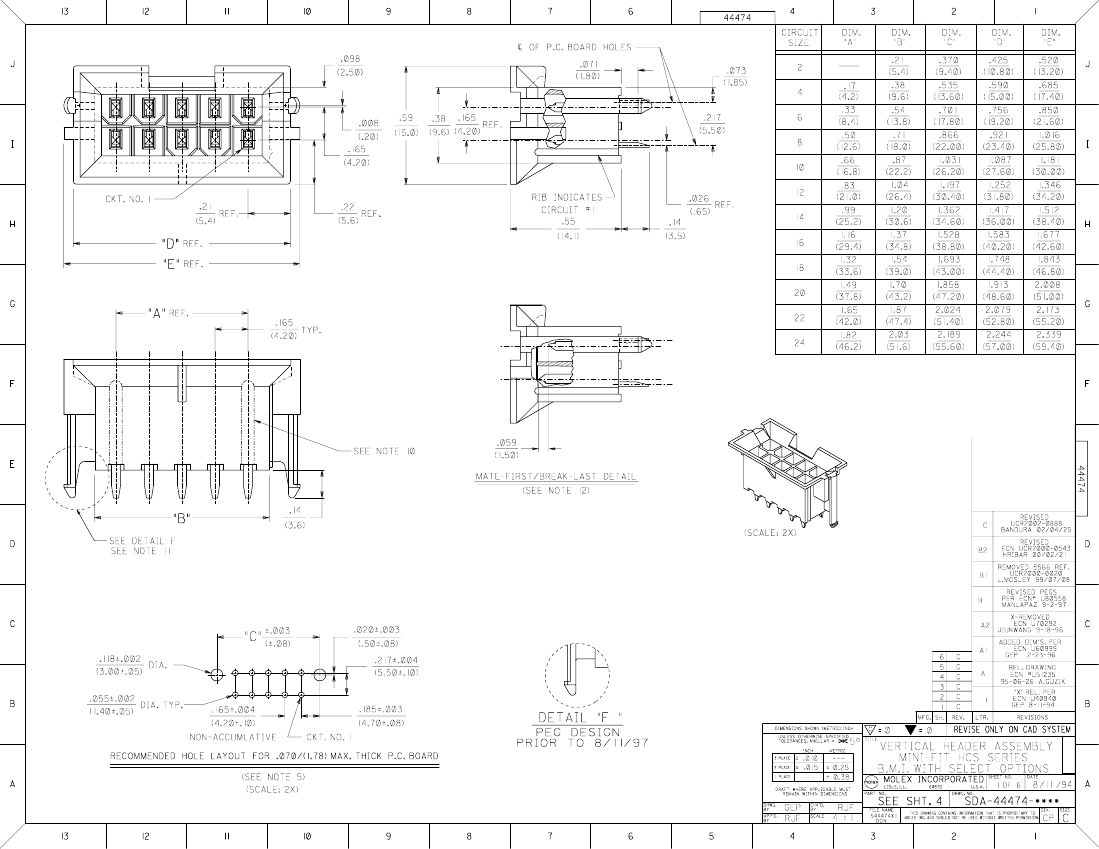

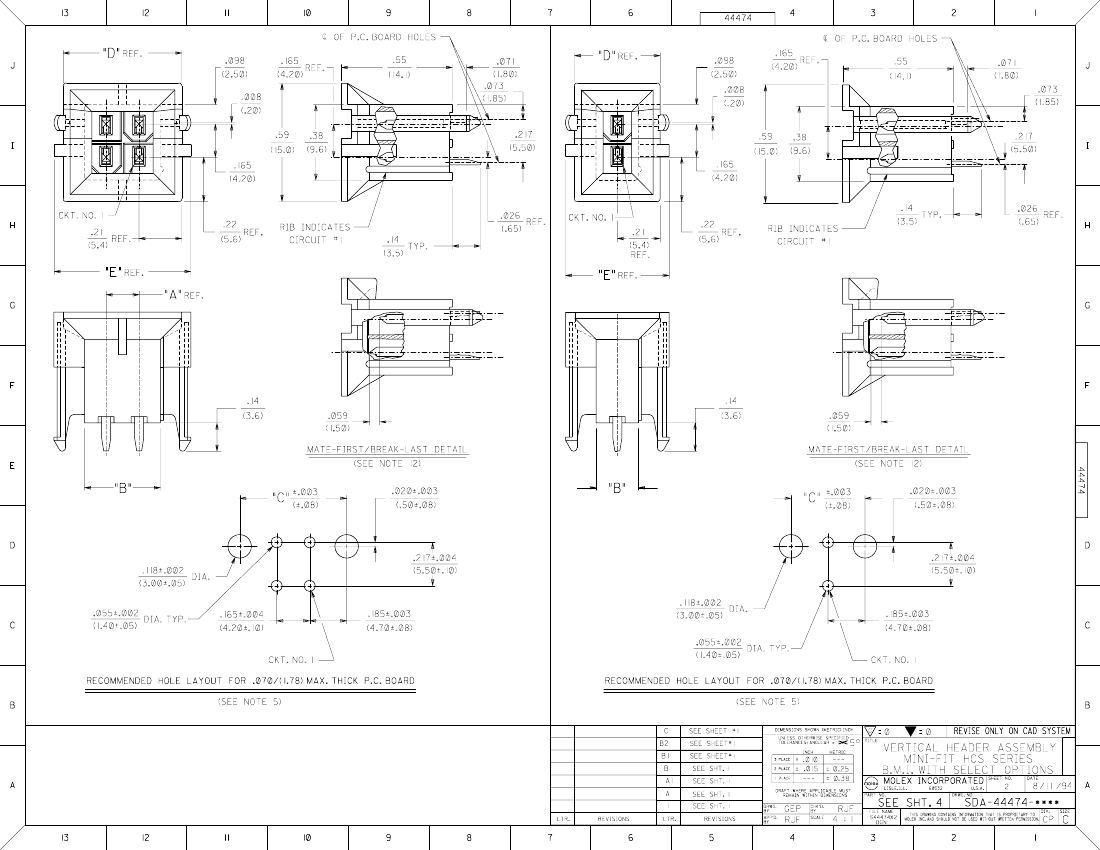

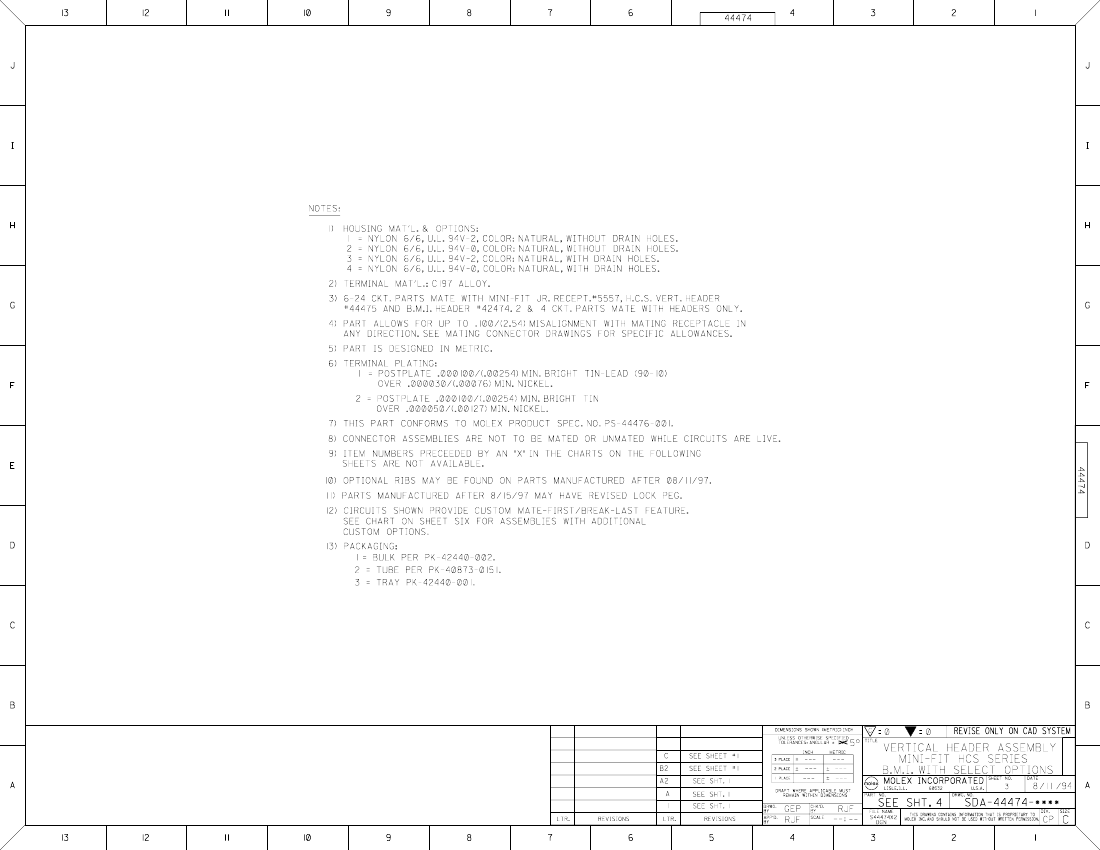

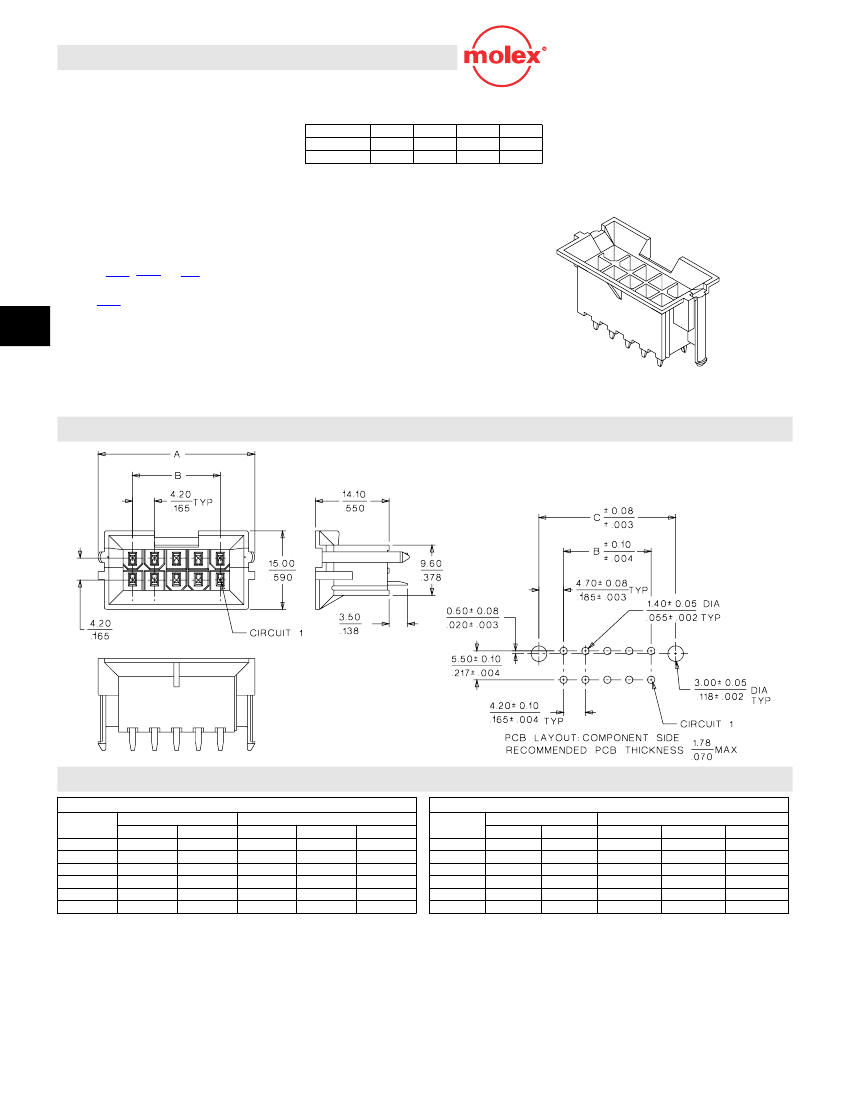

CATALOG DRAWING (FOR REFERENCE ONLY)

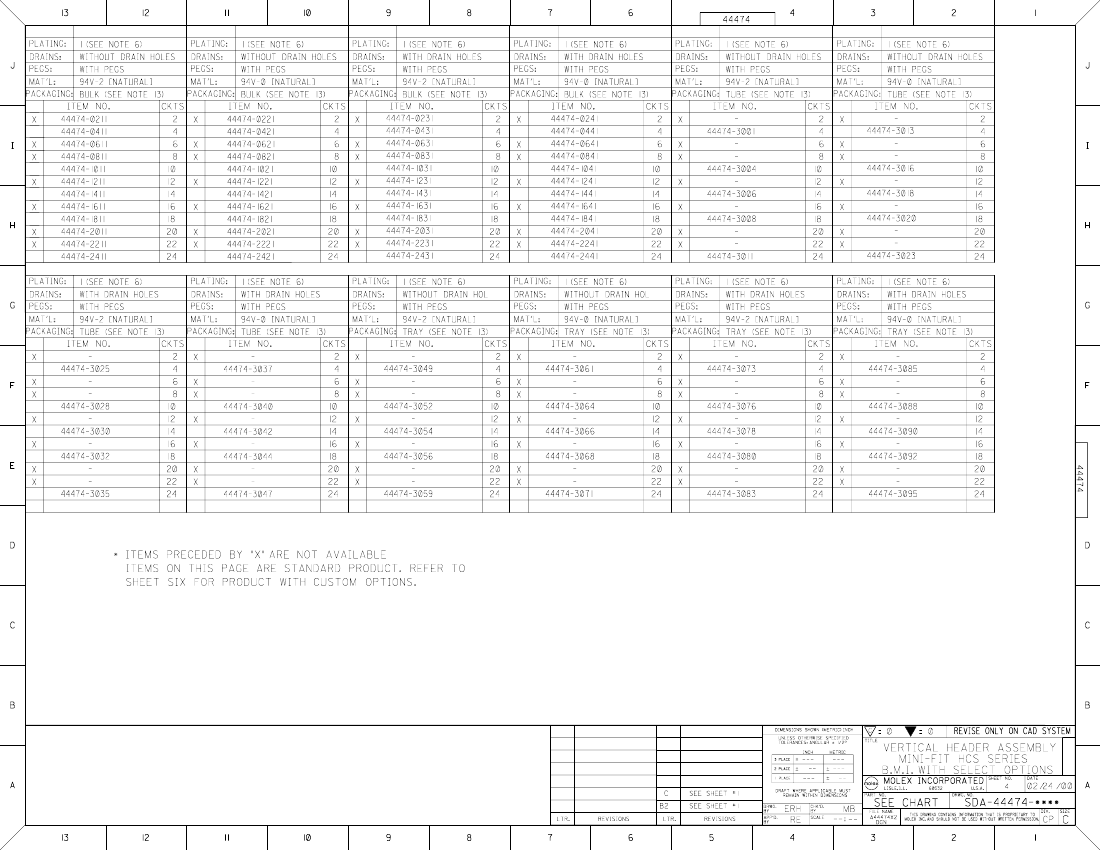

ORDERING INFORMATION AND DIMENSIONS
*
Without Drain Holes
Circuits
4
6
10
14
18
24
Order No.
94V-2
44474-0411
44474-1011
44474-1411
44474-1811
44474-2411
94V-0
44474-0421
44474-1021
44474-1421
44474-1821
44474-2421
A
17.40 (.685)
21.60 (.850)
30.00 (1.181)
38.40 (1.512)
46.80 (1.843)
59.40 (2.339)
Dimension
B
4.20 (.170)
8.40 (.330)
16.80 (.660)
25.20 (.990)
33.60 (1.320)
46.20 (1.820)
C
13.60 (.535)
17.80 (.701)
26.20 (1.031)
34.60 (1.362)
43.00 (1.693)
55.60 (2.189)
Circuits
4
6
10
14
18
24
Order
94V-2
44474-0431
44474-0631
44474-1031
44474-1431
44474-1831
44474-2431
With Drain Holes
No.
94V-0
44474-0441
44474-1041
44474-1441
44474-1841
44474-2441
A
17.40 (.685)
21.60 (.850)
30.00 (1.181)
38.40 (1.512)
46.80 (1.843)
59.40 (2.339)
Dimension
B
4.20 (.170)
8.40 (.330)
16.80 (.660)
25.20 (.990)
33.60 (1.320)
46.20 (1.820)
C
(.535)
(.701)
(1.031)
(1.362)
(1.693)
(2.189)
13.60
17.80
26.20
34.60
43.00
55.60
