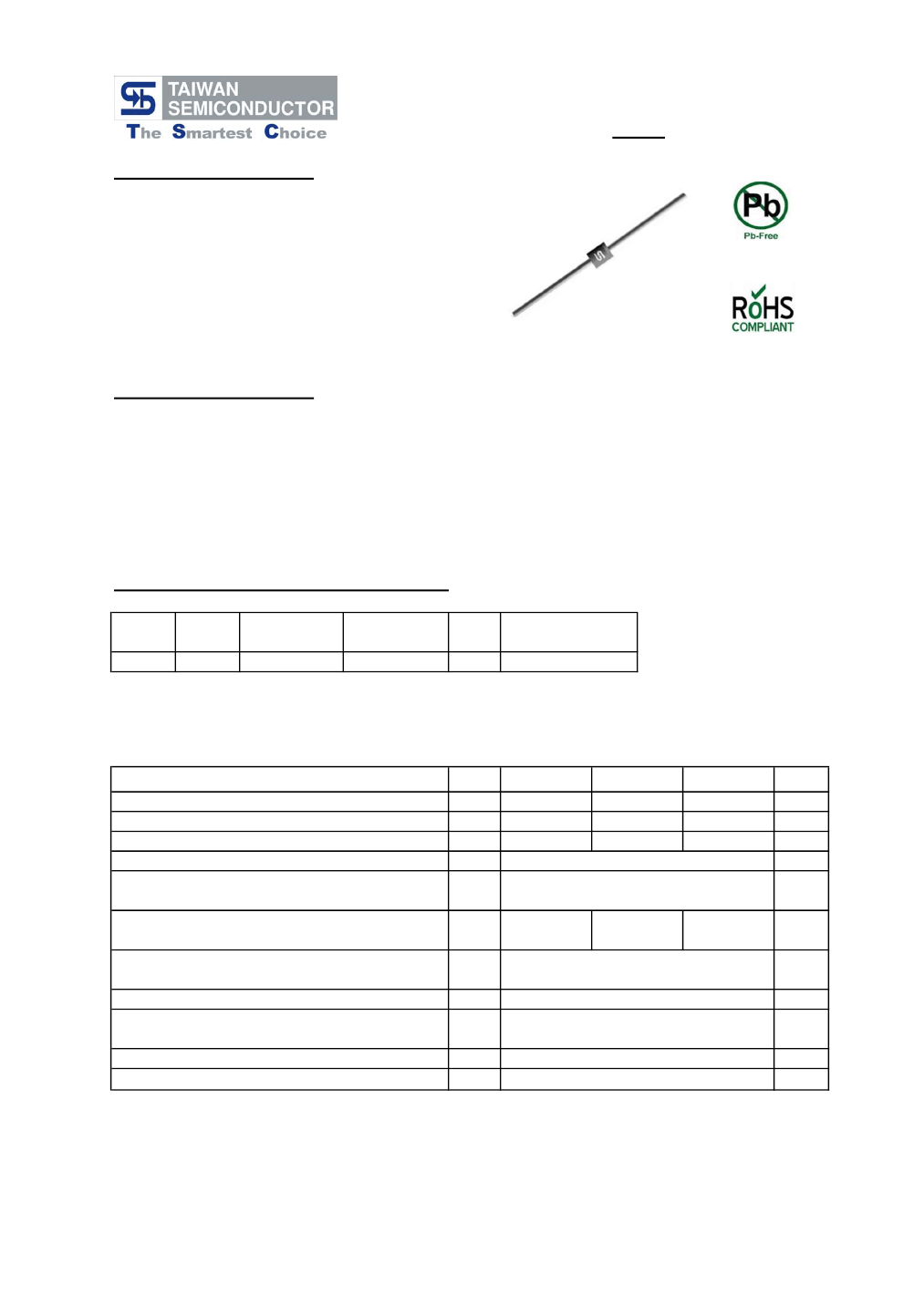

1N5817 - 1N5819
1.0AMP. Schottky Barrier Rectifiers
DO-41
Features
Low power loss, high efficiency
High current capability, Low VF
High reliability
High surge current capability
Exitaxial construction
Guard-ring for transient protection
For use in low voltage, high frequency inventor,
free wheeling, and polarity protection application
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic DO-41
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode
High temperature soldering guaranteed:
260℃/10 seconds/.375",(9.5mm) lead
lengths at 5 lbs., (2.3kg) tension
Weight: 0.33 grams

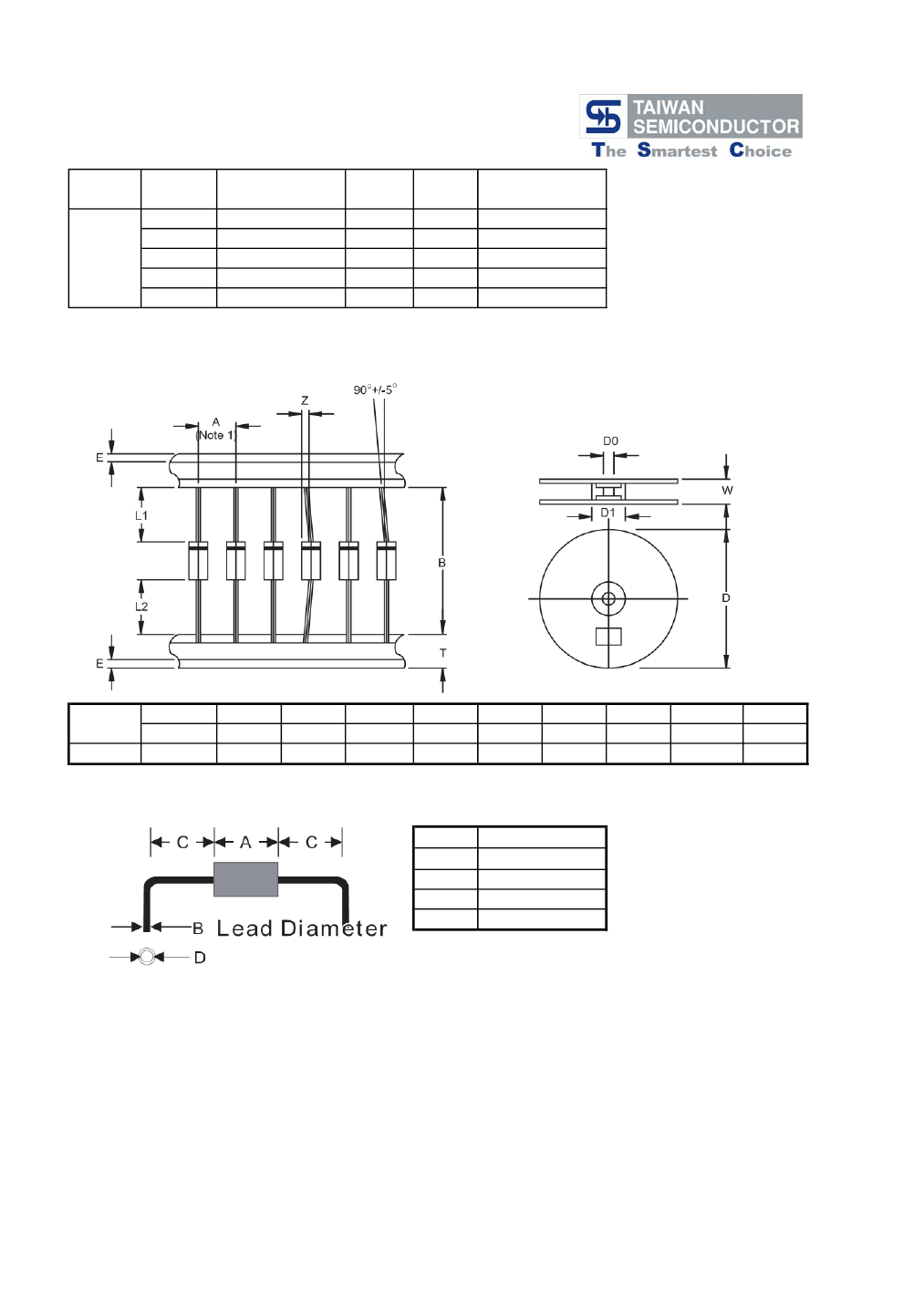

Ordering Information (example)
Part No.
1N5817
Package
DO-41
Packing
3K / AMMO box
INNER
TAPE
52mm
Packing
code
A0
Green Compound
Packing code
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage
@1A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test With PW=300 usec, 1% Duty Cycle
(Note 1)
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θJA
R
θJC
T
J
T
STG
1N5817
20
14
20
1N5818
30
21
30
1
30
1N5819
40
28
40
Units
V
V
V
A
A
0.45
0.550
1
10
55
100
45
- 65 to + 125
- 65 to + 150
0.600
V
mA
mA
pF
O
@ T
A
=25
℃
@ T
A
=100
℃
C/W
O
O
C
C
Note 2: Measure at 1 MHz and Applied Reverse Voltage of 4.0 V D.C.
Version:D12

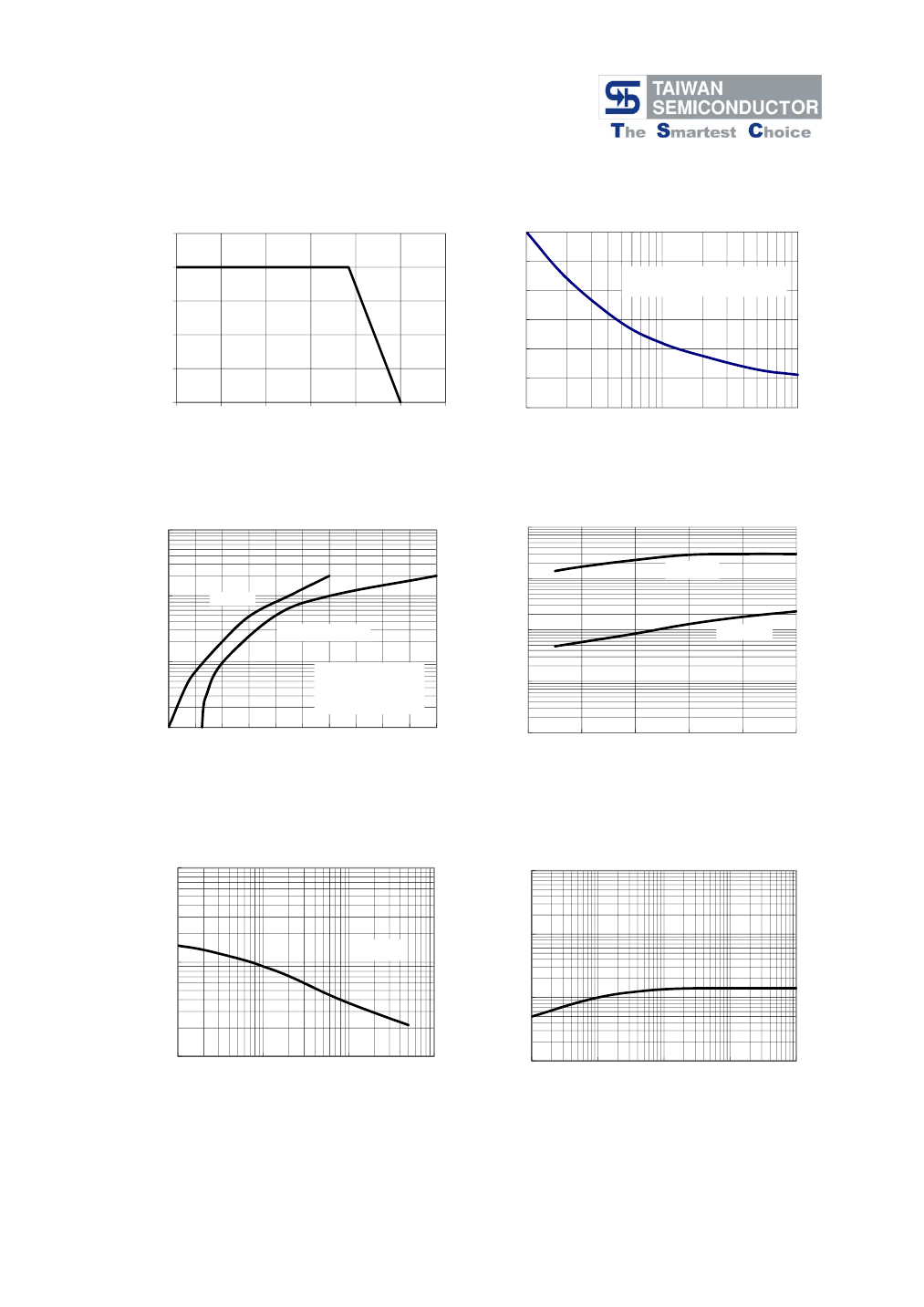

RATINGS AND CHARACTERISTIC CURVES (1N5817 THRU 1N5819)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
PEAK FORWARD SURGE CURRENT (A)
AVERAGE FORWARD CURRENT (A)
1.25
1
0.75
0.5
0.25
0
0
25
50
75
100
(
o
C)
125
150
LEAD TEMPERATURE
30
25
20
15
10
5
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
JEDEC Method
FIG. 2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
FIG. 3- TYPICAL FORWARD CHARACTERISRICS
100
INSTANTANEOUS FORWARD
A
CURRENT (A)
100
FIG. 4- TYPICAL REVERSE LEAKAGE
CHARACTERISTICS PER LEG
10
1N5817
1N5818,1N5819
INSTANTANEOUS REVERSE
A
CURRENT (mA)
10
TA=125℃
1
TA=25℃
1
TA=25
o
C
Pulse Width=300us
1% Duty Cycle
0.1
0.1
0.1
0.3
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
FORWARD VOLTAGE (V)
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5- TYPICAL JUNCTION CAPACITANCE
1000
FIG. 6- TYPICAL TRANSIENT THERMAL
CHARACTERISTICS
100
CAPACITANCE (pF)
A
TRANSIENT THERMAL
IMPEDANCE (℃/W)
100
10
TA=25℃
100
1
10
0.1
1
10
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
10
100
T-PULSE DURATION. (sec)
