Section 4. Architecture

HIGHLIGHTS

This section of the manual contains the following major topics:

4.1

4.2

4.3

4.4

4.5

4.6

4.7

Introduction .................................................................................................................... 4-2

Clocking Scheme/Instruction Cycle ............................................................................... 4-5

Instruction Flow/Pipelining ............................................................................................. 4-6

I/O Descriptions ............................................................................................................. 4-7

Design Tips .................................................................................................................. 4-14

Related Application Notes............................................................................................ 4-15

Revision History ........................................................................................................... 4-16

Architecture



2000 Microchip Technology Inc.

DS39504A-page 4-1

PIC18C Reference Manual

4.1

Introduction

The high performance of the PIC18CXXX devices can be attributed to a number of architectural

features commonly found in RISC microprocessors. These include:

•

Harvard architecture

Long Word Instructions

Single Word Instructions

Single Cycle Instructions

Instruction Pipelining

Reduced Instruction Set

Orthogonal (Symmetric) Instructions

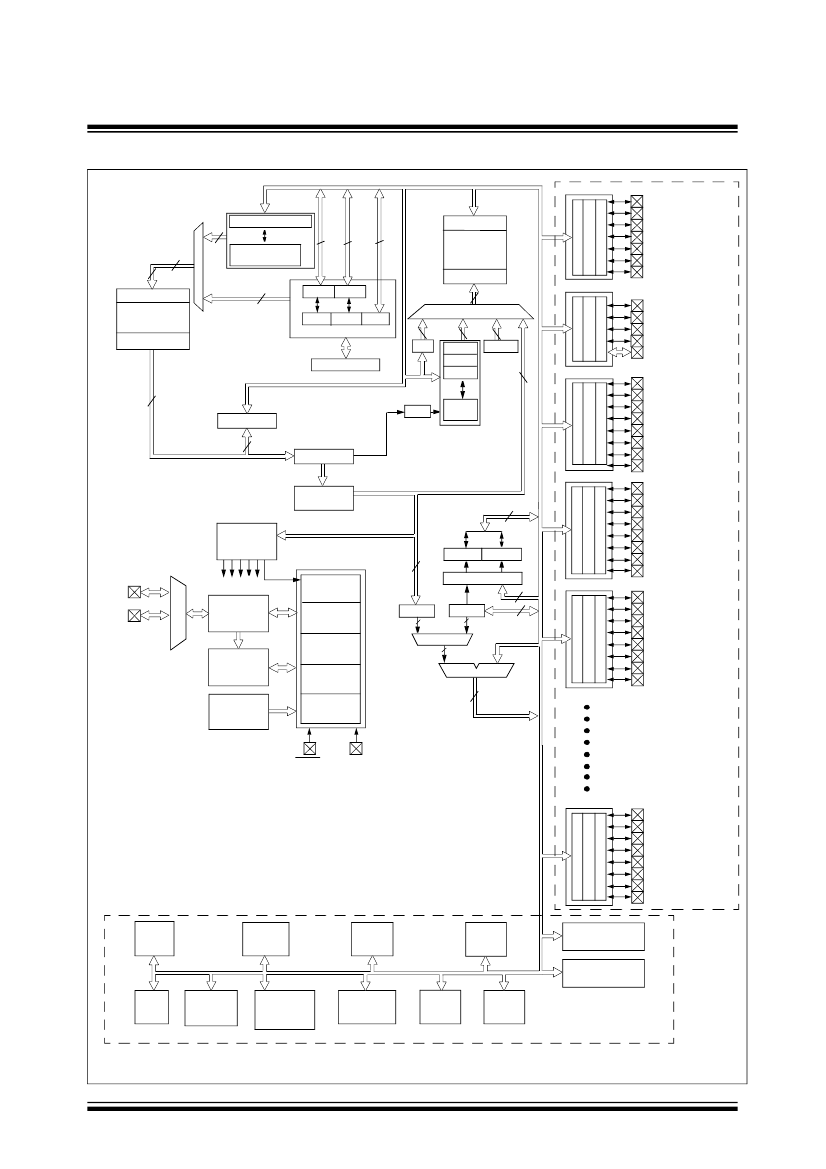

Figure 4-2

shows a general block diagram for PIC18CXXX devices.

Harvard Architecture:

Harvard architecture has the program memory and data memory as separate memories which

are accessed from separate buses. This improves bandwidth over traditional von Neumann

architecture in which program and data are fetched from the same memory using the same bus.

To execute an instruction, a von Neumann machine must make one or more (generally more)

accesses across the 8-bit bus to fetch the instruction. Then data may need to be fetched, oper-

ated on and possibly written. As can be seen from this description, the bus can become

extremely congested. With a Harvard architecture, the instruction is fetched in a single instruction

cycle (all 16 bits). While the program memory is being accessed, the data memory is on an inde-

pendent bus and can be read and written. These separated busses allow one instruction to exe-

cute, while the next instruction is fetched. A comparison of Harvard and von Neumann

architectures is shown in

Figure 4-1.

Figure 4-1: Harvard vs. von Neumann Block Architectures

Harvard

von Neumann

Data

Memory

CPU

Program

Memory

CPU

Program

and

Data

Memory

Long Word Instructions:

Long word instructions have a wider (more bits) instruction bus than the 8-bit data memory bus.

This is possible because the two buses are separate. This allows instructions to be sized differ-

ently than the 8-bit wide data word and allows a more efficient use of the program memory, since

the program memory width is optimized to the architectural requirements.

Single Word Instructions:

Single word instruction opcodes are 16-bits wide making it possible to have all but a few instruc-

tions be single word instructions. A 16-bit wide program memory access bus fetches a 16-bit

instruction in a single cycle. With single word instructions, the number of words of program mem-

ory locations equals the number of instructions for the device. This means that all locations are

valid instructions.

Typically in the von Neumann architecture, most instructions are multi-byte. In general, a device

with 4 Kbytes of program memory would allow approximately 2K of instructions. This 2:1 ratio is

generalized and dependent on the application code. Since each instruction may take multiple

bytes, there is no assurance that each location is a valid instruction.

DS39504A-page 4-2



2000 Microchip Technology Inc.

Section 4 Architecture

Double Word Instructions:

Some operations require more information then can be stored in the 16 bits of a program memory

location. These operations require a double word instruction, and are therefore 32-bits wide.

Instructions that require this second instruction word are:

• Memory to memory move instruction (12 bits for each RAM address)

MOVFF

SourceReg, DestReg

• Literal value to FSR move instruction (12 bits for data and 2 bits for FSR to load)

LFSR

FSR#, Address

• Call and goto operations (20 bits for address)

CALL

Address

GOTO

Address

The first word indicates to the CPU that the next program memory location is the additional infor-

mation for this instruction and not an instruction. If the CPU tries to execute the second word of

an instruction (due to a software modified PC pointing to that location as an instruction), the

fetched data is executed as a

NOP.

Double word instruction execution is not split between the two T

cycles by an interrupt request.

That is, when an interrupt request occurs during the execution of a double word instruction, the

execution of the instruction is completed before the processor vectors to the interrupt address.

The interrupt latency is preserved.

Instruction Pipeline:

The instruction pipeline is a two-stage pipeline that overlaps the fetch and execution of instruc-

tions. The fetch of the instruction takes one T

, while the execution takes another T

. However,

due to the overlap of the fetch of current instruction and execution of previous instruction, an

instruction is fetched and another instruction is executed every T

Single Cycle Instructions:

With the program memory bus being 16-bits wide, the entire instruction is fetched in a single

machine cycle (T

), except for double word instructions. The instruction contains all the infor-

mation required and is executed in a single cycle. There may be a one cycle delay in execution

if the result of the instruction modified the contents of the program counter. This requires the pipe-

line to be flushed and a new instruction to be fetched.

Two Cycle Instructions:

Double word instructions require two cycles to execute, since all the required information is in the

32 bits.

Reduced Instruction Set:

When an instruction set is well designed and highly orthogonal (symmetric), fewer instructions

are required to perform all needed tasks. With fewer instructions, the whole set can be more rap-

idly learned.

Architecture

The register files/data memory can be directly or indirectly addressed. All special function regis-

ters, including the program counter, are mapped in the data memory.

Orthogonal (Symmetric) Instructions:

Orthogonal instructions make it possible to carry out any operation on any register using any

addressing mode. This symmetrical nature and lack of “special instructions” make programming

simple yet efficient. In addition, the learning curve is reduced significantly. The Enhanced MCU

instruction set uses only three non-register oriented instructions, which are used for two of the

cores features. One is the

SLEEP

instruction, which places the device into the lowest power use

mode. The second is the

CLRWDT

instruction, which verifies the chip is operating properly by pre-

venting the on-chip Watchdog Timer (WDT) from overflowing and resetting the device. The third

is the

RESET

instruction, which resets the device.


