BL-HE135 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-HE135

Preview

BL-HE135: DescriptionSingle Color LED, High Efficiency Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size82KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HE135 Overview

Single Color LED, High Efficiency Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN

BL-HE135 Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT, 0805, 2 PIN
Reach Compliance Code	unknown
color	HIGH EFFICIENCY RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	12.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1 mm
method of packing	BULK
peak wavelength	635 nm
shape	RECTANGULAR
size	1.4 mm
surface mount	YES
Terminal pitch	2.1 mm
perspective	140 deg
Base Number Matches	1

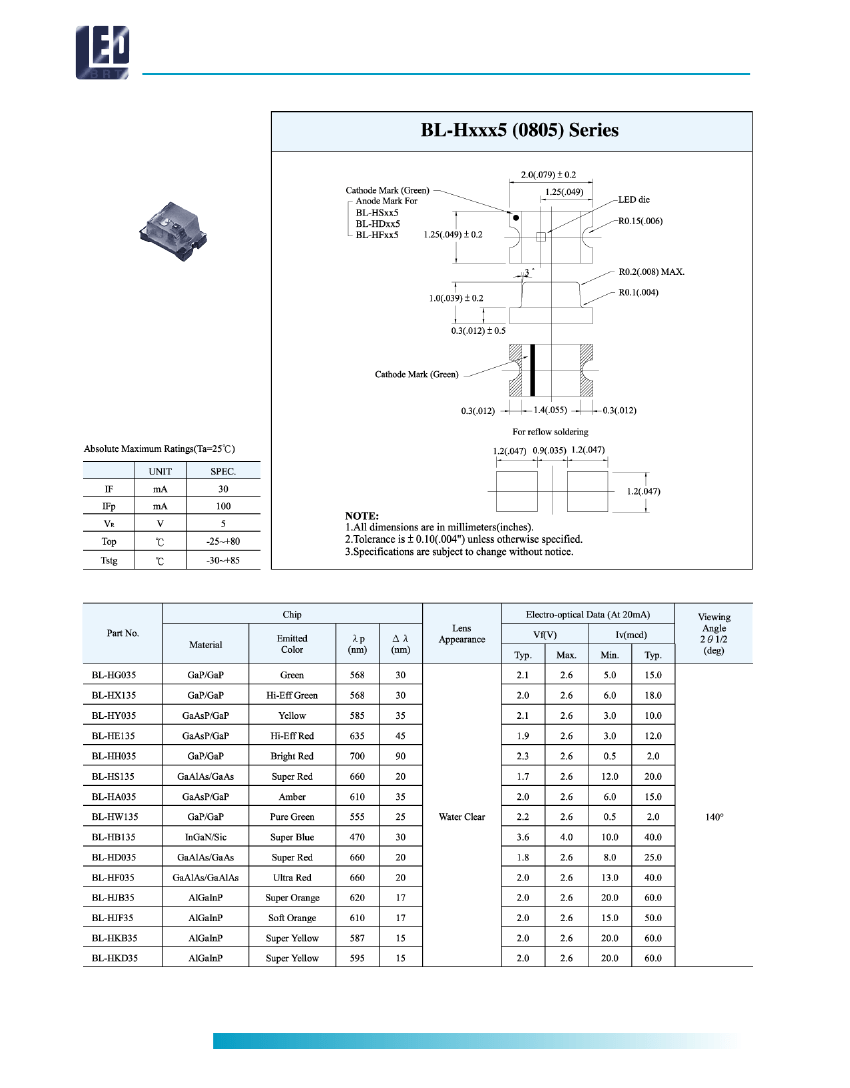

Preview

Download Datasheet

View All

Surface Mount Chip LED Lamps

BL-H Series 0805

AMERICAN BRIGHT

8

w w w. a m e r i c a n b r i g h t l e d . c o m

.

BL-HE135 Related Products

	BL-HE135	BL-HD035	BL-HKB35	BL-HH035	BL-HS135	BL-HKD35	BL-HJF35	BL-HW135	BL-HY035
Description	Single Color LED, High Efficiency Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Super Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Super Yellow, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Bright Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Super Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Super Yellow, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Soft Orange, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Pure Green, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Yellow, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	HIGH EFFICIENCY RED	SUPER RED	SUPER YELLOW	BRIGHT RED	SUPER RED	SUPER YELLOW	SOFT ORANGE	PURE GREEN	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	12.0 mcd	25.0 mcd	60.0 mcd	2.0 mcd	20.0 mcd	60.0 mcd	50.0 mcd	2.0 mcd	10.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	635 nm	660 nm	587 nm	700 nm	660 nm	595 nm	610 nm	555 nm	585 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	2.1 mm	2.1 mm	2.1 mm	2.1 mm	2.1 mm	2.1 mm	2.1 mm	2.1 mm	2.1 mm
perspective	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg
Base Number Matches	1	1	1	1	1	-	-	-	-
