VC29-Series Specifications
14.00L x 9.10W x 4.70H (mm)
PDI
VC29-Series

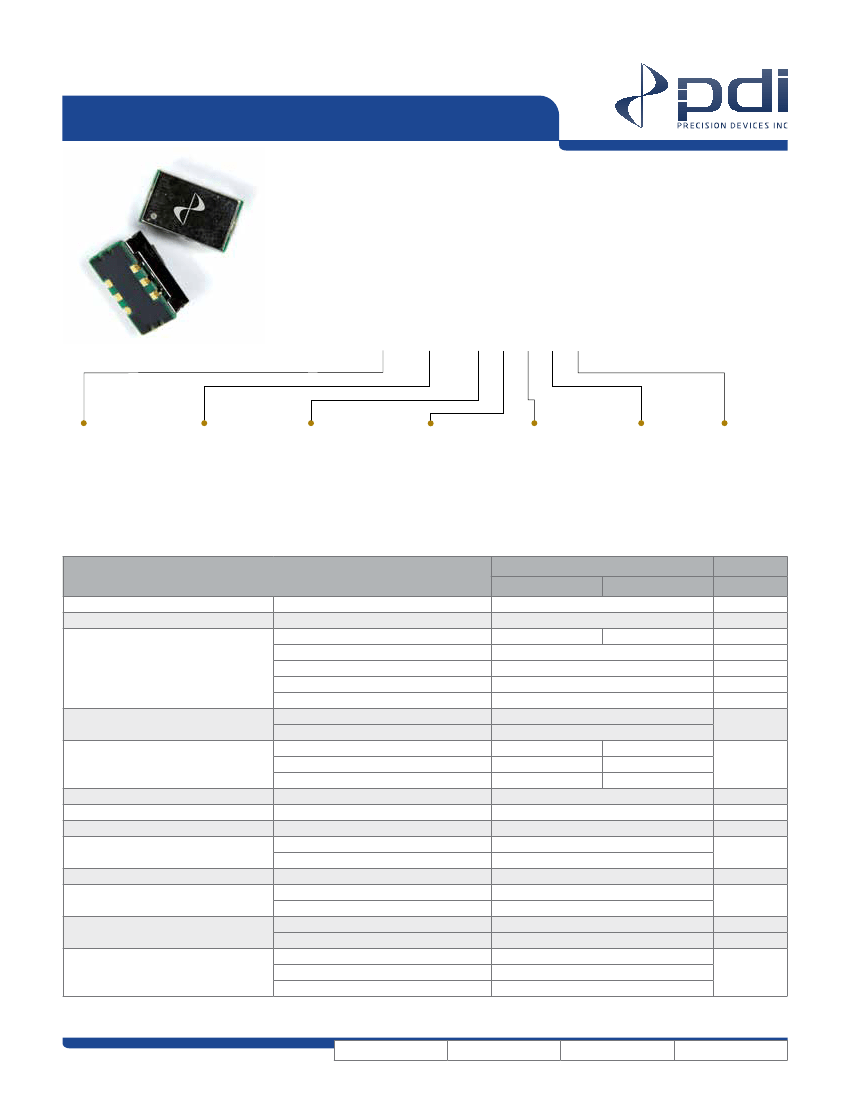

Voltage Controlled Crystal Oscillator (VCXO) ensure a precise
frequency under demanding circumstances. With ultra-low phase noise, low
jitter, and excellent performance in high vibration environments, this VCXO
is offered in both standard and custom frequencies. PDI provides quick-turn
sampling for your proto-typing needs, mass production capability,
and competitive pricing.
ex)
V29—T—25000X—C—B—B—3—R—X
*
ENABLE
T
= Tri-State
(6-Pad Only)
0
= No/Connect
(4-Pad Only)
FREQUENCY
00750X-99999X
=
0.7500 MHz –
99.000 MHz
C10000-C16000
=
100.00 MHz –
160.00 MHz
OUTPUT
C
= TTL/CMOS
O
= LVCMOS
FREQUENCY
STABILITY
B
= ±25
C
= ±50
D
= ±100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
SUPPLY
VOLTAGE
3
= 3.3
5
= 5.0
PACKAGE
R
= Tape & Reel
* - for standard or assigned for customization.
Parameter
Frequency Range
*1
Frequency Stability
*1
All Causes (Maximum )
Control Voltage Range
Absolute Pull Range (APR) (Minimum)
Linearity (Maximum)
Input Impedance (Minimum)
Modulation Bandwidth (Minimum)
Operating
Storage
0.750000 to 29.999999 MHz
30.000000 to 69.999999 MHz
70.000000 to 160.000000 MHz
*2
Supply Voltage
*1
(±10%)
5.0
3.3
0.750000-160.000000
Per Option
0.5 to 4.5
0.3 to 3.0
±50
10
50K
25
Per Option
-55 to +125
25
20
30
25
60
50
Per Option
15pF/10 TTL gates
40 to 60% (45 to 55% option)
5.0
5.0
10
90
10
70
30
-110
-130
-140
Units
V
MHz
ppm
V
ppm
%
Ω
KHz
°C
mA
Frequency Adjustment
Temperature Range
*1
Supply Current (Maximum)
Output
Load
Duty Cycle (at 50% Vcc)
Rise/Fall Times (Maximum)
Start up Time (Maximum)
Output Voltage Levels
Pin 2 (Tri-State) (6-Pad Option Only)
Phase Noise
(Typical For 38.4 MHz)
Rise Time (10% to 90% Vcc)
Fall Time (90% to 10% Vcc)
High (Minimum)
Low (Maximum)
Enable (High Voltage) (Minimum)
Disable (Low Voltage) (Maximum)
@ 100Hz Offset
@ 1KHz Offset
@ 10KHz Offset
ns
ms
% Vcc
% Vcc
% Vcc
dBc/Hz
*1 - Not all Frequency/Temperature/Voltage combinations are available.
*2 - Inclusive of Tolerance @25°C, Operating Temperature, Supply Voltage, Load, Aging, Shock and Vibration.
REV:
NA
SIZE:
A
CAGE:
0S4G1
1
of
3
VC29-Series
14.00 x 9.10 x 4.70
(mm)

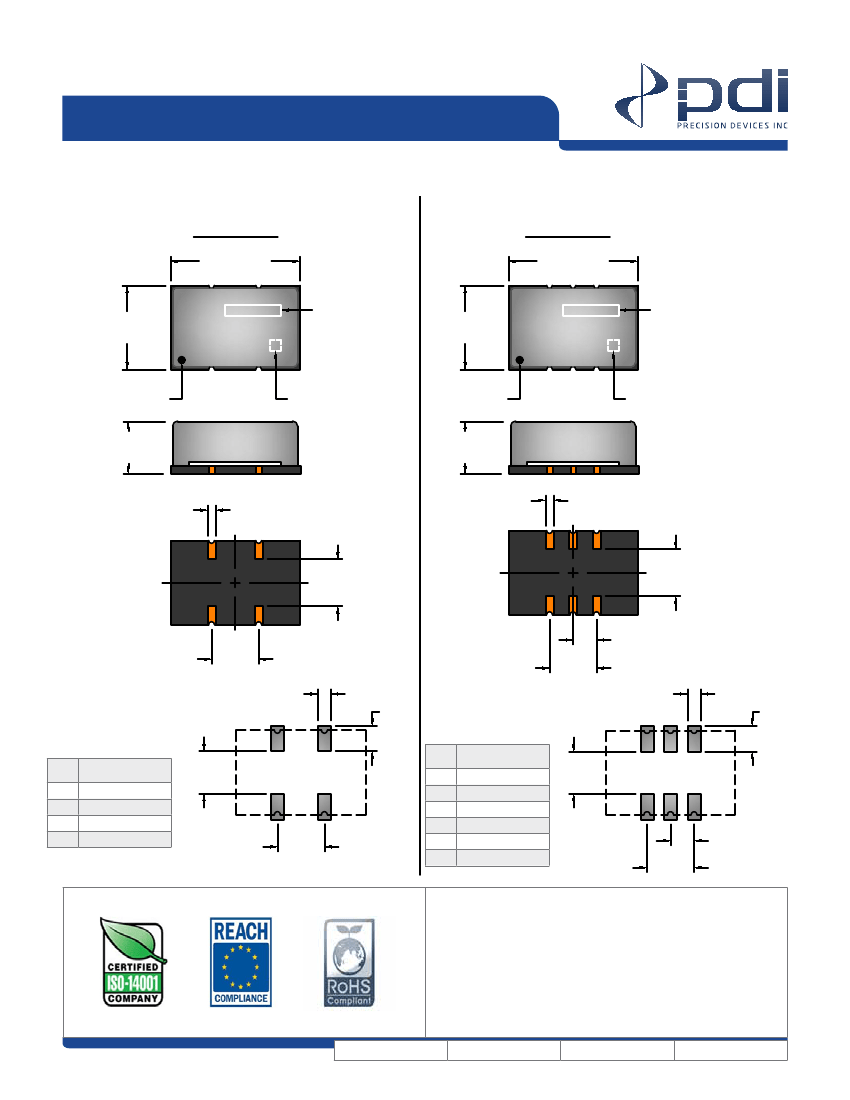

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
4-Pad Option
(No Connect)
.551 ±.016
[14.00 ±.40]
6-Pad Option
(Tri-State)
.551 ±.016
[14.00 ±.40]
FKA Number
.358 ±.008
[9.10 ±.20]
PDI
Frequency
Date Code
.358 ±.008
[9.10 ±.20]
PDI
Frequency
Date Code
FKA Number
Pin 1
.222 Max.
[5.65 Max.]
.035
[.90]
Traceability Code
Pin 1
.222 Max.
[5.65 Max.]
.035
[.90]
Traceability Code
1
1
2
2
3
4
3
.200 ±.008
[5.08 ±.20]
6
5
4
.200 ±.008
[5.08 ±.20]
.200 ±.008
[5.08 ±.20]
Recommended Pad Layout
(Top View)
4
.055
[1.40]
3
.200 ±.008
[5.08 ±.20]
.110
[2.80]
PIN
1
2
3
4
5
6
.100
[2.54]
.055
[1.40]
6
4
Recommended Pad Layout
(Top View)
CONNECTION
Voltage Control
Tri-state
Ground/Case
Output
No Connect
Supply Voltage
.110
[2.80]
PIN
1
2
3
4
CONNECTION
Voltage Control
Ground/Case
Output
Supply Voltage
.180
[4.57]
1
2
.180
[4.57]
1
3
.200
[5.08]
.200
[5.08]
.100
[2.54]
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
0S4G1
2
of
3
VC29-Series
14.00 x 9.10 x 4.70
(mm)

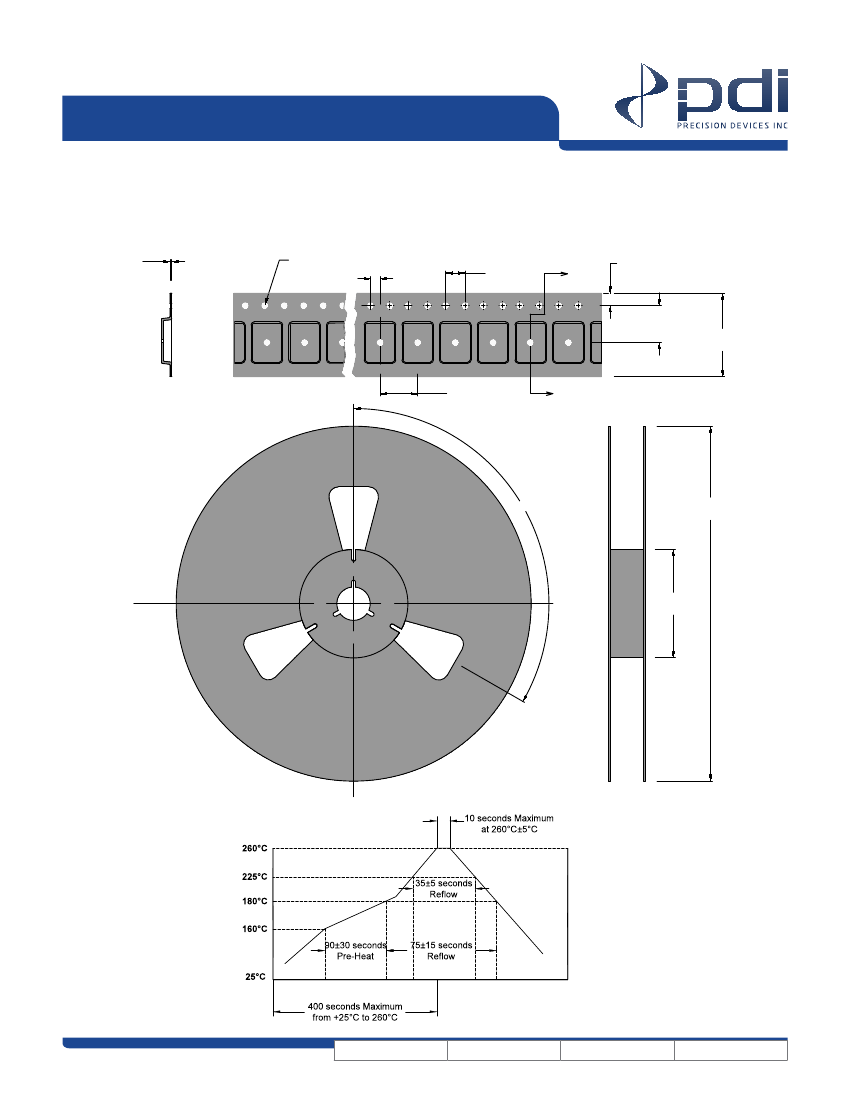

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008.
3.
Camber in compliance with EIA 481.
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.157 Typ.
[4.00 Typ.]
.069
[1.75]
.079
[2.00]
A
.453
[11.50]
.945 ±.012
[24.00 ±.30]
Section A-A
.630 Typ.
[16.00 Typ.]
A
120°
Ø13.000
[Ø330.00]
3.94
[100.00]
REV:
NA
SIZE:
A
CAGE:
0S4G1
3
of
3
