ESMI-2IB1747M11-T datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ESMI-2IB1747M11-T

ESMI-2IB1747M11-T: DescriptionIsolator, 1710MHz Min, 1785MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size194KB，1 Pages; ManufacturerHitachi Metals; Websitehttp://www.hitachi-metals.co.jp/e/

Download Datasheet Parametric Compare View All

ESMI-2IB1747M11-T Overview

Isolator, 1710MHz Min, 1785MHz Max,

ESMI-2IB1747M11-T Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
structure	MODULE
Maximum input power (CW)	33.98 dBm
Maximum insertion loss	0.7 dB
JESD-609 code	e4
Maximum operating frequency	1785 MHz
Minimum operating frequency	1710 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
RF/Microwave Device Types	ISOLATOR
Terminal surface	SILVER
Maximum voltage standing wave ratio	1.6
Base Number Matches	1

Preview

Download Datasheet

View All

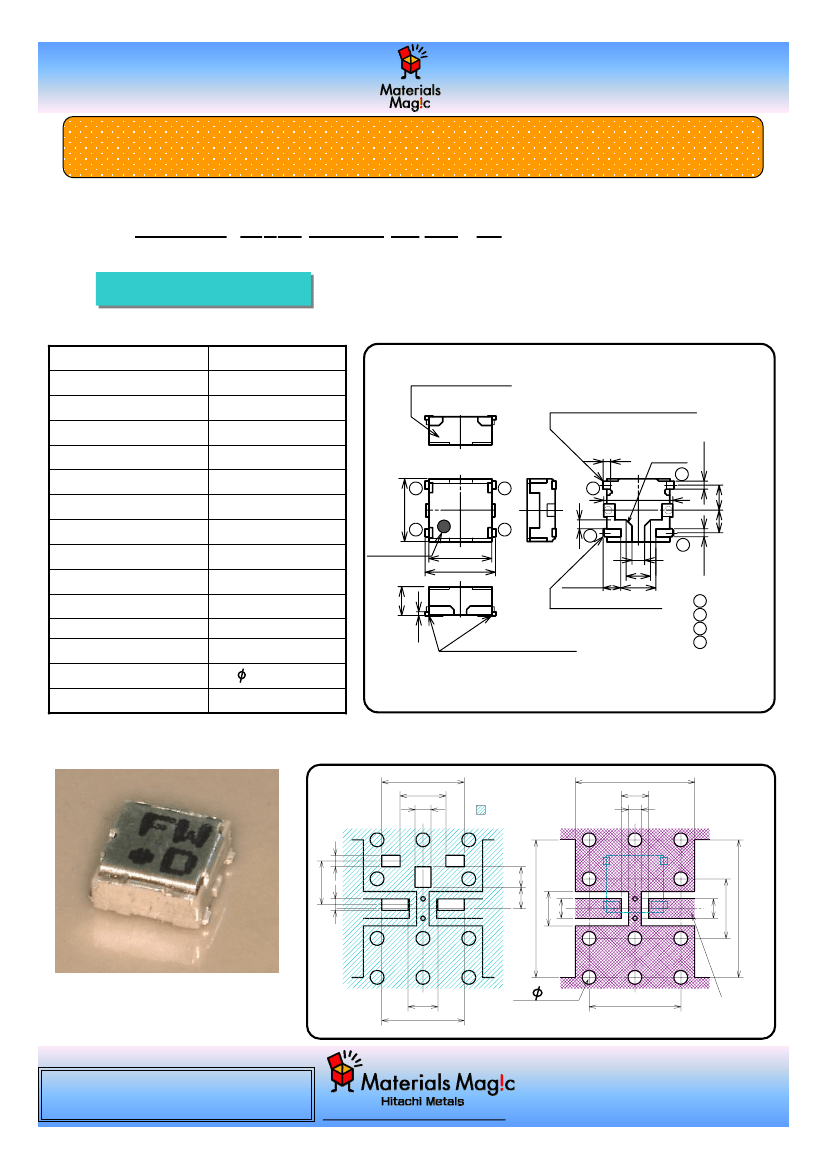

Feb.'09

TBE412-1

2.5mm Square Isolator

P/N:ESMI-2IB1747M11-T

(1)

(2) (3)(4)

(5)

(6) (7)

(8)

for UMTS BAND 3,4,10

Specification

Frequency

Insertion Loss_1*

Insertion Loss_2

Isolation

VSWR_ In

VSWR_ Out

Attenuation 2f

Attenuation 3f

Handling Power

Reflection Power

Operating temperature

Weight

Reel size

Minimum Quantity

* at +20 to +30 (deg.C)

Dimensions

1710-1785 MHz

0.57 dB max

0.7 dB max

9 dB min

1.5 max

1.6 max

2 .5

ST EE L C ASE

A g P L A T I N G ( 2 . 4 ~ 4 . 0 um )

o n C O P P ER P L A T I N G ( 1 . 6 um ~ )

(1) Series code

(2) Size >> 2: 2.5x2.5mm

(3) Height >> I: 1.2mm

(4) Model code

(5) Center Frequency

(6) M : MHz / G : GHz

(7) Control No.

(8) T : Taping / Blank : Bulk

GROUND

A g P L A T I N G ( 2 . 4 ~ 4 . 0 um )

o n C O P P ER P L A T I N G ( 1 . 6 um ~ )

0 . 3

+0 .1

- 0 .1

0 .35

2 .75

+0 .1

- 0 .1

10 dB min

15 dB min

2.5 W max

0.6 W max

-35 to +85 deg.C

0.035 g

330 mm

4,000 pcs /reel

2 . 5

2 . 8

+0 .1

- 0 .1

0 .5

0 . 97

0 . 7

+0 .1

- 0 .1

+0 . 05

- 0 . 05

1 . 4

1 .15

+0 . 05

- 0 . 05

0 .3

-0

I N PU T M AR K

+0 . 1

. 1

STR I P

L IN E

0 .15

A g P L A T I N G ( 2 ~ 4 um )

o n C O P P ER P L A T I N G ( 1 . 6 um ~ )

COP LAN AR I T Y

0 . 0 8 ma x .

0 .9 1 .0

0 .3

C0 .235

+0 . 1

- 0 . 1

: I

RO U N D

Appearance

Land pattern

3 .6

2 .0

0 .7

Resist pattern

5 .2

1 .2

0 .55

0 .5

0 . 925 0 .9

1 .9

0 .5

1 .3

3 .6

11 - 0.3

Through-hole

6 .0

1 .5

0 . 85

4 .0

50ohm strip line

Confidential

The contents of this document is the property of Hitachi metals, Ltd.

and may not be communicated to any other party in any form

without the prior written contents of Hitachi Metals, Ltd..

http://www.hitachi-metals.co.jp/e/

0 . 85

2 .6

6 .0
