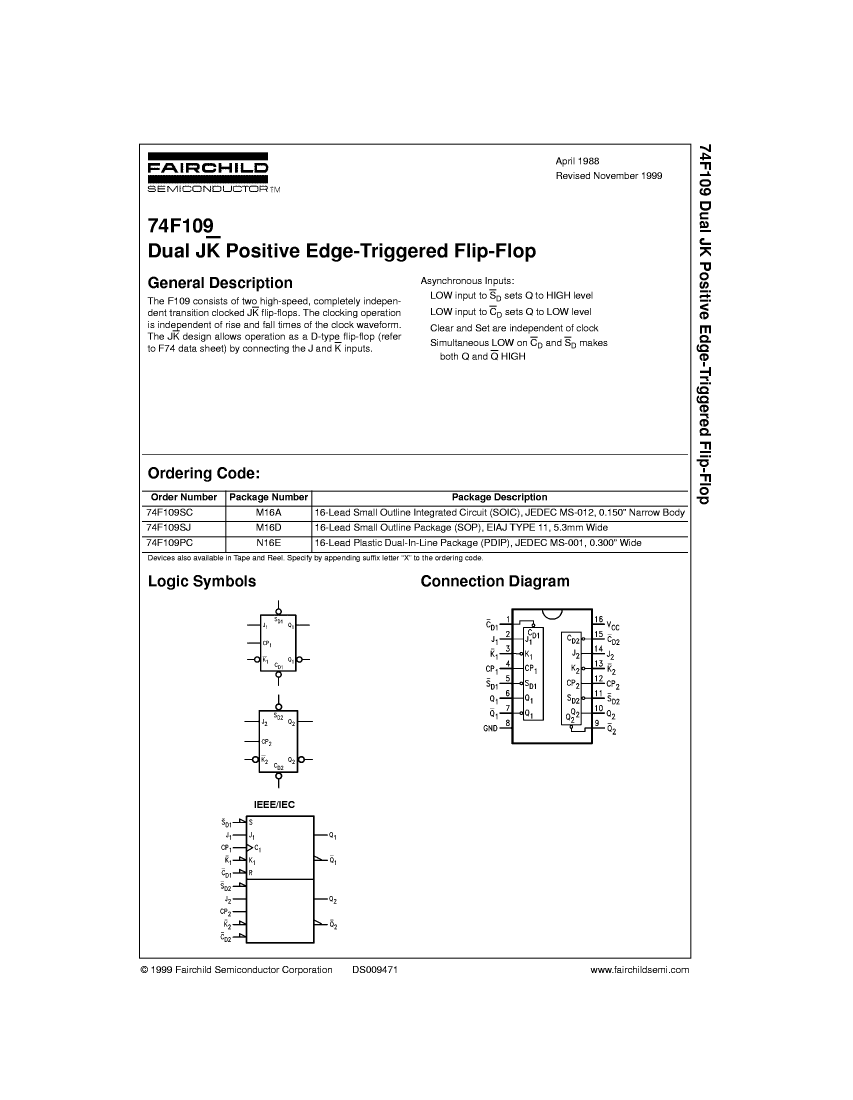

J-Kbar Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16,

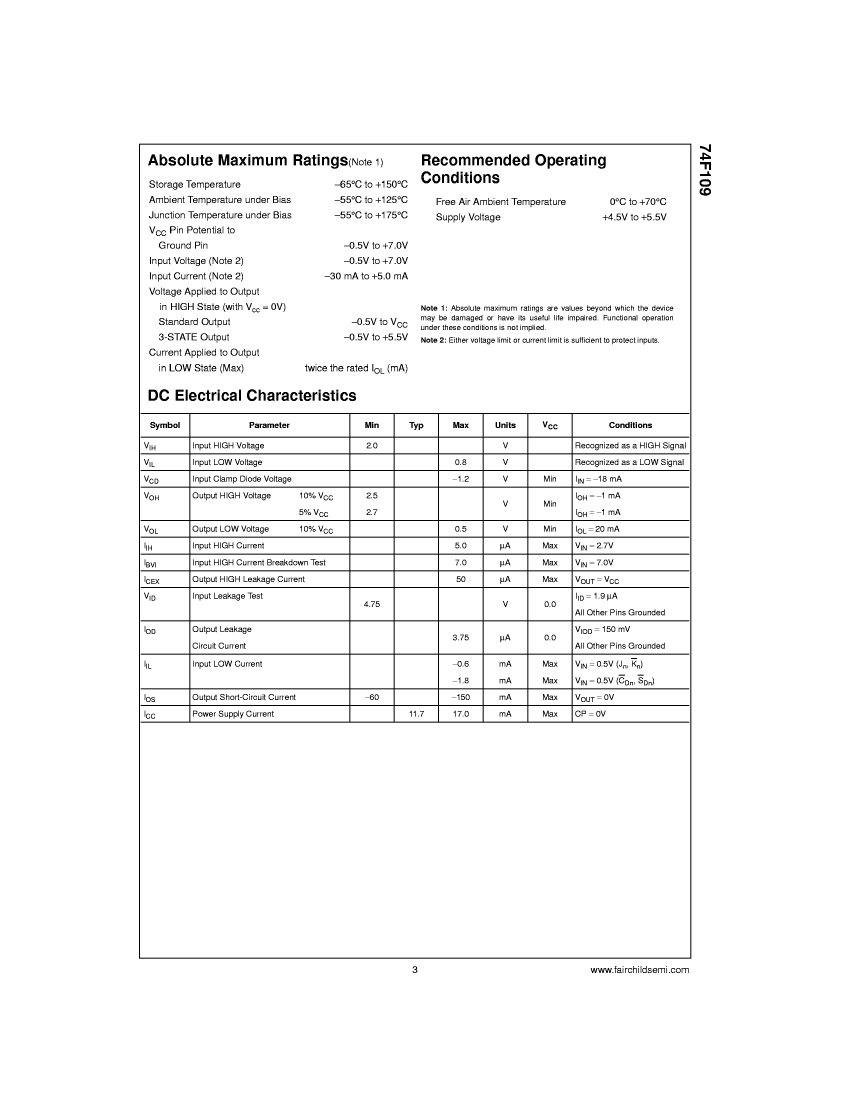

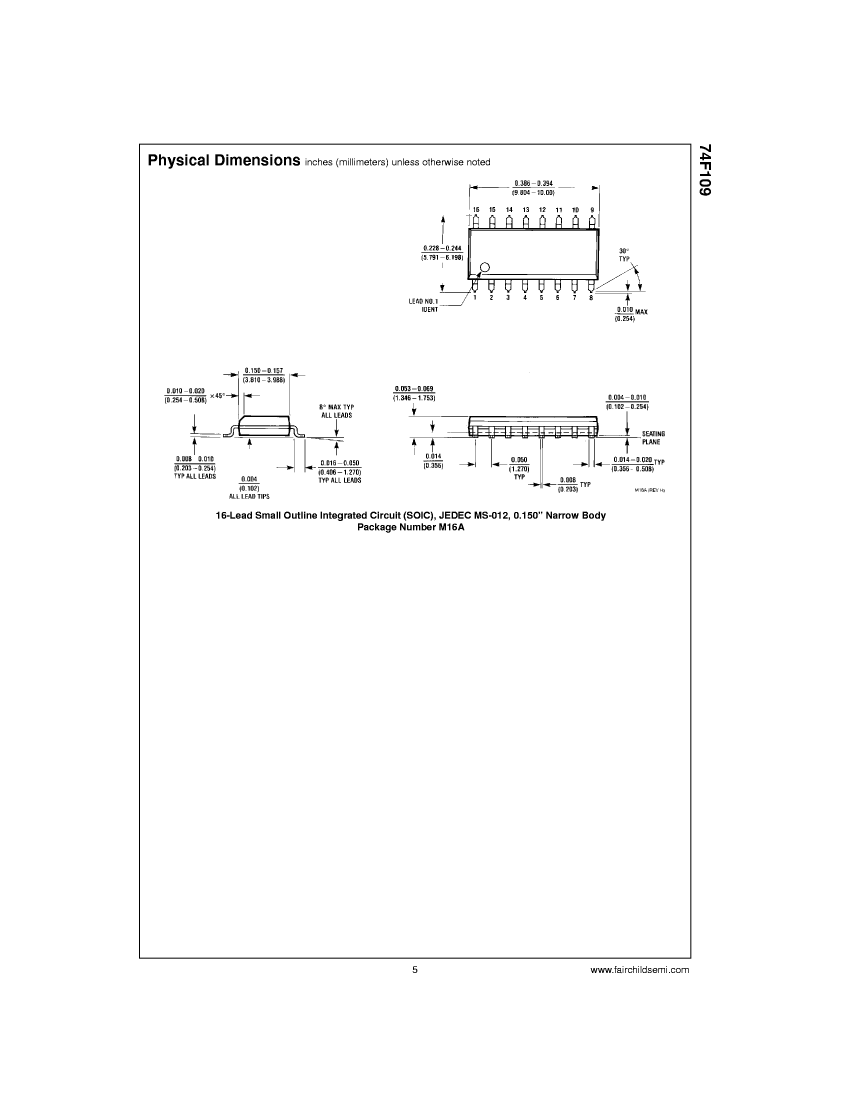

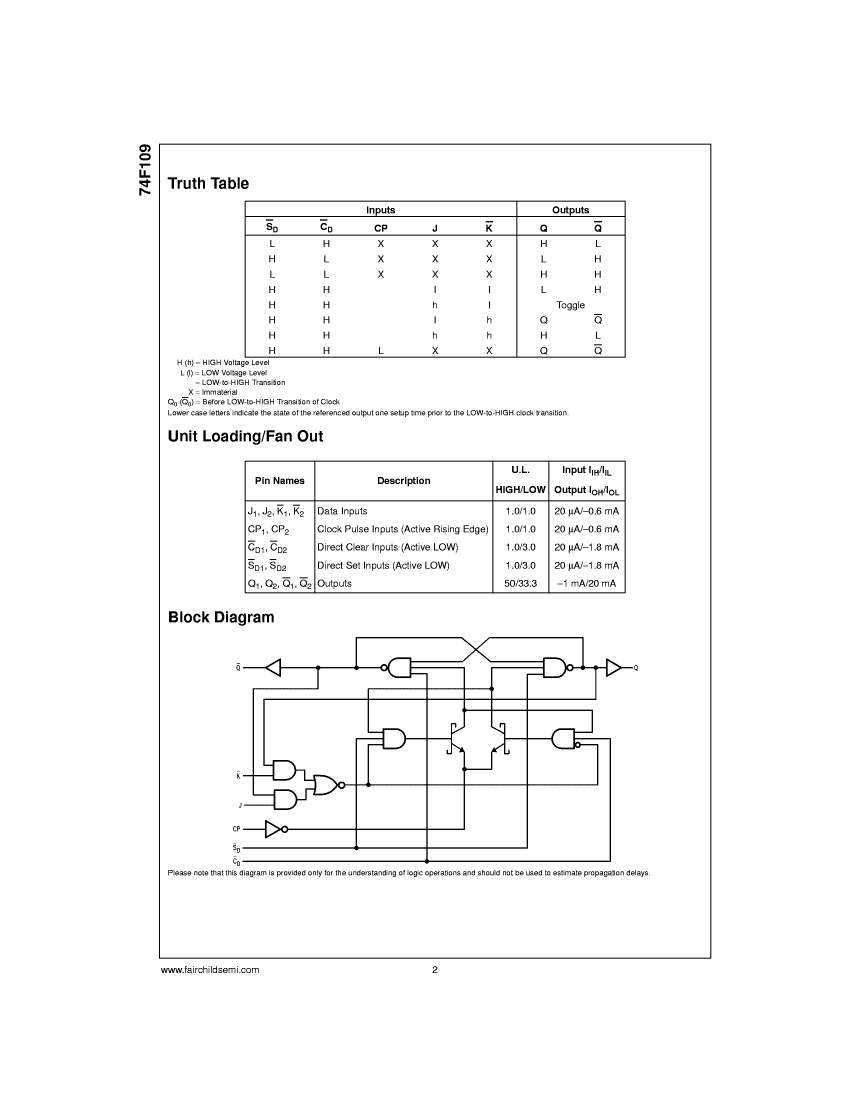

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DFP, FL16,.3 |
| Reach Compliance Code | compliant |
| JESD-30 code | R-XDFP-F16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | J-KBAR FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 70000000 Hz |
| MaximumI(ol) | 0.02 A |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 17 mA |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| Base Number Matches | 1 |
| 54F109FMQB | 54F109FM | 54F109LMQB | 74F109DCQM | 74F109PCQM | |
|---|---|---|---|---|---|
| Description | J-Kbar Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16, | J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16, | J-Kbar Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CQCC20, | J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16, | J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDIP16, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| JESD-30 code | R-XDFP-F16 | R-XDFP-F16 | S-XQCC-N20 | R-XDIP-T16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | J-KBAR FLIP-FLOP | J-K FLIP-FLOP | J-KBAR FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP |
| Number of functions | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | - |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | DFP | DFP | QCCN | DIP | DIP |
| Encapsulate equivalent code | FL16,.3 | FL16,.3 | LCC20,.35SQ | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | FLATPACK | CHIP CARRIER | IN-LINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | FLAT | NO LEAD | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | QUAD | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| package instruction | DFP, FL16,.3 | - | QCCN, LCC20,.35SQ | DIP, DIP16,.3 | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | 250 | 250 |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | 30 | 30 |
| Maker | - | Fairchild | - | Fairchild | Fairchild |
