BL-HS134C

Description
Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3
CategoryLED optoelectronic/LED    photoelectric
File Size192KB,1 Pages
ManufacturerBRIGHT
Websitehttp://www.brightled.co.kr/
Download Datasheet Parametric View All

BL-HS134C Overview

Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3

BL-HS134C Parametric

Parameter NameAttribute value
MakerBRIGHT
package instructionSURFACE MOUNT PACKAGE-3
Reach Compliance Codeunknown
colorSUPER RED
ConfigurationSINGLE
Maximum forward current0.03 A
Lens typeWATER CLEAR
Nominal luminous intensity20.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals3
Maximum operating temperature80 °C
Minimum operating temperature-25 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.7 mm
method of packingBULK
peak wavelength660 nm
shapeRECTANGULAR
size2 mm
surface mountYES
perspective105 deg
Base Number Matches1

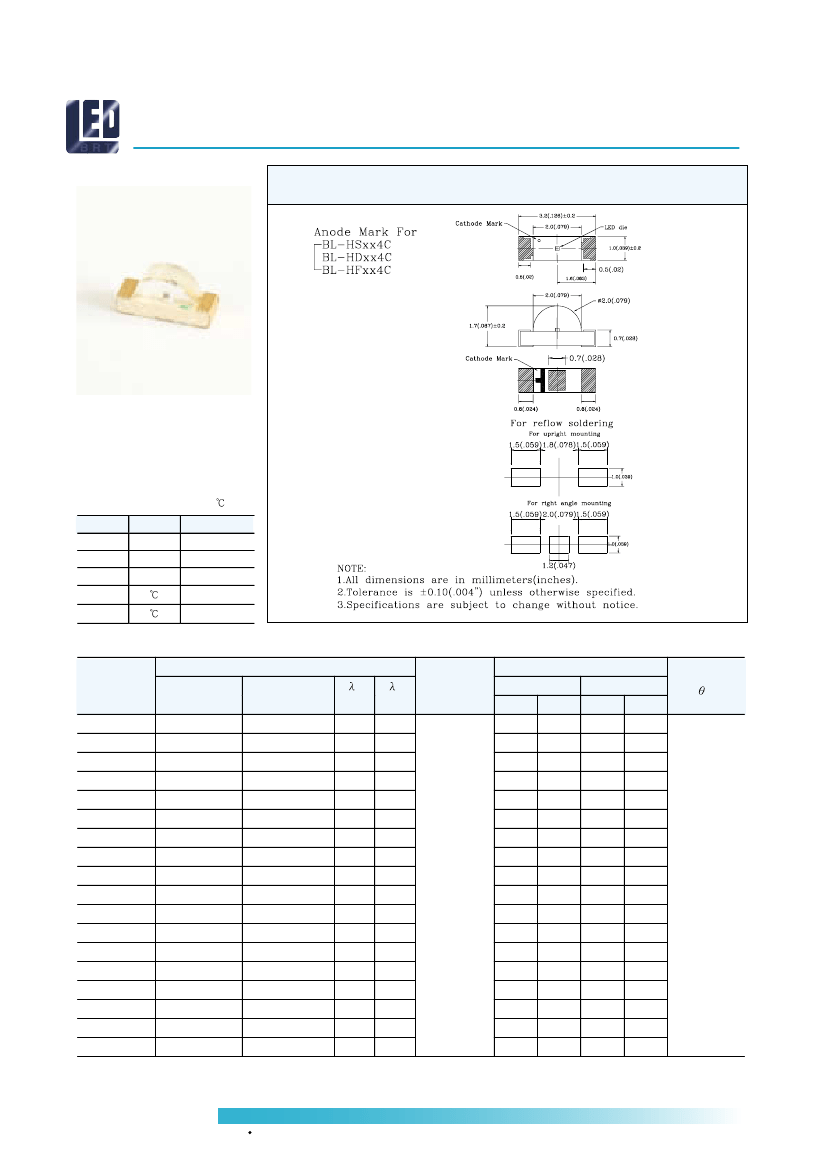

Surface Mount Chip LED Lamps
1204 Right Angle Lens BL-Hxxx4C Series
Absolute Maximum Ratings(Ta=25 )
UNIT
IF
IFp
VR
Topr
Tstg
mA
mA
V
SPEC.
30
100
5
-25~+80
-30~+85
Chip
Part No.
BL-HE134C
BL-HS134C
BL-HD034C
BL-HF034C
BL-HUB34C
BL-HJB34C
BL-HJD34C
BL-HG034C
BL-HX134C
BL-HW134C
BL-HGE34C
BL-HG434C
BL-HG634C
BL-HY034C
BL-HKB34C
BL-HKD34C
BL-HA134C
BL-HJF34C
Material
GaAsP/GaP
GaA1As/GaAs
GaA1As/GaAs
GaA1As
A1GaInP
A1GaInP
A1GaInP
GaP/GaP
GaP/GaP
GaP/GaP
A1GaInP
InGaN
InGaN
GaAsP/GaP
A1GaInP
A1GaInP
GaAsP/GaP
A1GaInP
Emitted Color
Hi-Eff Red
Super Red
Super Red
Super Red
Super Red
Super Orange Red
Super Orange Red
Yellow Green
Hi-Eff Green
Pure Green
Super Yellow Green
Bluish Green
Green
Yellow
Super Yellow
Super Yellow
Amber
Super Amber
p
(nm)
640
660
660
660
645
620
630
568
568
557
570
505
525
583
590
595
610
610
d
(nm)
628
643
643
643
632
615
625
571
570
563
570
505
525
585
587
594
610
605
Lens
Appearance
Electro-optical Data (At 20mA)
Vf(V)
Typ.
2.0
1.7
1.8
2.1
2.1
2.0
2.1
2.1
2.2
2.2
2.0
3.5
3.5
2.1
2.1
2.1
2.2
2.0
Max.
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
4.0
4.0
2.6
2.6
2.6
2.6
2.6
Iv(mcd)
Min.
2.4
8.2
8.2
12.3
42.0
42.0
42.0
5.5
8.2
2.4
28.0
63.0
94.0
3.7
42.0
42.0
2.4
42.0
Typ.
8.0
20.0
27.0
30.0
70.0
70.0
70.0
12.0
20.0
4.0
40.0
130.0
200.0
10.0
70.0
70.0
6.0
70.0
Viewing
Angle
2 1/2
(deg)
Water Clear
105
AMERICAN BRIGHT
(909) 628-5050 FAX (909) 628-5006
© 2003 American B right Optoelectronics C orporation. S pecifications subject to change without notice
.
w w w . a m e r ica n b r ig h tle d . co m
SMT-09
