BX9318PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX9318PM

BX9318PM: Description10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size121KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX9318PM Overview

10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

BX9318PM Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	13.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9318PM

Features

Superior Phase Noise Performance

Wide Bandwidth 10-1000 MHz

Environmental Screening Available

Available as:

TM9318PM, 4 Pin TO-8 (T4)

TN9318PM, 4 Pin Surface Mount (SM3)

FP9318PM, 4 Pin Flatpack (FP4)

BX9318PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point.......+30 dBm (Typ.)

Second Order Two Tone Intercept Point ......+42 dBm (Typ.)

Third Order Two Tone Intercept Point...........+48 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ..... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

10-1000 MHz

14.7

-18.5

1.5:1

3.75

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10-1000 MHz

13.5 Min.

14.5 Min.

-17 Max.

2.0:1 Max.

5.5 Max.

+15

50 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-155

-165

-171

-173

Guarantee

-152

-168

-169

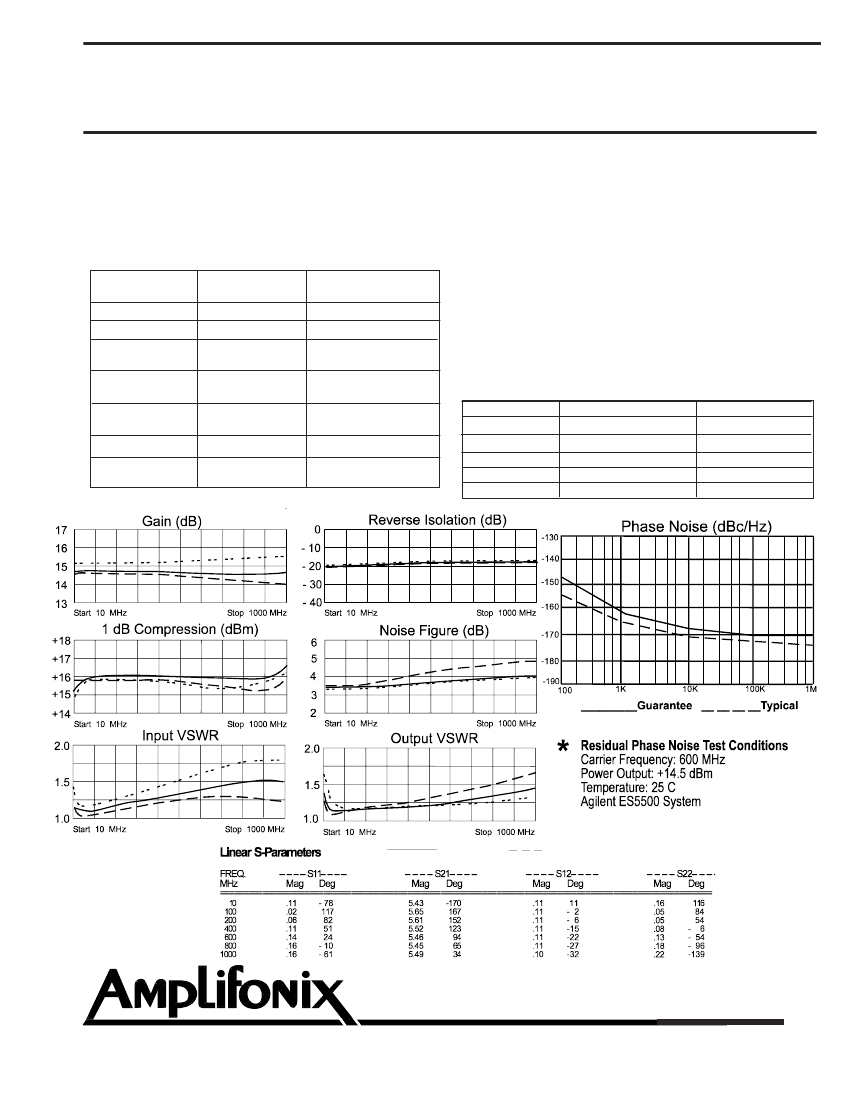

Typical Performance Data

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

4/1/04

BX9318PM Related Products

	BX9318PM	TM9318PM	FP9318PM	TN9318PM
Description	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	13.5 dB	13.5 dB	13.5 dB	13.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	Spectrum Microwave	-	Spectrum Microwave	Spectrum Microwave
