1N1360A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N1360A

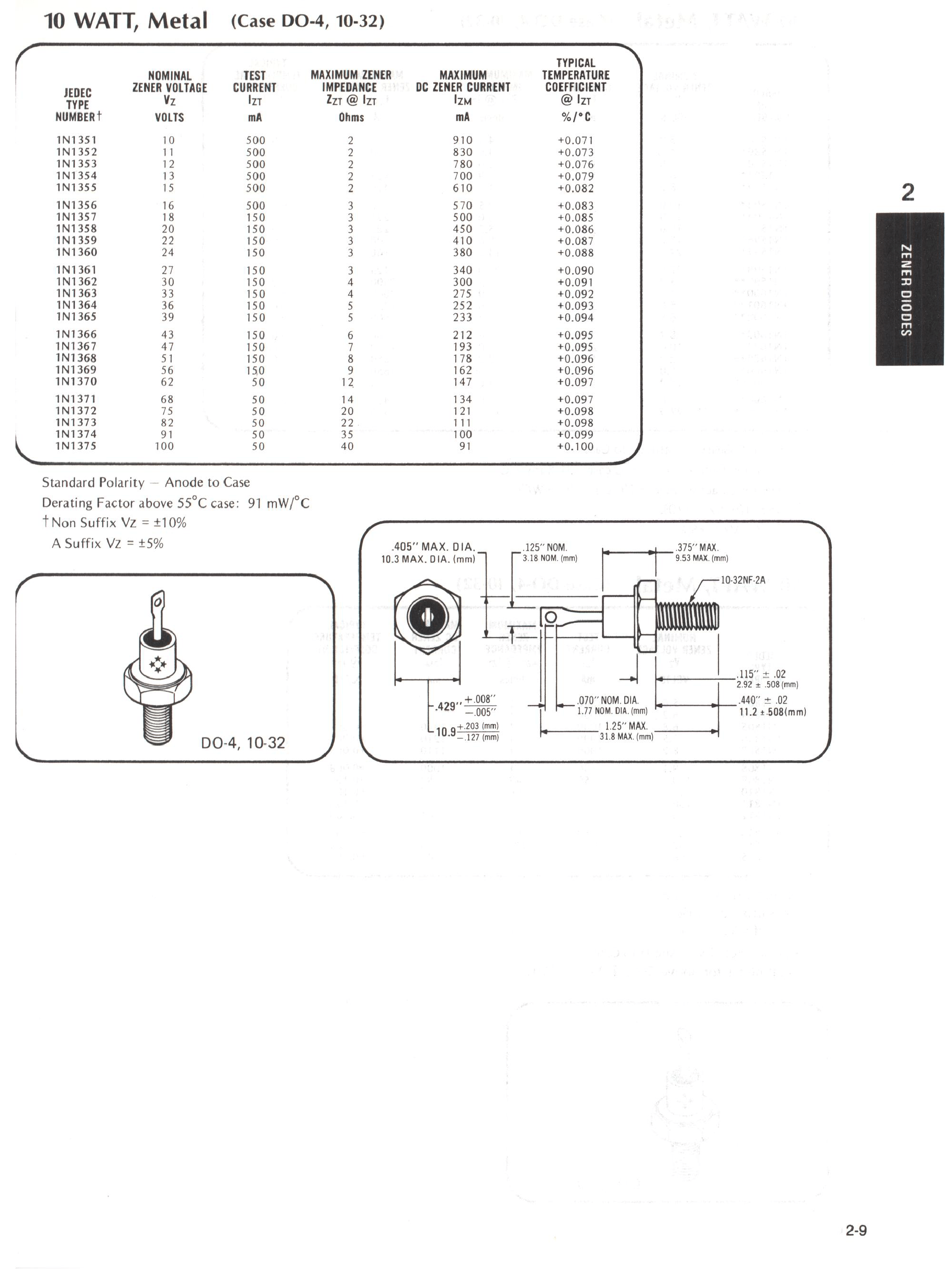

1N1360A: DescriptionZener Diode, 24V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1; CategoryDiscrete semiconductor diode; File Size278KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

1N1360A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N1360A	-	-	View	Buy Now

1N1360A Overview

Zener Diode, 24V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1

1N1360A Parametric

Parameter Name	Attribute value
Parts packaging code	DO-4
package instruction	O-MUPM-D1
Contacts	1
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
Number of components	1
Number of terminals	1
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
polarity	UNIDIRECTIONAL
Maximum power dissipation	10 W
Certification status	Not Qualified
Nominal reference voltage	24 V
surface mount	NO
technology	ZENER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum voltage tolerance	5%
Working test current	150 mA
Base Number Matches	1

Preview

Download Datasheet

View All

1N1360A Related Products

	1N1360A	1N1358A	1N1363	1N1367A	1N1356	1N1369A	1N1365
Description	Zener Diode, 24V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 20V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 33V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 47V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 16V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 56V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1	Zener Diode, 39V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, METAL PACKAGE-1
Parts packaging code	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Contacts	1	1	1	1	1	1	1
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Number of components	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	10 W	10 W	10 W	10 W	10 W	10 W	10 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	24 V	20 V	33 V	47 V	16 V	56 V	39 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum voltage tolerance	5%	5%	10%	5%	10%	5%	10%
Working test current	150 mA	150 mA	150 mA	150 mA	500 mA	150 mA	150 mA
Base Number Matches	1	1	1	1	1	1	1
