5962-8946901XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-8946901XA

5962-8946901XA: DescriptionUV PLD, 50ns, CMOS, CQCC68; CategoryProgrammable logic devices Programmable logic; File Size184KB，6 Pages; ManufacturerAltera (Intel)

Download Datasheet Parametric Compare View All

5962-8946901XA Overview

UV PLD, 50ns, CMOS, CQCC68

5962-8946901XA Parametric

Parameter Name	Attribute value
Maker	Altera (Intel)
package instruction	WQCCJ,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	48 MACROCELLS; 4 EXTERNAL CLOCKS; SHARED INPUT/CLOCK
maximum clock frequency	22.2 MHz
JESD-30 code	S-CQCC-J68
JESD-609 code	e0
Dedicated input times	12
Number of I/O lines	48
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 48 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Programmable logic type	UV PLD
propagation delay	50 ns
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal location	QUAD
Base Number Matches	1

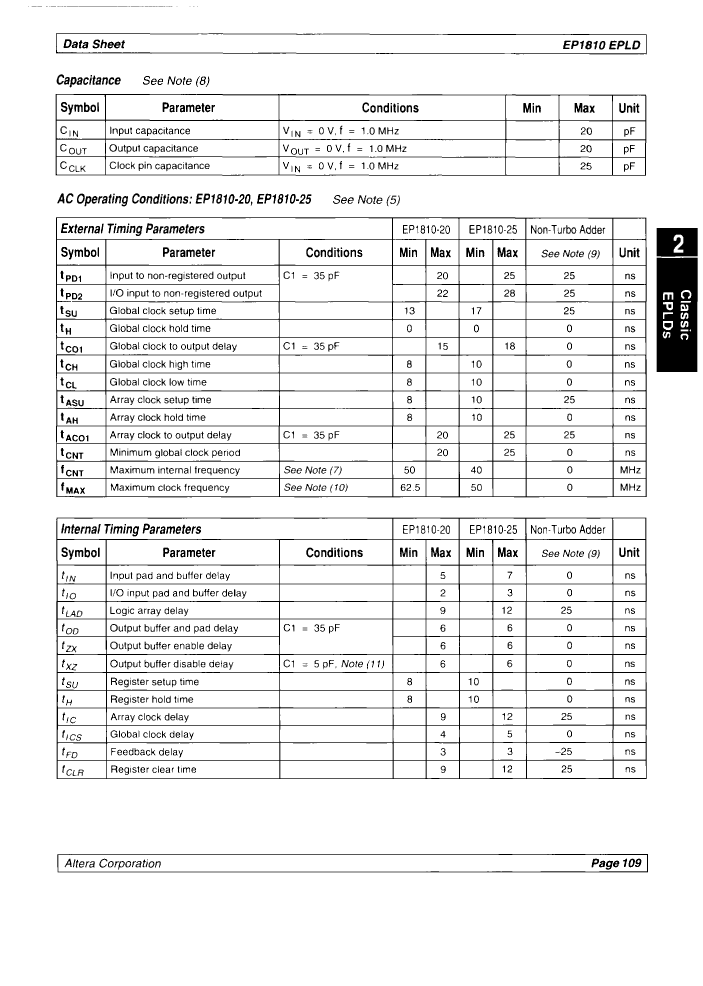

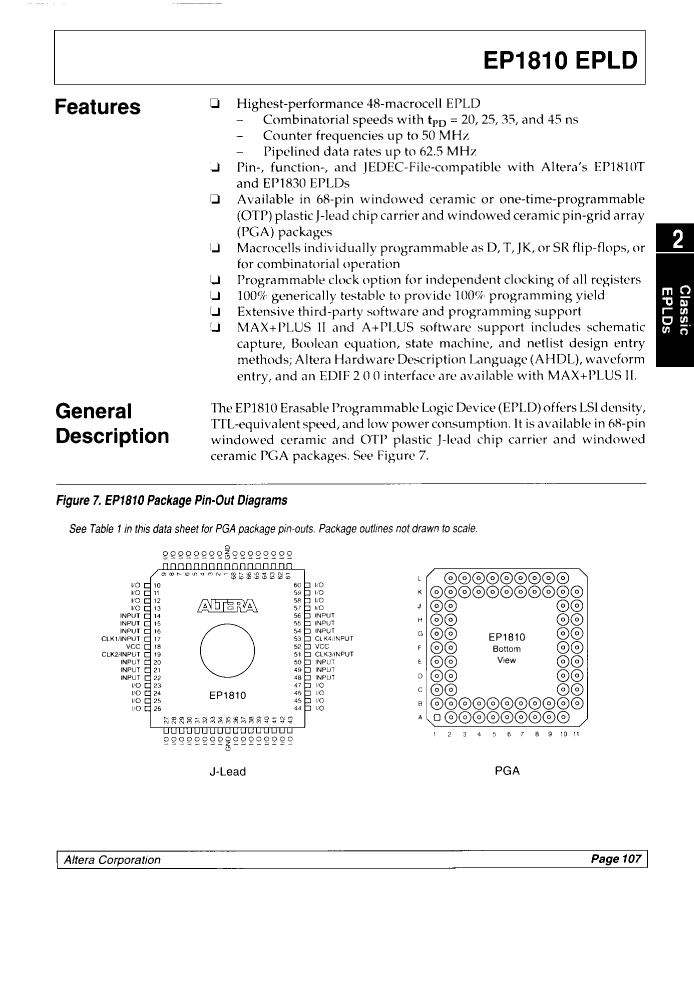

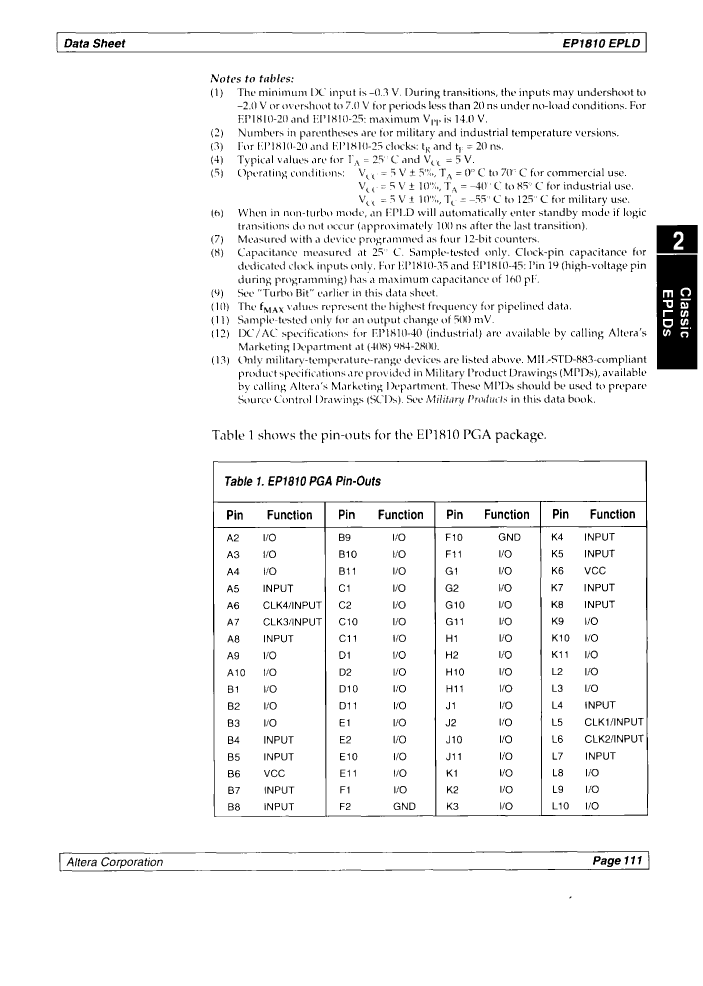

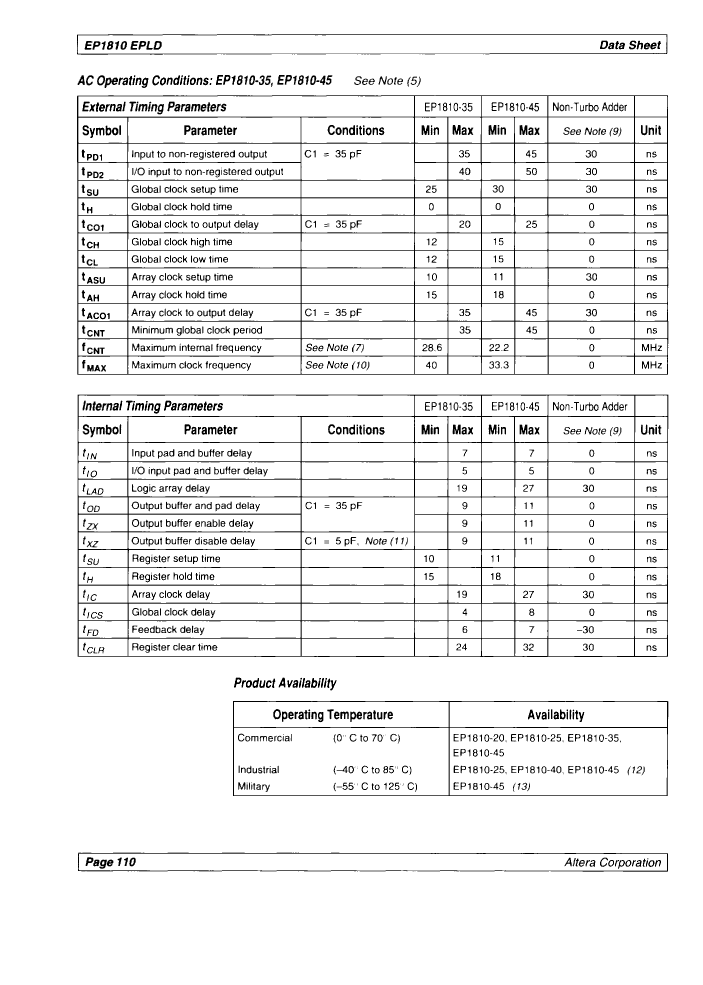

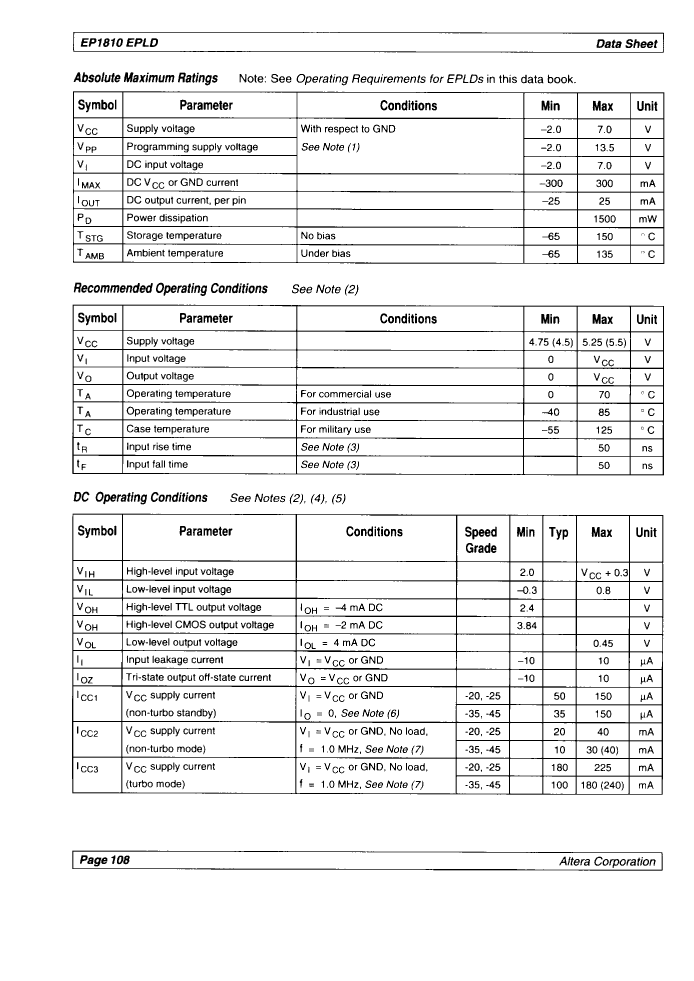

Preview
