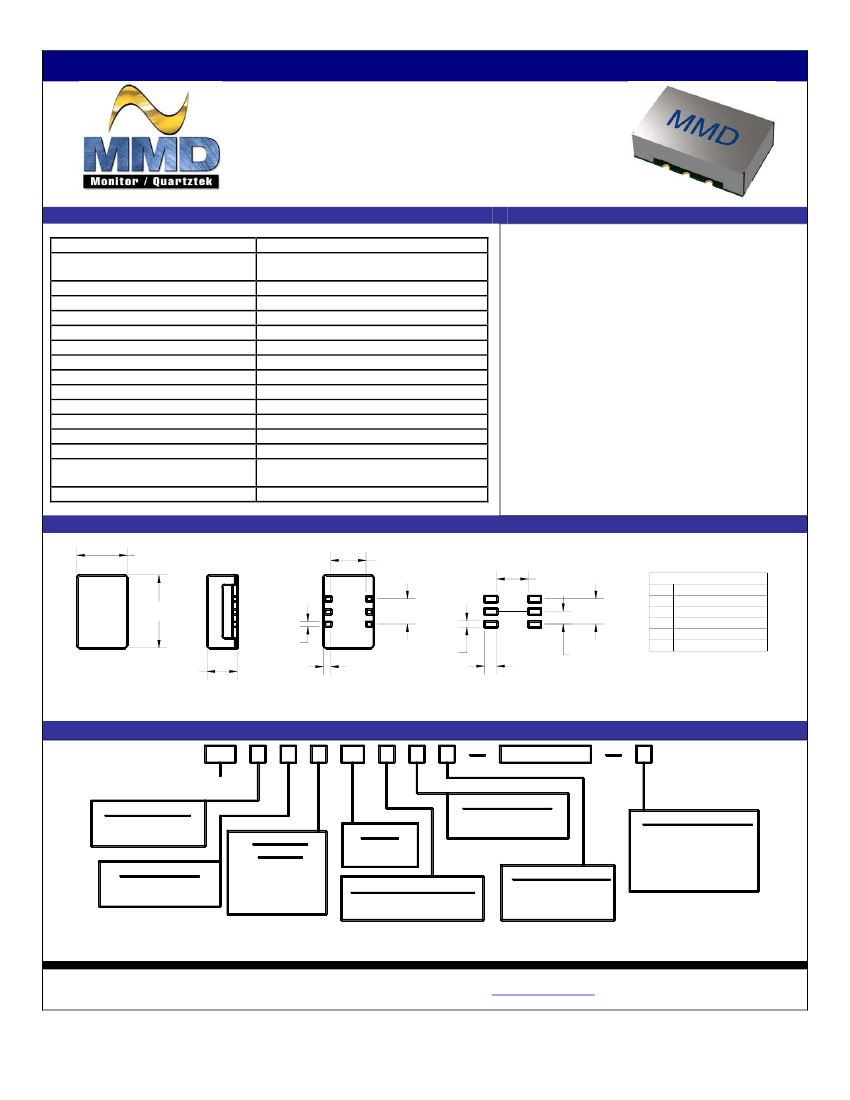

MVKPL Series
Wide Frequency Range
Complimentary PECL Output
+3.30 VDC or +5.00 VDC Supply
Surface Mount Package
ELECTRICAL SPECIFICATION:
Frequency Range
Frequency Stability (Inclusive of
Temperature, Load, Voltage and Aging
Operating Temperature Range
Storage Temperature Range
Supply Voltage (Vdd)
Supply Current
Logic “0”
Logic “1”
Symmetry (50% of waveform)
Load
Rise / Fall Time (20% to 80%)
Jitter RMS (12kHz to 20MHz)
Control Volt Range (Vdd = +3.30VDC)
Control Volt Range (Vdd = +5.00VDC)
Frequency Deviation
Input Impedence
Less than 1pSec Jitter
20.000 MHz to 250.000 MHz
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
+5.00VDC ±5% or +3.30VDC ±5%
80mA
Vdd – 1.620 VDC max
Vdd – 1.025 VDC max
45/55% max
50 Ohms into Vdd - +2.00 VDC
2nSec max
1pSec max
+1.65VDC ±1.50VDC Positive Slope
+2.50VDC ±2.00VDC Positive Slope
Sufficient to compensate for all conditons
for 10 years
10k Ohms min
MARKING:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYYMML
S = Internal Code
YYMM = Date Code (Year/Month)
L = Denotes RoHS Compliant
Line 3: XXXXX
Internal Manufacture Code
MECHANICAL DETAIL:
10.16 [.400]
7.11 [.280]
6.35 [.250]
3
2
1
1.02 [.040]
1.27 [.050]
6.10 [.240]
Dimension in Brackets are in Inches
External Bypass Capacitor is Recommended
1.52 [.060]
2.54 [.100]
Recommend Land
Pattern
2.54 [.100]
4
5
6
Pin
Pin
Pin
Pin
Pin
Pin
1
2
3
4
5
6
Pin Connections
Voltage Control
N/C or Tri-state
Case Ground
Output
Complimentary Output
Suppy Voltage (Vdd)
14.73 [.580]
5.08 [.200]
5.08 [.200]
PART NUMBERING GUIDE:
MVK
6 Pad SMD
RoHS Compliant
Blank = Not Compliant
F = Is Compliant
Supply Voltage
Blank = +5 VDC
3 = +3.3 VDC
Frequency
Stability
020 = ±20 ppm **
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Output
PL = PECL
w/Low Jitter
Pin 2 Connection
Blank = No Connect
H = Tri-state
Value Added Options
Blank = No Added Options
T = Tape and Reel
Please check with factory
for availability of Tape and
Reel
PL
Frequency
Operating Temperature
Blank = 0°C to +70°C
48 = -40°C to +85°C
Mode of Operation
1 = Fundamental
3 = 3rd Overtone
P = PLL
** Available from
0° to +70° only.
Please Consult with MMD sales department for any other parameters or options.
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision 7/11/05 E
