RG23AP6D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RG23AP6D

RG23AP6D: DescriptionElectromechanical Relay, 3PST, 6.6VDC (Coil), 7A (Contact), 30VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size231KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

RG23AP6D Overview

Electromechanical Relay, 3PST, 6.6VDC (Coil), 7A (Contact), 30VDC (Contact), Random, AC/DC Output

RG23AP6D Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	22 mm
body height	35 mm
Body length or diameter	28 mm
Coil operating voltage (DC)	4.8 V
Coil release voltage (DC)	0.6 V
Coil resistance	40 Ω
Maximum coil voltage (DC)	6.6 V
Nominal coil voltage	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1540VA@250VAC
Contact (AC) maximum rated R load	7A@250VAC
Maximum contact current (AC)	7 A
Maximum contact current (DC)	7 A
Contact (DC) maximum rated power R load	210W@30VDC
Contact (DC) maximum rated R load	7A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	14
operating hours	25 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
PCB hole count	14
physical size	28mm x 22mm x 35mm
Guideline	CSA; UL
Relay style	3 FORM A
Relay function	3PST
release time	25 ms
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

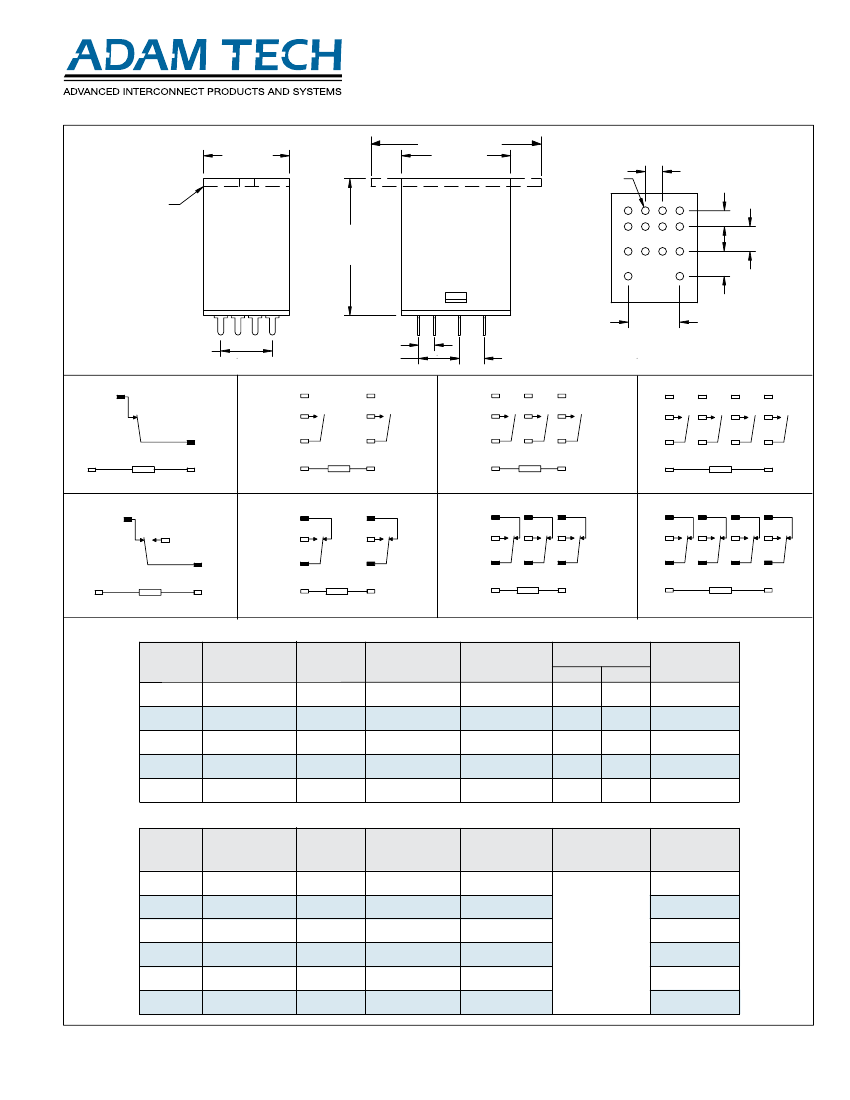

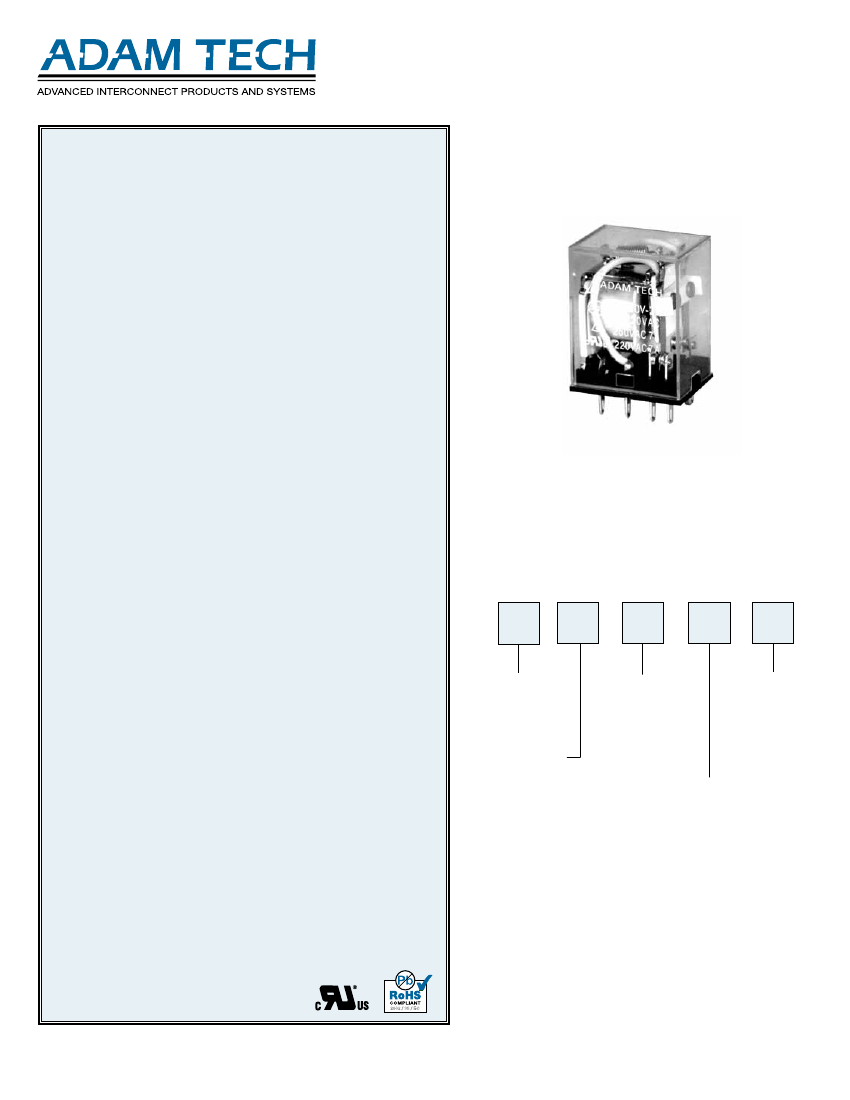

GENERAL PURPOSE RELAY - TYPE RG2

R SERIES

INTRODuCTION:

Adam Tech RG2 Relays are small general purpose relays available

in eight different contact formats with either AC or DC coils and are

available with PCB or Solder terminals . These relays are ideal for

applications such as industrial control equipment, office machines,

and medical equipment

FEATuREs:

Contact ratings up to 7 amps

AC and DC coils available

PCB & Solder Plug-in terminals

sPECIFICATIONs:

Electrical:

Contact arrangement: 1 to 4 Pole, Form A & C

Contact material: Silver Alloy

Contact Rating (Resistive load):

1, 2 & 3 Pole: 7A @ 250V AC

7A @ 30V DC

4 Pole: 5A @ 250V AC

5A @ 30V DC

Max . Switching Voltage: 250V AC / 30V DC

Max . Switching Power: 1540VA, 210W

Contact resistance: 100 mΩ max . Initial

Insulation resistance: 1000 MΩ min . @ 500V DC

Dielectric withstanding voltage:

Between Coil & Contact: 1500V AC 50/60Hz for 1 min .

Between Contacts: 1000V AC 50/60Hz for 1 min .

Operating time: 25 ms max .

Release time: 25 ms max .

Electrical Life: 100,000 Operations (at rated load)

Mechanical:

Vibration resistance (Endurance): 1 .0mm Double Amplitude 10-55Hz

Shock resistance: 10G min .

Mechanical Life: 10,000,000 Operations (no load)

Temperature Rating:

Ambient temperature: -45°C to +85°C

PACkAGING:

Anti-ESD plastic trays

sAFETY AGENCY APPROVAls:

UL Recognized & CSA Certified, File no . E305638

RElAY

RG2-2C-s-24VDC

ORDERING INFORMATION

GENERAL PURPOSE RELAY

RG2

VDC

sERIEs INDICATOR

RG2

= Relay,

General

Purpose

CONTACT FORM

= 1 form A

= 1 form C

= 2 form A

= 2 form C

= 3 form A

= 3 form C

= 4 form A

= 4 form C

TERMINAls

= PCB Terminals

= Solder/Plug-In

= .187" Quick

Connects

COIl TYPE

VAC

= AC Coil

VDC

= DC Coil

COIl VOlTAGE

= 6V

= 12V

= 24V

= 48V

110

= 110V

120

= 120V

220

= 220V

240

= 240V

OPTION:

Add designator(s) to end of part number

= Top Mount flange

www.adam-tech.com
