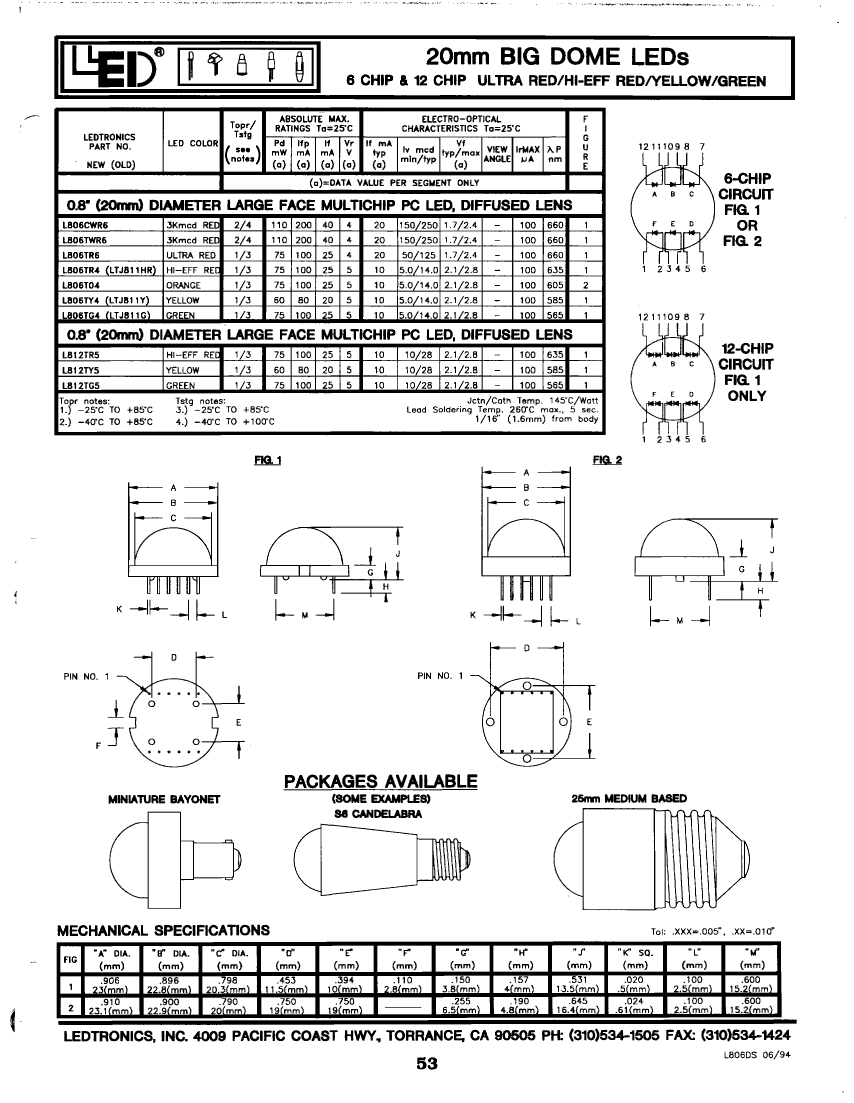

L812TY5: DescriptionSingle Color LED Array, Yellow, Diffused, 20mm, 12 PIN; CategoryLED optoelectronic/LED photoelectric; File Size50KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

L812TY5 Overview

Single Color LED Array, Yellow, Diffused, 20mm, 12 PIN

L812TY5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	LEDtronics
package instruction	12 PIN
Reach Compliance Code	unknown
color	YELLOW
Configuration	COMPLEX
Maximum forward current	0.02 A
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	28 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	13.5 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	20 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

L812TY5 Related Products

	L812TY5	L812TG5	L812TR5	LTJ811HR	LTJ811Y	L806TR6
Description	Single Color LED Array, Yellow, Diffused, 20mm, 12 PIN	Single Color LED Array, Green, Diffused, 20mm, 12 PIN	Single Color LED Array, High Efficiency Red, Diffused, 20mm, 12 PIN	Single Color LED Array, High Efficiency Red, Diffused, 20mm, 12 PIN	Single Color LED Array, Yellow, Diffused, 20mm, 12 PIN	Single Color LED Array, Ultra Red, Diffused, 20mm, 12 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	12 PIN	12 PIN	12 PIN	12 PIN	12 PIN	12 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
color	YELLOW	GREEN	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	YELLOW	ULTRA RED
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Maximum forward current	0.02 A	0.025 A	0.025 A	0.025 A	0.02 A	0.025 A
JESD-609 code	e0	e0	e0	e0	e0	e0
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	28 mcd	28 mcd	28 mcd	14 mcd	14 mcd	125 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	6	6	6	6	6	6
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	13.5 mm	13.5 mm	13.5 mm	13.5 mm	13.5 mm	13.5 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	585 nm	565 nm	635 nm	635 nm	585 nm	660 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Maker	LEDtronics	LEDtronics	LEDtronics	-	-	LEDtronics
Base Number Matches	1	1	1	1	1	-
