1N4007HF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4007HF

Preview

1N4007HF: DescriptionRectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, HALOGEN FREE, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size272KB，3 Pages; ManufacturerTak Cheong; Websitehttp://www.takcheong.com/

Download Datasheet Parametric Compare View All

1N4007HF Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, HALOGEN FREE, PLASTIC PACKAGE-2

1N4007HF Parametric

Parameter Name	Attribute value
Parts packaging code	DO-41
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

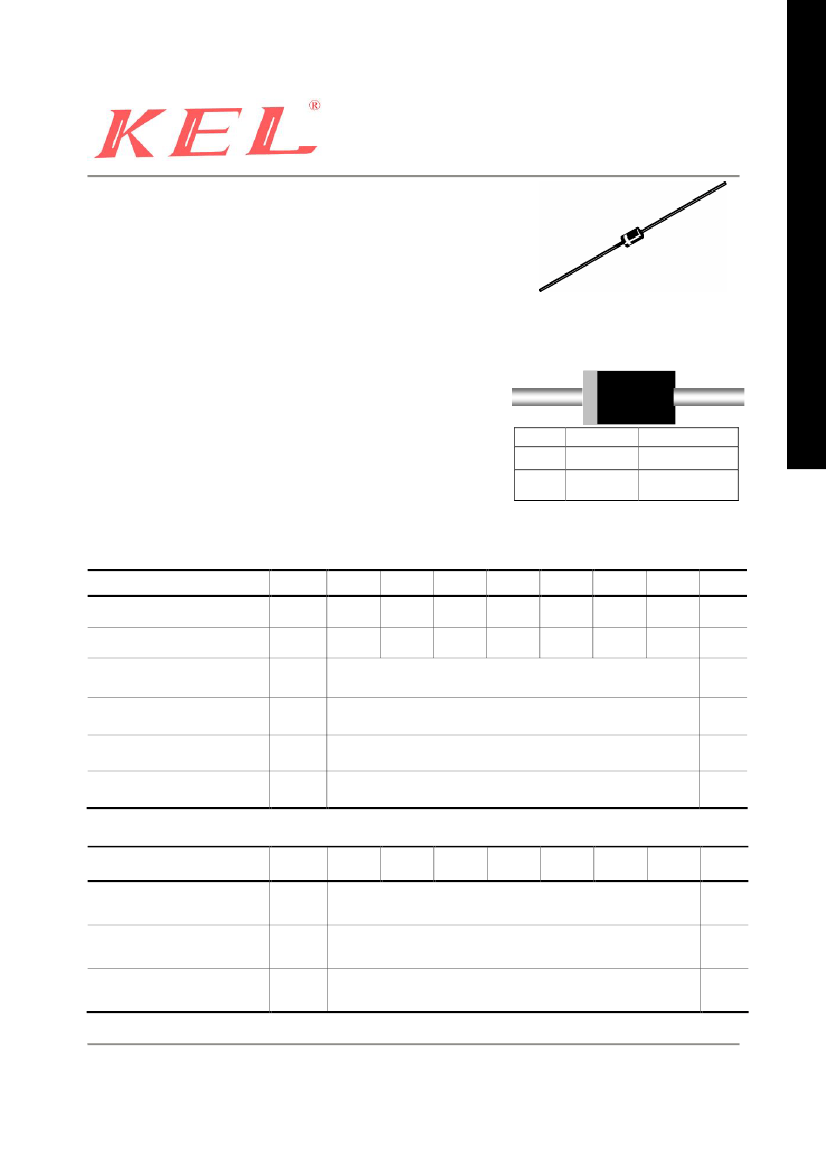

Prel im i nary D a ta Sh e et

General Purpose Rectifiers

Standard Recovery Plastic Silicon Rectifiers

Specification Features:

Case: Epoxy, Molded

Weight: 0.4 gram (approximately)

Finish: All External Surfaces Corrosion Resistant And Terminal Leads Are

Readily Solderable

Lead And Mounting Surface Temperature For Soldering Purposed:

260℃ Max. For 10 Seconds 1.16 Inch From Case

RoHS Compliant or Halogen Free Option

Low Reverse Leakage, High Forward Surge Capability

Cathode Indicated By Polarity Band

Device

Marking

DEVICE MARKING DIAGRAM

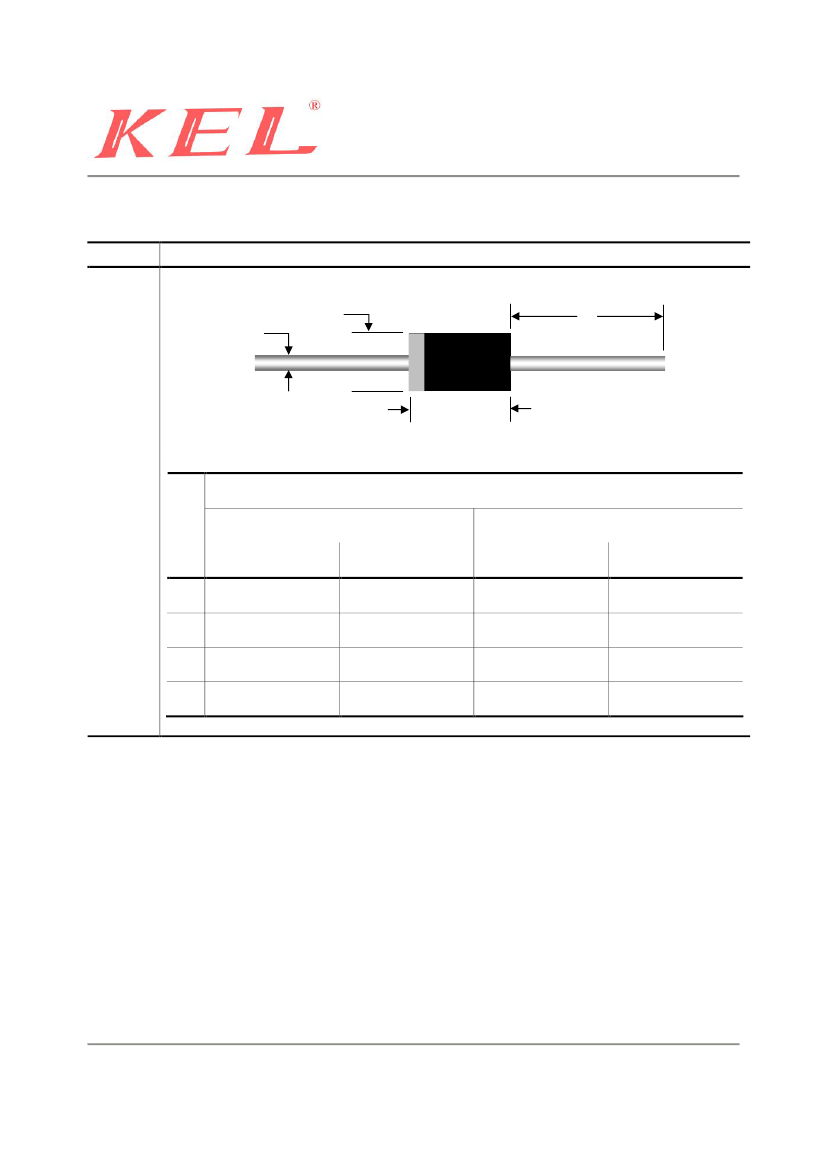

AXIAL LEAD

DO-41

RoHS

1N400X

KEL

Halogen Free

1N400XHF

400XHF

KEL

1N400X = Device Part Number

x

= 1 , 2 , 3 , 4 , 5 , 6 or 7

Absolute Maximum Ratings

Parameter

Maximum Repetitive Peak

Reverse Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectifier Current.

(0.375” Lead Length @ T

A

=75℃)

Non-repetitive Peak Forward

Surge Current.

(8.3mS Single Half Sine-wave)

Operating Junction and Storage

Temperature Range

Thermal Resistance

(Junction to Ambient)

T

A

= 25°C unless otherwise noted

Symbol

V

RRM

V

R

I

F(AV)

1N4001

50

1N4002

100

1N4003

200

1N4004

400

1.0

1N4005

600

1N4006

800

1N4007

1000

Units

V

A

I

FSM

T

J,

T

STG

R

θJA

30

A

-65 to +175

65

°C

°C/W

Electrical Characteristics

Parameter

T

A

= 25°C unless otherwise noted

Symbol

1N4001

1N4002

1N4003

1N4004

1N4005

1N4006

1N4007

Units

Reverse Current @V

R

I

R

5

uA

Forward Voltage @1A

Total Capacitance

@VR=4V, f=1MHz

V

F

1.1

V

C

T

15

pF

Number: DB-082

June 2009 Release / B

Page 1

1N4001 through 1N4007 Series
