1N3534AE3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N3534AE3

Preview

1N3534AE3: DescriptionZener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size114KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

1N3534AE3 Overview

Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS PACKAGE-2

1N3534AE3 Parametric

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Nominal reference voltage	47 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	2 mA
Base Number Matches	1

Preview

Download Datasheet

View All

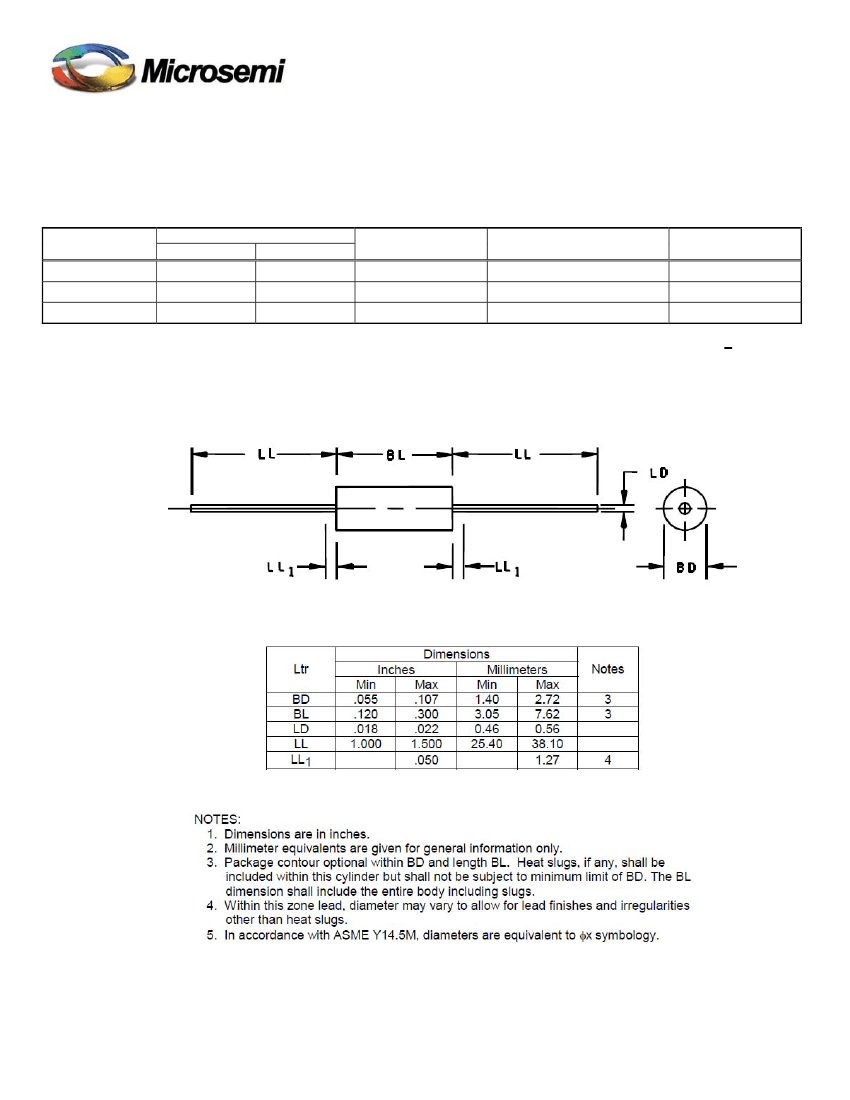

TECHNICAL DATA SHEET

6 Lake Street, Lawrence, MA 01844

1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803

Website: http: //www.microsemi.com

400mW

ZENER VOLTAGE REGULATOR DIODE

DEVICES

1N3506A through 1N3534A

MAXIMUM RATING AT 25

o

C

Junction and Storage Temperature: -65°C to +175°C

DC Power Dissipation: 500mW @ T

EC

= +125°C

Forward Voltage @ 200mA: 1.1 volts maximum

ELECTRICAL CHARACTERISTICS

(TA = 25°C, unless otherwise specified)

Zener Type

#

1N3506A

1N3507A

1N3508A

1N3509A

1N3510A

1N3511A

1N3512A

1N3513A

1N3514A

1N3515A

1N3516A

1N3517A

1N3518A

1N3519A

1N3520A

1N3521A

1N3522A

1N3523A

1N3524A

1N3525A

1N3526A

1N3527A

1N3528A

1N3529A

1N3530A

1N3531A

Zener Voltage @ Izt

Volts

@ mA

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

9.1

1.0

11.0

12.0

13.0

15.0

16.0

18.0

20.0

22.0

24.0

27.0

30.0

33.0

36.0

20.0

10.0

5.0

4.0

3.0

Zener Voltage

Tolerance

5%

Max Zener Impedance

@ Izt Ohms

24.0

22.0

20.0

18.0

16.0

14.0

8.0

3.0

4.0

5.0

6.0

7.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

35.0

38.0

40.0

48.0

50.0

75.0

Power Rating

400mW

DO-35

LDS-0063 Rev. 2 (091964)

Page 1 of 2
