4779742640400 datasheet, PDF - EEWORLD Datasheet

4779742640400: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug,; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerStelvio Kontek SpA

Download Datasheet Parametric View All

4779742640400 Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug,

Parameter Name	Attribute value
Maker	Stelvio Kontek SpA
Reach Compliance Code	compliant
Other features	SIDE ENTRY
body width	0.193 inch
subject depth	0.203 inch
body length	1.604 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	2000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6482 mm
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

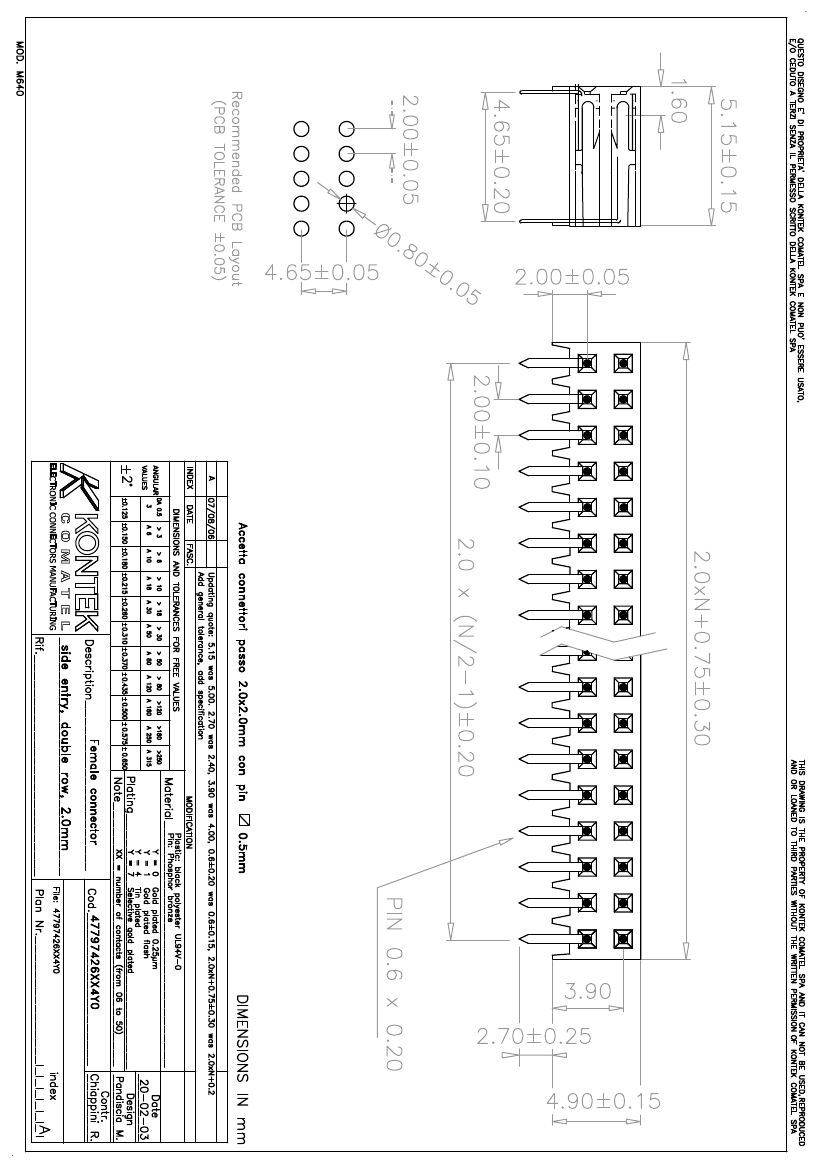

TECHNICAL DATA

Electrical

Current Rating: 1.5A

Dielectric Voltage: 500V AC for one minute

Insulation resistance: 2000Mohm mini

Contact resistence: 20mOhm max

Mechanical

Temperature rating: -40°C to +105°C

general tolerance

.X ±0.25mm

.XX ±0.20mm
