HCS109DMSH datasheet, PDF - EEWORLD Datasheet

HCS109DMSH: DescriptionIC,FLIP-FLOP,DUAL,J/K TYPE,CMOS, RAD HARD,DIP,16PIN,CERAMIC; Categorylogic logic; File Size233KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

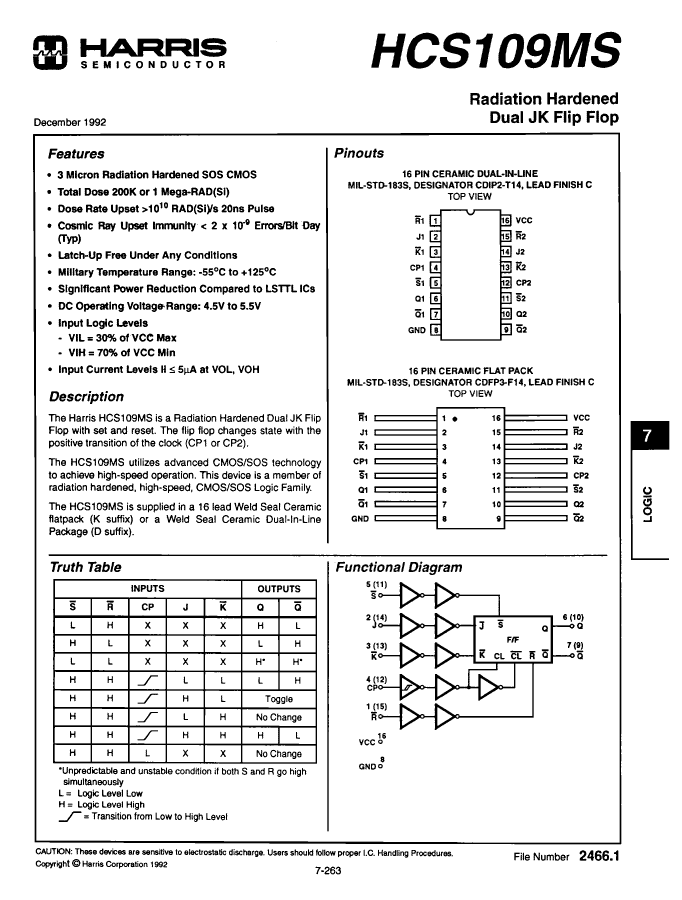

HCS109DMSH Overview

IC,FLIP-FLOP,DUAL,J/K TYPE,CMOS, RAD HARD,DIP,16PIN,CERAMIC

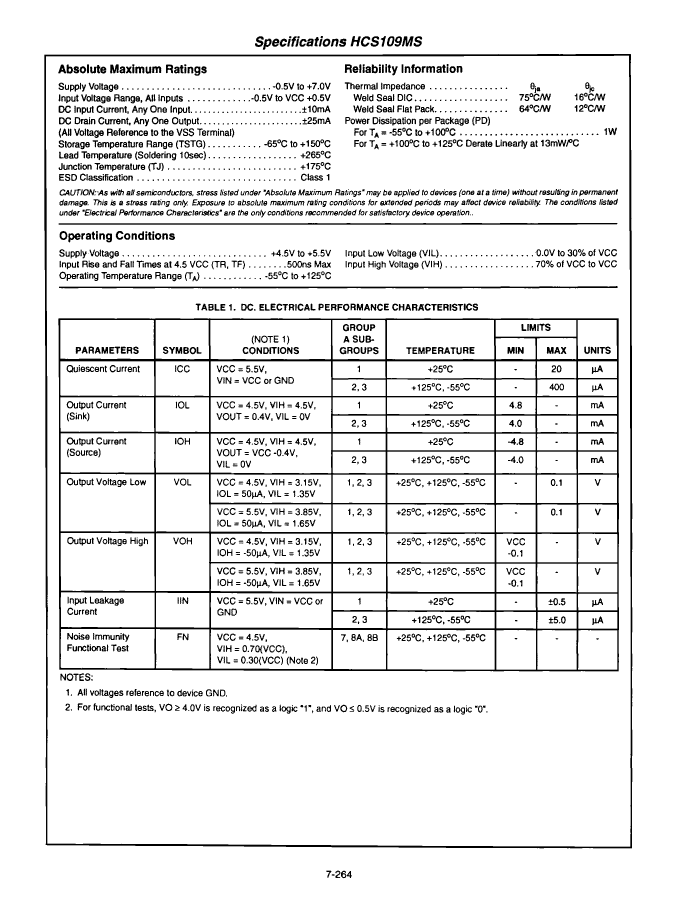

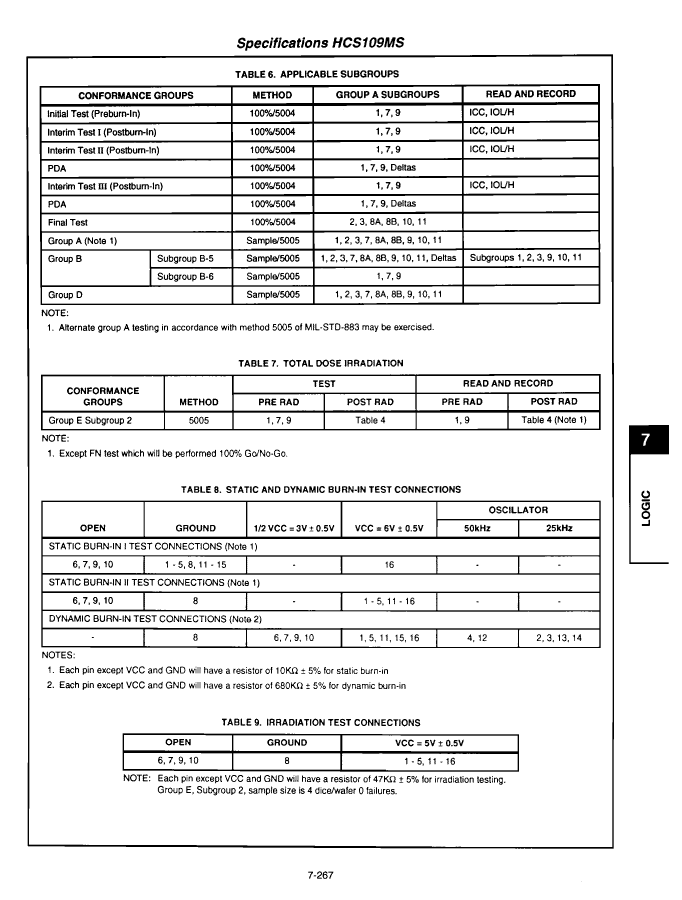

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Reach Compliance Code	not_compliant
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-K FLIP-FLOP
MaximumI(ol)	0.00005 A
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

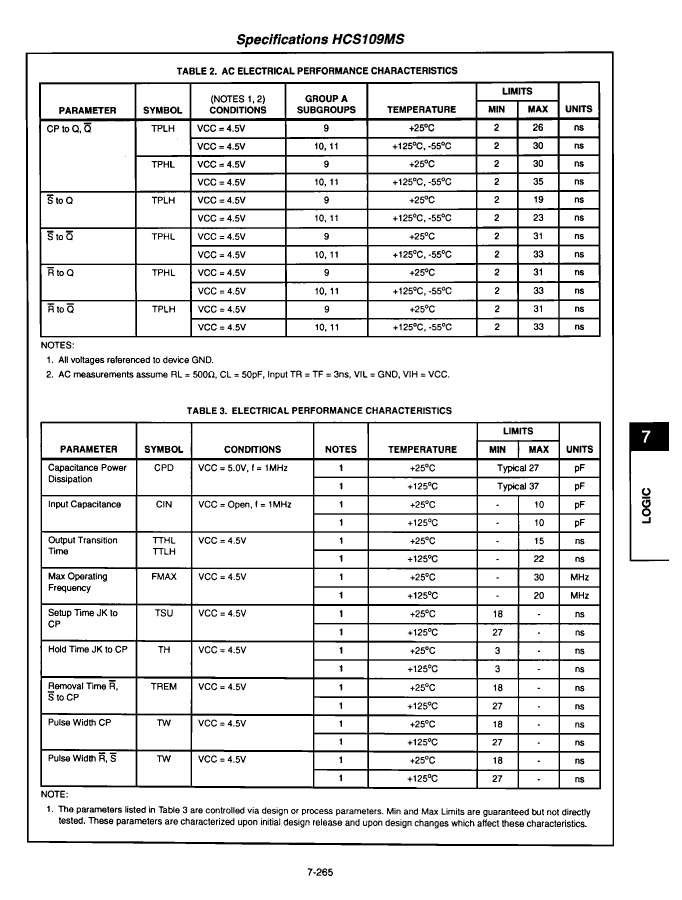

Prop。Delay @ Nom-Sup	44 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

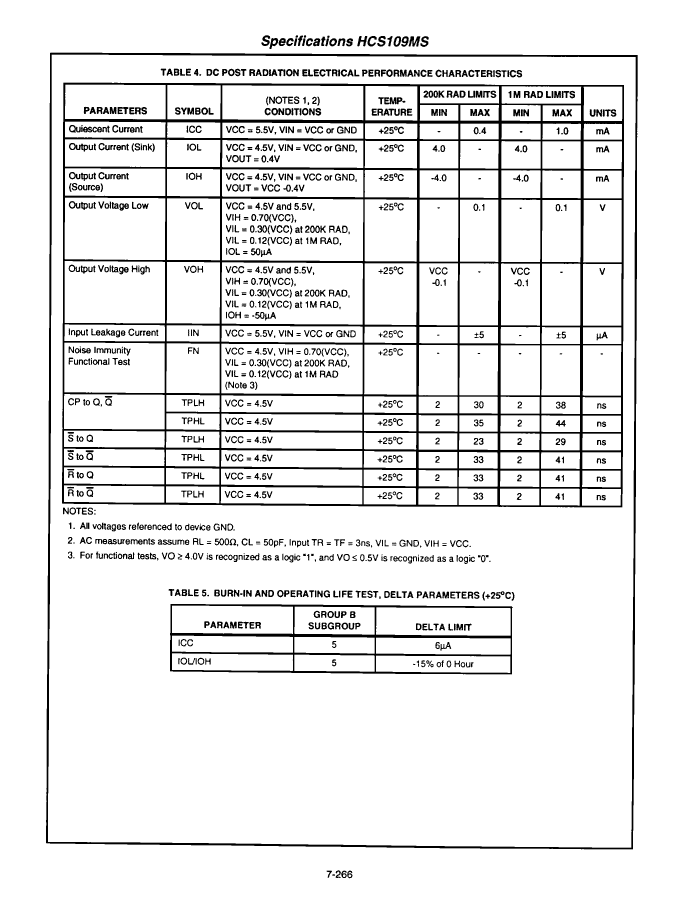

total dose	1M Rad(Si) V
Trigger type	POSITIVE EDGE
Base Number Matches	1

	HCS109DMSH	HCS109KMSH
Description	IC,FLIP-FLOP,DUAL,J/K TYPE,CMOS, RAD HARD,DIP,16PIN,CERAMIC	IC,FLIP-FLOP,DUAL,J/K TYPE,CMOS, RAD HARD,FP,16PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	not_compliant
JESD-30 code	R-XDIP-T16	R-XDFP-F16
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP
MaximumI(ol)	0.00005 A	0.00005 A
Number of functions	2	2
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	44 ns	44 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535V;38534K;883S	38535V;38534K;883S
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	1M Rad(Si) V	1M Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE
