M74HC690M1R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M74HC690M1R

M74HC690M1R: DescriptionHC691/693 4 BIT BINARY COUNTER/REGISTER 3-STATE HC690/692 DECADE COUNTER/REGISTER 3-STATE; Categorylogic logic; File Size403KB，23 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

M74HC690M1R Overview

HC691/693 4 BIT BINARY COUNTER/REGISTER 3-STATE HC690/692 DECADE COUNTER/REGISTER 3-STATE

M74HC690M1R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SO-20
Contacts	20
Reach Compliance Code	compli
Other features	REGISTER/COUNTER OUTPUT SELECT; TCO OUTPUT; REGISTERED OUTPUTS
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDSO-G20
JESD-609 code	e4
length	12.8 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Su	18000000 Hz
MaximumI(ol)	0.006 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
propagation delay (tpd)	310 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.5 mm
minfmax	18 MHz

Preview

Download Datasheet

View All

M54/74HC690/691

M54/74HC692/693

HC690/692 DECADE COUNTER/REGISTER (3-STATE)

HC691/693 4 BIT BINARY COUNTER/REGISTER (3-STATE)

HIGH SPEED

MAX

= 50 MHz (TYP.) at V

= 5 V

LOW POWER DISSIPATION

= 4

µA

(MAX.) at T

= 25

°C

HIGH NOISE IMMUNITY

NIH

= V

NIL

= 28 % V

(MIN.)

OUTPUT DRIVE CAPABILITY

15 LSTTL LOADS (for Q

to Q

)

10 LSTTL LOADS (for RCO)

SYMMETRICAL OUTPUT IMPEDANCE

I



= I

= 6 mA (MIN.) (for Q

to Q

)

I



= I

= 4 mA (MIN.) (for RCO)

BALANCED PROPAGATION DELAYS

PLH

= t

PHL

WIDE OPERATING VOLTAGE RANGE

(OPR) = 2 V to 6 V

PIN AND FUNCTION COMPATIBLE

WITH LSTTL 54/74LS690/691

B1R

(Plastic Package)

F1R

(Ceramic Package)

M1R

(Micro Package)

C1R

(Chip Carrier)

ORDER CODES :

M54HCXXXF1R

M74HCXXXM1R

M74HCXXXB1R

M74HCXXXC1R

DESCRIPTION

The HC690/691/692/693 are high speed CMOS

COUNTER/REGISTER fabricated in silicon gate

MOS technology.

They have the same high speed performance of

LSTTL combined with true CMOS low power con-

sumption.

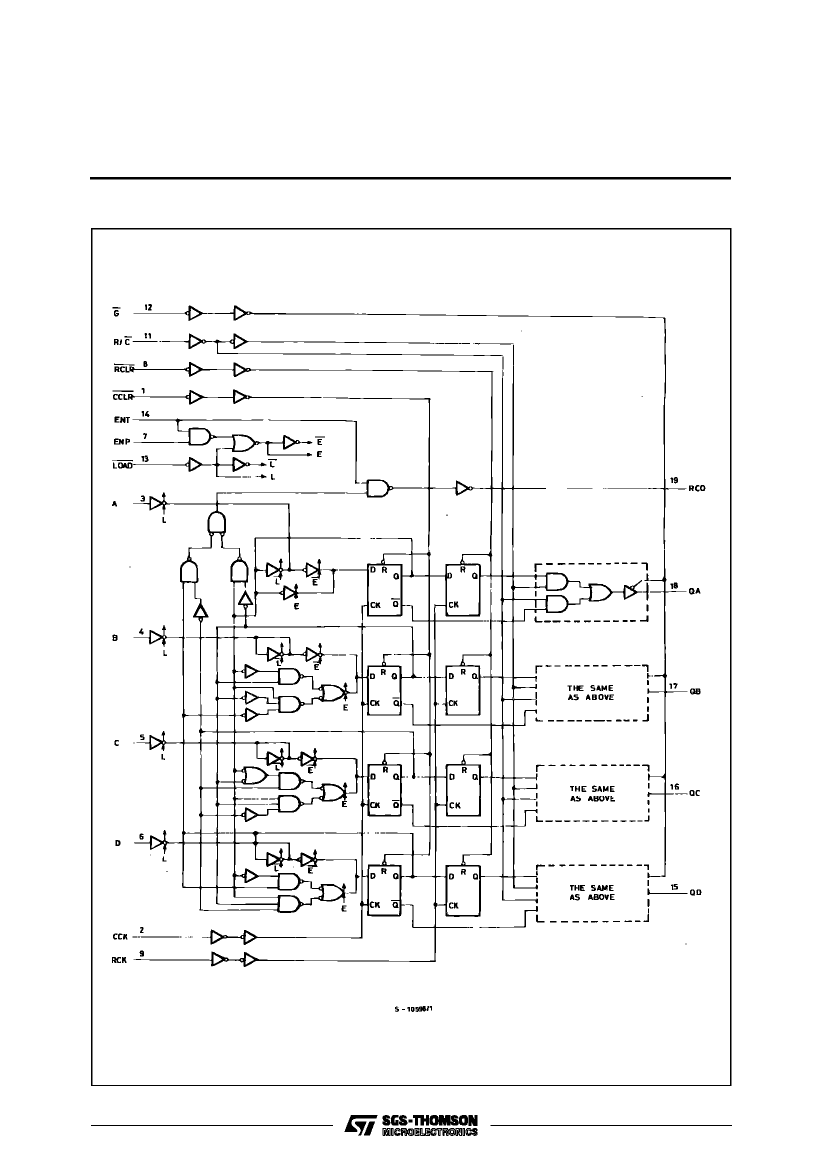

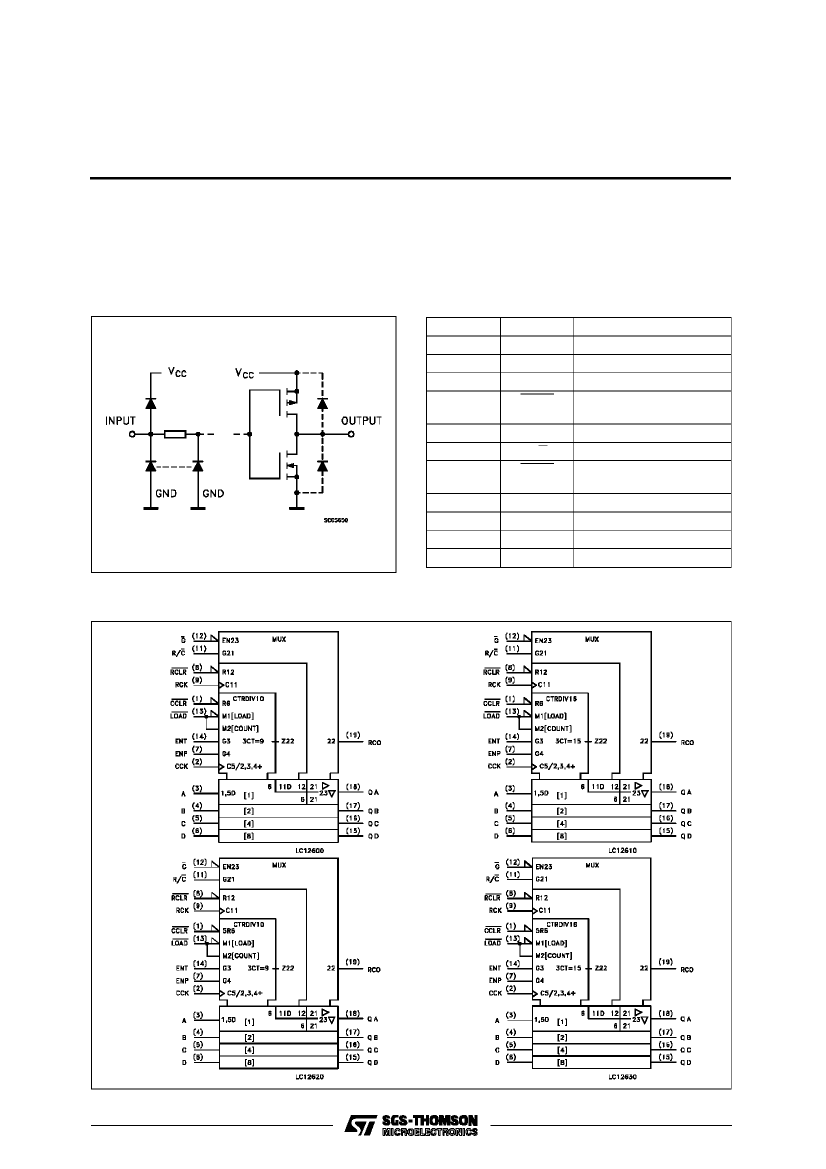

The internal circuit is composed of 3 stages includ-

ing buffer output, which offers high noise immunity

and stable output. These devices incorporate a syn-

chronous counter, four-bit D-type register, and

quadruple two-line to one-line multiplexers with

three-state outputs in a single 20-pin package. The

counter can be programmed from the data inputs

and have enable P and enable T inputs and a ripple-

carry output for easy expansion. The regis-

ter/counter select input, R/C, selects the counter

when low or the register when high for the three-

state outputs, QA, QB, QC, and QD.

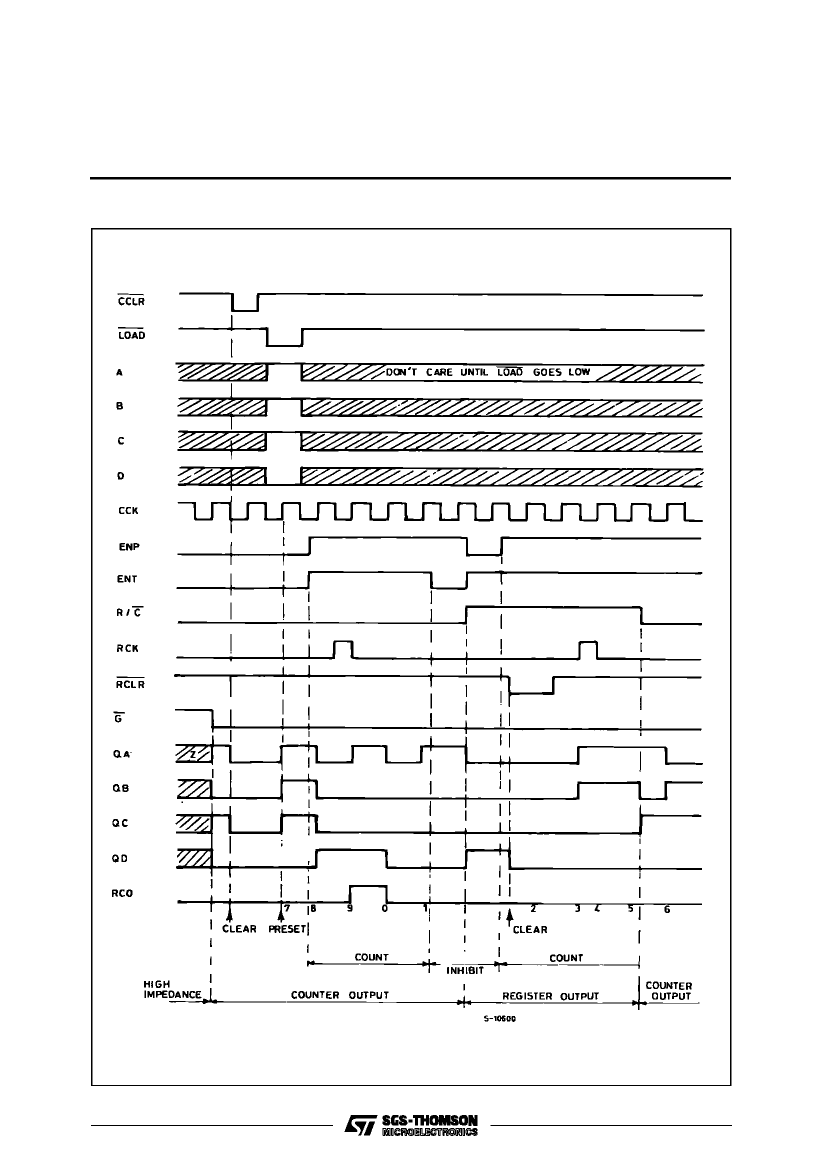

If the LOAD input (LOAD) is held ”L” DATA input (A-

D) are loaded in to the internal counter at positive

edge of counter clock input (CCK). In the counter

mode, internal counter counts up at the positive of

the counter clock. If the counter clear input (CCLR)

is held ”L”, the internal counter is cleared ( synchron-

ously to the counter clock for HC692/HC693, and

asynchronously for HC690/HC691). The internal

March 1993

PIN CONNECTIONS

(top view)

NC =

No Internal

Connection

1/23
