31716-N-Q50-1/1-3NE: DescriptionFEMALE-FEMALE, RF STRAIGHT ADAPTER, JACK-JACK; CategoryThe connector The connector; File Size191KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

31716-N-Q50-1/1-3NE Overview

FEMALE-FEMALE, RF STRAIGHT ADAPTER, JACK-JACK

31716-N-Q50-1/1-3NE Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Adapter type	7/16-N
Other features	VSWR MAX AT 7.5GHZ, VSWR AT 4GHZ: 1.05
Body/casing type	JACK-JACK
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	31716-N-Q50-1
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.17
Base Number Matches	1

Preview

Download Datasheet

View All

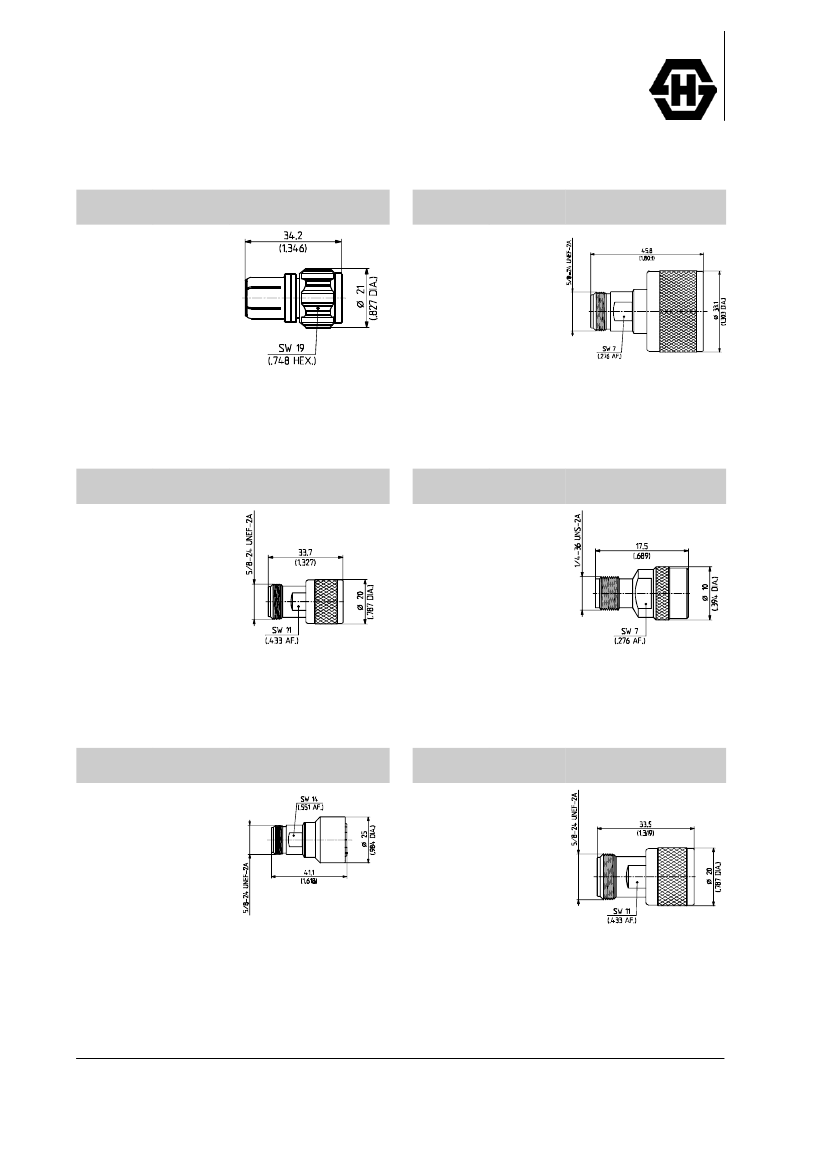

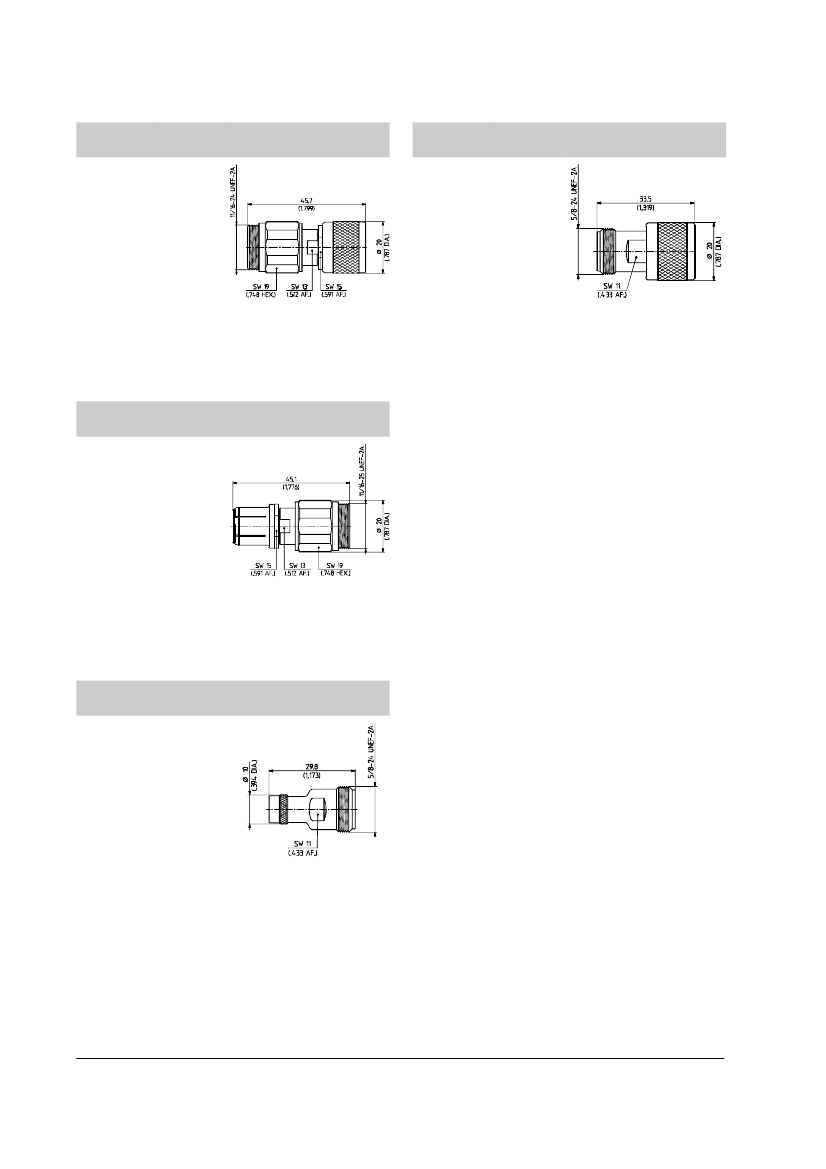

HUBER+SUHNER QUICK-MATE ADAPTORS

300

N

Packaging

Material:

H+S TYPE

Article No.

plug (m)/

jack (f)

single

brass/

SUCO*-

SUCOPRO

33 N-Q50-0-14 / 13- NE

23003160

303

7/16

N

Packaging

Material:

7/16

N

H+S TYPE

Article No.

plug (m)

jack (f)

single

33 716-N-Q50-4 / 133 UE

23000487

brass/SUCO*

VSWR:

DC - 4 GHz:

≤

1.12; 4 - 8 GHz:

≤

1.22

VSWR:

DC - 4 GHz:

≤

1.05; 4 - 7.5 GHz:

≤

1.15

301

N

Packaging

Material:

H+S TYPE

Article No.

plug (m)/

jack (f)

single

brass/SUCO*

33 N-Q50-0-4 / 133 NE

22660297

304

SMA

Packaging

Material:

H+S TYPE

Article No.

plug (m)/

jack (f)

single

CuBe/

SUCOPRO

33 SMA-Q50-0-4 / 1-9 NE

22660213

VSWR:

DC - 5 GHz:

≤

1.07;

5 - 8 GHz:

≤

1.22

8 - 11 GHz:

≤

1.28

VSWR:

DC - 5 GHz:

≤

1.07;

5 - 16 GHz:

≤

1.22

16 - 18 GHz:

≤

1.28

302

7/16

N

Packaging

Material:

7/16

N

H+S TYPE

Article No.

jack (f)

single

31 716-N-Q50-1 / 1-3 NE

23008294

305

BNC

N

Packaging

Material:

BNC

N

H+S TYPE

Article No.

plug (m)

jack (f)

single

33 BNC-N-Q50-4 / 133 NE

23003163

brass/SUCO*

VSWR:

DC - 4 GHz:

≤

1.05

4 - 7.5 GHz:

≤

1.17

VSWR:

DC - 4 GHz:

≤

1.07

Material and plating descriptions may refer to the connector housing or outer contact.

SUCO* = SUCOPLATE

â

HUBER+SUHNER

â

QUICK-MATE Adaptors

31716-N-Q50-1/1-3NE Related Products

	31716-N-Q50-1/1-3NE	33N-Q50-0-4/133NE
Description	FEMALE-FEMALE, RF STRAIGHT ADAPTER, JACK-JACK	MALE-FEMALE, RF STRAIGHT ADAPTER, PLUG-JACK
Reach Compliance Code	unknown	compliant
Adapter type	7/16-N	N-N
Other features	VSWR MAX AT 7.5GHZ, VSWR AT 4GHZ: 1.05	VSWR MAX AT 11GHZ
Body/casing type	JACK-JACK	PLUG-JACK
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE	MALE-FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	31716-N-Q50-1	33N-Q50-0-4
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
voltage standing wave ratio	1.17	1.28
Base Number Matches	1	1
