309CNQ150PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 309CNQ150PBF

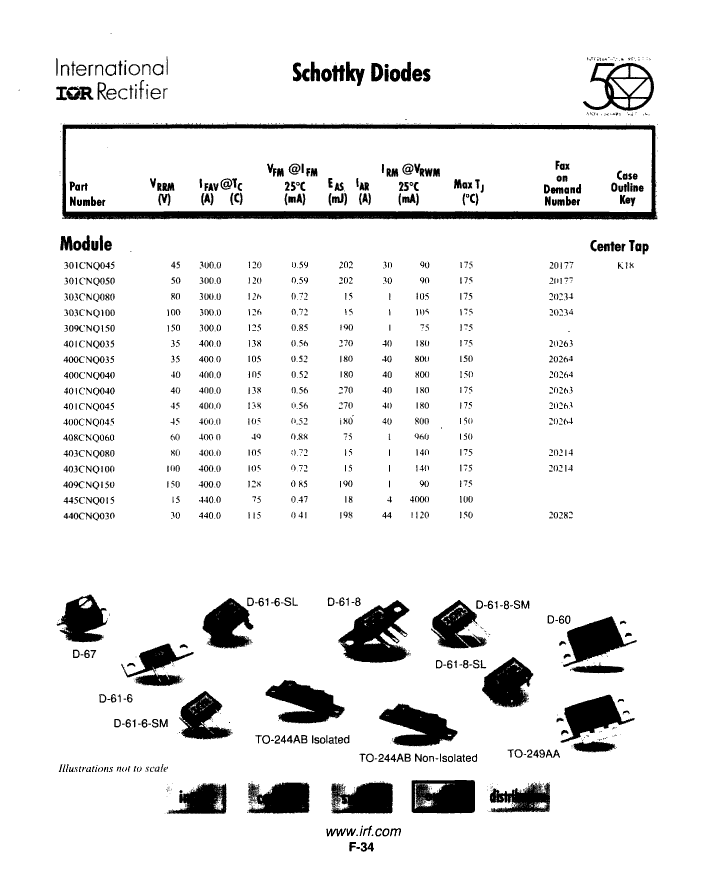

309CNQ150PBF: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 300A, 150V V(RRM), Silicon, TO-244AB; CategoryDiscrete semiconductor diode; File Size32KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

309CNQ150PBF Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 300A, 150V V(RRM), Silicon, TO-244AB

309CNQ150PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	R-PUFM-X2
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	TO-244AB
JESD-30 code	R-PUFM-X2
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	300 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	75000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

309CNQ150PBF Related Products

	309CNQ150PBF	309CNQ150	445CNQ015PBF	445CNQ015	301CNQ050PBF
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 300A, 150V V(RRM), Silicon, TO-244AB	Rectifier Diode, Schottky, 1 Phase, 2 Element, 300A, 150V V(RRM), Silicon, TO-244AB	Rectifier Diode, Schottky, 1 Phase, 2 Element, 440A, 15V V(RRM), Silicon, TO-244AB	Rectifier Diode, Schottky, 1 Phase, 2 Element, 440A, 15V V(RRM), Silicon, TO-244AB	Rectifier Diode, Schottky, 1 Phase, 2 Element, 300A, 50V V(RRM), Silicon, TO-244AB
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	R-PUFM-X2	R-PUFM-X2	R-PUFM-X2	R-PUFM-X2	R-PUFM-X2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.85 V	0.47 V	0.47 V	0.59 V
JEDEC-95 code	TO-244AB	TO-244AB	TO-244AB	TO-244AB	TO-244AB
JESD-30 code	R-PUFM-X2	R-PUFM-X2	R-PUFM-X2	R-PUFM-X2	R-PUFM-X2
Number of components	2	2	2	2	2
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	100 °C	100 °C	175 °C
Maximum output current	300 A	300 A	440 A	440 A	300 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	260	NOT SPECIFIED	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	150 V	15 V	15 V	50 V
Maximum reverse current	75000 µA	75000 µA	4000000 µA	4000000 µA	90000 µA
surface mount	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	NOT SPECIFIED	40	NOT SPECIFIED	40
Base Number Matches	1	1	1	1	1
Is it lead-free?	Lead free	Contains lead	Lead free	-	Lead free
